QHYHUBBUBC4000-RTFemtocell

911702 Rev. 51.12 AIRAVE 2.5 User Guide ©2012 Sprint. Sprint and the logo are trademarks of Sprint. Other marks are trademarks of their respective owners. 911702 Rev. 51.12 Important Messages IMPORTANT: Sprint’s policies often do not apply to third-party applications. Third-party applications may access your personal information or require Sprint to disclose your customer information to the third-party application provider. To find out how a third-party application will collect, access, use, or disclose your personal information, check the application provider’s policies, which can usually be found on their website. If you aren’t comfortable with the third- party application’s policies, don’t use the application. Important Messages c i Table of Contents Introduction ................................................................................................................................ 1 Getting Started........................................................................................................................... 2 Check What’s in the Box ........................................................................................................ 2 Set up at a glance .................................................................................................................. 2 Setting up Your AIRAVE™..................................................................................................... 3 External GPS Antenna Setup ................................................................................................. 5 When is Your AIRAVE Ready for Use? .................................................................................. 6 Setting up Optional Components ............................................................................................... 7 PC or LAN Router Setup ........................................................................................................ 7 Configuring AIRAVE™ Router ................................................................................................ 8 Adding Your ISP User Name and Password .............................................................................. 9 Using Your AIRAVE™...............................................................................................................12 How AIRAVE Works ..............................................................................................................12 Your Broadband Connection Speed...................................................................................12 How Calls and Data Go Over the Internet ..........................................................................13 Maintenance..........................................................................................................................13 Ventilation ..........................................................................................................................13 Cleaning ............................................................................................................................13 Troubleshooting ........................................................................................................................14 Troubleshooting Installation Problems ...................................................................................14 Resetting the AIRAVE ...........................................................................................................15 LED Quick Reference............................................................................................................16 Using LEDs ...........................................................................................................................17 FAQ.......................................................................................................................................21 Why does the AIRAVE™ need a GPS antenna?................................................................21 Why does the AIRAVE™ need an external GPS antenna? ................................................21 What happens to the AIRAVE™ if there is a power outage or if you lose Internet access? 21 Can you move the AIRAVE™ to another location? ............................................................21 How do I know if my phone is connecting through the AIRAVE?........................................21 Getting Help ..........................................................................................................................21 ii Safety Information.....................................................................................................................23 General Precautions..............................................................................................................23 FCC Information ....................................................................................................................24 ! FCC Radiation Exposure Statement ................................................................................24 FCC Part 15.......................................................................................................................24 iii 1 Introduction This User Guide introduces you to the SPRINT® AIRAVE™ service and all its features. It’s divided into four sections: ● Getting Started page 2 ● Setting up Optional Components page 7 ● Using Your AIRAVE™ page12 ● Troubleshooting page 14 ● Safety Information page 23 Throughout this guide, you’ll find tips and techniques that help you make the most of your new device and service. The Table of Contents and Index also help you quickly locate specific information. It is important that you read each section and note any special requirements. However, if you’d like to get right to a specific feature, simply locate that section in the Table of Contents and go directly to that page. Follow the instructions in that section, and you’ll be ready to use your AIRAVE in no time…

Text truncated - open the document above for the full version.

EL2238-1 Airvana External Photographs EL2238-1 Airvana External Photographs EL2238-1 Airvana External Photographs EL2238-1 Airvana External Photographs

UNLESS OTHERWISE SPECIFIED -INTERPRET PER ASME Y14.5M 1994 -ALL DIMENSIONS IN INCHES -DO NOT SCALE DRAWING THIRD ANGLE PROJECTION LABEL; FCC PART 15; TRAIN5 THIS DOCUMENT CONTAINS INFORMATION WHICH IS THE EXCLUSIVE PROPERTY OF AIRVANA INC.. DISTRIBUTION, REPRODUCTION OR USE BY OTHERS IS NOT PERMITTED WITHOUT THE EXPRESS WRITTEN CONSENT OF AIRVANA INC. SIZEDRAWN BYPART NUMBERREV AK. CRAIG61012801 SCALE NONE CAD GENERATED DRAWINGSHEET 1 OF 2 TOLERANCES UNLESS OTHERWISE SPECIFIED X.X.XX.XXXANGLES INCHESN/A0.10.03 0.01 5 1° MATERIAL: FINISH: NOTE 1 REV.DESCRIPTIONDATEBY 01INITIAL ENGINEERING RELEASE01-27-2012KEC D C B A 4321 D C B A 4321 AIRVANA INC. 19 Alpha Rd. Chelmsford, MA 01824 (978) 250-4455 Notes: 1. Material: Label stock, Brady B483 Ribbon resin, R6007 2. Material and process used for fabrication of this part must be RoHS compliant Actual Size 1.125 0.400 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: QHYHUBBUBC4000-RT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: QHYHUBBUBC4000-RT SCALE 2/1 Model: HubBub C1-600-RT Rating: 12V 2A Made in China, Sep 2011 WARNING OF 911 LIMITATIONS: You may not be able to make phone calls, including to 911, in the event of an electrical power outage, broadband connection failure, termination of broadband service or other service disruption. 911 or enhanced 911 services may be limited in areas outside of Sprint’s wireless network coverage. Always be prepared to report your precise location. 800211-00-01 214357 SV This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: QHYHUBBUBC4000-RT

EL2238-1 Airvana Internal Photographs EL2238-1 Airvana Internal Photographs EL2238-1 Airvana Internal Photographs

RF Exposure Information Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 2 4R PG S π = When all the antennas are at least 20cm away from the user, but individual antennas can not be separated by 20cm from each other. If [ Pd(1) / LPd(1) ] + [ Pd(2) / LPd(2) ] + ..... + [ Pd(n) / LPd(n) ] < 1, then device complies with FCC’s RF radiation exposure limit for general population for a mobile device. Where; Pd(n) = Power density of n th transmitter at 20cm LPd(n) = Power density limit for the n th transmitter Device has 3 transmit chains each with a single carrier at a time where all three can operate under Part 24 or two under Part 24 and one under Part 90. Configuration 1: Chain 1: 1xEV-DO 1900MHz band Chain 2: 1xRTT 1900MHz band Chain 3: Beacon in 1900MHz band Configuration 2: Chain 1: 1xEV-DO 1900MHz band Chain 2: 1xRTT 1900MHz band Chain 3: Beacon in 800MHz band For both 1900MHz band and 800MHz band the peak antenna gain is 0dBi. Power density calculations: Configuration 1: Chain 1: EIRP = 13.9dBm Power density = 0.0049mW/cm2 at 20cm Limit = 1 mW/cm2 at 20cm Chain 2: EIRP = 11.5dBm Power density = 0.0028 mW/cm2 at 20cm Limit = 1 mW/cm2 at 20cm Chain 3: EIRP = 13.2dBm Power density = 0.0042 mW/cm2 at 20cm Limit = 1 mW/cm2 at 20cm Configuration 2: Chain 1: EIRP = 13.9dBm Power density = 0.0049mW/cm2 at 20cm Limit = 1 mW/cm2 at 20cm Chain 2: EIRP = 11.5dBm Power density = 0.0028 mW/cm2 at 20cm Limit = 1 mW/cm2 at 20cm Chain 3: ERP = 4.7dBm Power density = 0.0010 mW/cm2 at 20cm Limit = 0.574 mW/cm2 at 20cm All 3 chains can transmit at the same time. Combined MPE Calculations Configuration 1: (0.0049/1) + (0.0028/1) + (0.0042/1) = 0.0119 < 1 Configuration 2: (0.0049/1) + (0.0028/1) + (0.0010/0.574) = 0.0094 < 1 Therefore the device complies with FCC’s RF radiation exposure limits for general population as a mobile device (d>20cm).

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 1 of 27 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EL2238-1 Client Airvana Address 19 Alpha Road Chelmsford, MA 01824 Phone 978-250-2622 Item tested Femto Cell 750701 FCC ID QHYHUBBUBC4000-RT FRN 0021466594 Equipment Type PCS Licensed Transmitter Equipment Code PCB Emission Designator 1M27D7D FCC Rule Parts 47 CFR 24 Subpart E Test Dates January 9-12 th , 2012 Results As detailed within this report Prepared by Matthew Burman – Test Engineer Authorized by Mairaj Hussain – EMC Supervisor Issue Date February 3, 2012 REPORT: EL2238-1 March 31, 2010 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • FAX (978) 486-8828 page 2 of 27 Contents Contents..................................................................................................................................2 Summary.................................................................................................................................3 Test Methodology ....................................................................................................................3 Product Tested - Configuration Documentation .......................................................................4 Statement of Conformity......................................................................................................5 Bandwidth............................................................................................................................6 EIRP..................................................................................................................................12 Band Edge Measurements.................................................................................................14 Radiated Spurious Emissions Measurements....................................................................18 Conducted Spurious Emissions Measurements.................................................................20 Frequency Stability............................................................................................................24 Test Equipment Used........................................................................................................25 Conditions Of Testing ........................................................................................................26 Form Final Report REV 7-20-07 (DW) REPORT: EL2238-1 March 31, 2010 ______________________________________________________________________ Release Control Record Issue No. Reason for change Date Issued 1 Original Release August 14, 2007 _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 3 of 27 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 24 Subpart E. The product is the Femto Cell 750701. It is a transceiver that operates in the range 1930-1990MHz. We found that the product met the above requirements without modification. The test sample was received in good condition. The EUT utilizes 64-QAM modulation on all transmissions. Test Methodology Radiated emission testing was performed according to the procedures specified in ANSI C63.4 (2003) and TIA-603-C. Radiated Emissions were maximized by rotating the device around its upright axes as well as varying the test antenna’s height and polarity. Conducted measurements at the antenna port were performed. The EUT operating voltage is 120Vac 60Hz. For EIRP and antenna port spurious emissions, the frequency range investigated as 1930- 1990MHz The EUT contains 3 intentional transmitters identified as 1x, DO, and Beacon. Possibly, all 3 transmitters could be operating at the same time on the same frequency; therefore a combined EIRP calculation was performed. The Beacon also operates in the 862-869MHz band and was tested as FCC part 90 (Report issued EL2238-2). During line conducted emissions and radiated spurious measurements, the product was removed from the plastic enclosure which should have no effects on EMI results. For antenna port conducted spurious emissions 30MHz to 20GHz was checked. Radiated spurious emissions the frequency range of 30MHz to 20GHz was inspected, along with the digital circuitry. The digital circuitry is compliant to FCC part 15 class B limits for unintentional radiators as issued in work order EM0015. For radiated measurements, the substitution method was used. In the substitution method we initially take field strength readings of the intended and unintended emissions from the product, in maximized position. The product is then replaced and the field strength measurement is repeated with a calibrated antenna, cable and signal generator. The field strength measurement is then converted to a power measurement by subtracting the cable loss and adding the antenna gain to the output level of the signal generator. REPORT: EL2238-1 March 31, 2010 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • F…

Text truncated - open the document above for the full version.

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 1 of 18 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EL2238-2 Client Airvana Address 19 Alpha Road Chelmsford, MA 01824 Phone 978-250-2622 Item tested Femto Cell 750701 FCC ID QHYHUBBUBC4000-RT FRN 0021466594 Equipment Type PCS Licensed Transmitter Equipment Code PCB Emission Designator 1M27D7D FCC Rule Parts 47 CFR 90 Subpart S Test Dates January 9-12 th , 2012 Results As detailed within this report Prepared by Matthew Burman – Test Engineer Authorized by Mairaj Hussain – EMC Supervisor Issue Date February 3, 2012 REPORT: EL2238-2 March 31, 2010 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • FAX (978) 486-8828 page 2 of 18 Contents Contents..................................................................................................................................2 Summary.................................................................................................................................3 Test Methodology ....................................................................................................................3 Product Tested - Configuration Documentation .......................................................................4 Statement of Conformity......................................................................................................5 Occupied Bandwidth............................................................................................................6 ERP.....................................................................................................................................8 Emission Mask.....................................................................................................................9 Radiated Spurious Emissions Measurements....................................................................11 Conducted Spurious Emissions Measurements.................................................................13 Frequency Stability............................................................................................................15 Test Equipment Used........................................................................................................16 Conditions Of Testing ........................................................................................................17 Form Final Report REV 7-20-07 (DW) REPORT: EL2238-2 March 31, 2010 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 3 of 18 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 90. The product is the Femto Cell 750701. It is a transmitter that operates in the range 862-869MHz. We found that the product met the above requirements without modification. The test sample was received in good condition. The EUT utilizes 64-QAM modulation. Test Methodology Radiated emission testing was performed according to the procedures specified in ANSI C63.4 (2003) and TIA-603-C. Radiated Emissions were maximized by rotating the device around its upright axes as well as varying the test antenna’s height and polarity. Conducted measurements at the antenna port were performed. The EUT operating voltage is 120Vac 60Hz. During AC line conducted emissions and radiated spurious measurements, the product was removed from the plastic enclosure which should have no effects on EMI results. For antenna port conducted spurious emissions 30MHz to 20GHz was checked. Radiated spurious emissions in the frequency range of 30MHz to 20GHz were inspected, along with the digital circuitry. The digital circuitry is compliant to FCC part 15 class B limits for unintentional radiators as issued in work order EM0015. Low Channel = 862.9MHz Middle Channel = 866.65MHz High Channel = 868.15MHz REPORT: EL2238-2 March 31, 2010 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 4 of 18 Product Tested - Configuration Documentation EUT Configuration Work Order: L2238 Company: Airvana Company Address:19 Alpha Road Chelmsford, MA 01824 Contact:Stuart MacEachern Person Present: Stuart MacEachern MNPNSN EUT: 750701---Sample 1 EUT Description: Femto Cell EUT Max Frequency: 1000MHz Support Equipment: MNSN IQNAV GPS GeneratorIQN00962--- Dell Latitude LaptopD610--- EUT Ports: Port LabelPort Type No. of ports No. PopulatedCable TypeShieldedFerritesLength Max Length In/Out NEBS TypeUnpopulated Reason AC PowerPower AC112 Wire ACNoNone1.5mNAindoor EthernetEthernet33Cat.5NoNone1.5m100mindoor GPSother11CoaxialYesNone10m10mindoor Software / Operating Mode Description: All three radios are simultaneously active. (Beacon(1941), 1X(1953.8), and 10X (1965MHz)) REPORT: EL2238-2 March 31, 2010 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC…

Text truncated - open the document above for the full version.

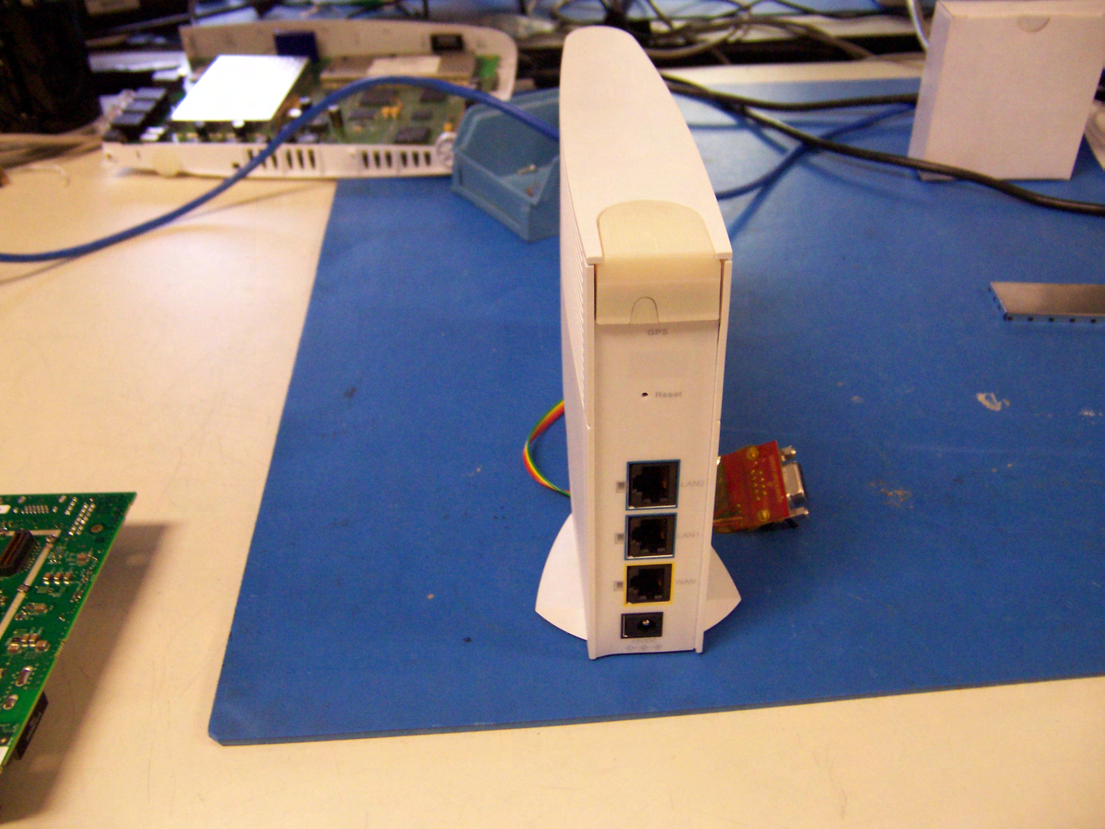

EL2238-1 Airvana Test Setup Photographs Frequency Stability Conducted Measurements EL2238-1 Airvana Test Setup Photographs Radiated Emissions Measurements – OATS – Above 1GHz EL2238-1 Airvana Test Setup Photographs Substitution Method – OATS – Above 1GHz EL2238-1 Airvana Test Setup Photographs Radiated Emissions Measurements – Anechoic Chamber – Below 1GHz EL2238-1 Airvana Test Setup Photographs Radiated Emissions Measurements – Anechoic Chamber – Above 1GHz

EL2239-1 Airvana Test Setup Photographs Frequency Stability Conducted Measurements EL2239-1 Airvana Test Setup Photographs Radiated Emissions Measurements – OATS – Below 1GHz EL2239-1 Airvana Test Setup Photographs Substitution Method – OATS – Below 1GHz EL2239-1 Airvana Test Setup Photographs Radiated Emissions Measurements – Anechoic Chamber – Below 1GHz EL2239-1 Airvana Test Setup Photographs Radiated Emissions Measurements – Anechoic Chamber – Above 1GHz
