QITB41CBluetooth Headset

www.tuv.com Test Report No.: 14025902 001 Appendix 4 page 9 of 10 1.6 User Manual www.tuv.com Test Report No.: 14025902 001 Appendix 4 page 10 of 10

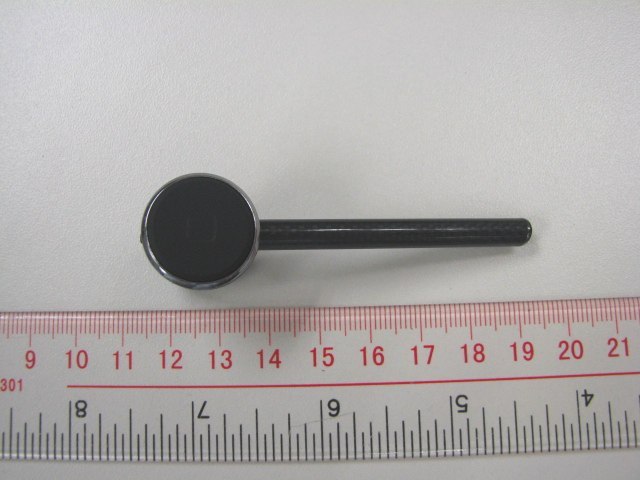

www.tuv.com Test Report No.: 14025902 001 Appendix 3 page 1 of 8 Appendix 3 Construction Photos www.tuv.com Test Report No.: 14025902 001 Appendix 3 page 2 of 8 1.1 External view 1.1.1 Front view 1.1.2 Rear view 1 www.tuv.com Test Report No.: 14025902 001 Appendix 3 page 3 of 8 1.1.3 Side view 1 1.1.4 Side view 2

www.tuv.com Test Report No.: 14025902 001 Appendix 4 page 1 of 10 Appendix 4 Technical Documents www.tuv.com Test Report No.: 14025902 001 Appendix 4 page 2 of 10 1.1 FCCID Label Artwork The yellow oval shows the location of the Rating Label.

www.tuv.com Test Report No.: 14025902 001 Appendix 3 page 4 of 8 Internal view 1.1.5 Front view 1.1.6 Front view 2 www.tuv.com Test Report No.: 14025902 001 Appendix 3 page 5 of 8 1.1.7 Rear view 1 1.1.8 Rear view 2 www.tuv.com Test Report No.: 14025902 001 Appendix 3 page 6 of 8 1.1.9 Rear view 3 1.1.10 Rear view 4 www.tuv.com Test Report No.: 14025902 001 Appendix 3 page 7 of 8 1.1.11 Rear view 5 1.1.12 Rear view 6 www.tuv.com Test Report No.: 14025902 001 Appendix 3 page 8 of 8 1.1.13 Rear view 7 1.1.14 Rear view 8

www.tuv.com Test Report No.: 14025902 001 Date: 25.03.2011 page 2 of 16 Table of Content Page Cover Page .................................................................................1 Table of Content ..........................................................................2 Product information.......................................................................................................4 Manufacturers declarations ....................................................................................................................... 4 Product function and intended use ........................................................................................................... 5 Submitted documents................................................................................................................................. 5 Remark ......................................................................................................................................................... 5 Special accessories and auxiliary equipment .......................................................................................... 5 List of Test and Measurement Instruments.............................................................................................. 6 Results FCC Part 15 – Subpart C ............................................................................................................... 7 Subclause 15.203 – Antenna Information ....................................................................... Pass................. 7 Subclause 15.204 – Antenna Information ....................................................................... Pass................. 7 Subclause 15.207 – Disturbance Voltage on AC Mains................................................. Pass................. 7 Subclause 15.247 (a)(1) – Carrier Frequency Separation .............................................. Pass................. 8 Subclause 15.247 (a)(1)(iii) – Number of hopping channels ......................................... Pass................. 8 Subclause 15.247 (a)(1)(iii) – Time of Occupancy (Dwell Time) ................................... Pass................. 9 Subclause 15.247 (a) – 20 dB Bandwidth........................................................................ Pass................. 9 Subclause 15.247 (a) – Hopping Sequence .................................................................... Pass............... 10 Subclause 15.247 (a) – Equal Hopping Frequency Use................................................. Pass............... 11 Subclause 15.247 (a) – Receiver Input Bandwidth......................................................... Pass............... 12 Subclause 15.247 (a) – Receiver Hopping Capability .................................................... Pass............... 12 Subclause 15.247 (b)(1) – Peak Output Power ............................................................... Pass............... 12 Subclause 15.247 (d) – Band edge compliance of conducted emissions ................... Pass............... 13 Subclause 15.205 – Band edge compliance of radiated emissions ............................ Pass............... 13 Subclause 15.247 (d) – Spurious Conducted Emissions .............................................. Pass............... 14 Subclause 15.247 (c) – Spurious Radiated Emissions .................................................. Pass............... 15 Appendix 1 – Test protocols 27 pages Appendix 2 – Test setup 3 pages www.tuv.com Test Report No.: 14025902 001 Date: 25.03.2011 page 3 of 16 Appendix 3 – Photo documentation 8 pages Appendix 4 – Product documentation 10 pages www.tuv.com Test Report No.: 14025902 001 Date: 25.03.2011 page 4 of 16 Product information Manufacturers declarations Transceiver Operating frequency range 2402 - 2480 MHz Type of modulation GFSK; Pi/4 DQPSK; 8 DPSK Number of channels 79 Channel separation 1 MHz Type of antenna Chip Antenna Antenna gain (dBi) 0 Power level fix Type of equipment stand alone, plug-in radio device Connection to public utility power line No Nominal voltage V nor : 3.7 V Independent Operation Modes Page scan Inquiry scan Connection state - ACL Link Connection state - SCO Link www.tuv.com Test Report No.: 14025902 001 Date: 25.03.2011 page 5 of 16 Product function and intended use The test item is a Bluetooth Headset based on the Bluetooth technology. Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4GHz. With the introduction of the enhanced data rate (EDR) feature, the data rates can be up to 3 Mb/s. An increase in the peak data rate beyond the basic rate of 1 Mb/s is achieved by modulating the RF carrier using phase shift keying (PSK) techniques, resulting in an increase of two to three times the number of bits per symbol. The 2 Mb/s EDR packets use a Pi/4-DQPSK modulation and the 3 Mb/s EDR packets use 8DPSK modulation. The USB connector is for charging only, no data exchange supported. Submitted documents Circuit Diagram Block Diagram Bill of material User manual Remark Preliminary tests were performed in different data rate to find the worst radiated emission. The data rate shown in the table below is the worst-case rate with respect to the specific test item. Investigation has been done on all the possible configurations for searching the worst cases. Special accessories and auxiliary equipment The product has been tested together with the following additional accessory: AC/DC Power adaptor Model number: SSA-5AP-05 UK 050025 Input: 100-240VAC, 50/60Hz, 200mA Output: 5.0VDC 250mA www.tuv.com Test Report No.: 14025902 001 Date: 25.03.2011 page 6 of 16 List of Test and Measurement Instruments Equipment used Manufacturer Model No. S/N Due Date Semi-anechoic Chamber Frankonia Nil Nil 27-Apr-11 Test Receiver R & S ESU26 100050 25-May-11 Bi-conical Antenna R & S HK116 100241 13-Apr-12 Lo…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14025902 001 Appendix 1 page 1 of 27 Appendix 1 Test Results www.tuv.com Test Report No.: 14025902 001 Appendix 1 page 2 of 27 Disturbance Voltage on AC Mains www.tuv.com Test Report No.: 14025902 001 Appendix 1 page 3 of 27 www.tuv.com Test Report No.: 14025902 001 Appendix 1 page 4 of 27 Carrier Frequency Separation A 2.441 GHz RBW 100 kHz 2.441 GHzVBW 300 kHz 2.441 GHz SWT 2.5 ms 2.441 GHz Ref 10 dBm 2.441 GHz Center 2.441 GHz 2.441 GHz Span 3 MHz 2.441 GHz 300 kHz/ 2.441 GHz Att 30 dB 2.441 GHz * 2.441 GHz 1 PK 2.441 GHz MAXH 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.441 GHz Delta 3 [T1] -0.07 dB -1.020000000 MHz Marker 1 [T1] -5.33 dBm 2.441000000 GHz Delta 2 [T1] 0.10 dB 1.002000000 MHz 312 MARKER 1 2.441 GHz Date: 16.FEB.2011 11:25:06 www.tuv.com Test Report No.: 14025902 001 Appendix 1 page 5 of 27 Number of hopping channels A Ref 10 dBmAtt 30 dB * 1 PK MAXH 4.1 MHz/Start 2.4 GHzStop 2.441 GHz RBW 1 MHz VBW 3 MHz SWT 2.5 ms -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 Date: 16.FEB.2011 11:28:48 Ref 10 dBm 2.483 GHz Att 30 dB 2.483 GHz * 2.483 GHz 1 PK 2.483 GHz MAXH 2.483 GHz A 2.483 GHz RBW 1 MHz 2.483 GHzVBW 3 MHz 2.483 GHz SWT 2.5 ms 2.483 GHz Start 2.441 GHz 2.483 GHz Stop 2.483 GHz 2.483 GHz 4.2 MHz/ 2.483 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.483 GHz STOP FREQUENCY 2.483 GHz Date: 16.FEB.2011 11:30:38 www.tuv.com Test Report No.: 14025902 001 Appendix 1 page 6 of 27 Dwell Time Ref 10 dBm 31.6 s Att 30 dB 31.6 s * 31.6 s A 31.6 s Center 2.441 GHz 31.6 s 3.16 s/ 31.6 s RBW 1 MHz 31.6 sVBW 3 MHz 31.6 s SWT 31.6 s 31.6 s 1 AP 31.6 s CLRWR 31.6 s SGL 31.6 s -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 31.6 s SWEEP TIME 31.6 s Date: 16.FEB.2011 11:36:14 www.tuv.com Test Report No.: 14025902 001 Appendix 1 page 7 of 27 Ref 10 dBm 500 ns Att 30 dB 500 ns * 500 ns A 500 ns RBW 1 MHz 500 nsVBW 3 MHz 500 ns CLRWR 500 ns TRG 500 ns Center 2.441 GHz 500 ns 400 μs/ 500 ns SWT 4 ms 500 ns 500 ns 500 ns 500 ns 500 ns 500 ns 500 ns 500 ns 500 ns 500 ns * 500 ns 1 PK 500 ns -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 500 ns Marker 1 [T1] -5.34 dBm 500.000000 ns Delta 2 [T1] 0.05 dB 2.896000 ms 1 2 MARKER 1 500 ns Date: 16.FEB.2011 11:37:53 www.tuv.com Test Report No.: 14025902 001 Appendix 1 page 8 of 27 20dB Bandwidth Modulation: 8 DPSK Tx frequency: 2402MHz Ref 10 dBm 2.40215 GHz Att 30 dB 2.40215 GHz * 2.40215 GHz A 2.40215 GHz Center 2.402 GHz 2.40215 GHz Span 3 MHz 2.40215 GHz 300 kHz/ 2.40215 GHz * 2.40215 GHz RBW 30 kHz 2.40215 GHz SWT 5 ms 2.40215 GHz * 2.40215 GHzVBW 100 kHz 2.40215 GHz 1 PK 2.40215 GHz MAXH 2.40215 GHz 2.40215 GHz 2.40215 GHz 2.40215 GHz 2.40215 GHz 2.40215 GHz 2.40215 GHz 2.40215 GHz 2.40215 GHz 2.40215 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.40215 GHz Delta 2 [T1] -20.22 dB -798.000000000 kHz Marker 1 [T1] -5.63 dBm 2.402150000 GHz Delta 3 [T1] -20.56 dB 504.000000000 kHz 2 1 3 MARKER 1 2.40215 GHz Date: 16.FEB.2011 11:42:37 Modulation: 8 DPSK Tx frequency: 2441MHz Ref 10 dBm 2.44115 GHz Att 30 dB 2.44115 GHz * 2.44115 GHz A 2.44115 GHz 1 PK 2.44115 GHz MAXH 2.44115 GHz Center 2.441 GHz 2.44115 GHz Span 3 MHz 2.44115 GHz 300 kHz/ 2.44115 GHz * 2.44115 GHz * 2.44115 GHz RBW 30 kHz 2.44115 GHzVBW 100 kHz 2.44115 GHz SWT 5 ms 2.44115 GHz 2.44115 GHz 2.44115 GHz 2.44115 GHz 2.44115 GHz 2.44115 GHz 2.44115 GHz 2.44115 GHz 2.44115 GHz 2.44115 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.44115 GHz Delta 2 [T1] -19.95 dB -798.000000000 kHz Marker 1 [T1] -6.18 dBm 2.441150000 GHz Delta 3 [T1] -20.36 dB 504.000000000 kHz 2 1 3 MARKER 1 2.44115 GHz Date: 16.FEB.2011 11:43:29 www.tuv.com Test Report No.: 14025902 001 Appendix 1 page 9 of 27 Modulation: 8 DPSK Tx frequency: 2480MHz Ref 10 dBm 2.480162 GHz Att 30 dB 2.480162 GHz * 2.480162 GHz A 2.480162 GHz Center 2.48 GHz 2.480162 GHz Span 3 MHz 2.480162 GHz 300 kHz/ 2.480162 GHz * 2.480162 GHz * 2.480162 GHz RBW 30 kHz 2.480162 GHzVBW 100 kHz 2.480162 GHz SWT 5 ms 2.480162 GHz 1 PK 2.480162 GHz MAXH 2.480162 GHz 2.480162 GHz 2.480162 GHz 2.480162 GHz 2.480162 GHz 2.480162 GHz 2.480162 GHz 2.480162 GHz 2.480162 GHz 2.480162 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.480162 GHz Delta 3 [T1] -20.56 dB -810.000000000 kHz Marker 1 [T1] -5.81 dBm 2.480162000 GHz Delta 2 [T1] -19.96 dB 492.000000000 kHz 3 1 2 MARKER 1 2.480162 GHz Date: 16.FEB.2011 11:47:31 Modulation: GFSK Tx frequency: 2402MHz Ref 10 dBm 2.402162 GHz Att 30 dB 2.402162 GHz * 2.402162 GHz A 2.402162 GHz Center 2.402 GHz 2.402162 GHz Span 3 MHz 2.402162 GHz 300 kHz/ 2.402162 GHz * 2.402162 GHz RBW 30 kHz 2.402162 GHz SWT 5 ms 2.402162 GHz * 2.402162 GHzVBW 100 kHz 2.402162 GHz 1 PK 2.402162 GHz MAXH 2.402162 GHz 2.402162 GHz 2.402162 GHz 2.402162 GHz 2.402162 GHz 2.402162 GHz 2.402162 GHz 2.402162 GHz 2.402162 GHz 2.402162 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.402162 GHz Delta 2 [T1] -20.27 dB -684.000000000 kHz Marker 1 [T1] -7.07 dBm 2.402162000 GHz Delta 3 [T1] -20.39 dB 342.000000000 kHz 2 1 3 MARKER 1 2.402162 GHz Date: 16.FEB.2011 11:40:16 www.tuv.com Test Report No.: 14025902 001 Appendix 1 page 10 of 27 Modulation: GFSK Tx frequency: 2441MHz Ref 10 dBm 2.441162 GHz Att 30 dB 2.441162 GHz * 2.441162 GHz A 2.441162 GHz Center 2.441 GHz 2.441162 GHz Span 3 MHz 2.441162 GHz 300 kHz/ 2.441162 GHz * 2.441162 GHz * 2.441162 GHz RBW 30 kHz 2.441162 GHzVBW 100 kHz 2.441162 GHz SWT 5 ms 2.441162 GHz 1 PK 2.441162 GHz MAXH 2.441162 GHz 2.441162 GHz 2.441162 GHz 2.441162 GHz 2.441162 GHz 2.441162 GHz 2.441162 GHz 2.441162 GHz 2.441162 GHz 2.441162 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.441162 GHz Delta 2 [T1] -20.55 dB -684.000000000 kHz Marker 1 [T1] -7.54 dBm 2.441162000 GHz Delta 3 [T1] -20.30 dB 342.000000000 kHz 2 1 3 MARKER 1 2.441162 GHz Date: 16.FEB.2011 11:44:45 Modulation: GFSK Tx frequency: 2480MHz Ref 10 dBm 2.480162 GHz Att 30 dB 2.480162 GHz * 2.480162 GHz A 2.480162 GHz 1 PK 2.480162 GHz MAXH 2.480…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14025902 001 Appendix 2 page 1 of 3 Appendix 2 Test Setup Photos www.tuv.com Test Report No.: 14025902 001 Appendix 2 page 2 of 3 Set-up for Radiation Emission (Transceiver) Set-up for Radiation Emission (Transceiver) www.tuv.com Test Report No.: 14025902 001 Appendix 2 page 3 of 3 Set-up for AC wireline conducted emissions
