QITCOKOBluetooth Low Energy Smart Watch

www.tuv.com Test Report No.: 14031278 001 Appendix 4 page 7 of 8 1.6 User Manual www.tuv.com Test Report No.: 14031278 001 Appendix 4 page 8 of 8

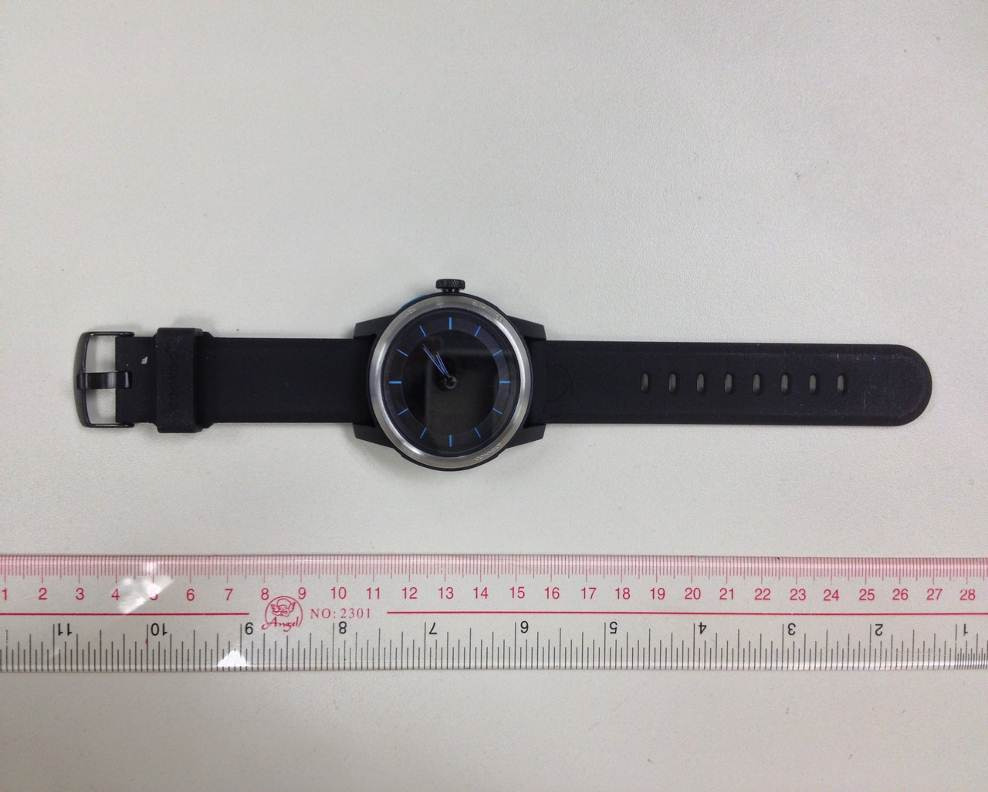

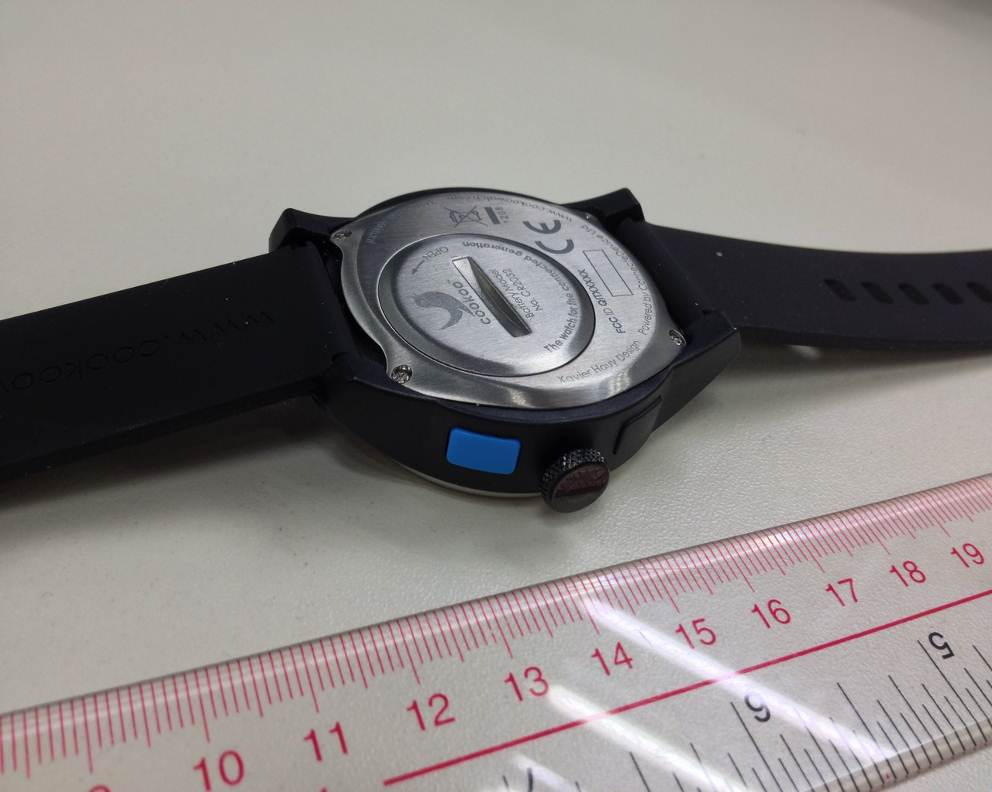

www.tuv.com Test Report No.: 14031278 001 Appendix 3 page 2 of 8 External View External View www.tuv.com Test Report No.: 14031278 001 Appendix 3 page 3 of 8 External View External View

www.tuv.com Test Report No.: 14031278 001 Appendix 3 page 4 of 8 External View Internal View www.tuv.com Test Report No.: 14031278 001 Appendix 3 page 5 of 8 Internal View Internal View www.tuv.com Test Report No.: 14031278 001 Appendix 3 page 6 of 8 Internal View Internal View www.tuv.com Test Report No.: 14031278 001 Appendix 3 page 7 of 8 Internal View Internal View www.tuv.com Test Report No.: 14031278 001 Appendix 3 page 8 of 8 Internal View

www.tuv.com Test Report No.: 14031278 001 Date: 27.11.2012 page 2 of 11 Table of Content Page Cover Page .................................................................................1 Table of Content ..........................................................................2 Product information.......................................................................................................3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use ........................................................................................................... 4 Submitted documents................................................................................................................................. 4 List of Test and Measurement Instruments.................................................................5 Results FCC Part 15 – Subpart C .................................................................................6 Subclause 15.203 – Antenna Information ....................................................................... Pass................. 6 Subclause 15.204 – Antenna Information ....................................................................... Pass................. 6 Subclause 15.207 – Disturbance Voltage on AC Mains................................................... N/A................. 6 Subclause 15.247 (a)(2) – 6dB Bandwidth Measurement.............................................. Pass................. 6 Subclause 15.247 (b)(3) – Maximum Peak Output Power............................................. Pass................. 7 Subclause 15.247 (d) – Spurious Conducted Emissions.............................................. Pass................. 8 Subclause 15.247 (d) – Spurious Radiated Emissions.................................................. Pass................. 9 Subclause 15.247 (d) – Band Edge Emissions ............................................................... Pass............... 10 Subclause 15.205 – Band edge compliance of radiated emissions ............................ Pass............... 10 Subclause 15.247 (e) – Power Spectral Density ............................................................. Pass............... 11 Appendix 1 – Test protocols 20 pages Appendix 2 – Test setup 2 pages Appendix 3 – Photo documentation 8 pages Appendix 4 – Product documentation 11 pages www.tuv.com Test Report No.: 14031278 001 Date: 27.11.2012 page 3 of 11 Product information Manufacturers declarations Transceiver Operating frequency range 2402 - 2480 MHz Type of modulation GFSK Number of channels 40 Channel separation 2 MHz Type of antenna Chip Antenna Antenna gain (dBi) 0 Power level fix Type of equipment stand alone radio device Connection to public utility power line No Nominal voltage V nor : 3.0V Independent Operation Modes Transmitting Receiving www.tuv.com Test Report No.: 14031278 001 Date: 27.11.2012 page 4 of 11 Product function and intended use The COOKOO™ watch cleverly helps you manage your Bluetooth 4.0 smartphone so you don't have to constantly check it. The COOKOO™ watch will notify you when something happens on your phone in real time—even if you can’t hear, see, or reach it. The COOKOO TM watch connects to the latest Bluetooth® Smart Ready iOS or Android devices, such as the iPhone 4S, new iPad, HTC One (S, X, XL) and the new Samsung Galaxy S3—with many more phones to come! Along with the Connected App™, the COOKOO™ watch is designed to simplify your life. The Connected App™ keeps you in control of the alerts and notifications you receive on the COOKOO™ watch. Use the default settings or customize your own based on your lifestyle. Alert can be configured for: • Incoming and missed calls • Text/SMS messages • Emails • Facebook chats and messages • Reminders Submitted documents Circuit Diagram Block Diagram Bill of material Label Artwork User manual www.tuv.com Test Report No.: 14031278 001 Date: 27.11.2012 page 5 of 11 List of Test and Measurement Instruments Hong Kong Productivity Council (Registration number: 90656) Equipment Manufacturer Type S/N Due Date Semi-anechoic Chamber Frankonia Nil Nil 25-May-13 Test Receiver R & S ESU40 100190 26-May-13 Bi-conical Antenna R & S HK116 100242 05-May-13 Log Periodic Antenna R & S HL223 841516/020 06-May-13 Coaxial cable 50ohm Rosenberger RTK081-05S- 05S-10m LA2-001-10M / 001 15-Nov-13 Microwave amplifer 0.5- 26.5GHz, 25dB gain HP 83017A 3950M00241 03-Oct-13 High Pass Filter (cutoff freq. =1000MHz) Trilithic 23042 9829213 28-Oct-13 Horn Antenna EMCO 3115 9002-3351 11-May-13 Double-Ridge Waveguide Horn EMCO 3116 2616 11-May-13 Active Loop Antenna EMCO 6502 9107-2651 21-Jun-13 FSP 30 Spectrum Analyser R & S FSP 30 100007 17-Sep-13 www.tuv.com Test Report No.: 14031278 001 Date: 27.11.2012 page 6 of 11 Results FCC Part 15 – Subpart C Subclause 15.203 – Antenna Information Pass Requirement: No antenna other than that furnished by the responsible party shall be used with the device Results: Permanent attached antenna Verdict: Pass Subclause 15.204 – Antenna Information Pass Requirement: Provide information for every antenna proposed for the use with the EUT Results: a) Antenna type: Chip Antenna b) Manufacturer and model no: N.A. c) Gain with reference to an isotropic radiator: 0 dBi Verdict: Pass Subclause 15.207 – Disturbance Voltage on AC Mains N/A The EUT is powered by battery. Subclause 15.247 (a)(2) – 6dB Bandwidth Measurement Pass Requirement: Systems using digital modulation techniques may operate in the 902 – 928 MHz, 2400 – 2483.5 MHz, and 5725 – 5850 MHz bands. The minimum 6dB bandwidth shall be at least 500kHz. There is no requirement for hybrid system to comply with the 500 KHz minimum bandwidth normally associated with a DTS transmission. In addition, the EBW is required information for subsequent band power measurement. EBW Test Specification : FCC Part 15 Subpar…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 1 of 20 Appendix 1 Test Results www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 2 of 20 Emission Bandwidth Measurement Tx frequency: 2402MHz Ref 10 dBmAtt 20 dB * * * A RBW 30 kHz VBW 100 kHz SWT 10 ms Center 2.402 GHzSpan 5 MHz500 kHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -10.01 dBm 2.401950000 GHz 2 Delta 2 [T1 ] -6.11 dB -320.000000000 kHz 3 Delta 3 [T1 ] -6.76 dB 400.000000000 kHz Date: 29.OCT.2012 13:35:17 Tx frequency: 2440MHz Ref 10 dBmAtt 20 dB * * * A RBW 30 kHz VBW 100 kHz SWT 10 ms Center 2.44 GHzSpan 5 MHz500 kHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -10.34 dBm 2.440010000 GHz 2 Delta 2 [T1 ] -6.76 dB -390.000000000 kHz 3 Delta 3 [T1 ] -6.30 dB 340.000000000 kHz Date: 29.OCT.2012 13:39:45 www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 3 of 20 Tx frequency: 2480MHz Ref 10 dBmAtt 20 dB * * * A RBW 30 kHz VBW 100 kHz SWT 10 ms Center 2.48 GHzSpan 5 MHz500 kHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -10.62 dBm 2.479920000 GHz 2 Delta 2 [T1 ] -6.35 dB -290.000000000 kHz 3 Delta 3 [T1 ] -6.28 dB 410.000000000 kHz Date: 29.OCT.2012 13:29:19 www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 4 of 20 6 dB Bandwidth Measurement Tx frequency: 2402MHz Ref 10 dBmAtt 20 dB * * * A RBW 100 kHz VBW 300 kHz SWT 2.5 ms Center 2.402 GHzSpan 5 MHz500 kHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -6.74 dB m 2.401720000 GHz 2 Delta 2 [T1 ] -6.24 dB -90.000000000 kHz 3 Delta 3 [T1 ] -6.34 dB 620.000000000 kHz Date: 29.OCT.2012 13:17:56 Tx frequency: 2440MHz Ref 10 dBmAtt 20 dB * * * A RBW 100 kHz VBW 300 kHz SWT 2.5 ms Center 2.44 GHzSpan 5 MHz500 kHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -7.42 dBm 2.440230000 GHz 2 Delta 2 [T1 ] -6.05 dB -600.000000000 kHz 3 Delta 3 [T1 ] -6.29 dB 100.000000000 kHz Date: 29.OCT.2012 13:22:34 www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 5 of 20 Tx frequency: 2480MHz Ref 10 dBmAtt 20 dB * * * A RBW 100 kHz VBW 300 kHz SWT 2.5 ms Center 2.48 GHzSpan 5 MHz500 kHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -8.19 dBm 2.479720000 GHz 2 Delta 2 [T1 ] -6.27 dB -110.000000000 kHz 3 Delta 3 [T1 ] -6.38 dB 600.000000000 kHz Date: 29.OCT.2012 13:23:42 www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 6 of 20 Maximum Peak Output Power Tx frequency: 2402MHz Ref 10 dBmAtt 20 dB * * Center 2.402 GHz250 μs/ A RBW 1 MHz VBW 3 MHz SWT 2.5 ms MAXH 1 PK -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -6.32 dBm 1.855000 ms Date: 29.OCT.2012 13:35:37 Tx frequency: 2440MHz Ref 10 dBmAtt 20 dB * * Center 2.44 GHz250 μs/ A RBW 1 MHz VBW 3 MHz SWT 2.5 ms MAXH 1 PK -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -7.14 dBm 750.000000 μs Date: 29.OCT.2012 13:40:02 www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 7 of 20 Tx frequency: 2480MHz Ref 10 dBmAtt 20 dB * * Center 2.48 GHz250 μs/ A RBW 1 MHz VBW 3 MHz SWT 2.5 ms MAXH 1 PK -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -8.02 dBm 345.000000 μs Date: 29.OCT.2012 13:29:41 www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 8 of 20 Spurious Conducted Emissions Tx frequency: 2402MHz Ref 10 dBmAtt 20 dB * * * A RBW 100 kHz VBW 300 kHz SWT 60 s Center 12.5 GHzSpan 25 GHz2.5 GHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -7.94 dBm 2.400000000 GHz 2 Delta 2 [T1 ] -35.83 dB 2.400000000 GHz 3 Delta 3 [T1 ] -45.04 dB 4.800000000 GHz Date: 29.OCT.2012 13:38:32 Tx frequency: 2440MHz Ref 10 dBmAtt 20 dB * * * A RBW 100 kHz VBW 300 kHz SWT 60 s Center 12.5 GHzSpan 25 GHz2.5 GHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -8.10 dB m 2.400000000 GHz 2 Delta 2 [T1 ] -37.44 dB 2.450000000 GHz 3 Delta 3 [T1 ] -44.27 dB 4.900000000 GHz Date: 29.OCT.2012 13:42:40 www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 9 of 20 Tx frequency: 2480MHz Ref 10 dBmAtt 20 dB * * * A RBW 100 kHz VBW 300 kHz SWT 60 s 1 PK MAXH * Start 0 HzStop 25 GHz2.5 GHz/ -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -9.95 dBm 2.450000000 GHz 2 Delta 2 [T1 ] -38.80 dB 2.500000000 GHz 3 Delta 3 [T1 ] -41.97 dB 5.000000000 GHz Date: 29.OCT.2012 13:32:32 www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 10 of 20 Band Edge Emissions Tx frequency: 2402MHz (conducted measurement; hopping on) Ref 10 dBmAtt 20 dB * * * A RBW 100 kHz VBW 300 kHz SWT 2.5 ms Center 2.394 GHzSpan 20 MHz2 MHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -6.65 dBm 2.402280000 GHz 2 Marker 2 [T1 ] -46.50 dBm 2.396240000 GHz Date: 29.OCT.2012 13:34:15 Tx frequency: 2480MHz (conducted measurement; hopping on) Ref 10 dBmAtt 20 dB * * * A RBW 100 kHz VBW 300 kHz SWT 2.5 ms Center 2.488 GHzSpan 20 MHz2 MHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -8.42 dBm 2.479720000 GHz 2 Marker 2 [T1 ] -50.26 dBm 2.485760000 GHz Date: 29.OCT.2012 13:24:53 www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 11 of 20 Tx frequency: 2402MHz (radiated measurement) Vertical Polarization www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 12 of 20 Vertical Polarization www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 13 of 20 Horizontal Polarization www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 14 of 20 Horizontal Polarization www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 15 of 20 Tx frequency: 2480MHz (radiated measurement) Vertical Polarization www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 16 of 20 Vertical Polarization www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 17 of 20 Horizontal Polarization www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 18 of 20 Horizontal Polarization www.tuv.com Test Report No.: 14031278 001 Appendix 1 page 19 of 20 Power Spectral Density Tx frequency: 2402MHz Ref 10 dBm…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14031278 001 Appendix 2 page 2 of 2 Set-up for Radiated Emission Set-up for Radiated Emission
