QITCD002Bluetooth Low Energy Smart Watch

Quick Start Guide Pairing: When the watch is OFF, press COMMAND + POWER buttons until 1st beep (approx. 3 sec) and all icons will blink every 2 sec. Reset the watch: Press and hold the COMMAND + POWER + PAGE LEFT + PAGE RIGHT buttons until you see the ALERT icon on the CONNECTED Display and then the watch turns off. Incoming Call, Missed Call notification: EN COMMAND POWER NOTIFICATIONS PAGE RIGHTPAGE LEFT SET TIME Pull 1/2 way and turn to set the time Blink and vibrate with optional beeps Power on/off > 3 sec NOTIFICATIONS Tap PAGE LEFT or PAGE RIGHT to view additional information Tap PAGE LEFT and PAGE LEFT together to see the time again LIGHT Tap any button Caller ID (iOS only at this moment) will be displayed during incoming calls. Call numbers will be display if the number is not stored in your phone book. Caller ID support Latin characters only. TEXT and social media app alerts: Support SMS, MMS and social media posts on Facebook, Twitter and message notification from WhatsApp, WeChat, Skype and more... Email alerts: Inbound email alerts. Calendar and Reminder alerts: Alerts you when there are upcoming events or reminders. Low and Critical battery alerts: The CONNECTED display shows the battery percentage and the Low and Critical battery icons blinks respectively. To find the COGITO watch: The watch beeps and blinks when tapping the find my watch icon in the CONNECTED WATCH app. After tapping the out of range icon , the watch beeps and blinks when your phone and watch are apart from each other. To activate out of range notification: Alarms: Alerts you when you have alarms. This function is currently supported by Android only. Step 3: Customize your COGITO watch’s notification settings. Tap the Notification Settings icon at the top right of the CONNECTED WATCH app (iOS7 and Android) and select which notifications do you wish to receive on your COGITO watch. To acknowledge the notification: Press the COMMAND button or check the notification on your mobile phone or tablet. Step 1: Download the CONNECTED WATCH app For iOS users: Search for the “CONNECTED WATCH” app in the App Store. Compatible with iOS 7 devices that support Bluetooth® Smart technology such as the iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s, iPad mini, iPad (3rd and 4th generation), and iPod touch (5th generation). For Android users: Download the “CONNECTED WATCH” app from the Google Play. The app is available for selected Android 4.3 and Android 4.4 devices that support Bluetooth® Smart technology. Currently compatible with Samsung Galaxy S3, S4, S4 Mini, S4 Active, Note 2, Note 3, HTC One, Nexus 5, etc. Visit www.cogitowatch.com for the latest compatibility list. Contact [email protected] if App Store or Google Play is not supported in your country. Step 2: Pair and connect the COGITO watch with your mobile phone or tablet To mute/unmute your watch: Press the COMMAND button for 5 sec to mute the watch. Press another 5 sec to unmute the watch and you will hear a beep sound. Mute the watchUnmute the watch EN 1. Set the watch into PAIRING mode by pressing the COMMAND + POWER until 1st beep (approx. 3 sec) and all icons will blink every 2 sec. For iOS7 user: Open your Bluetooth settings and select “COGITO” in the device list. Press “PAIR” when prompted. For Android user: Open the CONNECTED WATCH app and tap the Device List icon at the bottom left. The app will search for your watch accordingly. Select “COGITO” in the device list to connect. 2. To take photos using your COGITO watch: Tap the Camera icon in the CONNECTED WATCH app, this will trigger the camera interface of the app. Press the COMMAND button you can take photos remotely. For support, please email us at [email protected] For more information about the watch and CONNECTED WATCH app, visit cogitowatch.com Thank you for supporting COGITO™ 1. Open the back case of the watch to remove the old battery. 2. Now replace with new battery. 3. Carefully replace the back case of the watch, ensuring that the o-ring is correctly seat ed (for a water tight seal ). One year free limited warranty Register your product by s ett ing-up a CONNECTEDEVICE account in the CONNECTED WATCH app. You will need to keep your original receipt as proof of purchase. To keep y our watch in good c ondition and to avoid voiding th e warr ant y: • Do not expose the watch to excessive pressure, impact, dust, open flames or extreme temperatures. • Operating temperature: -20 to +55C. (-4 to +131F) • Always ensure the back case and o-ring is correctly in place and th e watch is tig ht ly sealed before exposing th e watch to any moisture o r li quid. • Do not attempt to repair or modify the watch yourself. Service and maintenance should be performed by authorized technicians. • 10 ATM/100 M of water resistance means that your watch can be worn for most indoor or outdoor activities, including most water sports. Do not wear it while bathing, snorkeling or scuba diving. • Avoid submerging th e watch for an e xtended period of ti me. • To maintain water resistance, do not press any buttons or pull out the crown while under water. • Keep th e front glass away from sh arp or hard objects to prevent scratches. • Exposure to high or low temperatures or frequent successive alerts may shorten battery life. • Keep the watch, accessories and any small parts out of the reach of children. EN Replacing the connected system battery: 2 0 0 D C - A 3 4 3 7 : C I • 2 0 0 D C T I Q D I C C F • 2 0 0 D C : l e d o M 1 0 A T M W A T E R R E S I S T C O G I T O w a t c h . c o m 2 3 0 2 R C : e p y t y r e t t a B d t L E C I V E D T C E N N O C y b d e r e w o P a n i h C n i d e l b m e s s A • A S U n i d e r e e n i g n E • n g i s e d Y U O H R E I V A X 8 8 8 8 8 8 8 . 1 0 4 1 Battery cover (Open to insert/ replace the battery) model CR2032 model SR626SW Replacing the analog movement battery: 1. Open the back case of the watch and remove the CR2032 cell button battery. 2. Remove the protective sticker and ca…

Text truncated - open the document above for the full version.

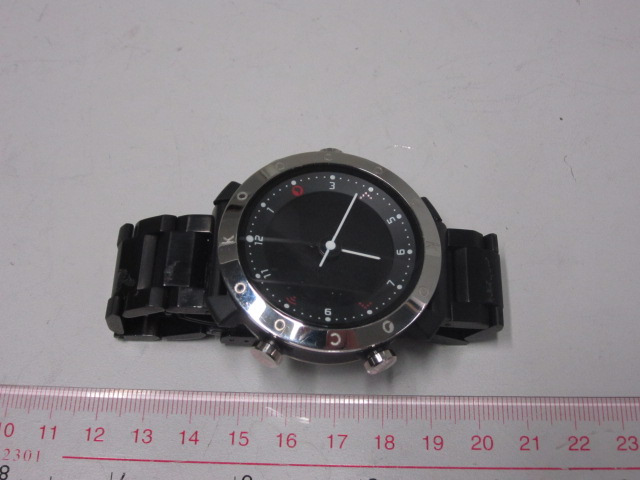

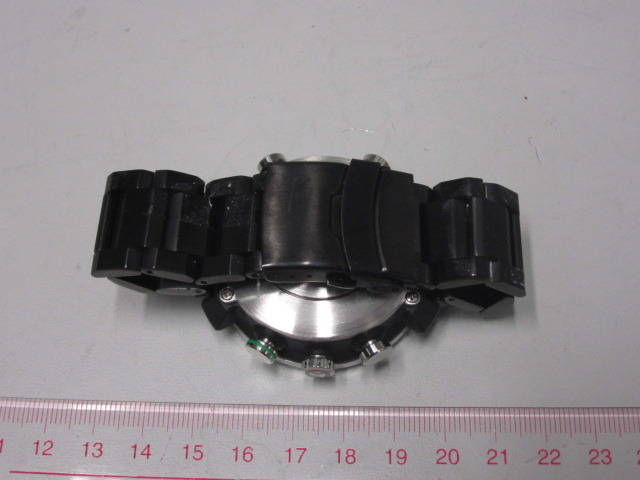

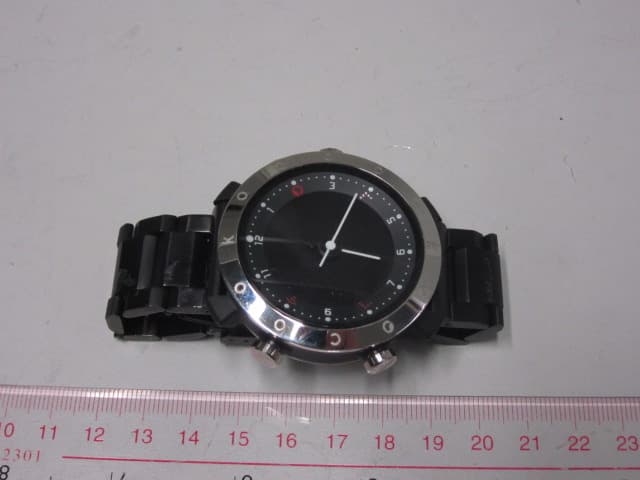

www.tuv.com 14034088 001 Appendix 3 2 / 7 External View External View www.tuv.com 14034088 001 Appendix 3 3 / 7 External View Internal View

www.tuv.com 14034088 001 Appendix 4 2 / 9 1.1 FCCID / IC Label Artwork

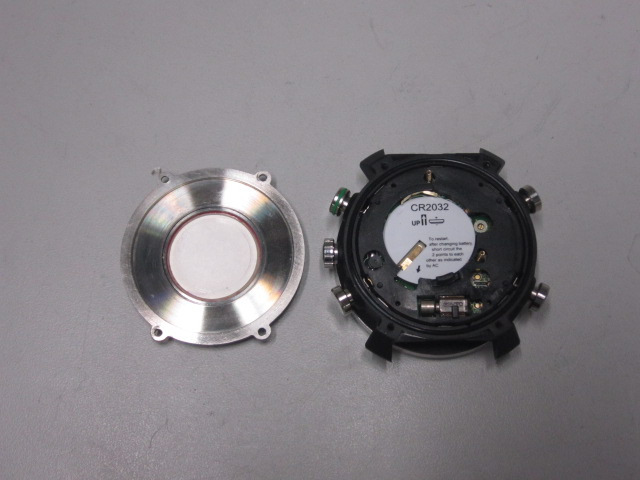

www.tuv.com 14034088 001 Appendix 3 4 / 7 Internal View Internal View www.tuv.com 14034088 001 Appendix 3 5 / 7 Internal View Internal View www.tuv.com 14034088 001 Appendix 3 6 / 7 Internal View Internal View www.tuv.com 14034088 001 Appendix 3 7 / 7 Internal View Internal View

www.tuv.com 14034088 001 Date: 21.03.2014 2 / 12 Table of Content Page Cover Page .............................................................................. 1 Table of Content ....................................................................... 2 Product information....................................................................................................... 3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use ........................................................................................................... 3 Submitted documents ................................................................................................................................. 3 Remark ......................................................................................................................................................... 3 List of Test and Measurement Instruments ................................................................. 4 Results FCC Part 15 – Subpart C / RSS-Gen, RSS-210 .............................................. 5 FCC 15.203 / RSS-Gen 7.1.2 – Antenna Requirement 1 ................................................. Pass ................. 5 FCC 15.204 / RSS-Gen 7.1.2 – Antenna Requirement 2 ................................................. Pass ................. 5 RSS-Gen 5.4 – Transmitter External Control .................................................................. Pass ................. 5 FCC 15.207 / RSS-Gen 7.2.4 – Disturbance Voltage on AC Mains .................................. N/A ................. 5 FCC 15.247 (a)(2) / RSS-210 A8.2 (a) – 6dB Bandwidth Measurement ......................... Pass ................. 6 FCC 15.247 (b) (1), (3) / RSS-210 A8.4 (4) – Maximum Peak Output Power ................. Pass ................. 7 FCC 15.247 (d) / RSS-210 A8.5 – Spurious Conducted Emissions ............................... Pass ................. 8 FCC 15.247 (d) / RSS-Gen 7.2.2, 7.2.5 – Spurious Radiated Emissions ....................... Pass ................. 9 FCC 15.247 (d) / RSS-210 A8.5 – Band Edge Emissions ............................................... Pass ............... 11 FCC 15.205 / RSS-Gen 7.2.2 – Restricted Bands Next to The Band Edge ................... Pass ............... 11 FCC 15.247 (e) / RSS-210 A8.2 (b) – Power Spectral Density ........................................ Pass ............... 12 Appendix 1 – Test protocols 14 pages Appendix 2 – Test setup 2 pages Appendix 3 – Photo documentation 7 pages Appendix 4 – Product documentation 10 pages www.tuv.com 14034088 001 Date: 21.03.2014 3 / 12 Product information Manufacturers declarations Transceiver BLE Mode Operating frequency range 2402 - 2480 MHz Type of modulation GFSK Number of channels 40 Channel separation 2 MHz Type of antenna Chip Antenna Antenna gain (dBi) 3.1 Power level fix Type of equipment stand alone radio device Connection to public utility power line No Nominal voltage V nor : 3.0 VDC Independent Operation Modes Transmitting Receiving Product function and intended use The COGITO is a Bluetooth connected watch with analog movement that connects with the iPhone and android device with the following features • Notifications for incoming calls, missed calls, text messages, calendar reminders, etc • Remind when the device is out of range or at critical battery level • Locate the watch by pressing the ‘find my watch icon’ in COGITO WATCH app. For details, please refer to the datasheet. Submitted documents Circuit Diagram Block Diagram Bill of material User manual Remark Special accessories and auxiliary equipment Nil www.tuv.com 14034088 001 Date: 21.03.2014 4 / 12 List of Test and Measurement Instruments Global United Technology Services Co., Ltd. (FCC Registration number: 600491, IC Registration number: 9079A-2) Equipment Manufacturer Type S/N Cal Due Date 3m Semi- Anechoic Chamber ZhongYu Electron 9.0(L)*6.0(W)* 6.0(H) -- 05 Apr 2015 Control Room ZhongYu Electron 6.2(L)*2.5(W)* 2.4(H) -- N/A ESU EMI Test Receiver R&S ESU26 -- 28 Jun 2014 Loop Antenna Zhinan ZN30900A -- 28 Jun 2014 Bi-log Hybrid Antenna SCHWARZBECK VULB9163 -- 08 Mar 2015 Double-ridged horn antenna SCHWARZBECK 9120D -- 08 Mar 2015 Horn Antenna ETS-LINDGREN 3160-09 -- 08 Mar 2015 RF Amplifier HP 8347A -- 28 Jun 2014 RF Amplifier HP 8349B -- 28 Jun 2014 EMI Test Software AUDIX E3 -- N/A Coaxial cable GTS N/A -- 28 Jun 2014 Coaxial Cable GTS N/A -- 28 Jun 2014 Thermo meter N/A N/A -- 30 Jun 2014 TÜV Rheinland Hong Kong Ltd. Equipment Manufacturer Type S/N Cal Due Date Spectrum Analyzer Rohde & Schwarz FSP30 100007 03 Dec 2014 www.tuv.com 14034088 001 Date: 21.03.2014 5 / 12 Results FCC Part 15 – Subpart C / RSS-Gen, RSS-210 FCC 15.203 / RSS-Gen 7.1.2 – Antenna Requirement 1 Pass FCC Requirement: No antenna other than that furnished by the responsible party shall be used with the device IC Requirement: A transmitter can only be sold or operated with antennas with which it was approved. Any antenna of the same type having equal or lesser gain as an antenna that had been successfully tested with the transmitter, will also be considered approved with the transmitter, and may be used and marketed with the transmitter. Results: Permanent attached antenna Verdict: Pass FCC 15.204 / RSS-Gen 7.1.2 – Antenna Requirement 2 Pass FCC Requirement: Provide information for every antenna proposed for the use with the EUT IC Requirement: When a measurement at the antenna connector is used to determine RF output power, the effective gain of the device’s antenna shall be stated, based on measurement or on data from the antenna manufacturer. Results: a) Antenna type: Chip Antenna b) Manufacturer and model no: N.A. c) Gain with reference to an isotropic radiator: 3.1 dBi Verdict: Pass RSS-Gen 5.4 – Transmitter External Control Pass IC Requirement: The device shall not have any external contro…

Text truncated - open the document above for the full version.

www.tuv.com 14034088 001 Appendix 1 2 / 14 6 dB Bandwidth Measurement Tx frequency: 2402MHz A 2.402318 GHz Ref 0 dBm 2.402318 GHz Att 30 dB 2.402318 GHz 300 kHz/ 2.402318 GHz Center 2.402 GHz 2.402318 GHz Span 3 MHz 2.402318 GHz RBW 100 kHz 2.402318 GHzVBW 300 kHz 2.402318 GHz SWT 2.5 ms 2.402318 GHz * 2.402318 GHz 1 PK 2.402318 GHz MAXH 2.402318 GHz 2.402318 GHz 2.402318 GHz 2.402318 GHz 2.402318 GHz 2.402318 GHz 2.402318 GHz 2.402318 GHz 2.402318 GHz 2.402318 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.402318 GHz 1 Marker 1 [T1 ] -3.56 dBm 2.402318000 GHz 2 Delta 2 [T1 ] -6.18 dB -576.000000000 kHz 3 Delta 3 [T1 ] -6.10 dB 126.000000000 kHz MARKER 1 2.402318 GHz Tx frequency: 2440MHz A 2.440342 GHz Ref 0 dBm 2.440342 GHz Att 30 dB 2.440342 GHz MAXH 2.440342 GHz 300 kHz/ 2.440342 GHz Center 2.44 GHz 2.440342 GHz Span 3 MHz 2.440342 GHz * 2.440342 GHz RBW 100 kHz 2.440342 GHzVBW 300 kHz 2.440342 GHz SWT 2.5 ms 2.440342 GHz 1 PK 2.440342 GHz 2.440342 GHz 2.440342 GHz 2.440342 GHz 2.440342 GHz 2.440342 GHz 2.440342 GHz 2.440342 GHz 2.440342 GHz 2.440342 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.440342 GHz 1 Marker 1 [T1 ] -4.06 dBm 2.440342000 GHz 2 Delta 2 [T1 ] -6.52 dB -594.000000000 kHz 3 Delta 3 [T1 ] -6.10 dB 90.000000000 kHz MARKER 1 2.440342 GHz www.tuv.com 14034088 001 Appendix 1 3 / 14 Tx frequency: 2480MHz A 2.47985 GHz Ref 0 dBm 2.47985 GHz Att 30 dB 2.47985 GHz 300 kHz/ 2.47985 GHz Center 2.48 GHz 2.47985 GHz Span 3 MHz 2.47985 GHz 1 PK 2.47985 GHz MAXH 2.47985 GHz * 2.47985 GHz RBW 100 kHz 2.47985 GHz SWT 2.5 ms 2.47985 GHzVBW 300 kHz 2.47985 GHz 2.47985 GHz 2.47985 GHz 2.47985 GHz 2.47985 GHz 2.47985 GHz 2.47985 GHz 2.47985 GHz 2.47985 GHz 2.47985 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.47985 GHz 1 Marker 1 [T1 ] -5.01 dBm 2.479850000 GHz 2 Delta 2 [T1 ] -6.18 dB -114.000000000 kHz 3 Delta 3 [T1 ] -6.25 dB 576.000000000 kHz MARKER 1 2.47985 GHz www.tuv.com 14034088 001 Appendix 1 4 / 14 Peak Output Power BLE Mode Tx frequency: 2402MHz A 2.402336 GHz Ref 0 dBm 2.402336 GHz Att 30 dB 2.402336 GHz 300 kHz/ 2.402336 GHz Center 2.402 GHz 2.402336 GHz Span 3 MHz 2.402336 GHz MAXH 2.402336 GHz * 2.402336 GHz RBW 1 MHz 2.402336 GHzVBW 3 MHz 2.402336 GHz SWT 2.5 ms 2.402336 GHz 1 PK 2.402336 GHz 2.402336 GHz 2.402336 GHz 2.402336 GHz 2.402336 GHz 2.402336 GHz 2.402336 GHz 2.402336 GHz 2.402336 GHz 2.402336 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.402336 GHz 1 Marker 1 [T1 ] -2.93 dB m 2.402336000 GHz MARKER 1 2.402336 GHz Tx frequency: 2440MHz A 2.440312 GHz Ref 0 dBm 2.440312 GHz Att 30 dB 2.440312 GHz MAXH 2.440312 GHz 1 PK 2.440312 GHz 2.440312 GHz 2.440312 GHz 2.440312 GHz 2.440312 GHz 2.440312 GHz 2.440312 GHz 2.440312 GHz 2.440312 GHz 2.440312 GHz 300 kHz/ 2.440312 GHz Center 2.44 GHz 2.440312 GHz Span 3 MHz 2.440312 GHz * 2.440312 GHz RBW 1 MHz 2.440312 GHzVBW 3 MHz 2.440312 GHz SWT 2.5 ms 2.440312 GHz * 2.440312 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.440312 GHz 1 Marker 1 [T1 ] -3.62 dBm 2.440312000 GHz MARKER 1 2.440312 GHz Tx frequency: 2480MHz www.tuv.com 14034088 001 Appendix 1 5 / 14 A 2.479844 GHz Ref 0 dBm 2.479844 GHz Att 30 dB 2.479844 GHz 2.479844 GHz 2.479844 GHz 2.479844 GHz 2.479844 GHz 2.479844 GHz 2.479844 GHz 2.479844 GHz 2.479844 GHz 2.479844 GHz 300 kHz/ 2.479844 GHz Center 2.48 GHz 2.479844 GHz Span 3 MHz 2.479844 GHz * 2.479844 GHz * 2.479844 GHz RBW 1 MHz 2.479844 GHzVBW 3 MHz 2.479844 GHz SWT 2.5 ms 2.479844 GHz 1 PK 2.479844 GHz MAXH 2.479844 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.479844 GHz 1 Marker 1 [T1 ] -4.61 dB m 2.479844000 GHz MARKER 1 2.479844 GHz www.tuv.com 14034088 001 Appendix 1 6 / 14 Spurious Conducted Emissions BLE mode Tx frequency: 2402MHz A 2.400008136 GHz Ref 0 dBm 2.400008136 GHz Att 30 dB 2.400008136 GHz MAXH 2.400008136 GHz 2.4999991 GHz/ 2.400008136 GHz Start 9 kHz 2.400008136 GHz Stop 25 GHz 2.400008136 GHz * 2.400008136 GHz RBW 100 kHz 2.400008136 GHzVBW 300 kHz 2.400008136 GHz SWT 60 s 2.400008136 GHz 1 PK 2.400008136 GHz * 2.400008136 GHz 2.400008136 GHz 2.400008136 GHz 2.400008136 GHz 2.400008136 GHz 2.400008136 GHz 2.400008136 GHz 2.400008136 GHz 2.400008136 GHz 2.400008136 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.400008136 GHz 1 Marker 1 [T1 ] -4.12 dB m 2.400008136 GHz 2 Delta 2 [T1 ] -38.84 dB 12.499995500 GHz 3 Delta 3 [T1 ] -52.90 dB 2.449999118 GHz MARKER 1 2.400008136 GHz Tx frequency: 2440MHz A 2.400008136 GHz Ref 0 dBm 2.400008136 GHz Att 30 dB 2.400008136 GHz 2.4999991 GHz/ 2.400008136 GHz Start 9 kHz 2.400008136 GHz Stop 25 GHz 2.400008136 GHz * 2.400008136 GHz RBW 100 kHz 2.400008136 GHzVBW 300 kHz 2.400008136 GHz SWT 60 s 2.400008136 GHz 2.400008136 GHz 2.400008136 GHz 2.400008136 GHz 2.400008136 GHz 2.400008136 GHz 2.400008136 GHz 2.400008136 GHz 2.400008136 GHz 2.400008136 GHz 1 PK 2.400008136 GHz MAXH 2.400008136 GHz * 2.400008136 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.400008136 GHz 1 Marker 1 [T1 ] -5.67 dBm 2.400008136 GHz 2 Delta 2 [T1 ] -35.35 dB 20.299992692 GHz 3 Delta 3 [T1 ] -51.61 dB 2.449999118 GHz MARKER 1 2.400008136 GHz www.tuv.com 14034088 001 Appendix 1 7 / 14 Tx frequency: 2480MHz A 2.450008118 GHz Ref 0 dBm 2.450008118 GHz Att 30 dB 2.450008118 GHz MAXH 2.450008118 GHz 2.4999991 GHz/ 2.450008118 GHz Start 9 kHz 2.450008118 GHz Stop 25 GHz 2.450008118 GHz * 2.450008118 GHz RBW 100 kHz 2.450008118 GHzVBW 300 kHz 2.450008118 GHz SWT 60 s 2.450008118 GHz 1 PK 2.450008118 GHz * 2.450008118 GHz 2.450008118 GHz 2.450008118 GHz 2.450008118 GHz 2.450008118 GHz 2.450008118 GHz 2.450008118 GHz 2.450008118 GHz 2.450008118 GHz 2.450008118 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.450008118 GHz 1 Marker 1 [T1 ] -6.33 dBm 2.450008118 GHz 2 Delta 2 [T1 ] -35.84 dB 18.899993196 GHz 3 Delta 3 [T1 ] -51.17 dB 2.499999100 GHz MARKER 1 2.450008118 GHz www.tuv.com 14034088 001 Appendix 1 8 / 14 Band Edge Compliance BLE mode Tx frequency: 2402MHz (conducted measurement) A 2.40236 GHz Ref 0 dBm 2.40236 GHz Att 30 dB 2.40236 GHz MAXH 2.40236 G…

Text truncated - open the document above for the full version.

www.tuv.com 14034088 001 Appendix 2 2 / 2 Set-up for Radiated Emission Set-up for Radiated Emission
