QITBT3ABluetooth Headset

PAGE 1 / 6 BLUETREK E2 user guide (Same operation G2+, G3n, X2-2, Y2-2 and S22) Thank you for choosing the BLUETREK® E2, we hope you will enjoy the convenience we are bringing to you. The BLUETREK® E2 offers many functions, please read this manual before getting started. EC-Declaration of Conformity We, Innovi Technologies Ltd of Suite 501-3, 5/F., Chinachem Leighton Plaza, 29 Leighton Road, Causeway Bay, Hong Kong. declare under our sole responsibility that our product BLUETREK E2 to which this declaration refers is in conformity with the appropriate standards EN300 328-02 EN301 489-17 EN301 489-01 EN50371 EN60950 Following the provisions of Radio and Telecommunications Terminal Equipment directive 1999/5/EC. September 2005 Guillaume Ponticelli, Director of Development PAGE 2 / 6 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications to this Bluetooth® headset not expressly approved by the party responsible for compliance could void the user’s authority to operate it. Industry Canada notice to users and product statements To prevent radio interference with the licensed service, this device is intended for operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. In compliance with Industry Canada regulations, technical specifications have been provided in a declaration of conformity. This does not imply that Industry Canada approved the equipment. Bluetooth® is a trademark owned by Bluetooth SIG, Inc. and is used by the manufacturer under license. PAGE 3 / 6 BEFORE USING YOUR HEADSET FOR THE FIRST TIME - You must charge it continuously for about 8 hours, until the red indicator light turns off. Please refer to the “Charging the BLUETREK® E2” section of this manual. - Pair the headset with a mobile phone. Please refer to the “Pairing BLUETREK® E2” section of this manual. Introduction The BLUETREK® E2 headset is a wireless headset based on the Bluetooth® technology. The BLUETREK® E2 headset has 3 buttons: • “TALK “button (main button), • 1 “VOL+ “button, • 1 “VOL- “button. Charging the BLUETREK® E2 Please connect the charger to the headset and to the mains. During the charge, the indicator light is red during a normal charge. The indicator light will turn off when the charge is complete. During subsequent charges, the charging should take approximately 2 hour 40 minutes. When the indicator light flashes in red, your headset needs to be recharged. Important: • The headset cannot be operated while charging. To maximize battery capacity, it is recommended to recharge your headset to full capacity only when the battery is low, since a battery has a lifetime of about 500 charging cycles. • If you leave your headset battery empty for an extended period of time, it could excessively discharge the battery. In this case, you may have to charge your headset for 10 hours or more until the battery recovers and recharges completely. • Only switch on the headset once the red indicator light turns off, indicating the battery has fully recovered. • Do not let the battery charger remain plugged in the headset for more than 24h. • The use of any other charger will automatically suspend the warranty. Pairing the BLUETREK® E2 Before using the BLUETREK® E2 headset, you must pair it with your Bluetooth® mobile phone. Pairing is the process of linking 2 Bluetooth® devices, so that they can communicate. To initiate pairing: PAGE 4 / 6 1. Place the BLUETREK® E2 and your mobile phone within 0.3 meter (1 foot) from each other. 2. Switch on your phone and select its Bluetooth® discover mode (refer to the Bluetooth® mobile phone user manual). 3. When the BLUETREK® E2 is switched off, press and hold the TALK button for about 7 seconds until the indicator light flashes red and blue alternatively. And a sound can be heard in the speaker. 4. Once the mobile phone detects the headset, a “BLUETREK E2” message will be displayed. Follow the phone instructions to accept the pairing. The PIN code (or passkey) is 0000, then press “yes” or “ok”. If pairing was successful, the indicator light will switch to blue and flashes slowly. If you haven’t started the discovery mode within 5 minutes, the headset will switch off. You must then switch on your headset and start the pairing again. Wearing the BLUETREK® E2 For your convenience, the ear clamp of BLUETREK E2 is designed to be adjustable and removable which allows the headset to be worn on either ear comfortably. BLUETREK® E2, as packaged, is ready to be worn on your right ear. For left ear, simply unsnap the ear clamp from the headset by pulling gently at the base of the ear clamp ring. Flip the ear clamp over, and snap it back onto the headset by applying gentle pressure on the base of the ear clamp ring. Make sure the speaker is properly inserted into your ear. Switching the BLUETREK® E2 ON and OFF Switching BLUETREK® E2 ON When your headset is off, press and hold the TALK button for about 2 seconds until the blue indicator light is on. A beep (2 tones) can be heard in the speaker. Release the TALK Button. To check if your headset is ON, press once on the TALK button. If the indicator light flashes blue, it means your headset is ON. Switching BLUETREK® E2 OFF When your headset is on, press and hold the TALK button for about 5 seconds until the red indicator light is on after the quick blue flashes. A beep (2 tones) can be heard in the speaker then release the TALK Button. Making a call Mobile phone with voice recognition . Make sure the voice recognition function on your mobile is activated and your voice tags have been recorded with the phone. To enter these, please refer to your phone’s manual . When there is no in…

Text truncated - open the document above for the full version.

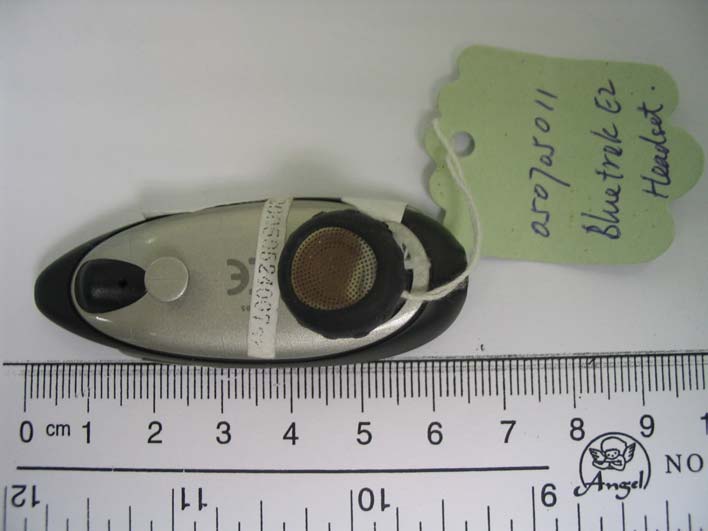

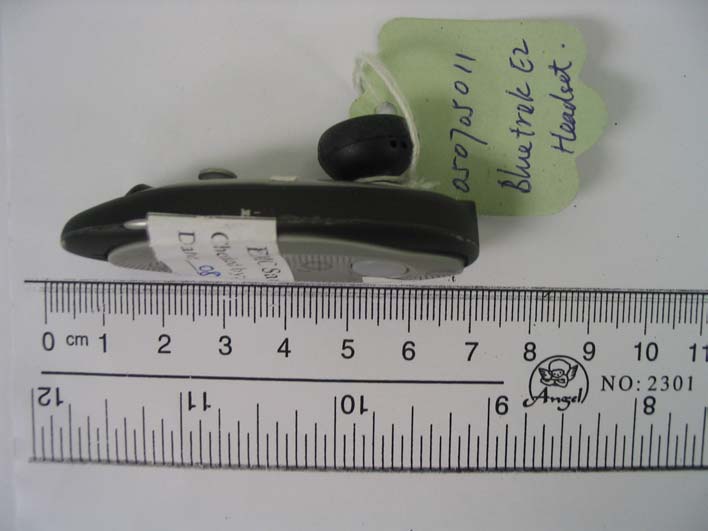

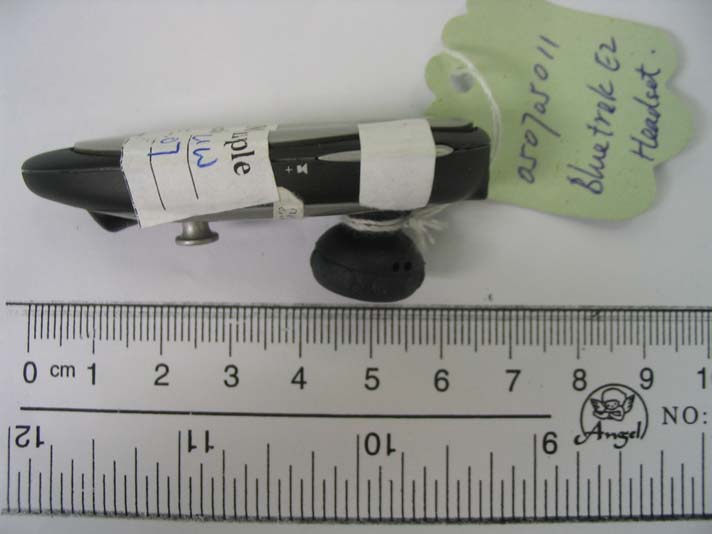

www.tuv.com Test Report No.: 14010441 001 Appendix 3 page 1 of 9 Appendix 3 Construction Photos www.tuv.com Test Report No.: 14010441 001 Appendix 3 page 2 of 9 1.1 External view 1.1.1 Front view 1.1.2 Rear view www.tuv.com Test Report No.: 14010441 001 Appendix 3 page 3 of 9 1.1.3 Side view 1 1.1.4 Side view 2 www.tuv.com Test Report No.: 14010441 001 Appendix 3 page 4 of 9 1.1.5 Side view 3

www.tuv.com Test Report No.: 14010441 001 Appendix 4 page 1 of 22 Appendix 4 Technical Documents www.tuv.com Test Report No.: 14010441 001 Appendix 4 page 2 of 22 1.1 FCCID Label Artwork The yellow oval shows the location of the Rating Label.

www.tuv.com Test Report No.: 14010441 001 Appendix 3 page 5 of 9 1.2 Internal view 1.2.1 Front side 1 The yellow circle indicates the location of the antenna. www.tuv.com Test Report No.: 14010441 001 Appendix 3 page 6 of 9 1.2.2 Front side 2 www.tuv.com Test Report No.: 14010441 001 Appendix 3 page 7 of 9 Front side 3 www.tuv.com Test Report No.: 14010441 001 Appendix 3 page 8 of 9 1.2.3 Back View www.tuv.com Test Report No.: 14010441 001 Appendix 3 page 9 of 9 Back View

www.tuv.com Test Report No.: 14010441 001 Appendix 4 page 3 of 17 1.2 Operational Descriptions Transmitter Receiver Operating frequency range 2402 - 2480 MHz 2402 - 2480 MHz Type of modulation FHSS modulation FHSS modulation Number of channels 79 79 Channel separation 1 MHz 1 MHz Type of antenna Integral Antenna Integral Antenna Antenna gain (dBi) 0 Power level fix Type of equipment stand alone radio device stand alone radio device Connection to public utility power line No Nominal voltage V nor : 3.8 V V nor : 3.8 V Independent Operation Modes Page scan Inquiry scan Connection state - ACL Link Connection state - SCO Link 1.2.1 Product Descriptions The test item is a wireless headset based on the Bluetooth technology. It transfers the audio signal to and from a corresponding Bluetooth Audio Gateway such as mobile phone wirelessly. Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. 1.2.2 Technical Background of the Wireless Technology Bluetooth operates in the unlicensed ISM band at 2.4 GHz. A frequency hop transceiver is applied to combat interference and fading. A shaped, binary FM modulation is applied to minimize transceiver complexity. The symbol rate is 1 Ms/s. A slotted channel is applied with a nominal slot length of 625 μs. For full duplex transmission, a Time-Division Duplex (TDD) scheme is used. On the channel, information is exchanged through packets. Each packet is transmitted on a different hop frequency. A packet nominally covers a single slot, but can be extended to cover up to five slots. The Bluetooth protocol uses a combination of circuit and packet switching. Slots can be reserved for synchronous packets. Bluetooth can support an asynchronous data channel, up to three simultaneous synchronous voice channels, or a channel which simultaneously supports asynchronous data and synchronous voice. Each voice channel supports a 64 kb/s synchronous (voice) channel in each direction. The asynchronous channel can support maximal 723.2 kb/s asymmetric (and still up to 57.6 kb/s in the return direction), or 433.9 kb/s symmetric. The Bluetooth system consists of a radio unit, a link control unit, and a support unit for link management and host terminal interface functions.

www.tuv.com Test Report No.: 14010441 001 Date: 24.11.2005 page 2 of 13 Table of Content Page Cover Page .................................................................................1 Table of Content ..........................................................................2 Product information.......................................................................................................3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use........................................................................................................... 3 Submitted documents ................................................................................................................................ 3 Special accessories and auxiliary equipment.......................................................................................... 3 List of Test and Measurement Instruments.................................................................4 Result FCC Part 15 – Subpart C ...................................................................................5 Subclause 15.203 – Antenna Information....................................................................... Pass................. 5 Subclause 15.204 – Antenna Information....................................................................... Pass................. 5 Subclause 15.207 – Disturbance Voltage on AC Mains ................................................ Pass................. 5 Subclause 15.247 (a) – Carrier Frequency Separation.................................................. Pass................. 6 Subclause 15.247 (a) – Time of Occupancy (Dwell Time) ............................................. Pass................. 7 Subclause 15.247 (a) – 20 dB Bandwidth ....................................................................... Pass................. 8 Subclause 15.247 (a) – Hopping Sequence .................................................................... Pass.................8 Subclause 15.247 (a) – Equal Hopping Frequency Use ................................................ Pass................. 9 Subclause 15.247 (a) – Receiver Input Bandwidth ........................................................ Pass............... 10 Subclause 15.247 (a) – Receiver Hopping Capability.................................................... Pass............... 10 Subclause 15.247 (b) – Peak Output Power ................................................................... Pass............... 10 Subclause 15.247 (b) – Band edge compliance ............................................................. Pass............... 11 Subclause 15.247 (c) – Spurious Conducted Emissions .............................................. Pass............... 11 Subclause 15.247 (c) – Spurious Radiated Emissions.................................................. Pass............... 12 Appendix 1 – Test protocols 13 pages Appendix 2 – Test setup 26 pages Appendix 3 – Photo documentation 9 pages Appendix 4 – Product documentation 17 pages www.tuv.com Test Report No.: 14010441 001 Date: 24.11.2005 page 3 of 13 Product information Manufacturers declarations Transmitter Receiver Operating frequency range 2402 - 2480 MHz 2402 - 2480 MHz Type of modulation FHSS modulation FHSS modulation Number of channels 79 79 Channel separation 1 MHz 1 MHz Type of antenna Integral Antenna Integral Antenna Antenna gain (dBi) 0 Power level fix Type of equipment stand alone radio device stand alone radio device Connection to public utility power line No Nominal voltage V nor : 3.8 V V nor : 3.8 V Independent Operation Modes Page scan Inquiry scan Connection state - ACL Link Connection state - SCO Link Product function and intended use The test item is a wireless headset based on the Bluetooth technology. Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4 GHz. In the US a band of 83.5 MHz width is available. In this band, 79 RF channels spaced 1 MHz apart are defined. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is divided into time slots, with a nominal slot length of 625 μs, where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. The symbol rate on the channel is 1 Ms/s. Submitted documents Circuit Diagram Block Diagram Bill of material User manual Special accessories and auxiliary equipment The product has been tested together with the following additional accessory: 1. Standard Charger Model number: PS5W-05V0025-01 Input: 100-240V ~50/60Hz 8W Output: 5V, 250mA www.tuv.com Test Report No.: 14010441 001 Date: 24.11.2005 page 4 of 13 List of Test and Measurement Instruments Kind of Equipment Manufacturer Type S/N Test Receiver Rohde & Schwarz ESH-3 890173/033 L/I/S/N Rohde & Schwarz ESH 3-Z5 849876/026 Oscilloscope HP 54713B US34510455 Test Receiver Rohde & Schwarz ESVP 882402/033 Absorbing Clamp Rohde & Schwarz MDS-21 979 3/4 Test Receiver Rohde & Schwarz ESVS30 842807/009 Biconical Antenna Rohde & Schwarz HK116 841489/015 Log.-Periodic Antenna Rohde & Schwarz HL223 841516/017 Universal Power Analyzer Voltech PM3000A 9915 Reference Impedance Network Voltech IEC 555 Standard 9946 AC Power Source California Instr. 4500L HK51895 Trip-Loop Antenna Chase LLA6142 1019 Double Ridge Horn Antenna EMCO 3115 9002-3351 Double Ridge Horn Antenna EMCO 3115 9002-3347 RF Comms Test Set HP 8920B US36492628 Spectrum Analyser + Tracking G. HP 8596E 3639A00758 Signal Generator Rohde & Schwarz SMY 01 844146/024 Signal Generator Rohde & Schwarz SMY 01 844146/023 BiLog Antenna EMCO 3143 9607-1287 Isotropic Field Probe Holladay HI-4422 90956 Power Amplifier Kalmus 757-LC 7620-1 Power Amplifier Kalmus 122-FC 7620-2 Coupling Clamp Schaffner CDN 126 312 Cou…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14010441 001 Appendix 2 page 1 of 4 Appendix 2 Test Setup Photos www.tuv.com Test Report No.: 14010441 001 Appendix 2 page 2 of 4 Set-up for Radiation Emission (Transceiver) www.tuv.com Test Report No.: 14010441 001 Appendix 2 page 3 of 4 Set-up for Radiation Emission (Transceiver) www.tuv.com Test Report No.: 14010441 001 Appendix 2 page 4 of 4 Set-up for Radiation Emission (Transceiver)
