BLUETREK MusiCALL Bluetooth stereo headset User’s manual Table of Contents
Brief introduction.........................................................1 1. Bluetooth wireless communication technology.......................1 2. About BLUETREK MusiCALL..........................................1
Before use.......................................................................2 1. Overview....................................................................2 2. Charging the headset.......................................................3
How to use...................................................................3 1. Turning on/off the headset................................................3 2. Pairing the headset with Bluetooth devices...........................4 How to enter pairing mode.................................................4 Pairing the headset with a Bluetooth cell phone.............................4 Pairing the headset with a Bluetooth transmitter.............................5 Multi-pairing...............................................................5 Clearing pairing list......................................................6 3. Re-connecting with a Bluetooth device................................6 4. Wearing the headset......................................................7 5. Making a call with the headset...........................................7 6. Music playback............................................................8 7. Locking the buttons.......................................................9 8. LED indicator...............................................................9 9. Indication tone.............................................................10
Care and maintenance...................................................10
FAQs.......................................................................11
Specifications.............................................................12 Welcome to use this Bluetooth stereo headset, BLUETREK MusiCALL. Please read this user’s manual carefully before use.

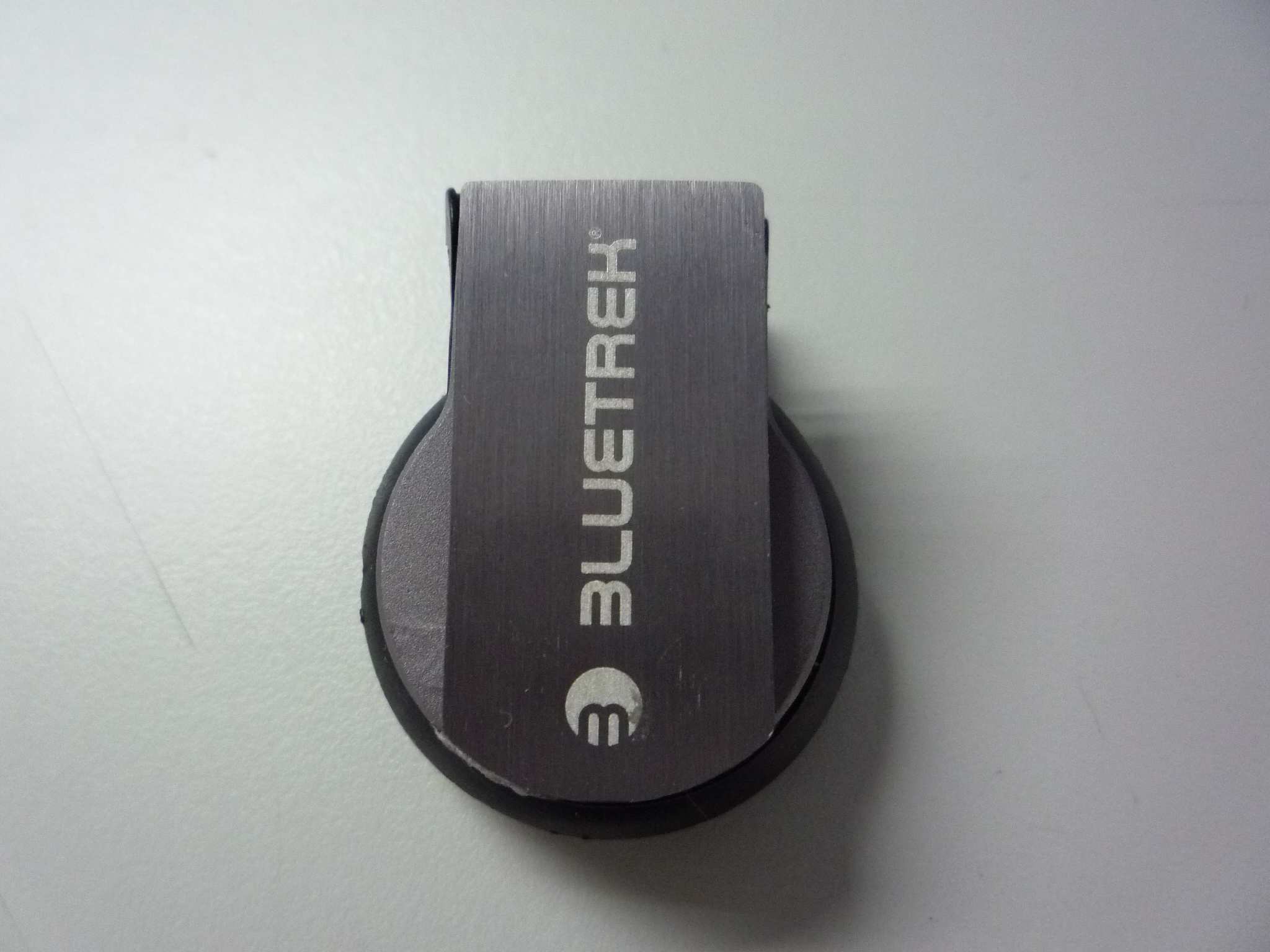

Brief introduction 1. Bluetooth wireless communication technology Bluetooth is a standard of close range wireless communication technology that was drawn up by Ericsson, IBM, Intel, Nokia and Toshiba. With Bluetooth technology, we can achieve the highest transmission rate among cell phones, computers, printers, PDAs and other devices. The max transmission range of class II is 10 meters while the max transmission range of class I can reach up to 100 meters. 2. About BLUETREK MusiCALL BLUETREK MusiCALL is a Bluetooth stereo headset. It’s chest clip-on design is very easy to take with you. It supports the following Bluetooth profiles: HSP —— Headset Profile HFP —— Hands-free Profile A2DP—— Advanced Audio Distribution Profile AVRCP——Audio/Video Remote Control Profile You can enjoy music wirelessly by using BLUETREK MusiCALL. It has the following features: 1) Pairing with a Bluetooth cell phone or PDA supporting HFP profile.  Answer a call, end a call and reject a call  Redial last number  Voice dial  Adjust the volume  Call transfer between the headset and your Bluetooth cell phone  Microphone mute 2) Pairing with a Bluetooth music device or Bluetooth transmitter supporting A2DP profile.  Enjoy music wirelessly  Adjust the volume  Remote control music pause/play  Remote control previous/next track  Remote control music fast forward/fast rewind, music stop 1 3) Easy to switch between the call and music, you will not miss the incoming call during listening to music. 4) Every time the headset is tured on, it will connect to last connected device automatically. 5) When there is an incoming call, built-in buzzer will alert, so that you will not miss any incoming calls. 6) The buttons can be locked. Note: Even though the paired device and the headset support the same Bluetooth profiles, functions may vary due to specification differences of the paired devices.
Before use 1. Overview 1 Clip 2 3.5mm audio jack (Connecting to wired earphone), it can also be used as a charging jack 3 button— Previous track 4 + button: Volume up button 5 Microphone 6 button— Next track 7 Status indicator 8 — —— — button: Volume down button 9 button: Multi-function button 2 2. Charging the headset The headset comes with a built-in rechargeable battery, prior to using it, it is recommended to charge the battery fully for the first time. When the headset is low power, red LED will flash twice and the headset emits three “Dong” tones every 60 seconds. Please recharge the battery of the headset. Using USB cable Connect the USB cable to an computer USB port and the USB cable plug to the charging jack of the headset. Red LED is on while charging. It takes about 2 hours to charge the battery fully. When charging is completed, red LED will be off. Notes: 1) The battery is recycled. 2) Batteries (battery pack or batteries installed) shall not be exposed to excessive heat place, such as sunshine, fire or the like.
How to use 1. Turning on/off the headset Function Operation LED indicator Indication tone Turning on Press and hold button for 3 seconds until blue LED flashes Blue LED flashes three times A long “DI” tone Turning off Press and hold button for 6 seconds until red LED flashes Red LED is on for 1 second A long “DI” tone Note: In order to save power, the headset will turn off automatically if no devices can be connected within 10 minutes. 3 2. Pairing the headset with Bluetooth devices How to enter pairing mode Function Operation LED indicator Indication tone Entering pairing mode Ensure the headset is turned off, and then press and hold button for 8 seconds until red and blue LEDs flash alternately Red and blue LEDs flash alternately Two short “DU” tones Note: Pairing mode will last 5 minutes. The headset will switch to standby mode automatically if no devices can be connected within 5 minutes. Pairing the headset with a Bluetooth cell phone Prior to using the headset for the f…

Text truncated - open the document above for the full version.

Page 1 of 1 Type Designation: BLUETREKMusiCALL Report Number: 17019444 001

Page 1 of 2 Type Designation: BLUETREKMusiCALL Report Number: 17019444 001 Page 2 of 2 Type Designation: BLUETREKMusiCALL Report Number: 17019444 001

Produkte Products Prüfbericht - Nr.: Test Report No. 17019444 001 Seite 2 von 43 Page 2 of 43 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 20DB BANDWIDTH RESULT: Passed 5.1.4 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.5 SPURIOUS EMISSION RESULT: Passed 5.1.6 FREQUENCY SEPARATION RESULT: Passed 5.1.7 NUMBER OF HOPPING FREQUENCY RESULT: Passed 5.1.8 TIME OF OCCUPANCY RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 17019444 001 Seite 3 von 43 Page 3 of 43 Contents 1. GENERAL REMARKS......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS.......................................................................................... 4 2. TEST SITES...................................................................................................................... 4 2.1 TEST FACILITIES............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS............................................................... 5 2.3 TRACEABILITY.................................................................................................................. 6 2.4 CALIBRATION................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA........................................................................................... 6 2.7 STATUS OF FACILITY USED FOR TESTING........................................................................... 6 3. GENERAL PRODUCT INFORMATION.................................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE........................................................................... 8 3.2 RATINGS AND SYSTEM DETAILS........................................................................................ 8 3.3 INDEPENDENT OPERATION MODES.................................................................................... 9 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS..................................................... 10 3.5 SUBMITTED DOCUMENTS................................................................................................ 10 4. TEST SET-UP AND OPERATION MODES............................................................................ 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION...................................................................... 11 4.2 TEST OPERATION AND TEST SOFTWARE.......................................................................... 11 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT........................................................ 11 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE....................................................... 12 4.5 TEST SETUP DIAGRAM.................................................................................................... 12 5. TEST RESULTS............................................................................................................... 14 5.1 TRANSMITTER REQUIREMENT & TEST SUITES.................................................................. 14 5.1.1 Antenna Requirement ................................................................................................................14 5.1.2 Peak Output Power ....................................................................................................................15 5.1.3 20dB Bandwidth .........................................................................................................................16 5.1.4 Conducted spurious emissions measured in 100kHz Bandwidth ..............................................20 5.1.5 Spurious Emission .....................................................................................................................23 5.1.6 Frequency Separation................................................................................................................24 5.1.7 Number of hopping frequency....................................................................................................27 5.1.8 Time of Occupancy ....................................................................................................................29 6. SAFETY HUMAN EXPOSURE............................................................................................. 40 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE................................................................... 40 6.1.1 Electromagnetic Fields ...............................................................................................................40 7. PHOTOGRAPHS OF THE TEST SET-UP.............................................................................. 41 8. LIST OF TABLES............................................................................................................. 43 9. LIST OF PHOTOGRAPHS.................................................................................................. 43 Produkte Products Prüfbericht - Nr.: Test Report No. 17019444 001 Seite 4 von 43 Page 4 of 43 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test Result of Radiated Emissions 2. Test Sites 2.1 Test Facilities TÜV Rheinland (Guangdong) Ltd. EMC Laboratory Guangzhou Auto Market, Yuan Gang Section of Guangshan Road, Guangzhou, P.R. China FCC Registration No.: 833845 Produkte Products Prüfbericht - Nr.: Test Report No. 17019444 001 Seite 5 von 43 Page 5 of 43 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Eq…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17019444 001 Seite 40 von 42 Page 40 of 42 7. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (9kHz-30MHz) Photograph 2: Set-up for Spurious Emissions (30MHz-1GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17019444 001 Seite 41 von 42 Page 41 of 42 Photograph 3: Set-up for Spurious Emissions (1GHz-18GHz) Photograph 4: Set-up for Spurious Emissions (18GHz-26GHz)
