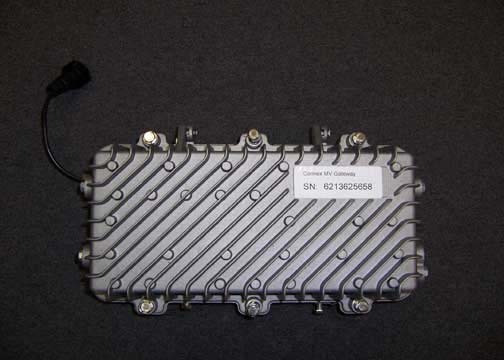

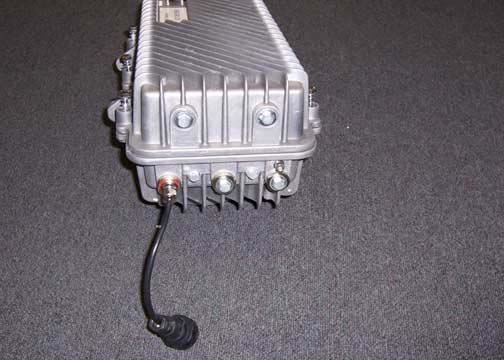

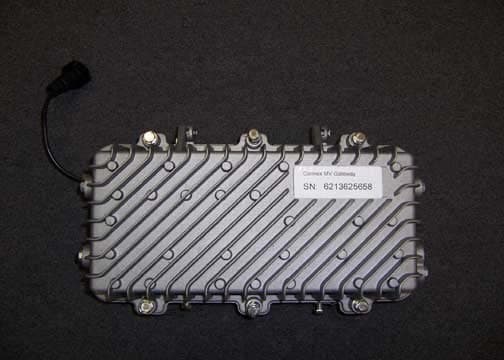

QIUCXP-MVA-GWYCorinex Medium Voltage Access Gateway

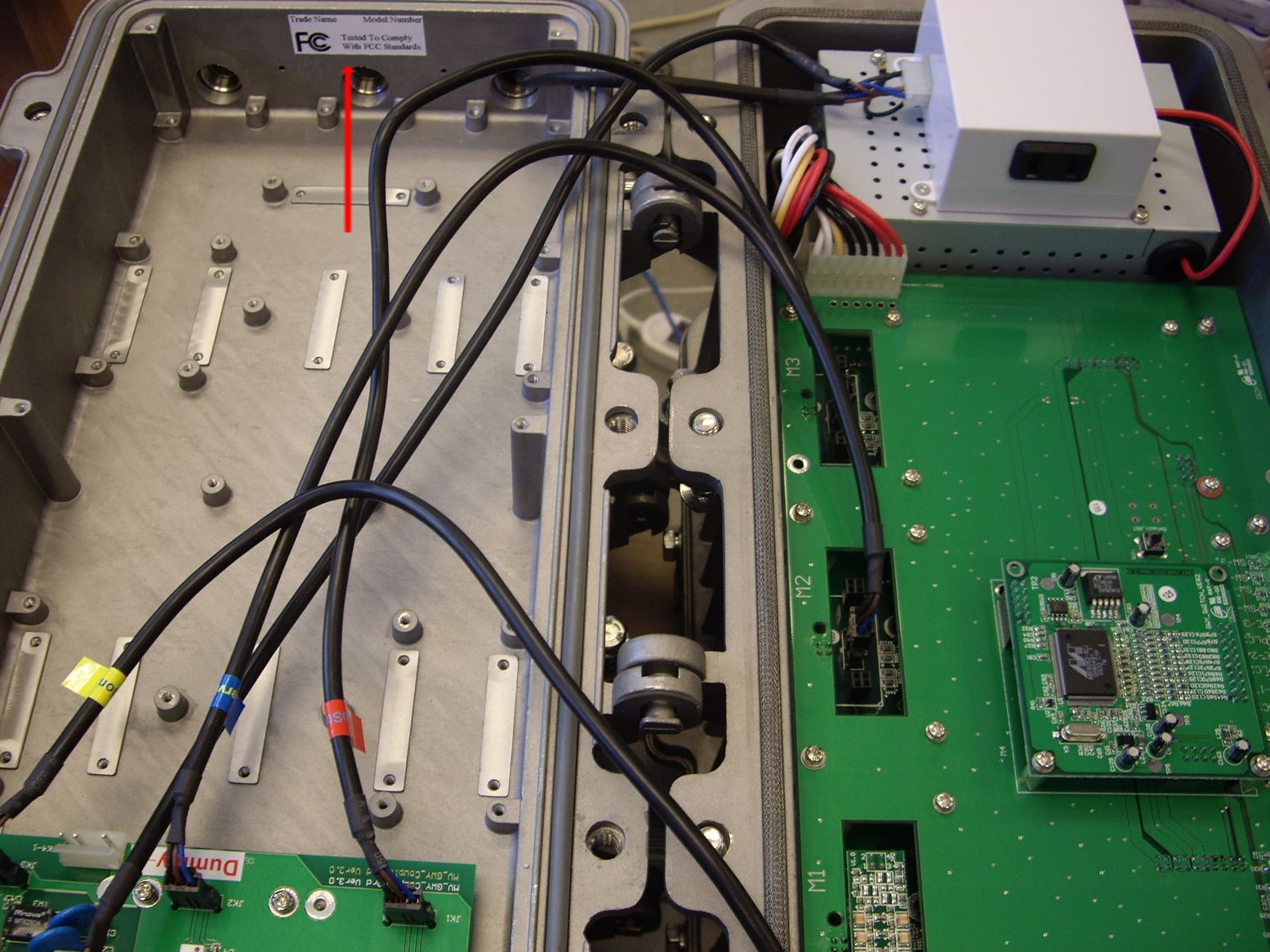

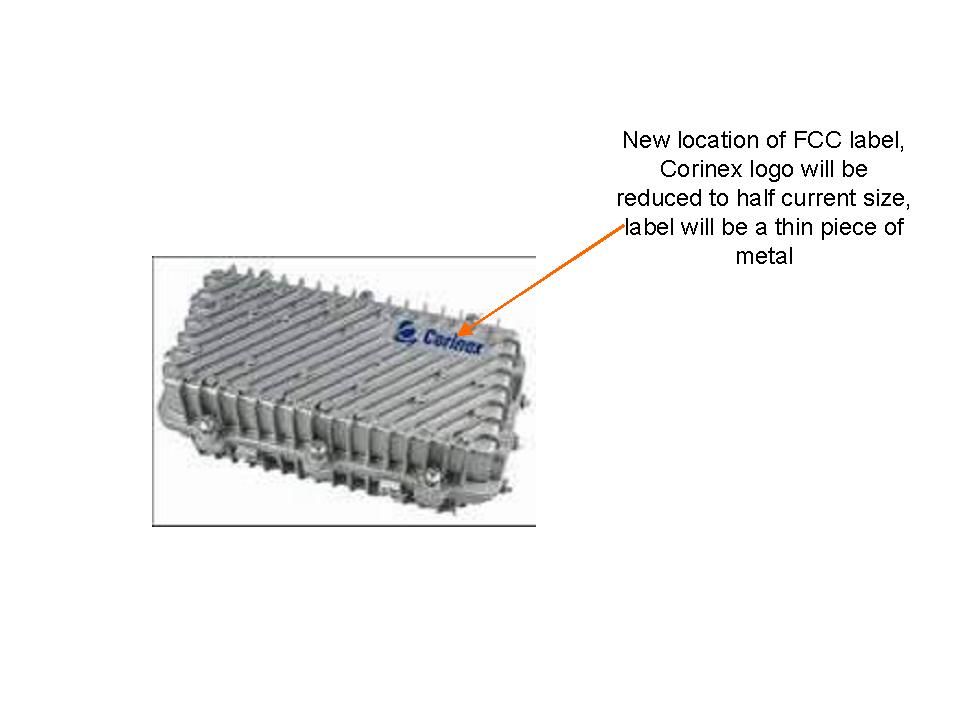

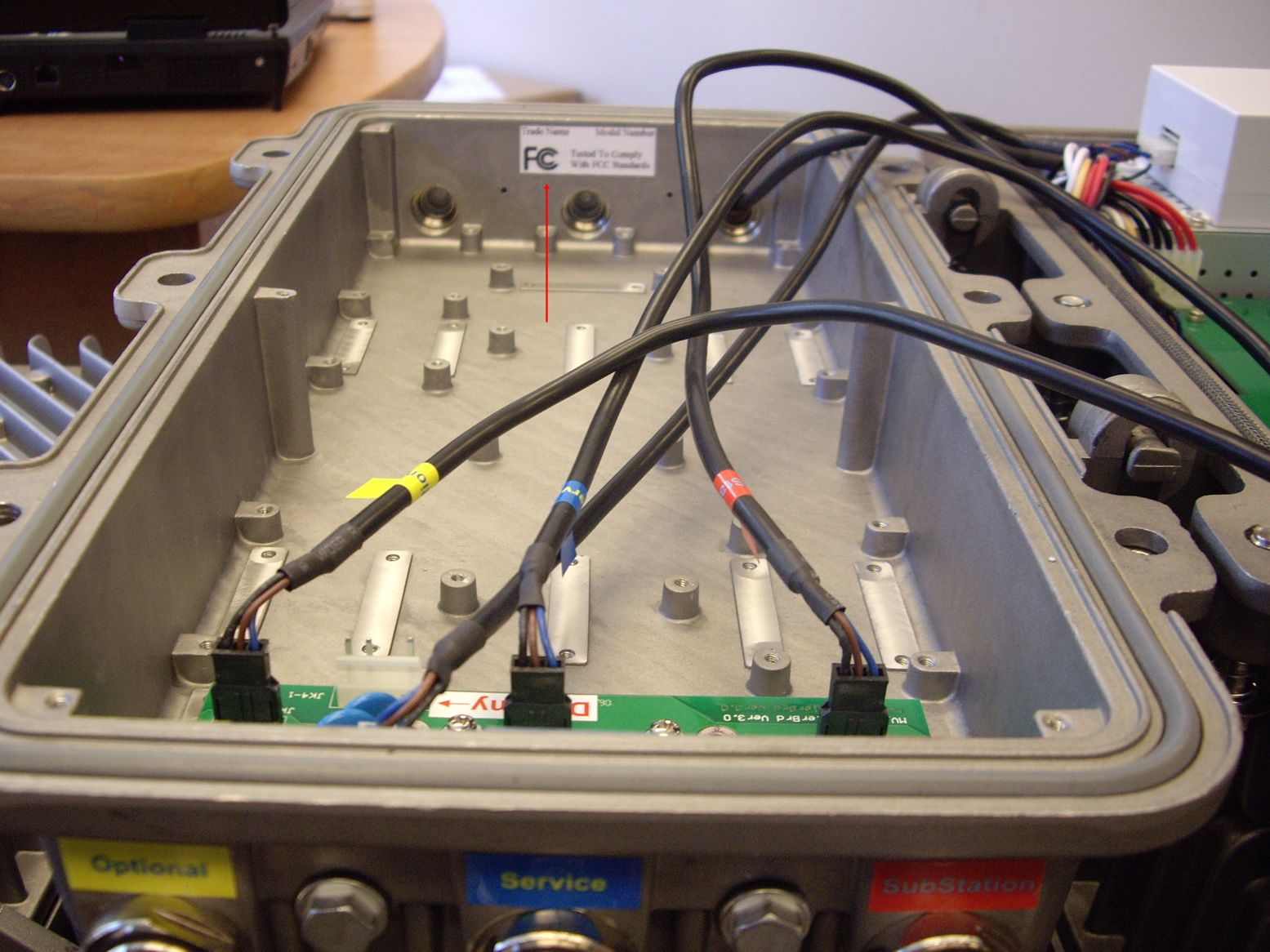

Re: FCC ID QIUCXP-MVA-GWY Applicant: Corinex Communication Corp. Correspondence Reference Number: 31520 731 Confirmation Number: EA320883 The photo showing placement of the ID label is actually showing a label with the FCC logo, which is subject to Declaration of Conformity (DoC) rules, and not permitted to be used on FCC Certified devices. Also, the label's location was shown on the internal of the device, which is prohibited pursuant to Section 2.1033(b)(7) of the FCC Rules. Please submit a revised photo or sketch showing suitable placement on the device for the ID label, pursuant to Section 2.1033(b)(7). Response: A new label location has been uploaded and the label with the FCC DoC logo will not be used.

Response to Non-Conformities for QIUCXP-MVA-GWY, correspondence number 31488 1) What is the burst rate and duty-factor used to generate data traffic during testing? Since this device is 0.1 dB from the limit they should have been set at the maximum achievable rate. Response: Our Burst rate is around 100/sec.We used maximum achievable rate. 2) The operational description mentions that the MV modulation is OFDM using 1573 carriers. Is this the same modulation used for low-voltage operation? Response: Both MV modulation and LV modulation is OFDM and are based on 1536 carrier. 3) Are other modulations (other than OFDM) used at various data rates? If so, please describe. Response: There is no other modulation other than OFDM can be used with this equipment. 4) The test plan Technical Summary states that MV is from 2-34 MHz and LV is from 2-12 MHz. The LV data seems to show operation above 12 MHz. Verify the frequency bands of operation. Response: A revised test plan (revison 4) has been uploaded. 5) Please supply the notch capability information. All test data was done with ALL notching off which is not permitted for normal operation. Please supply data or manufacturers information as to the notch capability. Response: The Default notch embedded in the equipment is the following: Firmware defined Notch 0: start: 1800 KHz, stop: 2000 KHz, Firmware defined Notch 1: start: 3500 KHz, stop: 4000 KHz, Firmware defined Notch 2: start: 7000 KHz, stop: 7300 KHz, Firmware defined Notch 3: start: 10100 KHz, stop: 10150 KHz, Firmware defined Notch 4: start: 14000 KHz, stop: 14350 KHz, Firmware defined Notch 5: start: 18068 KHz, stop: 18168 KHz, Firmware defined Notch 6: start: 21000 KHz, stop: 21450 KHz, Firmware defined Notch 7: start: 24890 KHz, stop: 24990 KHz, Firmware defined Notch 8: start: 28000 KHz, stop: 29700 KHz 6) In the test plan under Compliance Summary there are several compliance items that state that the customer is to provide information in the operational description and attestation statements. This information is missing. Upload this information. It includes items like Interference Mitigation and Avoidance, notch capability, power up default conditions for both default notching and power settings, shut down capability, exclusion bands, etc. Response: Revised operation (revision 1) description has been uploaded. 7) The user's manual describes several features that might be used for compliance. It is not clear how the utility would set the notch is there was a complaint on a specific frequency. Please clarify how this would be done. Response : Additional notches can be added at any given time after the equipment install. Simply use a supplied program to add in new notch definitions. These new notch will be added to the installed system through existing network remotely. 8) If possible, have the manufacturer provide photos of all couplers. Response: 3 photos have been uploaded.

Corinex Communications Corp. 670 – 789 W. Pender Street Vancouver, BC V6C 1H2 Canada 604 692 0520 www.corinex.com 20 June 2006 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457 and 0.459 pertaining to confidential material. Corinex Communications Corp. would like the following documents regarding this submission for FCC ID: QIUCXP-MVA-GWY to be kept confidential. 1. Block diagrams 2. Users Manual (This device is a non consumer product and not accessible to end users so we wish to keep the user manual confidential) The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Brian Donnelly Director of Business Development
