QJSMV141lcd monitor

TFT LCD MONITOR User's Manual 2 Please read the cautions carefully before using this product Do not scratch the screen of the LCD monitor with sharp materials such as nails and pens. The interior part of the monitor is composed of electric elements. If the monitor is broken, do not try to disassemble it, because it is necessary to contact appropriate technical services in order to have the product repaired. Take care of the LCD monitor so that it is not damaged by the external impact. Take care not to use damaged cords and keep this product out of reach of children and persons who are not involved in using the product. Disconnect the power cable when the monitor is not used during a long period of time while you are away from home. Do not use this product near the windows receiving direct sunlight or direct natural light. Choose a fresh and dry area and protect the monitor from extreme conditions of temperature and humidity, dust and smoke. Adequate temperature = 0-40°∆C. Adequate humidity = 30-80 RH The LCD monitor screen can be damaged in the case that you clean the surface by using acetone, ethyl alcohol or acid detergent. Do not install the monitor in a sloping place that is not safe due to the fact that the product can fall down and be broken, thus doing harm to other persons. Check the power voltage before connecting to the AC power cable. Take care so that the monitor is not in contact with magnetic materials, metals and inflammable substances. Note This product uses the TFT LCD panel produced using state-of-the-art technology. The TFT LCD panel consists of millions of pixels and there is much probability of occurrence of bad pixels. Due to this reason, red, blue and green pixels may seem to shine and some black pixels may be visible. But this does not mean that the quality of this product is bad. You can use this product without worrying about the worsening of product performance. 3 Introduction Thank you for buying our TFT LCD monitor. Our monitor is a high-resolution monitor that has features of electromagnetic wave blocking, reduction in electricity consumption, and efficient use of space. In view of the fact that this user's manual is prepared for helping you to adequately use the product, it is recommendable to read the user's manual before using the product. Product features 1) This product has a 15-inch flat surface (Color Active Matrix TFT LCD) with a pixel size of 0.297 mm (H) x 0.297 mm (V) for displaying an ultra- precision, high-resolution image. 2) This product uses TFT (Thin Film Transistor) LCD panel and supports a maximum of 1024 x 768. 3) This product is a monitor whose deflection frequency is automatically transformed up to 30 - 80 kHz horizontally and up to 56 - 75 Hz vertically. 4) This product is compatible with IBM PC and Apple Macintosh (a different adapter is necessary for Apple Macintosh). 5) This product has a power-saving function less than 40 W in ON mode, less than 3 W in stand-by mode, less than 3 W in pause mode and less than 3 W in OFF mode in comparison with other monitors. 6) This product weighs just 1.7 kg. 7) This product supports DDC and allows you to use 'Plug and Play'. Product features In the case of some system requirements, it may not be compatible with Plug and Play. Registered as a device whose electromagnetic wave-blocking capacity is adequate (B Class). This product is registered as a device whose electromagnetic wave-blocking capacity is adequate and can be used in all places (including homes). Note Checking the product Please check if the product contains the following items. If there are some items missing, please contact the technical services. 1. TFT LCD monitor 2. User's manual (including product warranty). 3. AC to DC adapter. 4. Power cable (the power cable can be different according to use environment). 5. Floppy diskette. Cautions when installing the product 1. Install the product in a safe place. 2. Install the product in a place without either moisture or dust. 3. Do not install the product near direct sunlight or heating devices. Installation 1. Turn off the power connected to the monitor before connecting to an external device. 2. Power connection Connect the adapter to the DC jack connected to the signal cable of the monitor and connect the power cable. 3. Signal connection This signal input terminal is a D-SUB connector. Connect the signal cable to the signal input of the computer. 4. Turn on the power of the monitor. 5. Turn on the power of the system that you want to use. 6. Continue with the operation when the screen appears. You can adjust the desired status of the screen using control buttons at the bottom of the monitor. 7. If you wan to finish the operation, turn off the system power and then turn off the power of the monitor. 4 Installation of the product 5 Names and operation of control buttons Names and operation of control buttons This monitor has several control buttons. They can be used according to the user preference. Function of the buttons Power button (POWER) If you press the power button, the indicator lamp is turned on, and the operation of the monitor is initiated. If you do not want to start the operation of the monitor, press the power button again. Power indicator lamp (green) Considering that this product has a power-saving function, if the power cable is connected, the power indicator lamp is shown as follows. MENU If you press the menu button, the OSD (On-Screen Display) menu window appears. ( You can choose the desired item using the button(decrease)/(increase) in the OSD menu, or you can modify the selected values. AUTO/SELECT button If you press AUTO/SELECT button in the screen status, it is automatically adjusted for the optimal size and optimal position, and if you press the button, it functions as a selection button. MODEONSTAND BYSUSPENDOFF ScreenActiveBlankedBlankedBlanked Green Green (blinks every second) Power indicator lamp You can select the OSD menu in the OSD window using all th…

Text truncated - open the document above for the full version.

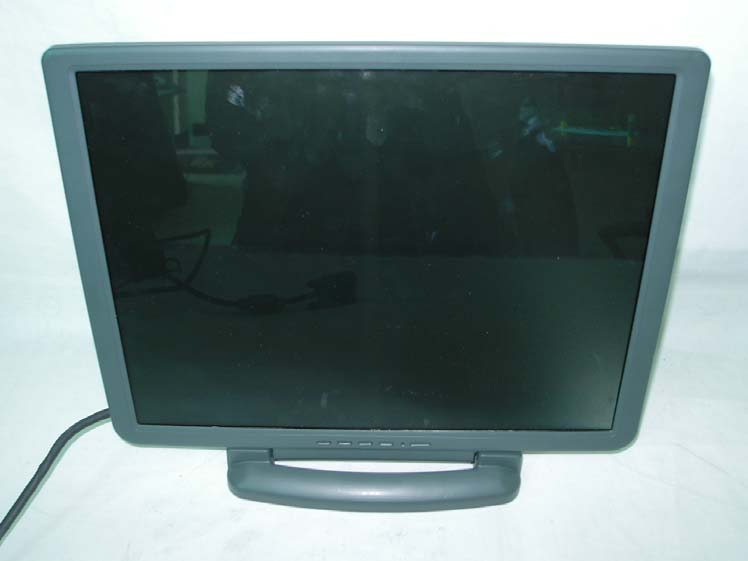

E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0410 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 14 of 18 May 15, 2004 EUT Front Rear

E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0410 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 18 of 18 May 15, 2004 Appendix – Sample Label

E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0410 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 15 of 18 May 15, 2004 Inside view AC/DC adapter E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0410 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 16 of 18 May 15, 2004 Main Board ( Front ) Main Board ( Rear ) E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0410 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 17 of 18 May 15, 2004 LCD Panel (Front) LCD Panel (Rear)

E E M M I I T T E E S S T T R R E E P P O O R R T T FCC EVALUATION REPORT FOR CERTIFICATION Korea Standard Technology Test report No.: KST-FCC0410 Manufacturer’s Name : Megavision Co., Ltd. Manufacturer’s Address: 799 Anyang Megavalley,Room 504 Kwangyang-Dong , Dongan-Gu, Anyang-Shi, Kyunggi-Do , KOREA EUT’s: FCC ID : QJSMV141 Product Name : LCD MONITOR Model Number(s) : MV141 Product Options : None Category : FCC Part 15 sub. part B Class B Digital Device Supplementary Information The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with measurement procedures specified in ANSI C63.4-1992 . I attest to the accuracy of data and all measurements reported herein were performed by or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Issue Date : May 15 , 2004 Te s t e d b y : Approved by : Choi, Jae-RakLee, Woen-Woo E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0410 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 2 of 18 May 15, 2004 Contents 1. Description of Device 2. Test Facility 3. MAP 4. Test system configuration 5. Description of E.U.T. 6. Summary of test results. 7. Test results. 8. Photographs. Appendix. Sample Label E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0410 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 3 of 18 May 15, 2004 1. Description of Device 1) Kind of equipment: LCD MONITOR 2) FCC ID: QJSMV141 3) Model Name: MV141 4) Serial No.: None 5) Type of Sample Tested: Pre-production 6) High Frequency Used: 24.576MHz 12.000MHz 7) Adapter Model name: LSE9901B1250 Manufacturer: LI SHIN INTERNATIONAL ENTERPRISE CORP. Serial no: A20333056148 8) Power Rating: 1phase AC100-240V, 1.0A, 50/60Hz Output: DC 12V, 3.33A 9) Tested Power supply: 1phase AC120V, 60Hz 10) Date of Manufacture: May , 2004 11) Manufacture: Megavision Co., Ltd 12) Description of Operating: Scroll All “H” Character Resolution 1024*768 Vertical Frequency: 75Hz 13) Dates of Test: May 10, 2004 14) Place of Tests: Korea Standard Technology EMC site 15) Test Report No: KST-FCC0410 E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0410 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 4 of 18 May 15, 2004 2. Test Facility The open field test site and conducted measurement facility are used for these testing, where are located following address and drawing. This site was fully described in a report dated November 14, 2002, that was submitted to the FCC. Korea Standard Technology ( KOSTEC Co., Ltd) Head office: 302 City Bild, 1600-3 Kwanyang-dong, Dongan-gu, Anyang-shi, Kyunggi-do, Korea Telephone No : 82-31-388-2051 Facsimile No: 82-31-388-2052 Test Lab :180-254, Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Telephone No : 82-31-222-4251 Facsimile No: 82-31-222-4252 MIC(Ministry of Information and Communication) No: KR0042 FCC Filing No. : 525762 VCCI Membership Number : 2005 VCCI Registration Number : R-1657 / C-1763 E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0410 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 5 of 18 May 15, 2004 3. MAP Korea Hwasung-shi (open area test site) KOSTEC Co., Ltd E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0410 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 6 of 18 May 15, 2004 4. TEST SYSTEM CONFIGURATION Operation Environment Ambient Temperature ( °C ) Humidity ( % ) Pressure ( hPa ) 10m Open Area site 18.9 42 1010 Shielded room: 18.5 41 1011 Test site These testing were performed following locations ; Shielded room : Conducted Emission, 10m Open Area Site: Radiated Emission Measurement Uncertainty All measurements involve certain levels of uncertainties, especially in field of EMC. The factors contributing to uncertainties are test receiver, Cable loss, antenna factor calibration, Antenna directivity, antenna factor variation with height, antenna phase center variation, antenna frequency interpolation, measurement distance variation, ite imperfection, mismatch, and system repeatability. Based on NIS 80,81, The measurement uncertainty level with a 95% confidence level were applied. sample calculation Conducted emission The field strength is calculated by adding the LISN factor, cable loss from the measured reading. The sample calculation is as follows: FS = MR + LF + CL MR = Meter Reading LF = LISN Factor CL = Cable Loss If MR is 30dB, LISN Factor 1dB, CL 1dB The result (MR) is 30 + 1 + 1 = 32dBuV E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0410 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 7 of 18 May 15, 2004 5. Description of E.U.T. Product Description Manufactured By: Megavision Co.,Ltd. Address: 799 Anyang Megavalley,Room 504 Kwangyang-Dong , Dongan-Gu, Anyang-Shi, Kyunggi-Do , KOREA Model: MV141 Serial Number: None Configuration of EUT Description Manufacturer Model/Part # Serial Number LCD Panel BOEhydis HT14X19-300 NRQ03630011000030 Main Board Megavision Co.,Ltd. 14&15 inch Monitor None Ac/dc adapter LI SHIN INTERNATIONAL ENTERPRISE CORP. LSE…

Text truncated - open the document above for the full version.
