QJSMV192SNTFT LCD MONITOR

ENG 1 Table of Contents Please read the cautions carefully before using this product 2 Product features 3 Installation of the product 4 Names and operation of control buttons6 Cable Connection 7 Selection and operation of the OSD menu8 MENU Function 9 Explanation of message for utilization12 Timing guide 13 Product specifications 14 Troubleshooting 15 ENG 2 Please read the cautions carefully before using this product Do not scratch the screen of the LCD monitor with sharp materials such as nails and pens. The interior part of the monitor is composed of electric elements. If the monitor is broken, do not try to disassemble it, because it is necessary to contact appropriate technical services in order to have the product repaired. Take care of the LCD monitor so that it is not damaged by the external impact. Take care not to use damaged cords and keep this product out of reach of children and persons who are not involved in using the product. Disconnect the power cable when the monitor is not used during a long period of time while you are away from home. Do not use this product near the windows receiving direct sunlight or direct natural light. Choose a fresh and dry area and protect the monitor from extreme conditions of tem- perature and humidity, dust and smoke. Adequate temperature = 0-40°C. Adequate humidity = 30-80 RH. The LCD monitor screen can be damaged in the case that you clean the surface by using acetone, ethyl alcohol or acid detergent. Do not install the monitor in a sloping place that is not safe due to the fact that the product can fall down and be broken, thus doing harm to other persons. Check the power voltage before connecting to the AC power cable. Take care so that the monitor is not in contact with magnetic materials, metals and inflammable substances. Please comply with the rules to prevent injury and property damage. ENG 3 Product features Introduction Thank you for buying our TFT LCD monitor. Our monitor is a high-resolution monitor that has features of electromagnetic wave blocking, reduction in electricity consumption, and efficient use of space. In view of the fact that this user's manual is prepared for helping you to adequately use the product, it is recommendable to read the user's manual before using the product. Product features 1) This product has a 19-inch flat surface (Color Active Matrix TFT LCD) with a pixel size of 0.2835mm (H) X 0.2835mm (V) for displaying an ultra-precision, high-resolution image. 2) This product uses 19"(Thin Film Transistor) LCD panel and supports a maximum of 1440 x 900. 3) This product is a monitor whose deflection frequency is automatically transformed up to 30 - 80 kHz horizontally and up to 56 - 75 Hz vertically. 4) This product is compatible with IBM PC and Apple Macintosh (a different adapter is necessary for Apple Macintosh). 5) This product has a power-saving function less than 42 W in ON mode, less than 2 W in stand-by mode, pause mode and less than 1 Win OFF mode in comparison with other monitors. 6) This product supports DDC and allows you to use 'Plug and Play'. In the case of some system requirements, it may not be compatible with Plug and Play. Note Registered as a device whose electromagnetic wave-blocking capacity is adequate(B Class). This product is registered as a device whose electromagnetic wave-blocking capacity is adequate and can be used in all places (including homes). ENG 4 Installation of the product Checking the product Please check if the product contains the following items. If there are items missing, please contact the technical services. 1. TFT LCD monitor 2. User's manual (including product warranty). 3. AC to DC adapter. 4. Power cable (the power cable can be different according to use environment). 5. Signal Cable ( Monitor Connection Cable ) 6. Monitor Base 7. Audio cable How to connect monitor stand base How to install the monitor stand 1. Lay the monitor on a flat surface. 2. Attach the monitor to the connecting parts as shown in the picture. 3. Turn it to the locking point. To detach it, do it inversely. Installation 1. Turn off the power before connecting to an external device. 2. Power connection, Connect the adapter to the DC jack connected to the signal cable of the monitor and connect the power cable. 3. Signal connection, This signal input terminal is a D-SUB connector. Connect the signal cable to the signal input of the computer. 4. Turn on the power of the monitor. 5. Turn on the power of the system that you want to use. 6. Continue with the operation when the screen appears. You can adjust the desired status of the screen using control buttons at the bottom of the monitor. 7. Up/Down Monitor Angle should not be over 15/20 degree. 8. To finish operation, turn off the system power and then turn off the power of the monitor. ENG 5 Installation of the product Caution Adjusting LCD panel angle - Do not hold or press down on the monitor’s screen while adjusting angle since LCD panel maybe damaged or break if severe. - Do not lean backward excessively so that the monitor does not fall backwards. - Be careful of potential damage to the stand while adjusting angle. ENG 6 Function of the buttons If you press the power button, the indicator lamp is turned on, and the operation of the monitor is initiated. If you do not want to start the operation of the monitor, press the power button again. Power indicator lamp (green) This product offers power-saving function. Power indicator lamp shows the current state of power. Power indicator lamp flashes during the following situations. MENU Shows menu screen or makes it disappear. Moreover, it is used when exiting the category from the inside of the menu window. SELECT Selects category within the menu window or executes automatic screen adjustment. (/) Moves to the desired category within the menu window or adjusts the value of selected category. Adjusts sound Sound 50 Names and operation of control buttons 7 Cable Connection ENG ENG 8 Selection a…

Text truncated - open the document above for the full version.

Microeye Inc. TEL : +82-31-381-3410 Rm. 321, Hyosung-Intellian, 1594- 1, Kwanyang-dong, FAX: +82-3 1-381-3412 Dongan-gu, Anyang-shi, Kyung gi-do, 431-060 Korea http://www.mi croeye.co.kr 1

EMI Test Report Report No.: KST-FCC-070028 Page : 14 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) EUT Front Rear

EMI Test Report Report No.: KST-FCC-070028 Page : 20 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Appendix – Sample Label

MEGAVISION CO., LTD. Product: TFT LCD Monitor Model: MV192SN Rating: DC 12 V / 3.33 A FCC ID: QJSMV192SN Made in KOREA THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION

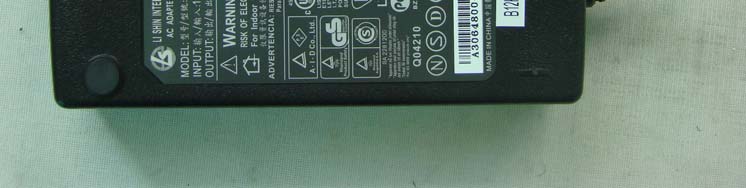

EMI Test Report Report No.: KST-FCC-070028 Page : 15 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Inside AC/DC Adaptor

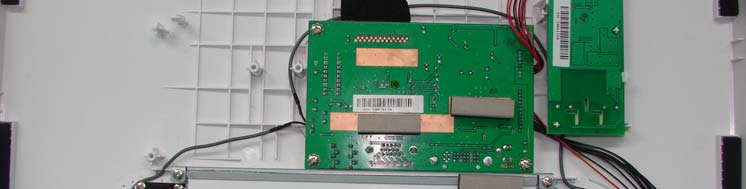

EMI Test Report Report No.: KST-FCC-070028 Page : 16 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) LCD Panel (Front) LCD Panel (Rear) EMI Test Report Report No.: KST-FCC-070028 Page : 17 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) OSD board (Front) OSD board (Rear) EMI Test Report Report No.: KST-FCC-070028 Page : 18 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) AD board (Front) AD board (Rear) EMI Test Report Report No.: KST-FCC-070028 Page : 19 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Inverter (Front) Inverter (Rear) EMI Test Report Report No.: KST-FCC-070028 Page : 21 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Appendix – enlarged photo Port

Microeye Inc. TEL : +82-31-381-3410 Rm. 321, Hyosung-Intellian, 1594-1, Kwanyang-dong, FAX: +82-31-381-3412 Dongan-gu, Anyang-shi, Kyunggi-do, 431-060 Korea http://www.microeye.co.kr 2 2. Parts List PARTLIST REV. 4.4 DATE 2006.10.19 LOCATION NUMBER NO ITEM VENDOR SPECIFICATION QUA NTIT Y 1 2 3 4 5 6 7 8 9 10 1 CAPACITOR, CHIP CERAMIC 22PF ±5% NPO 0603 50V 2 C16C17 2 CAPACITOR, CHIP CERAMIC 68PF ±5% NPO 0603 50V 2 C50C51 3 CAPACITOR, CHIP CERAMIC 101 ±5% NPO 0603 50V 4 C45C46C48C49 4 CAPACITOR, CHIP CERAMIC 103 ±10% X7R 0603 50V 2 C43C44 5 CAPACITOR, CHIP CERAMIC 473 ±10% X7R 0603 50V 7 C52 C53 C54 C55 C56 C57 C58 C5 C6 C9 C10 C11 C12 C13 C14 C20 C23 C25 C26 C27 C28 C29 C30 C31 C32 C33 C34 C35 C36 C37 C38 C39 C40 C41 C42 C47 C62 6 CAPACITOR, CHIP CERAMIC 104 ±10% X7R 0603 50V 36 C63 C64 C67 C68 C70 C71 7 CAPACITOR, CHIP CERAMIC 474 ±10% X7R 0603 16V 2 C7C8 8 CHIP RESISTOR 0R ±5% 1/10W 0603 1 R50 9 CHIP RESISTOR 0R ±5% 1/10W 0805 3 L1 L11 L12 10 CHIP RESISTOR 10 ±5% 1/10W 0603 8 R4 R5 R6 R7 R8 R9 R10 R11 11 CHIP RESISTOR 33 ±5% 1/10W 0603 4 R55 R56 R57 R58 12 CHIP RESISTOR 75 ±5% 1/10W 0603 3 R64 R65 R66 R29 R30 R31 R32 R33 R34 R35 R36 R37 R3813 CHIP RESISTOR 100 ±5% 1/10W 0603 15 R39R40R41R42R43 14 CHIP RESISTOR 390 ±5% 1/10W 0603 1 R59 15 CHIP RESISTOR 470 ±5% 1/10W 0603 3 R63 R78 R79 16 CHIP RESISTOR 510 ±5% 1/10W 0603 1 R72 17 CHIP RESISTOR 820 ±5% 1/10W 0603 1 R54 18 CHIP RESISTOR 1K ±5% 1/10W 0603 3 R3 R70 R71 19 CHIP RESISTOR 2.4K ±5% 1/10W 0603 1 R60 20 CHIP RESISTOR 4.7K ±5% 1/10W 0603 9 R14 R27 R28 R44 R45 R46 R47 R48 R51 21 CHIP RESISTOR 6.8K ±5% 1/10W 0603 1 R75 Microeye Inc. TEL : +82-31-381-3410 Rm. 321, Hyosung-Intellian, 1594-1, Kwanyang-dong, FAX: +82-31-381-3412 Dongan-gu, Anyang-shi, Kyunggi-do, 431-060 Korea http://www.microeye.co.kr 3 PARTLIST REV. 4.4 DATE 2006.10.19 LOCATION NUMBER NO ITEM VENDOR SPECIFICATION QUA NTIT Y 1 2 3 4 5 6 7 8 9 10 R15 R16 R17 R18 R19 R20 R21 R22 R23 R24 22 CHIP RESISTOR 10K ±5% 1/10W 0603 12 R25R26 23 CHIP RESISTOR 15K ±5% 1/10W 0603 1 R67 24 CHIP RESISTOR 22K ±5% 1/10W 0603 2 R2 R73 25 CHIP RESISTOR 39K ±5% 1/10W 0603 2 R49 R74 26 CHIP RESISTOR 300K ±5% 1/10W 0603 1 R1 27 CHIP BEAD 60 Ohm 0603 2A 2 R61 R62 28 CHIP BEAD 80 Ohm 0603 2A 8 L4 L5 L6 L7 L8 L9 L10 R53 29 Al. CAPACITOR SD - TYPE (10UF/16V ±20% 5*11 -40°C~105°C) 3 C18C19C24 30 Al. CAPACITOR SD - TYPE (100UF/10V ±20% 5*11 -40°C~105°C) 2 C65C66 31 Al. CAPACITOR SD - TYPE (100UF/25V ±20% 6.3*11 -40°C~105°C) 2 C15C69 32 Al. CAPACITOR SD - TYPE (220UF/25V ±20% 8*12 -40°C~105°C) 2 C59C60 33 Al. CAPACITOR SD - TYPE (470UF/16V ±20% 8*12 -40°C~105°C) 5 C1C2C3C4C61 34 INDUCTOR 33UH 3A SMD 1 L3 D1 D2 D3 D4 D5 D6 D7 D8 D19 D2035 DIODE BAV99 SOT23 11 D21 36 DIODE KDS184 SOT23 1 D13 37 DIODE MBRS340T 40V 3A 1 D22 38 Z-DIODE 5.1V 0.5W SOD323 5 D14 D15 D16 D17 D18 39 Z-DIODE 5.6V/0.5W SOD3234 D9D10D11D12 40 TRANSISTOR KSC1623 SOT23 2 Q1 Q4 41 TRANSISTOR MMBT3904 SOT23 1 Q2 42 TRANSISTOR KTA1504S SOT23 1 Q3 43 FET CEM9435A SO8 1 Q5 44 IC UTC7496L DIP20 1 U1 45 SCALER TSUM56AL-LF /TSUM56AL-LF-1 QFP100P 1 U2 46 EEPROM AT24LC08A SO8 2 U3U4 47 FLASH MEMORY SST /MSTAR SST25VF512A-33 /M25P05VPCE100 SO8 1 U6 48 REGULATOR AP1501-5.0 /CAT7104CU5V TO-263-5L 1 U5 49 REGULATOR AP1084-3.3 SOT263 1 U8 50 REGULATOR AE1117-1.8 SOT223 1 U9 51 CRYSTAL 14.318MHZ ±30PPM 1 X1 Microeye Inc. TEL : +82-31-381-3410 Rm. 321, Hyosung-Intellian, 1594-1, Kwanyang-dong, FAX: +82-31-381-3412 Dongan-gu, Anyang-shi, Kyunggi-do, 431-060 Korea http://www.microeye.co.kr 4 PARTLIST REV. 4.4 DATE 2006.10.19 LOCATION NUMBER NO ITEM VENDOR SPECIFICATION QUA NTIT Y 1 2 3 4 5 6 7 8 9 10 22PF 49S SMD 52 WAFER DF14-30P/1.25 WEP RIGHT ANGLE 1 J5 53 WAFER PH-4A 2.0mm STRAIGHT 1 J4 54 WAFER PH-8A 2.0mm STRAIGHT 1 J8 55 WAFER PH-12A 2.0mm STRAIGHT 1 J6 56 JACK PHONE JACK CKX3-3.5-11 2 J1J2 57 JACK DC JACK JACK-DC- 2.5mm 1 J11 58 CONNECTOR DVI-24+1(DVI-D) RIGHT ANGLE (HEXAGONAL 4.57mm SEPARATION TYPE) 1 J7 59 CONNECTOR DB-15/S 15P D-SUB 2.29mm FEMALE RIGHT ANGLE (HEXAGONAL 4.75mm SEPARATION TYPE ) 1 J10 60 PCB MV190PF (FR-4 2LAYER 135mm * 85mm 1.6T) 1 2006.08.11 REV:5.0

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2007-01-18Sheet of File:C:\Documents and Settings\..\MV190.schDrawn By: POWER POWER.Sch RGB INPUT RGB INPUT.Sch DVI INPUT DVI INPUT.Sch SCALAR SCALAR.Sch OSD OSD.Sch AUDIO AUDIO.Sch 1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2007-01-18Sheet of File:C:\Documents and Settings\..\POWER.SchDrawn By: R711K C64 0.1uF R53BEAD 80 C69 100/25V R701K G 4 D 8 D 5 D 6 S 1 S 2 S 3 D 7 Q5 FDS9435 R690 / NC R26 10K R72 510 R680 / NC 1 23 Q4 KSC1623 IN_VCCPANEL_VCC ON_PANEL PANEL_12VCC VCC3.3VD 5V C59 220uF/25V VIN 1 GND 3 ON/O FF 5 OUTPUT 2 FEEDBACK 4 TAB 6 U5 AP1501-50(AnaChip)(5V) 3 2 1 J11 DJ05F-250 L3 TPRH1206-330M SMD CHOKE 33UH L110 C60 220/25V D22 MBRS340T L120 C61 470/16V L2 10uH/NC PANEL_12VCC 12V SELECT FUSE or 0 ohm SELECT INDUCTOR or 0 ohm C62 0.1uF 12 L4 HH-1M1608-800JT / 0 C63 0.1uF 12 L5 HH-1M1608-800JT / 0 SELECT INDUCTOR or BEAD 5V 5V VDDC_1.8 C66 100/10V 12 L6HH-1M1608-800JT / 0 12 L9HH-1M1608-800JT / 0 12 L8HH-1M1608-800JT / 0 C65 100/10V 12 L10HH-1M1608-800JT / 0 12 L7HH-1M1608-800JT / 0 VCC3.3VD AVDD_PLL_3.3 AVDD_ADC_3.3 AVDD_MPLL_3.3 AVDD_DVI_3.3 VDDP_3.3 1 2 C42 104 1 2 3 4 5 6 7 8 9 A5 HEADER 9 1 2 3 4 5 6 7 8 9 A4 HEADER 9 1 2 3 4 5 6 7 8 9 A7 HEADER 9 1 2 3 4 5 6 7 8 9 A6 HEADER 9 1 2 3 4 5 6 7 8 J8 PH8A 2.00mm STRAIGHT 12V INV_ON DIM_ADJ R27 4.7K R28 4.7K 5V 1 2 3 Q2 2N3904 R43 22K C67 104 R30 100 C70 104 R73 22K 5V C71 104 1 2 3 4 J9 HEADER 4 12V L3 TPRH1206-330M SMD CHOKE 33UH GND 1 Vout 2 Vin 3 TAB 4 U8 1084-3.3V (SOT-263) GND 1 Vout 2 Vin 3 TAB 4 U9 AP1117 1.8 P0A401 P0A402 P0A403 P0A404 P0A405 P0A406 P0A407 P0A408 P0A409 P0A501 P0A502 P0A503 P0A504 P0A505 P0A506 P0A507 P0A508 P0A509 P0A601 P0A602 P0A603 P0A604 P0A605 P0A606 P0A607 P0A608 P0A609 P0A701 P0A702 P0A703 P0A704 P0A705 P0A706 P0A707 P0A708 P0A709 P0C4201 P0C4202 P0C5901 P0C5902 P0C6001 P0C6002 P0C6101 P0C6102 P0C6201 P0C6202 P0C6301 P0C6302 P0C6401 P0C6402 P0C6501 P0C6502 P0C6601 P0C6602 P0C6701 P0C6702 P0C6901 P0C6902 P0C7001 P0C7002 P0C7101 P0C7102 P0D2201 P0D2202 P0J801 P0J802 P0J803 P0J804 P0J805 P0J806 P0J807 P0J808 P0J901 P0J902 P0J903 P0J904 P0J1101 P0J1102 P0J1103 P0L201 P0L202 P0L301 P0L302 P0L301 P0L302 P0L401 P0L402 P0L501 P0L502 P0L601 P0L602 P0L701 P0L702 P0L801 P0L802 P0L901 P0L902 P0L1001 P0L1002 P0L1101 P0L1102 P0L1201 P0L1202 P0Q201 P0Q202 P0Q203 P0Q401 P0Q402 P0Q403 P0Q501 P0Q502 P0Q503 P0Q504 P0Q505 P0Q506 P0Q507 P0Q508 P0R2601 P0R2602 P0R2701 P0R2702 P0R2801 P0R2802 P0R3001 P0R3002 P0R4301 P0R4302 P0R5301 P0R5302 P0R6801 P0R6802 P0R6901 P0R6902 P0R7001 P0R7002 P0R7101 P0R7102 P0R7201 P0R7202 P0R7301 P0R7302 P0U501 P0U502 P0U503 P0U504 P0U505 P0U506 P0U801 P0U802 P0U803 P0U804 P0U901 P0U902 P0U903 P0U904 P0C6501 P0L402 P0L502 P0R2701 P0R5302 P0R7302 P0U803 P0C5901 P0J801 P0J802 P0J803 P0J901 P0J902 P0J1101 P0L201 P0L1102 P0L1202 P0L602 P0L802 P0L702 P0L902 P0A402 P0A403 P0A404 P0A405 P0A406 P0A407 P0A408 P0A409 P0A502 P0A503 P0A504 P0A505 P0A506 P0A507 P0A508 P0A509 P0A602 P0A603 P0A604 P0A605 P0A606 P0A607 P0A608 P0A609 P0A702 P0A703 P0A704 P0A705 P0A706 P0A707 P0A708 P0A709 P0C4202 P0C5902 P0C6002 P0C6102 P0C6202 P0C6302 P0C6401 P0C6502 P0C6602 P0C6702 P0C6902 P0C7002 P0C7102 P0D2201 P0J806 P0J807 P0J808 P0J903 P0J904 P0J1102 P0J1103 P0Q202 P0Q402 P0R7201 P0U503 P0U505 P0U506 P0U801 P0U901 P0R3002 P0R7301 P0R2802 P0Q501 P0Q502 P0Q503 P0R5301 P0R6801 P0R6901 P0R7001 P0A401 P0A501 P0A601 P0A701 P0C6101 P0C6201 P0C6301 P0L302 P0L401 P0L501 P0U504 P0C6402 P0Q504 P0R7102 P0C6701 P0J804 P0R4301 P0C7001 P0J805 P0R3001 P0C7101 P0Q201 P0R2801 P0D2202 P0L301 P0U502 P0Q203 P0R2702 P0R4302 P0Q401 P0R2602 P0Q403 P0R7002 P0R7101 P0R2601 P0C6001 P0L202 P0L1101 P0L1201 P0R6802 P0U501 P0C6901 P0Q505 P0Q506 P0Q507 P0Q508 P0R7202 P0C4201 P0C6601 P0L601 P0L701 P0L801 P0L901 P0L1001 P0R6902 P0U802 P0U804 P0U903 P0U902 P0U904 P0L1002 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA Title NumberRevisionSize A3 Date:2007-01-18Sheet of File:C:\Documents and Settings\..\SCALAR.SchDrawn By: RXOC+ ON_PANEL RXOC- RXE0- RXE2+ RXO1- RXEC+ RXE1+ RXO0- RXO0+ RXE1- RXEC- RXO2+ RXE2- RXE3+ RXO2- RXO3- RXE3- RXE0+ RXO1+ RXO3+ ST-DET 1 2 C33 104 R16 10K C18 10uF/16V R34100 R35100 R2210K R2310K 1 2 C32 104 R24 10K 1 2 X1 14.318MHZ R25 10K 12 C1622P 12 C1722P A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 U4 24C08 GND 33 VDDP 32 DDCA_SDA 30 GND 29 BIN0P 18 GPIO_P15/PWM0 35 VDDC 34 GIN0M 19 DDCA_SCL 31 GPIO_P23 41 GPIO_P22 42 SDI 40 AVDD_PLL 16 BIN0M 17 BYPASS 80 VCTRL 81 LVB0M 78 GND 79 LVA3M 55 LVA2M 61 LVB2M 72 VDDC 82 GPIO_P13 94 VDDP 56 LVA1P 62 LVB1P 73 GND 83 GPIO_P14 95 LVACKP 58 LVA0P 64 GPIO_P12 85 GND 57 LVA1M 63 RST 84 GPIO_P24/PWM2 47 VSYNC0 28 HSYNC0 27 GND 2 AVDD_DVI 14 GND 11 AVDD_DVI 8 GND 5 REFM 25 REFP 26 RIN0P 23 AVDD_ADC 24 RIN0M 22 GIN0P 20 SOGIN0 21 DDCD_SCL 1 GPIO_P27/PWM1 48 VDDP 49 GND 50 VDDC 51 MODE[0] 52 MODE[1] 53 LVA3P 54 REXT 15 GPIO_P11/I2C_MDA 43 SDO 37 NC 36 CSZ 38 SCK 39 GND 76 LVB0P 77 LVBCKM 70 LVB2P 71 LVB1M 74 VDDP 75 XIN 96 XOUT 97 GPIO_P07 92 GPIO_P26/PWM0 93 GPIO_P02/SAR3 90 GPIO_P06 91 GPIO_P25/PWM1 86 RSTN 87 GPIO_P00/SAR1 88 GPIO_P01/SAR2 89 GPIO_P10/I2C_MCL 44 NC 45 NC 46 VDDC 66 LVBCKP 69 R+ 3 R- 4 G+ 6 G- 7 B- 10 CK+ 12 CK- 13 LVACKM 59 LVA2P 60 LVA0M 65 LVB3P 67 LVB3M 68 DDCD_SDA 100 GPIO_P16/PWM2 99 AVDD_MPLL 98 B+ 9 U2 TSUM56AL R46 4.7K R45 4.7K R15 10K 12 C25104 R59390 CS 1 SO 2 WP 3 GND 4 SI 5 SCK 6 HOLD 7 VCC 8 M25P05VP 12 C26104 AVDD_MPLL_3.3 VDDP_3.3 VDDC_1.8 VDDP_3.3 5V AVDD_ADC_3.3 AVDD_PLL_3.3 VDDP_3.3 AVDD_DVI_3.3 DSDA VSYNC INV_ON HSYNC DIM_ADJ DSCL LED1KEY1KEY2IR_DATA VOLUME MUTE R14 4.7K VDDP_3.3 BIN0M BIN0P GIN0M GIN0P SOGIN0 RIN0M RIN0P RX2+ RX2- RX1- RX1+ RX0- RX0+ RXC+ RXC- SCL-DVI SDA-DVI GPIO14IRQ RXO1+ RXO3- RXEC- RXO0- RXE1- RXE1+ RXE0+ RXO2- RXEC+ RXO2+ RXE0- RXO0+ RXE2+ RXE2- RXO1- RXE3- RXOC+ RXOC- RXO3+ RXE3+ PANEL_VCC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 31 32 32 33 33 34 34 35 35 36 36 37 37 38 38 39 39 40 40 41 41 42 42 43 43 44 44 45 45…

Text truncated - open the document above for the full version.

Korea Standard Technology Report No.: KST-FCC-070028 KOSTEC Co., Ltd. : 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 | T. +82 31 222 4251 F +82 31 222 4252 FCC EVALUATION REPORT FOR CERTIFICATION KOREA Standard Technology Test report No.: KST-FCC-070028 Applicant’s Name : Megavision Co., Ltd. Applicant’s Address : 799 Anyang Megavalley,Room 504 Kwangyang-Dong , Dongan-Gu, Anyang-Shi, Kyunggi-Do , KOREA Manufacturer’s Name : Megavision Co., Ltd. Manufacturer’s Address : 799 Anyang Megavalley,Room 504 Kwangyang-Dong , Dongan-Gu, Anyang-Shi, Kyunggi-Do , KOREA EUT’s: FCC ID : QJSMV192SN Product Name : TFT LCD Monitor Model Number(s) : MV192SN Product Options : Request for a additional model name by manufacturer; caused by a change of EUT's enclosure color. :MV192SB Category : FCC Part 15 subpart B (Class B Computing Digital Device) Supplementary Information The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with measurement procedures specified in ANSI C63.4-2003 . I attest to the accuracy of data and all measurements reported herein were performed by or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test Date : April 27, 2007 Issued Date : April 28, 2007 Te s t e d b y : Approved by: Jeong, seok-jin Lee, Weon-woo EMI Test Report Report No.: KST-FCC-070028 Page : 2 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Contents 1. Description of E.U.T 2. Test Facility 3. MAP 4. Test system configuration 5. Description of E.U.T. 6. Summary of test results. 7. Test results. 8. Photographs. EMI Test Report Report No.: KST-FCC-070028 Page : 3 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 1. Description of E.U.T 1) Kind of equipment: TFT LCD Monitor 2) FCC ID: QJSMV192SN 3) Model Name: MV192SN 4) Serial No.: Proto Type 5) Type of Sample Tested: Pre-production 6) High Frequency Used: 14.31818 MHz 7) Adapter: Model name: LSE0107A1240 Manufacturer: LI SHIN INTERNATIONAL ENTERPRISE CORP. Serial no: A30648000702 8) Power : Input: 100 ~ 240 V, 50/60 Hz 1 A Output: 12V, 3.33 A 9) Tested Power supply: 1phase AC120 V, 60 Hz 10) Date of Manufacture: December, 2006 11) Manufacture: Megavision Co., Ltd. 12) Description of Operating: Scroll “H” Character 13) Dates of Test: April 27, 2007 14) Place of Tests: KOSTEC Co., Ltd. EMC site 15) Test Report No: KST-FCC-070028 EMI Test Report Report No.: KST-FCC-070028 Page : 4 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 2. Test Facility The open field test site and conducted measurement facility are used for these testing, where are located following address and drawing. This site was fully described in a report dated November 14, 2002, that was submitted to the FCC. KOSTEC CO., LTD. (Korea Standard Technology) Head office & Test Lab ; :180-254, Annyung-dong, Hwasung-shi, Gyeonggii-do, Korea Telephone Number : 82-31-222-4251 Facsimile Number: 82-31-222-4252 MIC(Ministry of Information and Communication) Number: KR0041 FCC Filing Number. : 525762 VCCI Membership Number : 2005 VCCI Registration Number : R-1657 / C-1763 EMI Test Report Report No.: KST-FCC-070028 Page : 5 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 3. MAP Korea Hwasung-shi (open area test site) KOSTEC Co., Ltd EMI Test Report Report No.: KST-FCC-070028 Page : 6 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 4. TEST SYSTEM CONFIGURATION Operation Environment Ambient Temperature ( °C ) Humidity ( % ) Pressure ( hPa ) 10 m Open Area site 14 38 1007 Shielded room: 21 39 1007 Test site These testing were performed following locations ; Shielded room : Conducted Emission, 10 m Open Area Site: Radiated Emission Measurement Uncertainty All measurements involve certain levels of uncertainties, especially in field of EMC. The factors contributing to uncertainties are test receiver, Cable loss, antenna factor calibration, Antenna directivity, antenna factor variation with height, antenna phase center variation, antenna frequency interpolation, measurement distance variation, ite imperfection, mismatch, and system repeatability. Based on NIS 80,81, The measurement uncertainty level with a 95 % confidence level were applied. sample calculation Conducted emission The field strength is calculated by adding the LISN factor, cable loss from the measured reading. The sample calculation is as follows: FS = MR + LF + CL MR = Meter Reading LF = LISN Factor CL = Cable Loss If MR is 30 dB, LISN Factor 1 dB, CL 1 dB The result (MR) is 30 + 1 + 1 = 32 dBuV EMI Test Report Report No.: KST-FCC-070028 Page : 7 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 5. Description of E.U.T. Product Description Manufactured By: Megavision Co., Ltd. Address: 799 Anyang Megavalley,Room 504 Kwangyang-Dong , Dongan-Gu, Anyang-Shi, Kyunggi-Do , KOREA Model: MV192SN Serial Number: Proto Type Configuration of EUT Description Manufacturer Model/Part # Serial Number LCD Panel None M190PW01 AU190210BBTC9TC16 BJ009J OSD board Megavision Co…

Text truncated - open the document above for the full version.

EMI Test Report Report No.: KST-FCC-070028 Page : 8 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Peripherals No Description Manufacturer Model/Part # Serial Number 1 PC micronics None None 2 Keyboard Logitech Inc. Y-SM46 None 3 Mouse MONTEREY INTERNATIONAL CORP. SMH-120C TAKY562802P 4 TFT LCD MONITOR Megavision Co., Ltd. MV192SN Proto Type 5 AC/DC Adapter LI SHIN INTERNATIONAL ENTERPRISE CORP. LSE0107A1240 A30648000702 6 Headset None Hdppycdll None E.U.T Test Configuration (example) 6. Summary of test results Modification to the E.U.T. - None Result : PASS TFT LCD Monitor (EUT) PC Keyboard Mouse Headset EMI Test Report Report No.: KST-FCC-070028 Page : 12 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 8. PHOTOGRAPHS Conducted emission ( Front ) Conducted emission ( Rear ) EMI Test Report Report No.: KST-FCC-070028 Page : 13 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Radiated Emission ( Front ) Radiated Emission ( Rear )
