QJSMV220HBTFT LCD MONITOR

1. Please read the cautions carefully before using this product. 2. Product feature 4. Names and operation of control buttons 5. OSD MENU Selection and operation 6. MENU function 7. Utilization message 8 Timing guide 9. Input signal detail 10. Product specification 11. Trouble shooting 3 4 5, 6 7 8, 9 10 11 12 13 14 ڌ Table of Contents 1, 2 3. Product installation ENG ENG 2 Please read the cautions carefully before using this product Do not scratch the screen of the LCD monitor with sharp materials such as nails and pens. The interior part of the monitor is composed of electric elements. If the monitor is broken, do not try to disassemble it, because it is necessary to contact appropriate technical services in order to have the product repaired. Take care of the LCD monitor so that it is not damaged by the external impact. Take care not to use damaged cords and keep this product out of reach of children and persons who are not involved in using the product. Disconnect the power cable when the monitor is not used during a long period of time while you are away from home. Do not use this product near the windows receiving direct sunlight or direct natural light. Choose a fresh and dry area and protect the monitor from extreme conditions of tem- perature and humidity, dust and smoke. Adequate temperature = 0-40°C. Adequate humidity = 30-80 RH. The LCD monitor screen can be damaged in the case that you clean the surface by using acetone, ethyl alcohol or acid detergent. Do not install the monitor in a sloping place that is not safe due to the fact that the product can fall down and be broken, thus doing harm to other persons. Check the power voltage before connecting to the AC power cable. Take care so that the monitor is not in contact with magnetic materials, metals and inflammable substances. Please comply with the rules to prevent injury and property damage. ඖGIntroduction Thank you for purchasing our monitor. ඖGProduct features GXPGThis product (MV220) has 22-inch flat surface (Color Active Matrix TFT LCD) with pixel size of 0.285 mm (H) x 0.285 mm (V) for ultra-precision, high resolutuion image. GYPGMV220 uses 22-inch TFT LCD (Thin Film Transistor - Liquid Crystal Display) panel and supports 1680 x 1050 maximum resolution. GZPGMV220 is a monitor whose deflection frequency is transformed automatically GGGGGup to 30~80KHz horizentally, 56~75Hz vertically. G[PGMV220 is compatible with IBM PC and Apple Macintosh.(A different adaptor is necessary for apple macintosh) G\PGMV220 features high definition display with its component input.(HD ready). GGGGGThe component input makes you enjoy movies and video game with high-definition display. (max. 720p) G G^PGMV220 has a power saving function less than 48W in power ON mode, less than 2W in stand by, and 1W in power off. G_PGMV220 supports DDC, Plug & Play mode. Product features ڎ What is 'Component input'? Component is a input port for high definition display signals, which is separated 3 signals with Brightness (Y), Color diferences (Pb, Pr) and and each signal is carried by 3 pieces of wire. Our monitor is a high-resolution monitor that has features of electromagnetic wave blocking, reduction in electricity consumption and efficient use of space. This manual has been prepared to help you using this product adequately. It is recommendable to read this manual before using this product. In the case of some system requirements, it may not be compatible with Plug & Play. ENG G]PGMV220 supports HDCP (High bandwidth Contents Protection) for digital input (DVI). What is 'HDCP'? The initial letters of High band-width Contents Protection. HCDP gives users the possible conection to HD signals for movies, video games, etc. ൘ Checking the product Product installation 4 ENG Please check if the product contains the following items. If there are items missing, please contact our technical services. 1. TFT LCD monitor 2. User's manual (including product warranty card) 3. AC to DC adaptor 4. Power cable 5. Signal cable (15Pin D-SUB cable) 6. Audio cable ൘ Installation 1. Please, turn on MV220, before connecting any device to it. 2. Connect adaptor cable to DC power-on on the rear side of MV220, then connect power cord to adaptor. 3. MV220 has 15pin D-SUB port, DVI-D and Component port. Connect the cables properly to your PC between D-sub, DVI, Component. 4. Turn on your PC and MV220. 5. Seeing MV220's working, you can adjust display condition with pushing control buttons on front side of MV220. 6. As user's convience, you can adjust the display angle of MV220 under 3 degree to front, at under 25 degree to backward. 7. Please, turn it off, if you want stop using MV220. 3 25 Caution Adjusting LCD panel angle - Do not hold or press down on the monitor’s screen while adjusting angle since LCD panel maybe damaged or break if severe. - Do not lean backward excessively so that the monitor does not fall backwards. - Be careful of potential damage to the stand while adjusting angle. ൘ Function of the buttons 'MENU' Show the menu screen or makes it disappear, Moreover 'SELECT' Select category within the menu window or excutes automatic screen adjustment. - ' ൖ ' / ' ൘ ' Moves to the desired category within the menu window or adjusts the value of selected category and adjust sound volume. 'MODE' Changes the modes, the orders being changed are same as below. 'POWER' If you push it, MV220 will turn on, flashing power indicater which shows the current state of power. If you push the button again, MV220 turns off. Also power indicater flashes in following cases 1. On the power saving function working 2. No signal input but cables connected 3. No signal input because of the disconnection of cable 4. All signal is out of range MV220 allowing LIGHT SENSOR Adjusts the value "AUTO BRIGHTNESS' (Please refer to next page) Names and operation of control butto MENU SELECT ൖ ൘ MODE POWER MENU SELECT ൖ ൘ MODE POWER 5 ENG RGB DVI COMPONENT You can listen to any sound out of MV220 with us…

Text truncated - open the document above for the full version.

Microeye Inc. TEL : +82-31-381-3410 Rm. 321, Hyosung-Intellian, 1594- 1, Kwanyang-dong, FAX: +82-3 1-381-3412 Dongan-gu, Anyang-shi, Kyung gi-do, 431-060 Korea http://www.mi croeye.co.kr 6 Block Diagram (MV220H)

EMI Test Report Report No.: KST-FCC-070051 Page : 14 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) EUT Front Rear EMI Test Report Report No.: KST-FCC-070051 Page : 21 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Appendix 2 – enlarged photo Port N/A

EMI Test Report Report No.: KST-FCC-070051 Page : 20 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Appendix 1 – Sample Label

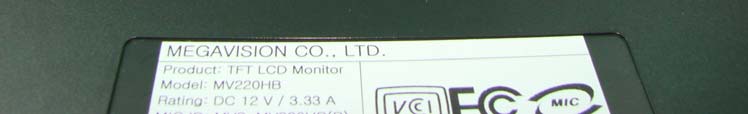

MEGAVISION CO., LTD. Product: TFT LCD Monitor Model: MV220HB Rating: DC 12 V / 3.33 A MIC ID: MVS-MV220HB(B) FCC ID: QJSMV220HB Made in KOREA THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION

EMI Test Report Report No.: KST-FCC-070051 Page : 15 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Inside Adapter

EMI Test Report Report No.: KST-FCC-070051 Page : 16 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) AD board (Front) AD board (Rear) EMI Test Report Report No.: KST-FCC-070051 Page : 17 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) LCD (Front) LCD (Rear) EMI Test Report Report No.: KST-FCC-070051 Page : 18 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Inverter (Front) Inverter (Rear) EMI Test Report Report No.: KST-FCC-070051 Page : 19 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) OSD (Front) OSD (Rear)

1.0 DATE ITEM DECAL SPECIFICATION UNIT Q UANTIT Y REFERNCE 1 CDS SMD GL5516 5-10K ø5mm PCS 1 R6 LED TH BLUE LED 2P 5mm PCS 1 LD1 2 TACT SWITCH TH 6*6*4.3mm RIGHT ANGLE PCS 6 SW1,SW2,SW3,SW4,SW5,SW6 3 WAFER TH PH12P 2.00mm STRAIGHT PCS 1 CN1 二 1 PCB MV220 OSD PCS 1 140mmX20mm FR-4 1LAYER 1.6T 2007.06.30 VENDOR RIGHT ANGLE Model NO Version MV22OHB SD BOARD REMARK 一 SHENBA WEIDIDA STRAIGHT 佳胜 / 比斯曼 / 技冠 QUANTUM 虹 达 /港源 第 1 页 ，共 1 页 1.0 DATE ITEM DECAL SPECIFICATION UNIT QUANTI T Y REFERNCE VENDOR 1 CHIP RESISTOR SMD0603 10R----±5% 1/10W PCS 8 R69,R70,R71,R72,R73,R74,R75,R76 YAGEO/TDK/ 华新 2 CHIP RESISTOR SMD0603 33R----±5% 1/10W PCS 11 R18,R24,R43,R55,R67,R82,R83,R84,R85,R90,R91 YAGEO/TDK/ 华新 3 CHIP RESISTOR SMD0603 75R----±5% 1/10W PCS 6 R31,R32,R33,R44,R59,R68 YAGEO/TDK/ 华新 4 CHIP RESISTOR SMD0603 390R----±5%1/10W PCS 1 R27 YAGEO/TDK/ 华新 5 CHIP RESISTOR SMD0603 430R----±5%1/10W PCS 1 R37 YAGEO/TDK/ 华新 6 CHIP RESISTOR SMD0603 470R----±5%1/10W PCS 3 R6,R10,R17 YAGEO/TDK/ 华新 7 CHIP RESISTOR SMD0603 510R----±5%1/10W PCS 1 R58 YAGEO/TDK/ 华新 8 CHIP RESISTOR SMD0603 100R ----±5%1/10W PCS 18 R11,R21,R22,R25,R28,R29,R30,R38,R39,R40,R41,R42,R54,R56,R57,R65,R66 , R79 YAGEO/TDK/ 华新 9 CHIP RESISTOR SMD0603 1K----±5%1/10W PCS 4 R9,R26,R60,R62 YAGEO/TDK/ 华新 10 CHIP RESISTOR SMD0603 1.5K----±5%1/10W PCS 2 R3,R8 YAGEO/TDK/ 华新 11 CHIP RESISTOR SMD0603 3K----±5%1/10W PCS 2 R2,R4 YAGEO/TDK/ 华新 12 CHIP RESISTOR SMD0603 4.7K----±5%1/10W PCS 15 R1,R13,R14,R15,R23,R34,R35,R36,R47,R48,R53,R61,R63,R64,R77 YAGEO/TDK/ 华新 13 CHIP RESISTOR SMD0603 10K----±5%1/10W PCS 8 R12,R16,R45,R51,R52,R78,R80,R81 YAGEO/TDK/ 华新 14 CHIP RESISTOR SMD0603 22K----±5%1/10W PCS 1 R7 YAGEO/TDK/ 华新 15 CHIP RESISTOR SMD0603 300K----±5%1/10w PCS 1 R5 YAGEO/TDK/ 华新 2 CHIP CERAMIC SMD0603 10pF ±5% NPO 50V PCS 3 C36,C38,C43 YAGEO/TDK 3 CHIP CERAMIC SMD0603 22pF ±5% NPO 50V PCS 2 C19,C20 YAGEO/TDK 5 CHIP CERAMIC SMD0603 101 ±5% NPO 50V PCS 2 C70,C71 YAGEO/TDK 6 CHIP CERAMIC SMD0603 102 ±5% X7R 50V PCS 1 C27 YAGEO/TDK 7 CHIP CERAMIC SMD0603 473 ±10% X7R 16V PCS 6 C25,C26,C30,C32,C33,C34 YAGEO/TDK 8 CHIP CERAMIC SMD0603 474+80%-20% Y5V 16V PCS 2 C3,C6 YAGEO/TDK 9 CHIP CERAMIC SMD0805 105±10% X7R 50V PCS 3 L1,L2,L3 YAGEO/TDK 1 DIODE SOT-23 BAV99 PCS 14 D6,D7,D8,D9,D11,D12,D13,D14,D15,D16 , D17 , D18 , D19 , D20 PHILIPS KEC 2 DIODE SOT-23 1SS184 PCS 1 D24 PHILIPS / KEC YAGEO/TDK 2007-06-30 Model REMARK SMD SMD0603 4 NO Revision MV220HB ADB 一 45 2 CHIP CERAMIC PCSPCS C28,C29 1 CHIP CERAMIC C2,C7,C8,C10,C11,C12,C13,C14,C15,C16,C17,C18,C22,C23,C24,C31,C35,C39,C40,C41,C42,C45,C46,C47,C48,C49,C50,C51,C52,C53,C54,C55,C56,C58,C59,C60,C61,C62,C65,C68,C69,C72,C73,C75,C76 SMD0603 YAGEO/TDK 68pF ±5% NPO 50V 104 ±10% X7R 50V 二 第 1 页 ，共 3 页 1.0 DATE ITEM DECAL SPECIFICATION UNIT QUANTI T Y REFERNCE VENDOR 2007-06-30 Model REMARK NO Revision MV220HB ADB 3 DIODE SMD SS34/SK34 40V3A PCS 1 D25 ON/SEMICONDUCTOR 4 Z-DIODE SOD323 5.6V/0.5W PCS 8 D1,D2,D3,D4,D5,D21,D22,D23 RHOM/LRC 5 TRANSISTOR SOT-23 KTA1504S PCS 1 Q1 PHILIPS/KEC 6 TRANSISTOR SOT-23 KSC1623 PCS 3 Q2,Q4,Q5 PHILIPS/KEC 1 CHIP BEAD SMD NBQ16808T-600Y-S 60 PCS 2 R19,R20 YAGEO/ 爱普 300MA 2 CHIP BEAD SMD SBK16808T-600Y-S 60 PCS 4 L5, L8, L9, L10, YAGEO/ 爱普 300MA 3 CHIP BEAD SMD PBY201209T-800Y-S 2012 80 PCS 3 L4,L7,R49 YAGEO/ 爱普 3A 4 COIL SMD 33UH 3A PCS 1 L6 捷 创嘉 (JCJ) 1 FET SOP8 FDS9435A PCS 1 Q3 CEM/CET/MT/FAIRCHI LD 2 AUDIO AMP DIP20 ST7496L PCS 1 U1 ST MICRO 3 SCALER QFP128 TSUMU58WHJ-LF PCS 1 U2 MSTAR 4 VIDEO SWITCH SOP16 PI5V330 2-CHANNEL PCS 1 U3 PERICOH 5 REGULATOR SOT-252 AP1117-1.8 PCS 1 U9 ANACHIP/AE/LM 6 REGULATOR SOT263 AP1084-3.3 PCS 1 U7 ANACHIP 8 EEPROM SOP8 24LC16 PCS 2 U4,U10 ATMEL 9 FLASH MEMOR Y SOP8 SST25VF512A-33/ MX25L512MC-12G PCS 1 U5 SST/MACRONIX 10 EEPROM SOP8 24LC02 PCS 1 U6 ATMEL 六 1 CRYSTAL SMD 14.318MHZ ±30PPM 49S PCS 1 X1 SHENZHEN 1 AL CAPACITOR TH 10uF/16V ±20% 5*11mm PCS 4 C21,C44,C57,C77 均生 2 AL CAPACITOR TH 100uF/6.3V ±20% 5*11mm PCS 2 C64,C74 均生 3 AL CAPACITOR TH 100uF/10V ±20% 5*11mm PCS 1 C63 均生 4 AL CAPACITOR TH 100uF/16V ±20% 6.3*11mm PCS 1 C37 均生 5 AL CAPACITOR TH 470uF/10V ±20% 8*12mm PCS 1 C67 均生 6 AL CAPACITOR TH 470uF/16V ±20% 8*12mm PCS 5 C1,C4,C5,C9,C66 均生 7 D C POWER JAC K TH DC JACK JACK-DC-2.5mm PCS 1 J9 广盛 8 CONNECTOR TH DVI 24+1 (DVI-D) PCS 1 J8 AMP 9 CONNECTOR TH D-SUB 15PIN2.29mm PCS 1 J6 AMP 10 WAFER TH PH2.0- 12P PCS 1 J5 广盛 11 WAFER TH PH2.0-8P PCS 1 J7 广盛 RIGHT ANGEL U8 ANACHIP/CAT -40 °C ~85 °C -40 °C ~85 °C REGULATOR TO263-5L 1 STRAIGHTSTRAIGHT CAT7104CU5V/AP1501-5.0 PCS -40 °C ~85 °C -40 °C ~85 °C -40 °C ~85 °C FEMABLE RIGHT ANGLE TH -40 °C ~85 °C 七三五四 7 第 2 页 ，共 3 页 1.0 DATE ITEM DECAL SPECIFICATION UNIT QUANTI T Y REFERNCE VENDOR 2007-06-30 Model REMARK NO Revision MV220HB ADB 12 WAFER TH PH2.0-4P PCS 1 J2 广盛 13 WAFER TH DF14-30/1.25 WEP PCS 1 J1 诚得信 14 RCA JACK TH WTJ32O-35A PCS 1 RC1 大 众 15 JACK AUDIO TH CKX3-3.5-11 PCS 2 J3,J4 广盛 八 1 PCB MV220H REV0.3 PCS 1 175mmX75mm 1.6T FR-4 2LAYER 佳 胜 / 比斯曼 / 技冠 RIGHT ANGLE STRAIGHT 第 3 页 ，共 3 页 1.2 DATE ITEM DECAL SPECIFICATION UNIT QUANT I T Y REFERNCE 1 CHIP RESISTOR SMD0603 1.5K----±5% 1/10W PCS 4 R1,R5,R8,R12 2 CHIP RESISTOR SMD0603 3.3K----±5% 1/10W PCS 1 R9 3 CHIP RESISTOR SMD0603 7.5K--- ±5% 1/10W PCS 1 R7 4 CHIP RESISTOR SMD0603 10K----±5% 1/10W PCS 6 R3,R4,R13,R14,R15,R16 5 CHIP RESISTOR SMD0603 20K----±5% 1/10W PCS 1 R20 6 CHIP RESISTOR SMD0603 22K----±5%1/10W PCS 1 R18 7 CHIP RESISTOR SMD0603 27K----±5%1/10W PCS 1 R17 8 CHIP RESISTOR SMD0603 100K----±5%1/10W PCS 3 R2,R6,R10 9 CHIP RESISTOR SMD0603 330K----±5%1/10W PCS 1 R11 10 CHIP CERAMIC SMD0603 220PF±10% X7R 50V PCS 1 C25 11 CHIP CERAMIC SMD0603 273 ±10% X7R 50V PCS 4 C1,C12,C14,C19 12 CHIP CERAMIC SMD0603 103 ±10% X7R 50V PCS 1 C13 13 CHIP CERAMIC SMD0603 222 ±10% X7R 50V PCS 4 C20,C21,C22,C23 14 CHIP CERAMIC SMD1206 106 ±10% X7R 25V/10V PCS 2 C4,C7 15 CHIP CERAMIC SMD0603 472 ±10% X7R 50V PCS 2 C15,C16 16 CHIP CERAMIC SMD0603 102 ±10% X7R 50V PCS 1 C27 17 CHIP CERAMIC SMD0603 105 +80%-20% Y5V 16V PCS 5 C5,C6,C10,C11,C17 18 CHIP CERAMIC SMD…

Text truncated - open the document above for the full version.

11 22 33 44 55 66 77 88 99 1010 1111 1212 D D C C B B A A Pro tel Int er nat io nal P/ LL3, 12a Ro dbo rou gh RdFrench s Fo restNSWAu st ral ia 20 86 2007-7-12 12:08:55 D: \PC B Sch e mat ic \ REV 0_ 3\ MV2 20 H.Sch Doc Ti tl eSize: Number: Dat e:File: Revis ion:Sheet of Ti me: A1 RXO1+RXO3-RXEC-RXO0-RXE1-RXE1+RXE0+RXO2- RX0- RXEC+ RXC + RXO2+RXE0-RXO0+RXE2+ RX1- RXE2- RX2+ RXO1-RXE3- RX2-RX1+RX0+ RXOC+RXOC-RXO3+RXE3+ RXC - DE T _A 100 R7 9 47n C2 5 10 0p F C71 10 R7 6 MTZJ5 .6 B D2 10 R6 9 10 R7 3 10 R7 2 68 PC28 47n C3 0 MTZJ5 .6 B D3 47n C3 4 100 R2 9 100 R4 1 100 R2 1 BAV99D7 100 R4 2 100 R2 5 47n C3 2 BAV99D8 47n C2 6 68 PC29 4. 7 KR35 4. 7 KR34 33 R1 8 NBQ 1608 08T -600Y-S R1 9 NBQ 1608 08T -600Y-S R2 0 33 R2 4 BAV99D6 102 C2 7 MTZ J5. 6B D1 47n C3 3 10 K R8 1 10 K R8 0 104 C7 3 BAV99D1 4 BAV99D1 5 BAV99D1 6 A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VC C 8 24L C16 U1 0 33 R8 3 BAV99D2 0 33 R8 2 BAV99D1 9 BAV99D1 7 MTZJ5 .6 B D4 BAV99D1 8 BAV99D1 3 61752839410 1112131415 16 17 VGA POR T J6 100 R4 0 75R32 75R33 75R31 10K R7 8 10 R7 4 MTZJ5 .6 B D5 10 R7 0 10 R7 5 10 0p F C70 10 R7 1 MTZJ5 .6 BD 22 5V 5V 5V PANEL_VCC DSCL HSY NC DSD A VSY NC 123456789101112131415161718192021222324252627282930 31 31 32 32 33 33 34 34 35 35 36 36 37 37 38 38 39 39 40 40 41 41 42 42 43 43 44 44 45 45 46 46 47 47 48 48 49 49 50 50 51 51 52 52 53 53 54 54 55 55 56 56 12507WR-30PJ1 12345678 PH8A 2.00mm STRAIGHT J7 12V INV_ ONDIM_A DJ 123456789 HE ADE R 9A3 123456789 HE ADE R 9A4 VIN 1 GND 3 ON/OFF 5 OU TPUT 2 FEEDBACK 4 TA B 6 AP1501-50 (3A) TO-263U8 321 DJ05 F- 2 50 J9 CH OKE 33UH / SMD L6 47 0/ 1 6V C6 6 SS34(SK34)D2 5 10 4 C6 8 47 0/ 1 0V C6 7 PBY2 01209 T-80 0Y-S(3 A)L4 10 4 C6 9 PBY2 01209 T-80 0Y-S(3 A)L7 PANEL_12VCC 12V SELECT INDUCTOR or BEAD 5V AV DD _1 .8 10 0/ 6 .3 V C6 4 100 /6. 3V C7 4 SBK16080 8T- 600Y-S 60 L5 10 0/ 1 0V C6 3 SBK16080 8T- 600Y-S 60 L8 GND 1 Vo ut 2 Vi n 3 TA B 4 1084-3_3U7 VC C3 .3 VD AV DD _3 .3VD DP_ 3. 3 1KR6 0 104C4 0 PBY2 01209 T-80 0Y-S(3 A) R4 9 10 0/ 1 6V C3 7 4. 7KR5 3 G 4 D 8 D 5 D 6 S 1 S 2 S 3 D 7 F DS9435Q3 N/ C (PBY2 01209T -80 0Y-S(3 A) ) R5 0 1KR6 2 510R5 8 1 2 3KSC162 3 Q4 IN_VCC PANEL_VCC ON _PA NE L VC C3 .3 VD 5V 10 4 C45 10 4 C48 10 4 C46 10 4 C47 10 4 C62 10 4 C50 10 4 C53 10 4 C51 10 uF / 6. 3 V C77 VD DP_ 3. 3 AV DD _1 .8 AV DD _3 .3 BIN0MGIN0 MRIN0M DE T_ D 104C6 5 470 R1 7 MTZJ5 .6 BD 23 RX O 1+RX O 0-RX O 2-RX O 2+RX O 0+RX O 1-RX O 3-RX E0+RX E0-RX O C+RX O C-RX O 3+RX E1-RX E1+RX EC-RX EC+RX E2+RX E2-RX E3-RX E3+DG NDDG NDDG NDDG ND 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 19 19 20 20 21 21 22 22 23 23 24 24 C1 25 C2 26 C3 27 C4 28 C5 29 30 30 33 33 34 34 31 31 32 32 DV I - D J8 4. 7KR3 6 5V 100R3 9 104 C31 1KR2 6 104 C24 4. 7KR2 3 5V 10 uF / 6. 3 V C44 104 C23 RXOC+RXOC-R XE0 -R XE2 +RXO1-R XEC+R XE1 +RXO0-RXO0+R XE1 -R XEC-RXO2+R XE2 -R XE3 +RXO2-RXO3-R XE3 -R XE0 +RXO1+RXO3+ 10K R45 10KR1 6 10u F/ 10V C2 1 5V INV_ON DIM_A DJ LE D -GRN KEY-LEFT A ut o Bri g ht nes s MUTE DE T_ D 14. 318 MH ZX1 22PC2 0 22PC1 9 SCL-DVISDA-DVI RX2+RX2-RX1-RX1+RX0-RX0+RXC+RXC- AV DD _3 .3 390 R27 BIN0MGIN0 MGIN0 PSOGIN0RIN0MRIN0PBIN0P 104 C35 VSY NCHSY NC DSD A DSCL DE T_ A 104 C3 9 100 R5 4 100 R5 6 10K R5 1 10K R5 2 104C4 1 A0 1 A1 2 A2 3 GN D 4 SDA 5 SCL 6 WP 7 VCC 8 24L C16U4 CS 1 SO 2 WP 3 GN D 4 SI 5 SCK 6 HO LD 7 VCC 8 SST2 5VF5 12A-33U5 VD DP_ 3. 3 ON_PANEL VD DP_ 3. 3 VD DP_ 3. 3 AV DD _1 .8 104C7 6 SDA SCL VOLUME 4.7K R61 VD DP_ 3. 3 123456789 HE ADE R 9A1 123456789 HE ADE R 9A2 INVERTER DVI POWER RGB PANNEL POWER SCALER 4.7KR15 VCC 3 .3 VD 10 4 C49 4.7KR47 4.7KR48 5V 104 C7 5 KD S18 4D2 4 KEY-MENU 4.7 KR13 4.7 KR14 105(2012) L1 10pFC36 75R44 33 R43 105(2012) L2 10pFC38 75R59 33 R55 420 R37 105(2012) L3 10pFC43 75R68 33 R67 BAV99D9 BAV99D11 BAV99D1 2 5V 5V5V Pr YPb R-SO R-L INE LO UT L-SO ROUT VOL UME L-LI NE R-SO MUTE L-SO 300 KR5 1 23 KSC162 3 Q2 474 C3 474 C6 G1 1 G2 2 G3 3 LIN 4 VA R OUT _L 5 VO LUME 6 VA R OUT _R 7 N. C. 8 RIN 9 SVR 10 STBY 11 MUT E 12 P13 13 ROUT 14 VCC15 15 VCC16 16 LO UT 17 G1 8 18 G1 9 19 G2 0 20 UT C7 496LU1 1234 PH-4P 2. 0mm ST RAI GH TJ2 104C7 104C8 1KR9 470 uF/ 16VC5 22KR7 12V 12V 10 4C2 AUDIO 470 uF/ 16VC4 470 uF/ 16VC9 470 uF/ 16V C1 1.5KR8 3KR2 1.5KR3 3KR4 KE Y-MOD EKE Y-PWR KE Y- MEN UKE Y- SELKE Y- LEF TKE Y- RIGH T OSD 1 2 3 3 WT J3 20 -35 A RC1 4 5 6 WT J3 20 -35 A RC1 7 8 9 WT J3 20 -35 A RC1 Au dio_ LAu dio_ R MUT E-1 VOL UME_1 104C2 2 5V IN100R57 54231 PHONEJACK J4 54231 PHONEJACK J3 Pr Pb Y IN 1 S1A 2 S1B 3 D1 4 S2A 5 S2B 6 D2 7 GN D 8 D3 9 S3B 10 S3A 11 D4 12 S4B 13 S4A 14 EN 15 VD D 16 AD G79 4 U3 INRGB-BRGB-GPbY GIN0 PBIN0P RGB-RPr RIN0PSOGIN0 VIDEO S/W PS25LV512A GND 1 Vo ut 2 Vi n 3 AP1117-1.8(TO252) U9 N/ C (PBY2 01209T -80 0Y-S(3 A) ) R4 6 12V EN 100 R22 EN 1234 HE ADE R 4CN2 1234 HE ADE R 4CN1 12V 5V NC 12V REDGREEN SDAAHS BLUE SCLAVS OSDKEY_IN 5V 123456789101112 PH12A 2.00mm STRAIGHT J5 104 C11 104 C10 104 C17 104 C16 104 C15 104 C13 104 C12 KE Y-PWRKE Y-MOD EKE Y-SELKE Y-LEF TKE Y-RIGH TKE Y-MEN U 470R6 LE D-GR N VC C3 .3 VD KTA1504S Q1 4.7K R1 100 R11 470 R10 Au to Brig ht nes s 104 C18 10K R12 104 C14 GN D 1 GPIO_ P14 /PW M0 2 GPIO_ P15 3 GPIO_ P16 4 DD CD_ SDA 5 DDCD_SCL 6 REXT 7 AV DD _3 3 8 RX2P 9 RX2N 10 GN D 11 RX1P 12 RX1N 13 AV DD _3 3 14 RX0P 15 RX0N 16 GN D 17 RXCKP 18 RXCKN 19 AV DD _3 3 20 AV DD _1 8 21 BIN0M 22 BIN0P 23 GIN0 M 24 GIN0 P 25 SOGIN0 26 RIN0M 27 RIN0P 28 GN D 29 REFM 30 REFP 31 HSY NC0 32 VSY NC0 33 DDCA_SDA/RS232_TX 34 DDCA_SCL/RS232_RX 35 GPIO_ P22 /PW M1 36 MODE 37 I2C _ MDA/ GPIO_P1 1 38 I2C_MCL/GPIO_P10 39 VDDP 40 SDO 41 CSZ 42 SCK 43 SDI 44 GPIO_P47 45 GPIO_P46 46 GPIO_P45 47 GPIO_P44 48 GPIO_P43 49 GPIO_P42 50 GPIO_P24/PWM2 51 GND 52 VDDC 53 VDDP 54 NC 55 NC 56 NC 57 VDDP 58 VDDP 59 VDDP 60 NC 61 GND 62 GND 63 NC 64 VD DP 65 VD DP 66 NC 67 GN D 68 GN D 69 NC 70 VD DP 71 GN D 72 GPIO_ P04 73 VD DC 74 NC 75 NC 76 LV A3 P 77 LV A3 M 78 LV ACKP 79 LV ACKM 80 LV A2 P 81 LV A2 M 82 LV A1 P 83 LV A1 M 84 LV A0 P 85 LV A0 M 86 VD DP 87 G…

Text truncated - open the document above for the full version.

Korea Standard Technology Report No.: KST-FCC-070051 KOSTEC Co., Ltd. : 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 | T. +82 31 222 4251 F +82 31 222 4252 FCC EVALUATION REPORT FOR CERTIFICATION KOREA Standard Technology Test report No.: KST-FCC-070051 Applicant’s Name : Megavision Co., Ltd. Applicant’s Address : 799 Anyang Megavalley, Room 504 Kwangyang-Dong, Dongan-Gu, Anyang-Shi, GyeongGi-Do, KOREA Manufacturer’s Name : Megavision Co., Ltd. Manufacturer’s Address : 799 Anyang Megavalley, Room 504 Kwangyang-Dong, Dongan-Gu, Anyang-Shi, GyeongGi-Do, KOREA EUT’s: FCC ID : QJSMV220HB Product Name : TFT LCD Monitor Model Number(s) : MV220HB Product Options : None Category : FCC Part 15 subpart B Class B personal computers and peripherals Supplementary Information The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with measurement procedures specified in ANSI C63.4-2003 . I attest to the accuracy of data and all measurements reported herein were performed by or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test Date : July 13, 2007 Issued Date : July 16, 2007 Te s t e d b y : Approved by: Jeong, Seok-jin Lee, Kyung-Jae EMI Test Report Report No.: KST-FCC-070051 Page : 2 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Contents 1. Description of E.U.T 2. Test Facility 3. MAP 4. Test system configuration 5. Description of E.U.T. 6. Summary of test results. 7. Test results. 8. Photographs. Appendix EMI Test Report Report No.: KST-FCC-070051 Page : 3 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 1. Description of E.U.T 1) Kind of equipment: TFT LCD Monitor 2) FCC ID: QJSMV220HB 3) Model Name: MV220HB 4) Serial No.: Proto Type 5) Type of Sample Tested: Pre-production 6) High Frequency Used: 14.31818 ㎒ 7) Adapter: M/N: LSE9901B1250 S/N: A30704014131 Manufacturer: LISHIN INTERNATIONAL ENTERPRISE CORP Input: 100 – 240 V, 50/60 ㎐ Output: 12 V, 4.16 A 8) Tested Power supply: 1phase AC120 V, 60 ㎐ 9) Date of Manufacture: June, 2007 10) Manufacture: Megavision Co., Ltd. 11) Description of Operating: Scroll “H” Character & play music by “windows media player” 12) Dates of Test: July 13, 2007 13) Place of Tests: KOSTEC Co., Ltd. EMC site 14) Test Report No: KST-FCC-070051 EMI Test Report Report No.: KST-FCC-070051 Page : 4 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 2. Test Facility The open field test site and conducted measurement facility are used for these testing, where are located following address and drawing. This site was fully described in a report dated November 14, 2002, that was submitted to the FCC. KOSTEC CO., LTD. (Korea Standard Technology) Head office & Test Lab ; :180-254, Annyung-dong, Hwasung-shi, Gyeonggi-do, Korea Telephone Number : 82-31-222-4251 Facsimile Number: 82-31-222-4252 MIC(Ministry of Information and Communication) Number: KR0041 FCC Filing Number. : 525762 VCCI Membership Number : 2005 VCCI Registration Number : R-1657 / C-1763 EMI Test Report Report No.: KST-FCC-070051 Page : 5 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 3. MAP Korea Hwasung-shi (open area test site) KOSTEC Co., Ltd EMI Test Report Report No.: KST-FCC-070051 Page : 6 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 4. TEST SYSTEM CONFIGURATION Operation Environment Ambient Temperature ( °C ) Humidity ( % ) Pressure ( ㎪ ) 10 m Open Area site 27 45 100.0 Shielded room: 25 42 100.0 Test site These testing were performed following locations ; Shielded room : Conducted Emission 10 m Open Area Site : Radiated Emission Measurement Uncertainty All measurements involve certain levels of uncertainties, especially in field of EMC. The factors contributing to uncertainties are test receiver, Cable loss, antenna factor calibration, Antenna directivity, antenna factor variation with height, antenna phase center variation, antenna frequency interpolation, measurement distance variation, ite imperfection, mismatch, and system repeatability. Based on NIS 80,81, The measurement uncertainty level with a 95 % confidence level were applied. sample calculation Conducted emission The field strength is calculated by adding the LISN factor, cable loss from the measured reading. The sample calculation is as follows: FS = MR + LF + CL MR = Meter Reading LF = LISN Factor CL = Cable Loss If MR is 30 ㏈, LISN Factor 1 ㏈, CL 1 ㏈ The result (MR) is 30 + 1 + 1 = 32 ㏈㎶ EMI Test Report Report No.: KST-FCC-070051 Page : 7 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 5. Description of E.U.T. Product Description Manufactured By: Megavision Co., Ltd. Address: 799 Anyang Megavalley, Room 504 Kwangyang-Dong, Dongan-Gu, Anyang-Shi, Gyeonggi-Do, KOREA Model: MV220HB Serial Number: Proto type Configuration of EUT Description Manufacturer Model/Part # Serial Number AD board Megavision Co., Ltd. MV220M None LCD None M220EW01 AU220010GCLY8SA27 2D03RP Inverter None RZ-D1217A None OSD Megavision Co., Ltd. MV220 OSD None Adapter LI…

Text truncated - open the document above for the full version.

EMI Test Report Report No.: KST-FCC-070051 Page : 8 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Peripherals No Description Manufacturer Model/Part # Serial Number 1 PC Dell Inc DCSM 8XPBG1S 2 Keyboard SILITEK YET FOUNDATESK-8115 None 3 Mouse Dell Inc MO56UO 526102771 4 Headphone None TOP-10 None E.U.T Test Configuration (example) 6. Summary of test results Modification to the E.U.T. - None Result : PASS PC Keyboard Mouse TFT LCD Monitor (EUT) Adapter Headphone EMI Test Report Report No.: KST-FCC-070051 Page : 12 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) 8. PHOTOGRAPHS Conducted emission ( Front ) Conducted emission ( Rear ) EMI Test Report Report No.: KST-FCC-070051 Page : 13 / 21 KOSTEC Co., Ltd Test Lab : www.kosteclab.com 180-254, Annyung-dong, Hwasung-shi, Kyunggi-do, Korea 445-970 TEL : 82-31-222-4251 FAX : 82-31-222-4252 KST-FCC-EMC-01 A4(210x297) Radiated Emission ( Front ) Radiated Emission ( Rear )
