Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
1 von 3 USER MANUAL IPQ-420_US 071212 Version 1.0 ___________________________________________________________________________________________________ USER MANUAL Product Family: K-Band Transceiver Range of use: advanced door applications Module Number: IPQ-420_US _____________________________________________________________________________________________________ Description: Basic Features IPQ-420_US: ∑ radar-based motion detector working in the 24GHz ISM Band ∑ stereo (dual channel) operation for direction of motion identification ∑ integrated IF-amplifier ∑ split transmit and receive path for maximum gain ∑ two different receive antenna patterns Electrical Characteristics: Parameter Symbol min. typ. max. units comment transmit frequency f US 24.075 24.125 24.175 GHz f UK 24.150 24.250 GHz output power (EIRP) P out 20 dBm temperature drift Df -1,0 MHz/°C I/Q balance amplitude 6 dB phase 60 90 120 ° IF-amplifier gain 34 dB bandwidth 4Hz 1.5kHz supply voltage V CC 7 8 9 V supply current I CC 45 55 mA mod input 0 5 V digital input (0V / 5V) operating temperature T OP -20 70 °C outline dimensions according to drawing 102-290.109.927 C mm Interface: The sensor provides a 0.5mm pitch 8 pin ZIF-Connector with skinning on both sides Pin # Description Typ Comment 1 nc --- not connected 2 Mod input modulation signal (digital Input 0V / 5V) 3 Vcc input supply voltage (+8V) 4 GND input analog ground 5 S4 output Rx1 Signal Q(uadrature) / narrow antenna pattern 6 S3 output Rx1 Signal I(nphase) / narrow antenna pattern 7 S2 output Rx2 Signal I(nphase) / broad antenna pattern 8 S1 output Rx2 Signal Q(uadrature) / broad antenna pattern 2 von 3 USER MANUAL IPQ-420_US 071212 Version 1.0 Antenna Characteristics: Parameter Symbol min. typ. max. units comment antenna pattern Tx (3dB) horizontal 75 ° azimuth vertical 38 ° elevation antenna pattern Tx (10dB) horizontal 135 ° azimuth vertical 70 ° elevation squinting angle vertical 10 ° elevation side lobe suppression Tx horizontal 15 dB azimuth vertical 12 dB elevation antenna pattern Rx1 (3dB) horizontal 44 ° azimuth vertical 46 ° elevation antenna pattern Rx1 (10dB) horizontal 83 ° azimuth vertical 85 ° elevation squinting angle vertical 11 ° elevation side lobe suppression Rx1 horizontal 15 dB azimuth vertical 12 dB elevation antenna pattern Rx2 (3dB) horizontal 75 ° azimuth vertical 38 ° elevation antenna pattern Rx2 (10dB) horizontal 135 ° azimuth vertical 70 ° elevation squinting angle vertical 10 ° elevation side lobe suppression Rx horizontal 15 dB azimuth vertical 12 dB elevation Mechanical Outlines: all dimensions in Millimeter / for details compare with drawing 102-290.109.927 C Rx1 Tx Rx2 azimuth elevation 3 von 3 USER MANUAL IPQ-420_US 071212 Version 1.0 I/Q-Definition: If the movement is toward to the radar, signal Q is advances FCC approval ∑ This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ∑ Warning: Changes or modifications made to this equipment not expressly approved by InnoSenT GmbH may void the FCC authorization to operate this equipment. ∑ Manufacturers of mobile or fixed devices incorporating IPQ-420_US modules are authorized to use the FCC Grants and IC Certificates of the IPQ-420_US modules for their own final products according to the conditions referenced in these documents. In this case, the FCC label of the module shall be visible from the outside, or the host device shall bear a second label stating "Contains FCC ID: QKR-IPQ420US".
agtatec ag Allmendstrasse 24 CH-8320 Fehraltorf Tel: +41 44 954 91 91 Fax: +41 44 954 92 00
- MODULAR APPROVAL REQUEST - CONFIDENTIAL IPQ-420_US 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY Seite 1 von 2 2008-01-18 Documentation for FCC-approval - Modular Approval Request - Module : IPQ-420_US for agtatec ag Allmendstrasse 24 8320 Fehraltorf SCHWEIZ - MODULAR APPROVAL REQUEST - CONFIDENTIAL IPQ-420_US 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY Seite 2 von 2 2008-01-18 The module IPQ-420 is a K-Band Transceiver working in the 24GHz frequency band. 1. It has its own RF shielding. Any additional shielding is not necessary to comply with Part 15 limits. 2. It has no modulation/data inputs. 3. It has no internal power supply regulation. The power supply regulation has to be done on an external board by the customer using the IPQ-420. 4. The module has been tested with one antenna. The IPQ-420 has one antenna, that is not removable. 5. The module has been tested in a stand-alone configuration. 6. The module will be labelled with its own FCC ID number. 7. The module is operating under the provision of section 15.245. The module fulfils all requirements. Results are shown in Test report No. 2-4843-01-02/07. 8. The module complies with any applicable RF exposure requirements.

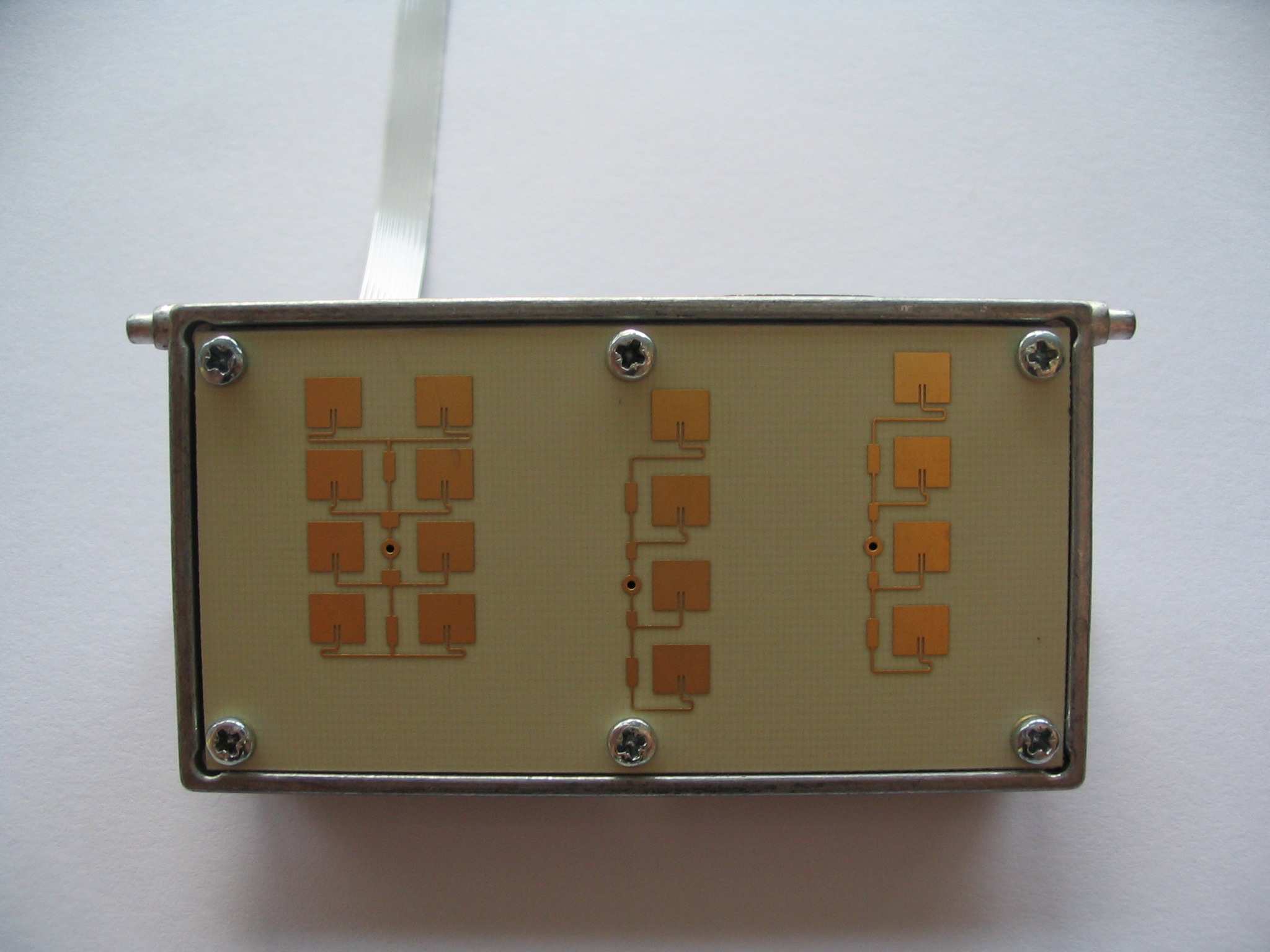

- EXTERNAL PHOTOS - CONFIDENTIAL IPQ-420_US 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY page 1 of 2 2007-11-29 Documentation for FCC-approval - External Photos - Module : IPQ-420_US for agtatec ag Allmendstrasse 24 8320 Fehraltorf SCHWEIZ - EXTERNAL PHOTOS - CONFIDENTIAL IPQ-420_US 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY page 2 of 2 2007-11-29 External Photos a) Antenna side b) Back side
- ID-Label / Location Info - CONFIDENTIAL IPQ-420_US 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY page 1 of 2 2008-01-18 InnoSenT GmbH Am Roedertor 30 97499 Donnersdorf GERMANY Tel.: +49-9528-9518-0 Fax.: +49-9528-9518-99 Documentation for FCC-approval - ID-Label / Location Info - Module : IPQ-420_US for agtatec ag Allmendstrasse 24 8320 Fehraltorf SCHWEIZ - ID-Label / Location Info - CONFIDENTIAL IPQ-420_US 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY page 2 of 2 2008-01-18 ID-Label Location Info
- INTERNAL PHOTOS - CONFIDENTIAL IPQ-420_US 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY page 1 of 2 2007-11-29 Documentation for FCC-approval - Internal Photos - Module : IPQ-420_US for agtatec ag Allmendstrasse 24 8320 Fehraltorf SCHWEIZ - INTERNAL PHOTOS - CONFIDENTIAL IPQ-420_US 24GHz-Doppler-Module CONFIDENTIAL AND PROPRIETARY page 2 of 2 2007-11-29 Internal Photos
CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6–10, D-66117 Saarbrücken, Telephone +49 (0) 681 598 - 0, Fax +49 (0) 681 598 – 9075 Test report No.: 2-4843-01-02/07 This test report consists of 39 pages Page 1 of 39 G Recognized by the Federal Communications Commission and Industry Canada Anechoic chamber registration No.: 90462 (FCC) Anechoic chamber registration No.: IC 3463A-1 TCB ID: DE0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Test report No. 2-4843-01-02/07 Applicant: agtatec ag Type: K-Band Transceiver IPQ-420_US Test standard: FCC Part 15.245 FCC ID: QKR-IPQ420US CETECOM ICT Services GmbH Test report No.: 2-4843-01-02/07 Date: 2007-12-20 Page 2 of 39 Table of contents Page 1. General information............................................................................ 3 1.1 Notes.................................................................................................... 3 1.2 Testing laboratory................................................................................. 4 1.3 Details of applicant................................................................................ 4 1.4 Application details................................................................................. 4 1.5 Equipment under test (EUT)................................................................. 5 1.6 Technical data....................................................................................... 5 1.7 Test standards...................................................................................... 6 2. Technical tests.................................................................................... 7 2.1 Summary of test results........................................................................ 7 2.2 Test environment.................................................................................. 7 2.3 Measurement and test set-up............................................................... 7 2.4 Measurement uncertainty................................................... 7 2.5 Test equipment utilized and test set-up......................................... 8 - 10 2.6 Test results.................................................................................. 11 - 14 3. Plots, graphs and data sheets.................................................. 15 - 28 4. Photographs............................................................................... 29 - 39 CETECOM ICT Services GmbH Test report No.: 2-4843-01-02/07 Date: 2007-12-20 Page 3 of 39 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Tester: Date Name Signature 2007-12-20 Nicolas Stamber Technical responsibility for area of testing: Date Name Signature 2007-12-20 Paschwitz Manfred CETECOM ICT Services GmbH Test report No.: 2-4843-01-02/07 Date: 2007-12-20 Page 4 of 39 1.2 Testing laboratory CETECOM ICT Services GmbH CETECOM ICT Services GmbH Untertürkheimerstraße 6–10 P.O. Box 10 04 45 D-66117 Saarbrücken D-66004 Saarbrücken Germany Germany Telephone : + 49 (0) 681 598–0 Fax : + 49 (0) 681 598–9075 e-mail : [email protected] Internet : http://www.cetecom.de Accredited testing laboratory Accredited by : Regulierungsbehörde für Telekommunikation und Post (RegTP) Listed by : Federal Communications Commission (FCC) Industry Canada (IC) Authority Identification/Registration No. RegTP DAT-P-176/94-D1 FCC 90462 IC IC 3463A-1 Testing location, if different from CETECOM ICT Services GmbH: (Not applicable) 1.3 Details of applicant Name : agtatec ag Street : Allmendstraße 24 Town : 8320 Fehraltorf Country : Switzerland Phone : +41 (0) 44 954 91 91 Fax : +41 (0) 44 954 92 00 Contact person Name : Richard Bühler Phone : +41 (0) 44 954 91 91 Fax : +41 (0) 44 954 92 00 E–Mail : [email protected] 1.4 Application details Date of receipt of application : 2007-12-15 Date of receipt of test item : 2007-12-17 Date of test : 2007-12-17 and 2007-12-18 Person(s) who have been : Mr. Stefan Bäuerlein present during the test Mr. Andreas Zirk CETECOM ICT Services GmbH Test report No.: 2-4843-01-02/07 Date: 2007-12-20 Page 5 of 39 1.5 Equipment under test (EUT) Description : Field disturbance sensor Type designation : K-Band Transceiver IPQ-420_US Manufacturer Name : InnoSenT GmbH Street : Am Rödertor 30 Town : 97499 Donnersdorf Country : Germany 1.6 Technical data Frequency range : 24.075 GHz to 24.175 GHz Operational frequency : 24.127 GHz Field strength PEP : 105.7 dBμ V/m @ 3 m Type of modulation : N0N Antenna : Patch antenna (see photo) Pulse period : CW carrier Microwave modules : TX / RX – Module with integral antenna (patch antenna) Normal power supply (U nom) : 8.0 V DC Extreme DC power supply : 8.8 V DC 7.2 V DC 1.6.1 Operation conditions Operation : As soon as the equipment is powered up, TX and RX start operating 1.6.2 Equipment under test K-Band Transceiver IPQ-420_US CETECOM ICT Services GmbH Test report No.: 2-4843-01-02/07 Date: 2007-12-20 Page 6 of 39 1.7 Test standards Code of Federal Regulations (CFR 47) Federal Communications Commission (FCC) FCC Part 15 Radio Frequency Devices SECTION 15.245 Operation within the band 24.075 GHz to 24.175 GHz SECTION 15.205 Restricted bands of operation. SECTION 15.209 Radiation emission limits, general requirements CETECOM ICT Services GmbH Test report No.: 2-4843-01-02/07 Date: 2007-12-20 Page 7 of 39 2 Technical test 2.1 Summary of test results X No deviations from the technical specification (s) were ascertained in …
Text truncated - open the document above for the full version.
CETECOM ICT Services GmbH Test report No.: 2-4843-01-02/07 Date: 2007-12-20 Page 34 of 39 Photo no.: 6 CETECOM ICT Services GmbH Test report No.: 2-4843-01-02/07 Date: 2007-12-20 Page 35 of 39 Photo no.: 7 CETECOM ICT Services GmbH Test report No.: 2-4843-01-02/07 Date: 2007-12-20 Page 36 of 39 Photo no.: 7 CETECOM ICT Services GmbH Test report No.: 2-4843-01-02/07 Date: 2007-12-20 Page 37 of 39 Photo no.: 7 CETECOM ICT Services GmbH Test report No.: 2-4843-01-02/07 Date: 2007-12-20 Page 38 of 39 Photo no.: 7 CETECOM ICT Services GmbH Test report No.: 2-4843-01-02/07 Date: 2007-12-20 Page 39 of 39 Photo no.: 8
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.245 | 24.13 GHz - 24.13 GHz | - |

Doppler Effect Motion Detector
Equipment Class
FDS - Part 15 Field Disturbance Sensor
Doppler Effect Motion Detector
Equipment Class
FDS - Part 15 Field Disturbance Sensor
