QKRRAD270Doppler Effect Motion Detector

your global partner for entrance solutions Montage- und Einstellanleitung Mounting and adjustment instructions Instructions pour montage et réglages RADAR 270 Radar-Bewegungsmelder für die Verwendung an automatischen Tür- und Torsystemen Radar motion detector for applications in automatic entrance and door systems Détecteur de mouvement radar pour applications dans le domaine des portes automatiques D Technische Daten E Technical data A F Caractéristiques techniques Speisespannung: 12...24 VAC/DC Anschlussleistung: ca. 1.8 W Max. Anschlussabsicherung bei Fremdspeisung: 2.5 A Temp. Bereich: –20...+50 °C Betriebsfrequenz ( -Band): 13.7 GHz Betriebsfrequenz (X-Band): 10.525 GHz Ausgangsleistung: 5 mW Anschlusskabellänge: 2.5 m Supply voltage: 12...24 VAC/DC Connected load: 1.8 W approx. Max. fuse protection if separately supplied: 2.5 A Temp. range: –20...+ 50 °C Frequency ( -Band): 13.7 GHz Frequency (X-Band): 10.525 GHz Power output: 5 mW Wire length: 2.5 m Tension d’alimentation: 12...24 VAC/DC Consommation: 1.8 W environ Protection de raccordement max. lors d'une alimentation externe: 2.5 A Température: –20...+50 °C Fréquence (bande ): 13.7 GHz Fréquence (bande X): 10.525 GHz Puissance de sortie: 5 mW Longueur du câble: 2.5 m Important hints, when using the radar RAD270 in the US 15.19: This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.21: Warning: Changes or modifications made to this equipment not expressly approved by agtatec ag may void the FCC authorization to operate this equipment. 15.105: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. D Teilekennzeichnung E Description A F Description 1 Boden für Aufputzgehäuse 2 Befestigungsschrauben 3 Aufputzgehäuse 4 Absorberträger 5 Print mit Mikrowellenmodul 6 Gehäuseoberteil 7 Einbaurahmen 8 Anschlusskabel mit Stecker 9 Regenhaube 10 Halter für Deckenmontage 11 Zwischenplatte mit Distanzstück für Montage auf gewölbten oder rauhen Oberflächen 1 Bottom for surface-mounted enclosure 2 Fixing screws 3 Surface-mounted enclosure 4 Absorber support 5 Printed board for microwave module 6 Upper part enclosure 7 Installation frame 8 Connection wire 9 Weather shield 10 Bracket for ceiling installation 11 Mounting plate for fixing to circular or rough surfaces 1 Support pour boîtier apparent 2 Vis de fixation 3 Boîtier apparent 4 Support d’absorbeur 5 Circuit imprimé pour module micro-ondes 6 Gehäuseoberteil 7 Cadre à encastrer 8 Câble de raccordement 9 Capot protection contre les intempéries 10 Console pour fixation au plafond 11 Plaque de montage pour fixation aux surfaces courbes ou rugueuses 3 1 5 4 6 2 6 4 5 7 8 9 10 11

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 September 09, 2002 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, agtatec ag requests confidentiality for the following products: FCC ID Number Product Title/Model QKR RAD270RAD270 For the product stated above, we request that the following information be held confidential: 1.Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description” The above exhibits contain agtatec ag trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name:Eichmann Thomas Company:Agtatec AG Address: Allmendstrasse 24 8320 Fehraltorf (Switzerland) Phone:+41 1 954 93 01 Email:[email protected] PDF created with FinePrint pdfFactory trial version http://www.fineprint.com

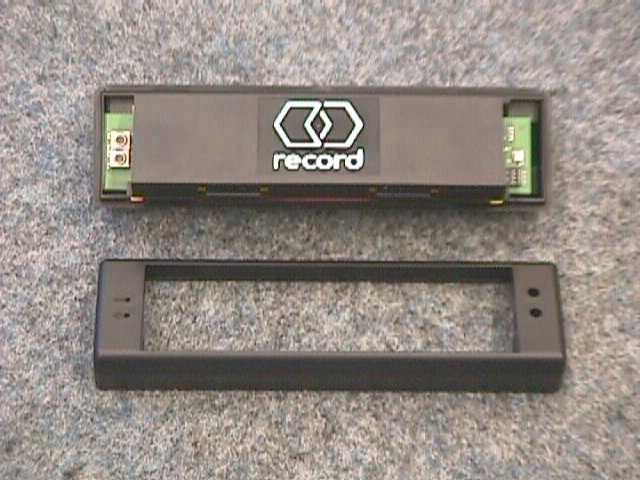

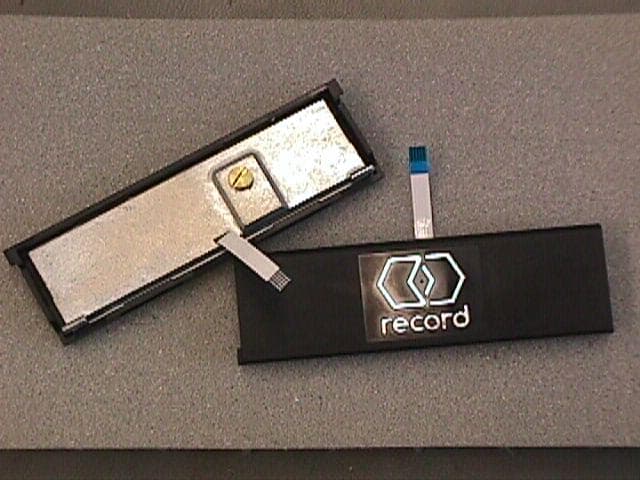

CETECOM ICT Services GmbH Test report No.: 2-2941-02-04/02Date : 04.12.2002Page 35 of 43 Photographs of EUT Photo No.: 01 CETECOM ICT Services GmbH Test report No.: 2-2941-02-04/02Date : 04.12.2002Page 36 of 43 Photo No.: 02

CETECOM ICT Services GmbH Test report No.: 2-2941-02-04/02Date : 04.12.2002Page 38 of 43 Photo No.: 04 CETECOM ICT Services GmbH Test report No.: 2-2941-02-04/02Date : 04.12.2002Page 40 of 43 Photo No.: 06

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6–10, D-66117 Saarbrücken, Telephone +49 (0) 681 598 - 0 , Fax – 9 075 Test report No.: 2-2941-02-04/02This test report consists of 43 pagesPage 1 of 43 Recognized by the Federal Communications Commission FCC–Identification Number TCB ID: DE001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98-30 Independent ETSI compliance test house ETSI Test report No.: 2-2941-02-04/02 Applicant: Agtatec A.G. Type: RAD 270 10.525GHz FCC-ID: CETECOM ICT Services GmbH Test report No.: 2-2941-02-04/02Date : 04.12.2002Page 2 of 43 Table of contentsPage 1.General information............................................................................3 1.1Notes....................................................................................................3 1.2Testing laboratory.................................................................................4 1.3Details of applicant................................................................................4 1.4Application details.................................................................................4 1.5Test item (EUT).....................................................................................5 1.6Technical data.......................................................................................5 1.6.1Operation conditions.............................................................................5 1.6.2Equipment under test............................................................................5 1.7Test standards......................................................................................6 2.Technical tests....................................................................................7 2.1Summary of test results........................................................................7 2.2Test environment..................................................................................7 2.3Measurement and test set-up...............................................................7 2.4Test equipment utilized and test set-up.........................................8 - 10 2.5Test results.........................................................................................11 2.5.1Test results overview..........................................................................11 2.5.2Summary of test results .....................................................................11 2.5.3Test results in details...................................................................12 - 23 3.Plots, graphs and data sheets..................................................21 - 34 4.Photographs...............................................................................35 - 43 CETECOM ICT Services GmbH Test report No.: 2-2941-02-04/02Date : 04.12.2002Page 3 of 43 1General information 1.1Notes The test results of this test report relate exclusively to the test item specified in 1.5. CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item . The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Tester : DateNameSignature 04.12.02Detlev Gillmann ................................... Technical responsibility for area of testing: DateNameSignature 04.12.02Klaus Kammerinke ................................... CETECOM ICT Services GmbH Test report No.: 2-2941-02-04/02Date : 04.12.2002Page 4 of 43 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimerstraße 6–10P.O. Box 10 04 45 D-66117 SaarbrückenD-66004 Saarbrücken GermanyGermany Telephone :+ 49 (0) 681 598–0 Fax :+ 49 (0) 681 598–9075 e-mail:[email protected] Internet:http://www.cetecom.ict.de Accredited testing laboratory Accredited by: Regulierungsbehörde für Telekommunikation und Post (RegTP) Listed by: Federal Communications Commission (FCC) AuthorityIdentification/Registration No. RegTPTTI-P-G 166/98-30 FCC90462 Testing location, if different from CETECOM ICT Services GmbH: (Not applicable) Name:Not applicable 1.3Details of applicant Name:Agtatec A.G. Street:Allmendstr. 24 Town:CH-8320 Fehraltorf Country:Schweiz Tel.:+41 1 954 91 91 Fax:+41 1 954 92 00 Contact person Name:Thomas Eichmann Tel.:+41 1 954 91 91 Fax:+41 1 954 03 09 e-mail:[email protected] 1.4Application details Date of application:20.11.2002 Date of receipt of EUT:29.11.2002 Date of test:29.11. – 04.12.2002 CETECOM ICT Services GmbH Test report No.: 2-2941-02-04/02Date : 04.12.2002Page 5 of 43 1.5Test item (EUT) Description of EUT :Short range device; Motion detector Field disturbance sensor System designation:Automatic door activator Type designation:RAD 270 (10.514GHz) Manufacturer:see applicant 1.6Technical data Frequency range:10.500 GHz ... 10.550 GHz Operational frequency:10.514 GHz Type of modulation:20K0N0N (CW) Microwave module:TX / RX – Module Antenna:Integral planar structures (Patches) Normal AC/DC power supply:U nom = 24.0V Extreme DC power supply:U min = 10.8 V :U max = 31.2 V Extreme AC power supply:U min = 10.8 V :U max = 26.4 V 1.6.1Operation conditions Operation::As soon as the equipment is powered up, TX and RX start operating Purpose of operation:Motion detector as automatic door opener Field disturbance sensor 1.6.2Equipment under test Model RAD 270 Tx 10.514 GHz CETECOM ICT Services GmbH Test report No.: 2-2941-02-04/02Date : 04.12.2002Page 6 of 43 1.7 Test standard : Code of Federal Regulations (CFR 47) Federal Communications Commission (FCC) FCC Part 15Radio Frequency Devices (07/2002) Section 15.245 Operation within the band 10500 to 10550 MHz. Section 15.209 Radiation emission limits, general requirements Section 15.205 Restricted bands of operation. CETECOM ICT Servic…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report No.: 2-2941-02-04/02Date : 04.12.2002Page 41 of 43 Photo No.: 07 CETECOM ICT Services GmbH Test report No.: 2-2941-02-04/02Date : 04.12.2002Page 42 of 43 Photo No.: 08 CETECOM ICT Services GmbH Test report No.: 2-2941-02-04/02Date : 04.12.2002Page 43 of 43 Photo No.: 09
