QKX0017049Transmitter

Section 15.105 Information to the user. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA Title NumberRevisionSize B Date:2007-1-2Sheet of File:F:\secret file\..\T442 Block diagram.SCHDrawn By: remote control eradiate Block diagram function encoder IC1... carrier wave surge Q1... AM amp Q2... export impedance L3... ANTENNA RF GOLDEN TECHNOLOGY ELECTRONIC TOYS CO .LTD. POWER DC3.0V No.00170

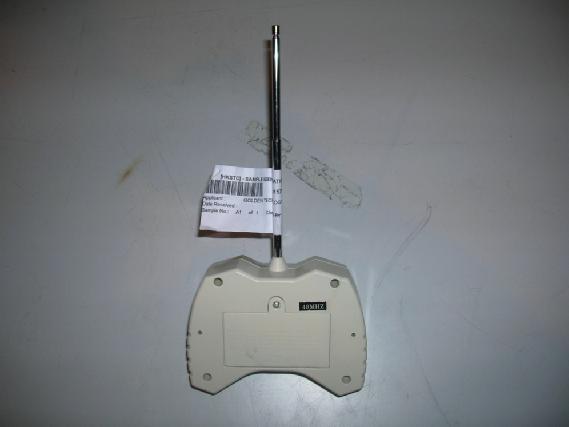

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID: QKX0017049 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Label location

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Application No.: HM157913 Date: 2007-01-03 FCC ID: QKX0017049 Circuit Description The 49.86 MHz crystal oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by IC. The output of Q2 has the matching network consisting of C7, C8 and L3 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 29.5cm long Metal Antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (“AA” size battery x 2) primary battery. Operation Descriptions The transmitter is a remote control toy operating at 27.145MHz band. The transmitter is powered by a 3V battery (“AA” size battery x 2) and the transmitting frequency is crystal controlled. There are 2 joystick to control the forward reverse motor and director of movement. The operation is achieved by different combinations of form pulse modulating signal on the 49.86MHz carrier frequency. Remarks: The transmitter is a 2 Joystick transmitter. The EUT continues to transmit while Joystick is being pressed. It is Pulse transmitter, Modulation by IC; and type is Pulse modulation.

NOapellationparameter speccomponent digitdosageexplain 1 100Ω R41 2 1k R5、R7 1 3100k R3 1 4300k R1,R2 2 515P C3 1 6 20PC51 7 47PC7,C82 8 220PC61 9 473C21 10 104C11 11 2.2uH L1,L2 2 12 3.3uH L3 1 13LED LED1 1 14audion C1815YQ1,Q2 2 15CRYSTAL 49.860MHx X1 1 16SW SPDT SW1 1 17IC SL TX2B IC11 18PCB1 19SW-PB SR,SL,SF,SB 4 resistance 1/6W capacitor inductance GT-T442 No.00170-B.O.M pcb type：GT-T442 (V+:3V，49.860MHz ) TX-RF 2 -Jan-2007

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA Title NumberRevisionSize B Date:2007-1-2Sheet of File:F:\secret file\..\T442-49.SCHDOCDrawn By: RIGHT 1 TEST 2 GND 3 BACK 4 FOR 5 TURBO 6 SC 7 SC 8 VDD 9 PC 10 OSCO 11 OSCI 12 FOSC 13 LEFT 14 IC1 S L T X 2 B R1 300K R5 1K LED1 R3 100K R2 300K Q1 C1815Y L1 2.2uH L2 2.2uH L3 3.3uH C1 104 R4 100 X1 49.860MHz Q2 C1815Y C8 47P ANT RF circuit diagram GOLDEN TECHNOLOGY ELECTRONIC TOYS CO .LTD. GT-T442.PCB sch + 3V BATTERY BAND:49.860MHz C6 220P C2 473 SW1 SR SL SBSF C3 15P V+ V- C5 20P C7 47P GT-T442.sch No.00170

STC Test Report Date : 2007-01-02 Page 1 of 17 No. : HM157913 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: Golden Technology Electronic Toys Co., Ltd. Guangdong Chenghai City, Chenseng Road, Pumei District, China Description of Samples: Model name: TRANSMITTER Model no.: 00170 Brand name: GT FCC ID: QKX0017049 Date Samples Received: 2006-12-18 Date Tested: 2006-12-29 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- LEE Kam Chuen, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2007-01-02 Page 2 of 17 No. : HM157913 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 17 Content Page 2-3 of 17 1.0 General Details 1.1 Test Laboratory Page 4 of 17 1.2 Applicant Details Page 4 of 17 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 17 Description of EUT operation 1.4 Date of Order Page 5 of 17 1.5 Submitted Samples Page 5 of 17 1.6 Test Duration Page 5 of 17 1.7 Country of Origin Page 5 of 17 2.0 Technical Details 2.1 Investigations Requested Page 6 of 17 2.2 Test Standards and Results Summary Page 6 of 17 3.0 Test Results 3.1 Emission Page 7-10 of 17 3.2 Bandwidth Measurement Page 11-12 of 17 STC Test Report Date : 2007-01-02 Page 3 of 17 No. : HM157913 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 13 of 17 Appendix B Duty Cycle Correction During 100 msec Page 14-15 of 17 Appendix C Photographs Page 16-17 of 17 STC Test Report Date : 2007-01-02 Page 4 of 17 No. : HM157913 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Applicant Details Applicant Golden Technology Electronic Toys Co., Ltd. Guangdong Chenghai City, Chenseng Road, Pumei District, China Manufacturer Golden Technology Electronic Toys Co., Ltd. Guangdong Chenghai City, Chenseng Road, Pumei District, China STC Test Report Date : 2007-01-02 Page 5 of 17 No. : HM157913 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: TRANSMITTER Manufacturer: Golden Technology Electronic Toys Co., Ltd. Brand Name: GT Model Number: 00170 Rating: 3Vd.c. (“AA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Golden Technology Electronic Toys Co., Ltd., TRANSMITTER. The transmitter is a 2 joystick transmitter. The EUT continues to transmit while joystick is being pressed, Modulation by IC, and type is pulse modulation. 1.4 Date of Order 2006-12-18 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2006-12-29 1.7 Country of Origin China STC Test Report Date : 2007-01-02 Page 6 of 17 No. : HM157913 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 N/A Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 N/A Note: N/A -…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
