QKX0017049TXRadio Control Car

     $%&'       ' &%$ 7LWOH 1XPEHU 5HYLVLRQ 6L]H % 'DWH 1RY 6KHHWRI )LOH (? ᵫ∌ᘦ ? ᵫ∌ᘦ GGE 'UDZQ%\ ("໽㒓 䖯ࠡ ৢ䗔 䫕ᄬ఼ ᤃ㤵⬉䏃 ⬉䏃ࠊ᥻ߎ䕧 ⬉⑤ Ⓒ⊶⬉䏃 ᤃ㤵⬉䏃 ⏋乥⬉䏃 ࡳ⥛ᬒ໻⬉䏃 ᥻ࠊᣛҸ 0+= power supply oscillator circuit forward motion backward motion antenna control signal mixing circuit power amplifier circuit output control circuit oscillator circuit Flip Flop filter circuit encodin g circuit

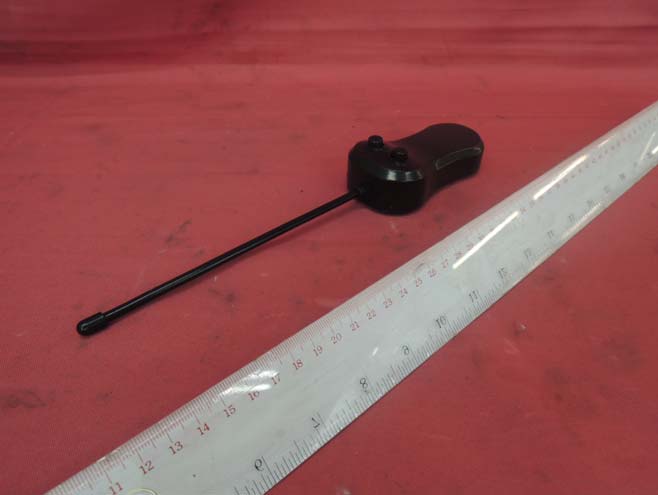

INTERTEK TESTING SERVICE Report No.: 13051480HKG-001 FCC ID: QKX0017049TX Equipment Photographs Model: CEC#51907 (External)

INTERTEK TESTING SERVICE Report No.: 13051480HKG-001 FCC ID: QKX0017049TX Equipment Photographs Model: CEC#51907 (Internal) INTERTEK TESTING SERVICE Report No.: 13051480HKG-001 FCC ID: QKX0017049TX Equipment Photographs Model: CEC#51907 (Internal) INTERTEK TESTING SERVICE Report No.: 13051480HKG-001 FCC ID: QKX0017049TX Equipment Photographs Model: CEC#51907 (Internal)

FCC ID: QKX0017049TX Model: 51907 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.860 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: B, F, U1 2. A RF Oscillator (49.860MHz) Consisting: Y1 3. A Filter Network Consisting: L2, L3, C5, C6 4. A RF Modulator and Amplifier Consisting: Q1, Q2 5. A Power Supply Consisting: 3.0VDC (2 x ”AA” batteries) Antenna Gain: 0dBi Nominal rated field strength: 51.2dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and integral antenna.

Analysis Report Report No.: 13051480HKG-001 The Equipment Under Test (EUT) is a transmitter of a RC Car operating at 49.860 MHz as dictated by a crystal. The EUT is powered by a 3.0 V DC source (2 x 1.5V “AA” batteries). The EUT has 2 control buttons to control the RC car left, right, forward and backward. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward, left or right. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 51.2dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 54.2dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00079mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.0079mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 13051480HKG-001 Golden Technology Electronic Toys Co. Ltd. Application For Certification (Original Grant) (FCC ID: QKX0017049TX) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: Jul 31, 2013 INTERTEK TESTING SERVICES Report No.: 13051480HKG-001 FCC ID: QKX0017049TX i GENERAL INFORMATION Golden Technology Electronic Toys Co. Ltd. BRAND NAME: N/A, MODEL: CEC#51907 FCC ID: QKX0017049TX Grantee: Golden Technology Electronic Toys Co. Ltd. Grantee Address: Guangdong Chenghai City Chenseng Road, Pumei District, China Contact Person: Huang Shao Jie Tel: N/A Fax: N/A e-mail: N/A Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: CEC#51907 Type of EUT: Transmitter Description of EUT: Inflate Remote Control Dinosaur Serial Number: N/A FCC ID: QKX0017049TX Date of Sample Submitted: May 28, 2013 Date of Test: Jun 07, 2013 Report No.: 13051480HKG-001 Report Date: July 31, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 13051480HKG-001 FCC ID: QKX0017049TX ii SUMMARY OF TEST RESULT Golden Technology Electronic Toys Co. Ltd. BRAND NAME: N/A, MODEL: CEC#51907 FCC ID: QKX0017049TX TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.235 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 13051480HKG-001 FCC ID: QKX0017049TX iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 4.0 Equipment Photographs ................................................................................ 6 5.0 Product Labelling........................................................................................... 6 6.0 Technical Specifications ................................................................................ 6 7.0 Instruction Manual......................................................................................... 6 8.0 Miscellaneous Information............................................................................ 7 8.1 Measured Bandwidth / RF Output Signal....................................................... 7 8.2 Discussion of Pulse Desensitization .............................................................. 8 8.3 Calculation of Average Factor ....................................................................... 8 …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13051480HKG-001 FCC ID: QKX0017049TX Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: CEC#51907 Radiated Emission 51907 13051480HKG-001 A  B  INTERTEK TESTING SERVICE Report No: 13051480HKG-001 FCC ID: QKX0017049TX Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: CEC#51907 Radiated Emission 51907 13051480HKG-002 A  B 
