QKX0103327MHz Transmitter

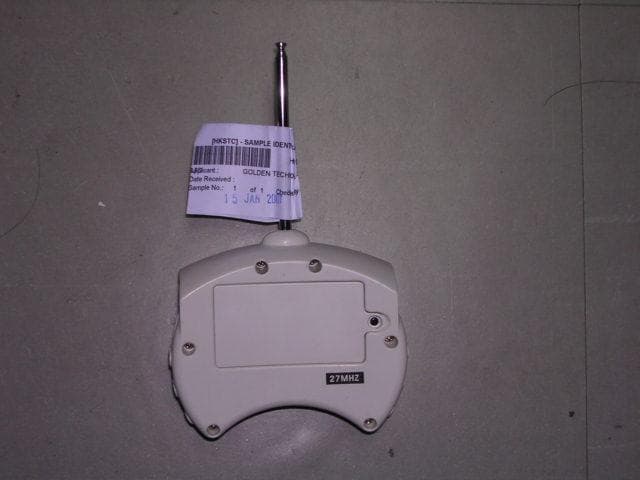

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

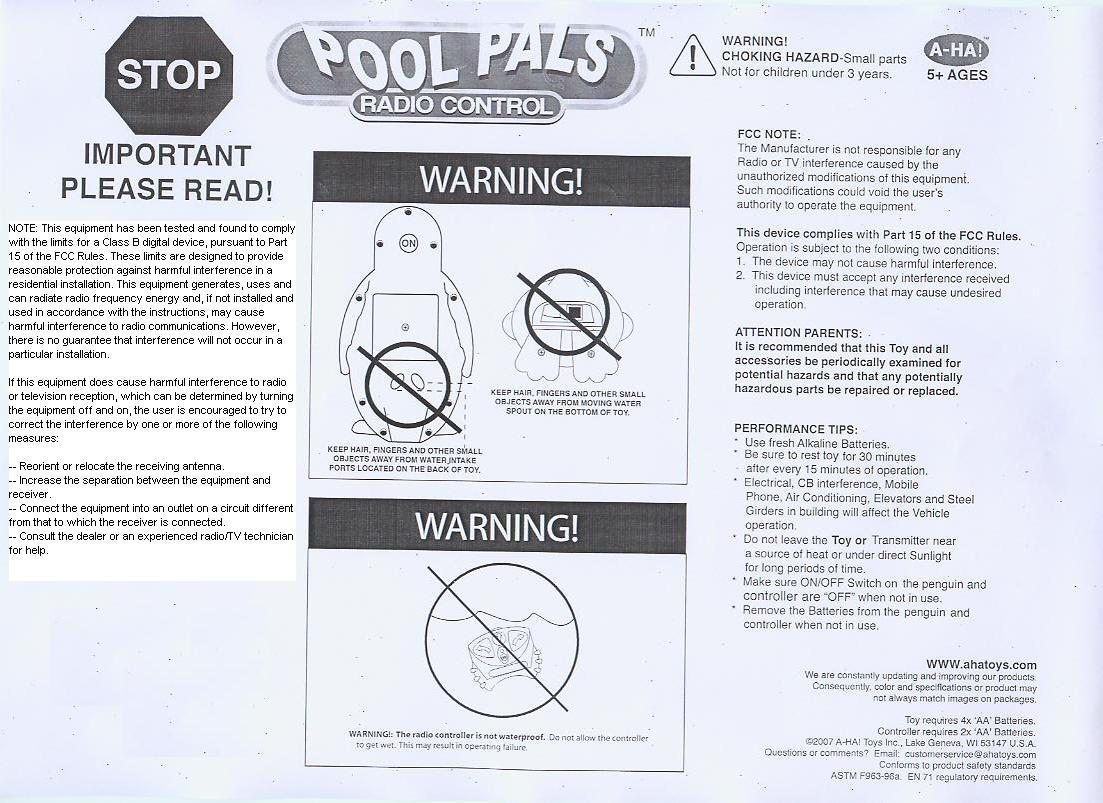

FCC ID: QKX01033 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Label

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Application No.: HM158062 Date: 2007-01-22 FCC ID: QKX01033 Circuit Description The 27.145 MHz crystal oscillator drives the base of Q5 the final/buffer amplifier. The modulation provided by IC. The output of Q5 has the matching network consisting of C12, C13 and L3 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 29cm long telescoping chrome over brass tubing / Metal Antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (“AA” size battery x 2) primary battery. Operation Descriptions The transmitter is a remote control toy operating at 27.15MHz band. The transmitter is powered by a 3V battery (“AA” size battery x2) and the transmitting frequency is crystal controlled. There are 3 buttons to control the forward reverse motor and director of movement. The operation is achieved by different combinations of form pulse modulating signal on the 27.15MHz carrier frequency. Remarks: The transmitter is a 3 button transmitter. The EUT continues to transmit while button is being pressed. It is pulse transmitter, Modulation by IC; and type is pulse modulation.

NOapellationparameter speccomponent digitdosageexplain 1 100Ω R121 2 1kR8,R132 3 4k7R2,R32 4 7k5R6,R72 5100k R1 1 6150k R11 1 7300k R9,R10 2 835P C9,C10 2 9 47PC12,C132 10 330PC111 11 103C2,C5,C63 12 104C1,C3,C4,C7,C85 13 2.2uH L1,L2 2 14 6.8uH L3 1 15LED LED1 1 16DIODE 4148D1,D2 2 9014Q1,Q2 2 8050Q3 1 C2712Q4,Q4 2 18CRYSTAL 27.145MHx X1 1 19IC SL TX2B IC11 20PCB1 21SW-PB ON/OFF,SL,SR,SF 4 No.01033-B.O.M pcb type：GT-T443 (V+:3V，27.145MHz ) TX-RF 15 -Jan-2007 resistance 0603 GT-T443 inductance 17audion capacitor 0603

STC Test Report Date : 2007-01-22 Page 1 of 17 No. : HM158062 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: Golden Technology Electronic Toys Co., Ltd. Guangdong Chenghai City, Chenseng Road, Pumei District, China Description of Samples: Model name: 27MHz Transmitter Model no.: 01033 Brand name: GT FCC ID: QKX01033 Date Samples Received: 2007-01-15 Date Tested: 2007-01-17 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- LEE Kam Chuen, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2007-01-22 Page 2 of 17 No. : HM158062 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 17 Content Page 2-3 of 17 1.0 General Details 1.1 Test Laboratory Page 4 of 17 1.2 Applicant Details Page 4 of 17 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 17 Description of EUT operation 1.4 Date of Order Page 5 of 17 1.5 Submitted Samples Page 5 of 17 1.6 Test Duration Page 5 of 17 1.7 Country of Origin Page 5 of 17 2.0 Technical Details 2.1 Investigations Requested Page 6 of 17 2.2 Test Standards and Results Summary Page 6 of 17 3.0 Test Results 3.1 Emission Page 7-10 of 17 3.2 Bandwidth Measurement Page 11-12 of 17 STC Test Report Date : 2007-01-22 Page 3 of 17 No. : HM158062 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 13 of 17 Appendix B Duty Cycle Correction During 100 msec Page 14-15 of 17 Appendix C Photographs Page 16-17 of 17 STC Test Report Date : 2007-01-22 Page 4 of 17 No. : HM158062 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Golden Technology Electronic Toys Co., Ltd. Guangdong Chenghai City, Chenseng Road, Pumei District, China Manufacturer Golden Technology Electronic Toys Co., Ltd. Guangdong Chenghai City, Chenseng Road, Pumei District, China STC Test Report Date : 2007-01-22 Page 5 of 17 No. : HM158062 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: 27MHz Transmitter Manufacturer: Golden Technology Electronic Toys Co., Ltd. Brand Name: GT Model Number: 01033 Rating: 3Vd.c. (“AA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Golden Technology Electronic Toys Co., Ltd., 27MHz Transmitter. The transmitter is a 3 button transmitter. The EUT continues to transmit while button is being pressed, It is pulse transmitter, Modulation by IC, and type is pulse modulation. 1.4 Date of Order 2007-01-15 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2007-01-17 1.7 Country of Origin China STC Test Report Date : 2007-01-22 Page 6 of 17 No. : HM158062 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.227 ANSI C63.4:2003 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2003 N/A Conducted Emissions on AC,…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
