QL4G1S7Radar Detector

Head Office 2422 Dunwin Drive Mississauga, Ontario Canada L5L 1J9 Tel: (905) 828-1002 Fax: (905) 828-2951 wwwwww..bbeellttrroonniiccss..ccoomm This product is subject to one or more of the following patents: United States #4,571,593#4,625,210#4,630,054#4,939,521 #4,952,936#4,961,074#5,402,087#5,446,923 #5,587,916#5,600,132 Canada #1,187,586#1,187,602#1,295,714#1,295,715 Other Patents Pending Safety Warning System ® L.C.–Patents Pending Printed in Canada273004-10 ,Fundamental Mixer Technology, FMT and Shadow Technology are registered trademarks of BELTRONICS USA, Inc. VECTOR 960, VECTOR 940, Total Tracking Laser, TTL and AutoScan are trademarks of BELTRONICS USA, Inc. Safety Warning System is a registered trademark of Safety Warning System L.C. VECTOR 960 VECTOR 960 VECTOR 940 VECTOR 940 THE NEXT GENERATION IN DIGITAL PERFORMANCE THE NEXT GENERATION IN DIGITAL PERFORMANCE Operating Instructions MOTOROLAMOTOROLA digital dna TM MOTOROLA Model V960 Model V940 k CONGRATULATIONS! SOFTWARE UPGRADABLE SHADOW TECHNOLOGY ® II Thank you for purchasing one of BEL’s VECTOR SERIES Radar/Laser/Safety Detectors. BEL’s VECTOR SERIES offers Driver Selectable Features, Digital Voice, Text Messages and the best possible X, K and Super Wideband Ka radar sensitivity available. Enjoy your new detector and be sure to obey all laws where ever you may travel. Remember, owning a Radar detector does not give you a license to speed. Alerts from a Radar detector serve as an effective reminder to check your speed. Laws vary throughout the USA governing the use of a Radar detector. It is your responsibility to follow these laws. VECTOR 960 and VECTOR 940 contain Flash Technology which provides the highest capability to be reprogrammed as the threat of new police traffic radar monitoring technologies emerge. Please ensure that you promptly send in your Consumer Information card. This will ensure you are notified about new traffic monitoring technologies as they emerge. VECTOR 960 and VECTOR 940 contain Shadow Technology ® II making them undetectable to the Interceptor VG-2 Radar Detector Detector. 2 Includes 16 Driver Selectable Features 5 Operating Modes11 General Features Normal Mode Modifications Mode Quick-StartX Band (10.525 GHz) On/Off Tech Mode Voltage Meter ModeK Band (24.125 GHz) On/Off Super Wideband Ka (33.4-36.0) AccuSweep™ Operating modes are Selected using PWR Button See page 00. AutoMute On/Off Radar/Laser Digital Voice Prompts On/Off Safety Warning System ™ On/Off Safety Warning System Digital Voice or Tone Audio/Visual Scroll Rate Fast/Slow Inverted Display Option AutoScan General Features selected by pressing . VECTOR 960 and VECTOR 940provide Driver Selectable Features. Driver Selectable Features allow you to “customize” how alerts will be presented to you. 4Operating Modes VECTOR 960 3Operating Modes VECTOR 940 1 . NORMAL Mode A lengthy power up test sequence; text messages identify alerts received, i.e. “ XX BBaanndd ”. 2. MODIFICATIONS Mode Full Power-up test sequence; presents ONLY those General Selectable Features which you have altered from factory pre-set. Text messages identify alerts received. 3. QUICK START Mode No test sequence; unit immediately shows last used traveling mode:“ AAuuttooSSccaann ™ ”, “ HHiigghhwwaayy ”, “ CCiitt yy XX ” “ CCiitt yy AALLLL ”, Text messages identify alerts received. 4. TECH Mode (V960 only) Full Power-up text sequence. Text messages identify band received followed by ACTUAL police traffic radar or Laser frequency, i.e., “ 2244..115500 ” to confirm K band. 7General Selectable Features VECTOR 960 6General Selectable Features VECTOR 940 1 . AutoMute ONor OFF 2. Radar/Laser Digital Vo i ceor Tone (Model V960) 2. Radar/Laser/SWS ™ Digital Vo i ceor Tone (Model V940) 3. Safety Warning System ™ ON/OFF 4. Safety Warning System ™ Digital Voice ONor OFF (Model V960) 5. Audio/Visual Scroll Rate: FA ST o r SLOW 6. Inverted Display Option ONor OFF 7. AutoScan ™ , “Highway”, “City X”or “City ALL.” Operating Modes are selected using the PWR button. ( see page 5.) General Selectable Features are accessed by pressing the PWR and CTY buttons simultaneously, when the unit is OFF. (see page 14.) Note: for convenience AutoScan ™ is accessed using the CTY button. (see page 9.) 33 Table of Contents Profile of Features . . . . . . . . . . . . . . . . . . . . . . . . .4 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . .5 k Power-Up Test Sequence/Start-Up Mode . . . .5 k Tutorial Mode . . . . . . . . . . . . . . . . . . . . . . . . .7 k Set and Forget Memory . . . . . . . . . . . . . . . . . .8 k Reset to Factory Settings . . . . . . . . . . . . . . . . .8 k DRK (Bright/Dim/Dark) Button . . . . . . . . . . .8 k AUD (Auto-Mute/Volume Control) Button . . .9 k CTY (City/Highway) Button . . . . . . . . . . . . . .9 Selectable Features . . . . . . . . . . . . . . . . . . . . . . . . 11 k Entering Selectable Features Mode . . . . . . . . . 14 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 k General Guidelines . . . . . . . . . . . . . . . . . . . . . . 14 Understanding Radar, Laser and SWS ™ . . . . . . . . . . 17 Interpretation of Alerts . . . . . . . . . . . . . . . . . . . . . 18 k Radar Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 k Instant-On/Pulsed Radar Alert . . . . . . . . . . . . 21 k Typical False Alert (Radar) . . . . . . . . . . . . . . . . 21 k Laser Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 k Safety Warning System ® (SWS ™ ) Alerts . . . . . . 22 Performance Verification . . . . . . . . . . . . . . . . . . . . 24 k Conditions That Affect Radar Alerts . . . . . . . . 24 Conditions That Affect Laser Alerts . . . . . . . . 24 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 k Warranty Service . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Modifications not expressly approved by the manufacturer could void the user’s FCC granted authority to operate the equipment. Printed in Canada153003-00 11263_FCC card insert 8/28/02 5:06 PM Page 1 11263_FCC card insert 8/28/02 5:06 PM Page 2

Curtis-Straus LLC 527 Great Road Littleton, Massachusetts 01460 Tel: 978.486.8880 Fax: 978.486.8828 Web: www.curtis-straus.com Worldwide Regulatory Approvals Experts ® Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with 47 CFR 0.457(d)(2) pertaining to confidential material. Beltronics USA, Inc. requests that the following documents regarding this submission for FCC ID: QL4G1S7 be kept confidential: 1. Block Diagram 2. Circuit Description 3. Schematic 4. Model Groupings The material above contains technical data, which would customarily be guarded from competitors. We at Curtis-Straus LLC are acting as an Agent on behalf of Beltronics USA, Inc. in requesting confidentiality with regards to the preceding documents. Sincerely, Michael Buchholz Senior EMC Manager Curtis-Straus LLC 527 Great Road Littleton, MA 01460

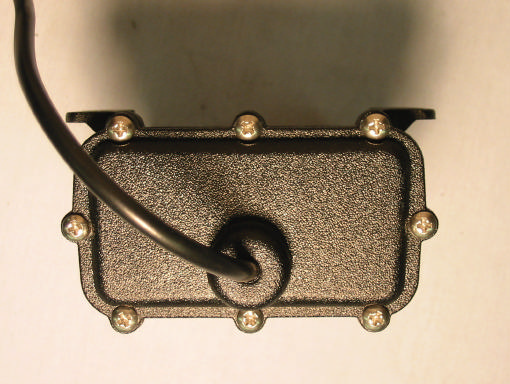

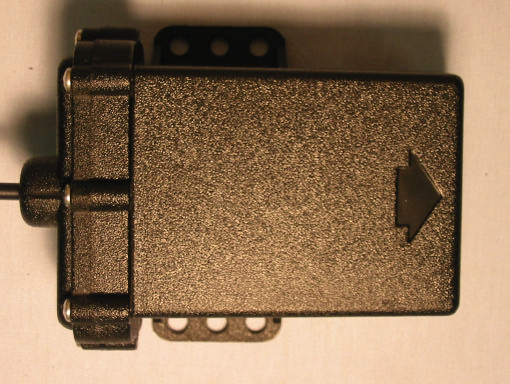

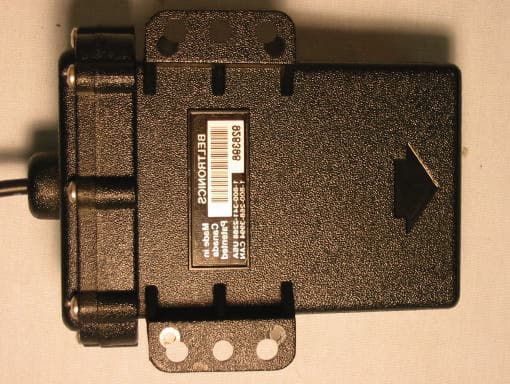

External Photos Model: Vector 940 FCC ID: QL4G1S7 Model: Vector 940 FCC ID: QL4G1S7 Model: Vector 940 FCC ID: QL4G1S7 Model: Vector 940 FCC ID: QL4G1S7 Model: Vector 960 FCC ID: QL4G1S7 Model: Vector 960 FCC ID: QL4G1S7 Model: Vector 960 FCC ID: QL4G1S7 Model: Vector 960 FCC ID: QL4G1S7 Model: Vector 985 FCC ID: QL4G1S7 Model: Vector 985 FCC ID: QL4G1S7 Model: Vector 985 FCC ID: QL4G1S7 Model: Vector 985 FCC ID: QL4G1S7 Model: 975 Remote FCC ID: QL4G1S7 Model: 975 Remote FCC ID: QL4G1S7 Model: 975 Remote FCC ID: QL4G1S7 Model: 975 Remote FCC ID: QL4G1S7

Internal Photos Model: Vector 940 FCC ID: QL4G1S7 Model: Vector 940 FCC ID: QL4G1S7 Model: Vector 960 FCC ID: QL4G1S7 Model: Vector 960 FCC ID: QL4G1S7 Model: Vector 985 FCC ID: QL4G1S7 Model: Vector 985 FCC ID: QL4G1S7 Model: 975 Remote FCC ID: QL4G1S7 Model: 975 Remote FCC ID: QL4G1S7 Model: 975 Remote FCC ID: QL4G1S7

Company: Beltronics USA, Inc. FRN: 0007600588 Models: Vector 960 Vector 985 Vector 940 975 Remote FCC ID: QL4G1S7 Equipment Code: CRD Report prepared for: Report prepared by: Beltronics USA, Inc. Evan D. Gould 5442 West Chester Road Curtis-Straus LLC West Chester, OH 45069 527 Great Road Phone: (513)-870-8535 Phone: (978)-486-8880 FAX: (513)-870-8523 FAX: (978)-486-8828 EMC Manager Worldwide Regulatory Approvals Experts (A2LA Certificate Number 1627-01) Technical Report REPORT:C0610-1 FCC ID:QL4G1S7 Page 2 of 8 Introduction This report is an application for Certification of Radar Detectors operating pursuant to 47 CFR 15.109, as amended by ET Docket No. 01-278; FCC 02-211, published in the Federal Register Vol. 67, No. 145 on Monday July 29, 2002. REPORT:C0610-1 FCC ID:QL4G1S7 Page 3 of 8 Statement of Conformity 47 CFR 15.109(h) states that “Radar detectors shall comply with the emissions limits...of [section 15.109(a)] over the frequency range of 11.7 – 12.2GHz.” The applicable limit being 500μV/m measured at a distance of 3m. The following Beltronics models have been tested and found to comply with this requirement: Vector 960 Vector 985 Vector 940 975 Remote REPORT:C0610-1 FCC ID:QL4G1S7 Page 4 of 8 Test Methodology Radiated emission testing was performed according to the procedures in ANSI C63.4 (2001). The testing was performed at an antenna to EUT distance of 1 meter. Performance was investigated in the range 11.7-12.2GHz. The Vector models were powered by a R.O.C. SPN4025A 12VDC 400mA power supply, and the 975 Remote was powered by a HP E3612A DC Power Supply. Since the devices are hand-held units, the emissions were maximized around the three orthogonal axes and the maximum reading was recorded. The integrated antenna cannot be maximized separately. REPORT:C0610-1 FCC ID:QL4G1S7 Page 5 of 8 Test Equipment SPECTRUM ANALYZERS x Analyzer Model No. Company Serial No. Calibration Due X ORANGE 9kHz-26.5GHz E4407B HP US39440975 07-JUN-2003 OPEN AREA TEST SITES (OATS) x Site FCC Code IC Code VCCI Code Calibration Due X “T” Texas 93448 IC 2762-T R-905/ C-480 04-FEB-2004 X “M” Maine 93448 IC 2762-M R-904/ C-480 04-FEB-2004 ANTENNAS x Antenna Model No. Company Serial No. Calibration Due X YELLOW Horn: 1-18GHz 3115 EMCO 9608-4898 08-MAY-2003 X BLACK Horn: 1-18GHz 3115 EMCO 9703-5148 12-JUN-2003 PREAMPLIFIERS / ATTENUATORS x Preamplifier Model No. Company Serial No. Calibration Due X ORANGE-BLACK 1-20GHZ SMC-12A MITEQ 690639 06-SEP-2002 Unless otherwise noted the calibration interval is one year. All equipment is calibrated using standards traceable to NIST or other nationally recognized calibration standard. All Open Area Test Sites are located at 527 Great Road, Littleton, MA 01460. REPORT:C0610-1 FCC ID:QL4G1S7 Page 6 of 8 Sample Setup Photo Model: Vector 940 REPORT:C0610-1 FCC ID:QL4G1S7 Page 7 of 8 Measurement Results All measurements taken were peak detector readings of the noise floor. There were no emissions detected from the EUTs. Radiated Emissions Table Curtis-Straus LLC Date:08-Aug-0216-Aug-0223-Aug-02Company:BeltronicsTable1 Engineer:Evan GouldEUT Desc:various radar detector modelsWork Order:C0610 Frequency Range:11.7-12.2GHzMeasurement Distance:1 m Notes:Emissions maximized Horizontally and Vertically. All measurements are noise floor readings. AntennaPreampAntennaCableAdjusted47 CFR 15.209(a) PolarizationFrequencyReadingFactorFactorFactorReadingLimitMarginResult (H / V)(MHz)(dBμV)(dB)(dB/m)(dB)(dBμV/m)(dBμV/m)(dB)(Pass/Fail) 975R 12220.031.619.938.94.755.363.5-8.2Pass V940 12000.032.420.338.94.755.763.5-7.8Pass V96012140.031.520.138.94.755.063.5-8.5Pass V985 12080.031.620.238.94.755.063.5-8.5Pass Test Sites:"T"Pre-Amp:Or-BlkCable:3m MicroflexAnalyzer:OrangeAntennas:Black Horn "M"Yellow Horn REPORT:C0610-1 FCC ID:QL4G1S7 Page 8 of 8 Sample Emission Plot

REPORT:C0610-1 FCC ID:QL4G1S7 Page 6 of 8 Sample Setup Photo Model: Vector 940
