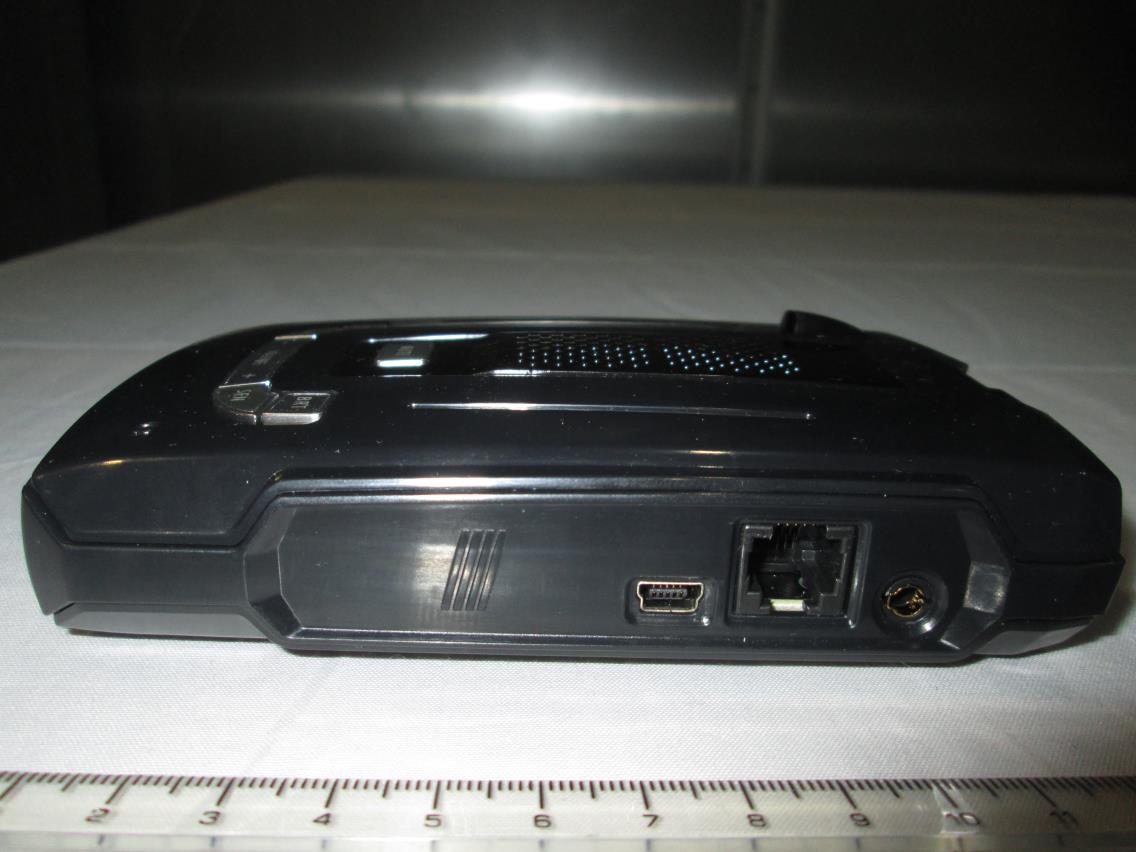

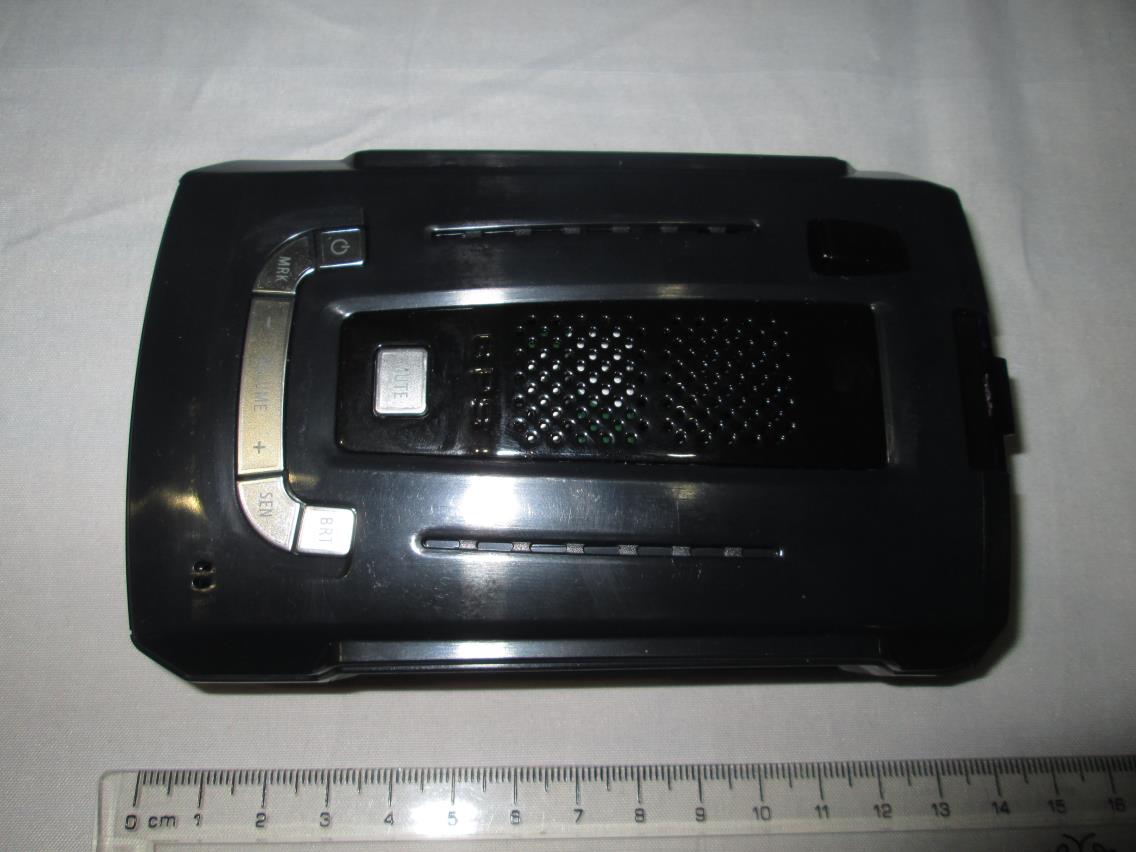

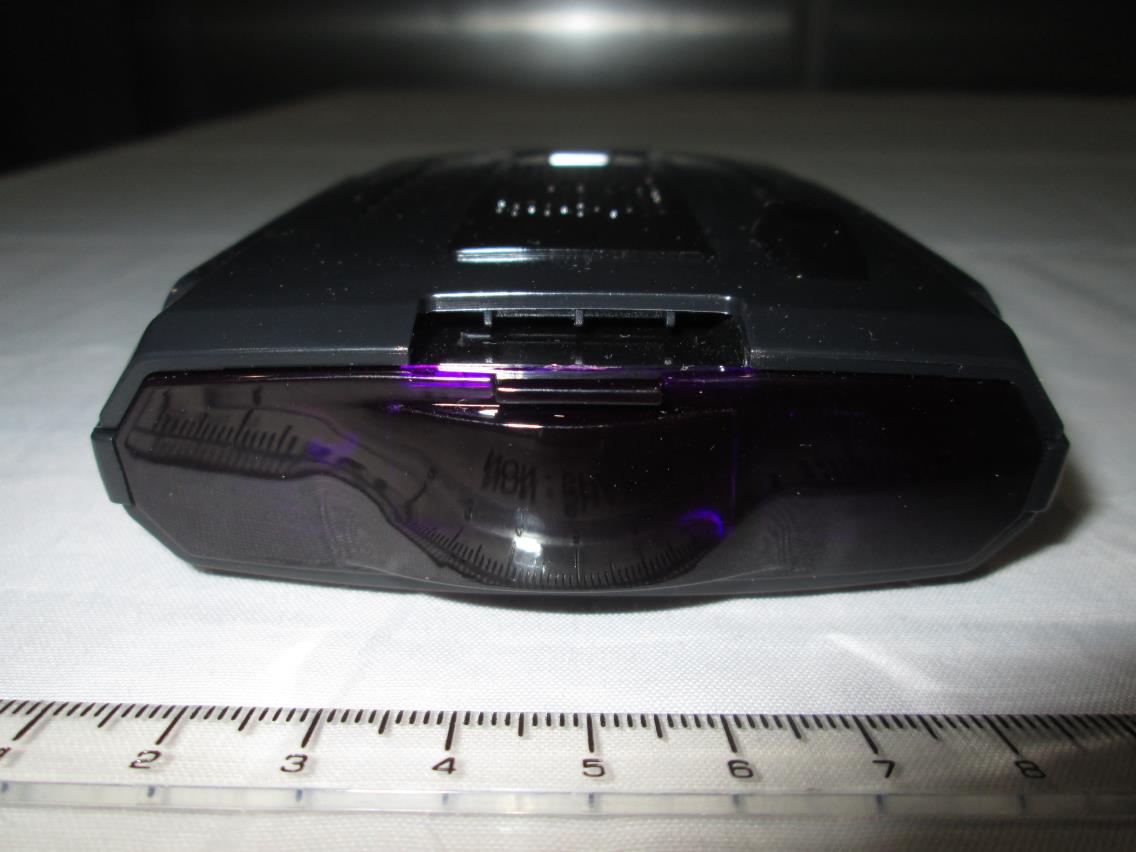

Settings & Programming Press and hold the MRK and SEN buttons to access Programming. To exit Programming, simply wait a few seconds without pressing a button. The unit will display Completed to confirm your selections. Press MRK to go from one category to the next Press VOLUME + or -to change your setting within a category User Mode Advanced· Access and customize all Settings and Programming Novice Access and customize units and display color, (all other Settings are set to factory defaults) NOTE Switch to advanced mode to view all settings Pilot Scanning" Scanning Bar with Full Word Full Word Full Word: AutoScan, Auto NoX, or Highway Display Color Blue·/Green/Red/Amber Set color to match your vehicle's dash display Speed Display On· Displays current speed Off Displays battery voltage Speed Mute Off /20-160 mph Offers double beep alert tones below specified speed 20 mph· Over Speed Off /20-160 mph Reminds you when you exceed a specified speed 70 mph· Signal Strength Meter Standard· Single band with bar graph of signal strength Tech Single band with numeric frequency Threat Multiple bands with bar graph of signal strengths Basic Basic messages replace bands: Caution (if traveling below Speed Mute limit) Slow Down (if traveling above Speed Mute limit) Tones Standard· Standard Beltronics alert tones Mild Mild alert tones AutoMute On·/ Off Automatically reduces audio during alert AutoLock On·/ Off Automatically stores and locks out false alarms Units English·/Metric Units for distance and speed Voice On·/ Off Voice announcements GPS Filter On"/ Off Enables GPS-powered features AutoPower Off 1 Hour 2 Hours 4 Hours· 8 Hour Power turns on or off depending on your vehicle's ignition type (constant power or switched) Powers off automatically after 1 hour Powers off automatically after 2 hours Powers off automatically after 4 hours Powers off automatically after 8 hours NOTE If AutoPower is on, the display screen goes blank after 30 minutes to save screen life. Display screen will turn on automatically after you reach 10 MPH Bands Default· Default settings for North America Modified Customize the bands you want to monitor Press SEN to go from one Band category to the next Press VOLUME + or -to change your setting within a category X Band On·/ Off K Band On·/ Off Ka Band On·/ Off Ka-POP On/Off· Laser On·/ Off TSR On"/ Off Automatically rejects traffic flow sensors-monitoring false alarms Markers Default· Default settings Modified Customize the types of locations you want to be alerted to Press SEN to go from one Marker category to the next Press VOLUME + or ­to change your setting within a category Other On"/Off Other location Redlight On·/ Off Red light camera Red &Speed On·/ Off Red light &speed camera Speed Cam On·/ Off Speed camera Speed Trp On·/ Off Speed trap Air Patrol On/Off· Air patrol Clear Locations Marked Clear all user Marked locations. Press SEN button to confirm Lockouts Clear all lockouts. Press SEN button to confirm Defender Clear all Defender data. Press SEN button to confirm Format Clear Defender database, all markers, and all lockouts. Press SEN button to confirm "Default Setting FCC NOTE: Modifications not expressly approved by the manufacturer c?uld void the user's FCC granted authority to operate the equipment. FCC ID: QL4G7M5. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Using GT-7 1. Plug small end of SmartCord into modular jack on GT-7 and large end of SmartCord into your car's lighter/accessory socket. 2. GT-7 should power on automatically. If not, press the device's power button. Earphone Jack Connects to optional 3.5 mm stereo earphone odular Jack Connects to SmartCord for powering your device ini USB Jack Connects to your computer via USB Almini B cable for downloading software updates Using SmartCord Mute Button: Press to mute an alert; press three times to lock out a false alert; press twice while receiving a locked-out alert to unlock. Alert Light: Blinks orange when receiving an alert. Power Light: Lights blue when receiving power. Modular Connector Plugs into detector jack Lighter Adapter Connects to lighter/acce wry 'ocket

August 11, 2015 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC A Bureau Veritas Company One Distribution Center Circle, Suite #1 Littleton, MA 01460 Re: Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidential material. Escort, Inc. requests that the following documents regarding this submission for FCC ID:QL4G7M5 be kept confidential for an indefinite time period: 1. Schematics 2. Block Diagram 3. Operational Description The above material contains technical data and proprietary information, which would customarily be guarded from competitors. We are requesting short-tern1 confidentiality on photos for products not yet placed on the market, this includes Exhibit Type: Users Manual, Internal Photos, all External Photos, and Test Setup Photos. Once the product is offered for sale, all confidentiality for short-term exhibits will be removed. We are requesting 45 days of short-term confidentiality. ESCORT Inc. will notify the FCC immediately at the time the product is released to the market so that confidentiality can be removed prior to the 45 day expiration. J n Ku ice P sident of Engineering Incorporated 5440 West Chester Road West Chester, Ohio 45069 DRIVE SMARTER" ESCORT Inc. II 5440 West Chester Road .. West CheSter OH 45069 .. 513.870.8500 II Escortinc.com

DRIVE SMARTER' Letter ofAgency Agent's Authorization Letter February 19,2015 I, an officer ofESCORT INCORPORATED, do hereby authorize, until further notice, Bureau Veritas, Curtis-Straus LLC, of One Distribution Center Circle, #I, Littleton, MA 01460, to act on our behalf in dealings before the Federal Communications Commission with respect to all matters relating to equipment authorizations under 47 CFR. This authorization includes, but is not limited to, the signing of Form 731. I certify that no party (as defmed in 47 CFR 1.2002) to this application, including myself, is subject to a denial offederal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.c., 853A. ./ \ ,Certified BY?; / ', I• / In! ./ // l._<'ltA- ~.~ Joh~·Kuhn Vice President of Engineering February 19, 2015 ESCORT Inc. • 5440 West Chester Road • West Chester OH 45069 • 513.870.8500 • Escortinc.com

DRIVE SMARTER August 11, 2015 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC A Bureau Veritas Company One Distribution Center Circle, Suite #1 Littleton, MA 01460 Re: Relationship of Companies This letter clarifies the relationship between ESCORT Inc.(QKL) and Beltronics Manufacturing Corp. (QL4) Beltronics Manufacturing Corp. is a Nova Scotia Unlimited Liability Corporation which is 100% owned by Beltronics USA, an Illinois Corporation. Beltronics USA is 100% owned by ESCORT Inc., an Illinois Corporation. ESCORT and Beltronics products are set up to compete in the retail marketplace. As such, the designs are differentiated by prod.uct names, aesthetics, features, and distribution differences. Although the microwave receiver sections of ESCORT and BEL products are nearly identical, it is desirable to have separate FCC identification numbers for ESCORT and Beltronics brand. ohn Ku ice p[ sident of Engineering Incorporated 5440 West Chester Road West Chester, Ohio 45069 ESCORT Inc. • 5440 West Chester Road • West Chester OH 45069 • 513.870.8500 • Escortinc.com

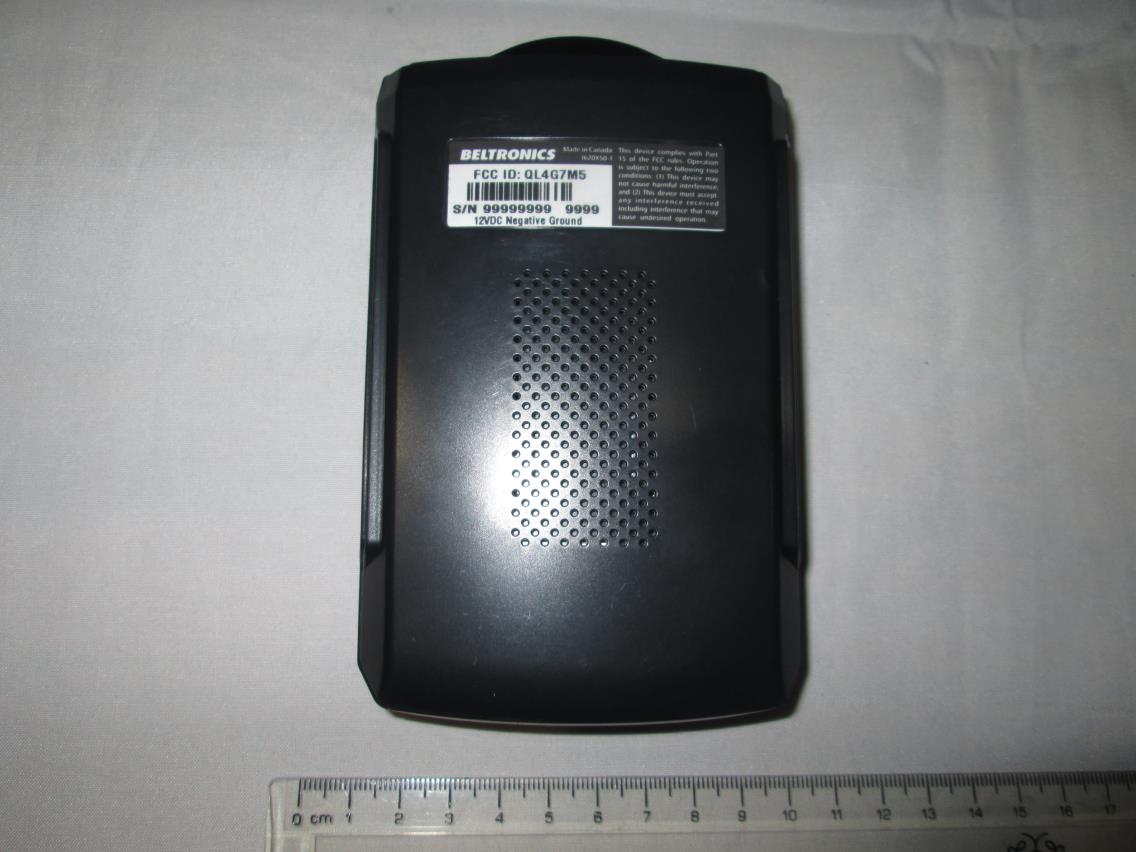

c 1 2 3 4 PIN 1620X50-0 DESCRIPTION Stkr, ESCORT FCC/Serial # ARTWORK # 1740X50-0 MATERIAL SEE NOTE 1 PROPRIETARY NOTE: THE DESIGN AND DATA ON THIS DRAWING ARE ORIGINATED BY AND ARE THE EXCLUSIVE PROPERTY OF ESCORT,INC. AND ARE TO BE HELD AND USED ON A CONFIDENTIAL BASIS. ALL WRITTEN MATERIAL AND OTHER DATA PERTAINING THERETO WILL BE RETURNED TO ESCORT ON REQUEST. 1620X50-1 Stkr, Bel FCC/Serial # AW-1620X50-1A SEE NOTE 6 REV ECN DATE DESCRIPTION A ". A B 4879 1130412 05/19/04 4/10/13 NEW RELEASED ADDED PIN -1 WITH CHART,SHEET FORMAT WAS BEL'S A fCC 10: Ql4G7M5 111111111.111111 SIN gggggggg gggg 12VDC ......1" Grl.ad >--C/) Q-~ O:C~ CJf--~ R02 TYP 1 21 °1 k!> B 1 .67 ~~ 1.34 .34 r ~ ~ 1 OVERALL AND FACE SPLIT DIMS PRINT DIRECTION & (SCALE 1:1) LABEL ON THE OUTSIDE-LINER ON THE INSIDE NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: .003 THICK MYLAR, FLEXCAL (INCLUDING ADHESIVE). 2. LABEL TO HAVE PERMANENT PRESSURE SENSITIVE DI ADHESIVE ON REAR SURFACE. 3. SERIAL NUMBER WITH BAR CODE AND FCC ID TO BE B D PRINTED IN HOUSE PER DRAWING 98-000030 OF QTY ESCORT PIN DESCRIPTION A ESCORT SERIALIZATION LOG. TITLE FCC/SERIAL # STICKER 4. SAMPLES MUST BE APPROVED BY BELTRONICS BEFORE TOLERANCE UNLESS ESCOR7: RUNNING PRODUCTION. SCALE DO NOT SCALE OTHERWISE SPECIFIED DRN DATE REL DATE DWG REV 5. PRINT DIRECTION AS SHOWN .xx ±010 YZ 5/19/04 .xxx ±OOS 6, ALTERNATE MATERIAL: 2 MIL CHROME CP POLYESTER 1620X50 B APP DATE SHEET 1 Of ANG ±30' 1 2 3 4 c

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ LLC  Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 1 of 9 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EP1958-1 Client Escort Inc. Address 5440 West Chester Road West Chester, OH 45069 Phone (513) 870 - 8517 Items tested QL4G7M5 FCC ID QL4G7M5 FRN 0007508732 Equipment Type CRD Equipment Code Radar Detector FCC Rule Parts 47 CRF 15.109(h) Test Dates July 24, 2015 Results As detailed within this report Prepared by Chris Bramley – Test Engineer Authorized by Christopher Reynolds – EMC Supervisor Issue Date 8/25/2015 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 8 of this report. Test Report for Escort Inc.  Report No. EP1958-1 August 18, 2015 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 2 of 9 Contents Contents .................................................................................................................................. 2 Summary ................................................................................................................................. 3 Test Methodology .................................................................................................................... 3 Product Tested ........................................................................................................................ 4 Configuration Documentation ............................................................................................... 4 Statement of Conformity ...................................................................................................... 5 Test Results ............................................................................................................................ 6 Radiated Emissions ............................................................................................................. 6 Measurement Uncertainty........................................................................................................ 7 Conditions Of Testing .............................................................................................................. 8 REV 06-FEB-15 (SC) Test Report for Escort Inc.  Report No. EP1958-1 August 18, 2015 ______________________________________________________________________ Issue No. Reason for change Date Issued 1 Original Release August 18, 2015 _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 3 of 9 Summary This report is an application for Certification of a radar detector operating pursuant to 47 CFR 15.109(h). This report is designed to demonstrate the compliance with the requirements outlined in Part 15 (using the methods outlined in Part 2) of 47 CFR. We found that the product met the above requirements without modification. The test sample was received in good condition. Test Methodology Radiated emission testing was performed according to the procedures in ANSI C63.4 (2009). The testing was performed at a distance of 1 meter. The device’s performance was investigated in the range 11.7-12.2GHz. The radar detector was powered by a variable power supply. Since the device is a hand-held unit, the emissions were maximized around the three orthogonal axes and the maximum reading was recorded. The integrated antenna cannot be maximized separately. Test Report for Escort Inc.  Report No. EP1958-1 August 18, 2015 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 4 of 9 Product Tested Configuration Documentation EUT Configuration Work Order: P1958 Company: Escort Inc. Company Address: 5440 West Chester Road West Chester, OH, 45069 Contact: Wanda Densford MN PN SN EUT: FCC ID: QL4G7M5 1620X50-1 99999999 9999 EUT Description: Windshield mounted radar/laser detector Support Equipment MN SN DC Supply NFB 61 Port Label Port Type # ports # populated cable type shielded ferrite s lengt h (m) max lengt h (m) in/out under test comment DC Power/mute button other 1 1 other No No 1.5 1.5 in yes Headphone other 1 1 other No No 1 5 in yes USB USB 1 1 USB Yes No 1 5 in yes Software Operating Mode Description: EUT is scanning for radar over the frequency range 11.7 to 12.2GHz. Test Report for Escort Inc.  Report No. EP1958-1 August 18, 2015 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 5 of 9 Statement of Conformity 47 CFR 15.109(h) states that “Radar detectors shall comply with the emissions limits...of [section 15.109(a)] over the frequency range of 11.7-12.2GHz”. The applicable limit being 500μV/m measured at a distance of 3m. The radar detector has been tested and found to comply with this requirement Test Report for Escort Inc.  Report No. EP1958-1 August 18, 2015 _______________________________________________________…

Text truncated - open the document above for the full version.

Radiated Emissions
