5442 West Chester Road West Chester, Ohio 45069 USA Made in Canada Printed in USA 121RX65-0REV Owner's Manual RX65 Manual-Rev2 1/17/05 3:18 PM Page 1 The BELRX65 is the most advanced radar,laser and safety detector ever designed byBeltronics. The BEL RX65 includes full X, K, SuperWide Ka, and Safety Warning Systemradar capability, front and rear laser detection, digital signal processing (DSP) forsuperior range and reduced false alarms, ourpatented Mute and AutoMute, audible andvisual band alerts, and all the performanceyou’d expect from Beltronics. In addition, the BEL RX65 introduces a new level of revolutionary performance andinnovative features. • Superior long-range radar and laser detection, including new “POP” mode alert • Advanced Programming lets you customize 7 features • AutoScan mode drastically reduces false alarms, plus Highway and City settings • Ultra-bright alphanumeric Display with 280 LEDs • Exclusive Threat Display tracks and displays multiple radar signals, including signal strength. • Tech Display provides actual numeric radar frequency for any radar signal • New Programmable Bands (on/off), including International and North American settings. • Detects and decodes Safety Warning System messages • Includes new coiled SmartPlug If you’ve used a radar detector before, a review of the Quick Reference Guide onpages 4 and 5, and the Programming information on pages 12 and 13 will brieflyexplain the new features. If this is your first detector, please read the manual in detail to get the most out ofyour RX65’s outstanding performance andinnovative features. Please drive safely. FCC Note:Modifications not expressly approved bythe manufacturer could void the user’s FCCgranted authority to operate the equipment. Congratulations Quick Reference Card 1 Programming Details
Factory Default Settings To reset RX65 to its original factorysettings, press and hold the “CITY” and“BRT” buttons while turning the poweron. RX65’s display will provide a “Reset”message, accompanied by an audiblealert, acknowledging the reset. BEL Pro RX65 Quick Reference Card  Remove card along perforations  Remove card along perforations  An exampleHere is how you would turn RX65’sAutoMute feature off. 1 Enter the Program Mode by holding both the CITY and BRT buttons down for 2seconds. RX65 will beep twice and display Program . 2 Then hold the RVW button down. The RX65 will scroll through the categories,starting with Pilot ( Pilot ), then Voice ( Voice ), then Power-on sequence ( PwrOn ), then Signal strength meter ( Meter ), and then AutoMute ( aMute ). 3 Release the RVW button when RX65 shows the AutoMute item. Since the factory setting is for AutoMute to be on,RX65 will display aMute ON . (If you accidentally don’t release the RVW button in time, and the RX65 goes tothe next category, hold the RVW buttondown again, and after RX65 scrollsthrough all categories, it will begin againat the top of the list.)4 Press the CHG button to change from aMute ON to aMute OFF . 5 To complete the Programming, simply wait 8 seconds without pressing any button,or press the PWR button. The RX65 will display Complete , beep, and return to normal operation. There are 7 user-selectable options so youcan customize your RX65 for your ownpreferences. The buttons labeled CITY and BRT are also used to enter the Program Mode,REVIEW your current program settings, andto CHANGE any settings as desired. Thewords PROGRAM, RVW and CHG arelocated on the top of the detector, and arehighlighted in graphics. How to use Programming1 To enter Program Mode, press and hold both CITY and BRT buttons downfor 2 seconds. (The unit will beep twice, and will display the word “Program”).2 Then press the RVW button to review the current settings . (You can either tap the button to change from item to item, orhold the button to scroll through the items).3 Press the CHG button to change any setting. (You can either tap the button to change from setting to setting, or hold thebutton to scroll through all the options).4 To leave Program Mode, simply wait 8 seconds without pressing any button,or press the PWR button. (The unit will display Complete, beep, and return tonormal operation). RX65 Manual-Rev2 1/17/05 3:18 PM Page 3 Table of Contents Quick Reference Guide 4-5 Installation 6-7 • Power Connection 6 • Mounting Location 6 • Windshield Mount 7 Controls and Features 8-11 • Power and Volume Control 8 • Voice 8 • Power-on indication 8 • AutoMute 8 • Mute 8 • Highway / AutoScan / City Switch 8 • Brightness and Dark Mode 9 • Audible Alerts 9 • Power Connector 10 • Signal Strength Meter 10 • Threat Display 11 • Tech Display 11 Programming 12-16 • How to use Programming 12 • Example of Programming 12 • Overview of Programming 13 • Details of Programming 14-16 Technical Details 17-23 • Specifications 17 • Interpreting Alerts 18-19 • How Radar Works 20 • How “POP” Works 20 • How Laser Works 21 • How Safety Radar Works 22-23 Service 24-28 • Troubleshooting 24-25 • Service 26 • Registration 28 • Warranty and Accessories 29 3 2 Quick Reference Card BEL Pro RX65 Quick Reference Card * Factory Default Settings  Remove card along perforations  Remove card along perforations  Press the RVW button to go from one category to the next PILOT (Power-on indication) VOICE POWER-ON SEQUENCE SIGNAL STRENGTH METER AUTOMUTE CITY MODE SENSITIVITY BANDS Pilot HWYPilot HPilot VVoice ONVoice OFFPwrOn STDPwrOn FSTMeter STDMeter THTMeter TECaMute ONaMute OFF City STDCity LoXCity NoX Bands ALLBands MOD X ON or OFF K ON or OFF Ka USA or Intl or OFF POP ON or OFF Ku ON or OFF LSR ON or OFF SWS ON or OFF Press the CHG button to change your settingwithin a category * Full word: Highway or AutoScan or City Letter: H or A or CVehicle voltage * Voice alerts on Voice alerts off * Standard power-on sequence Fast power-on sequence * Standard signal strength meter Threat DisplayTech Display * AutoMute on AutoMute off * Standard City mode sensitivity Low X band sensitivity in City ModeNo…

Text truncated - open the document above for the full version.

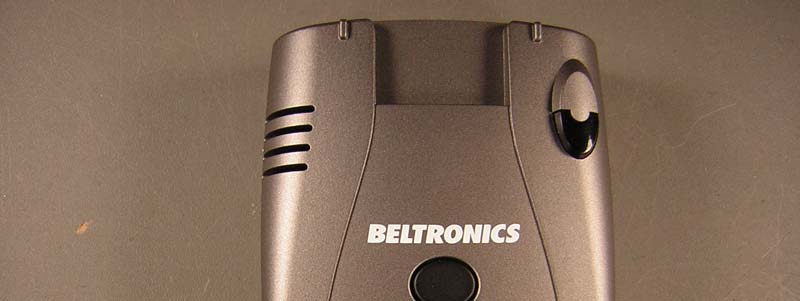

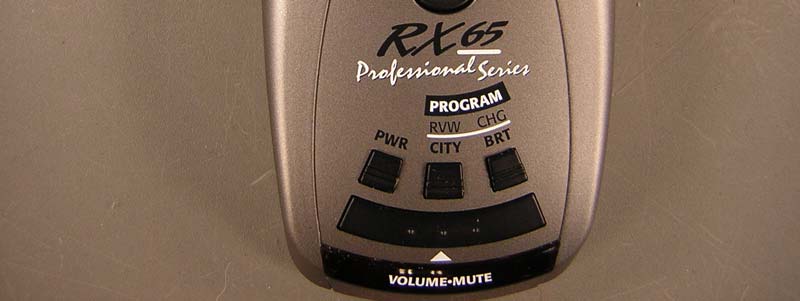

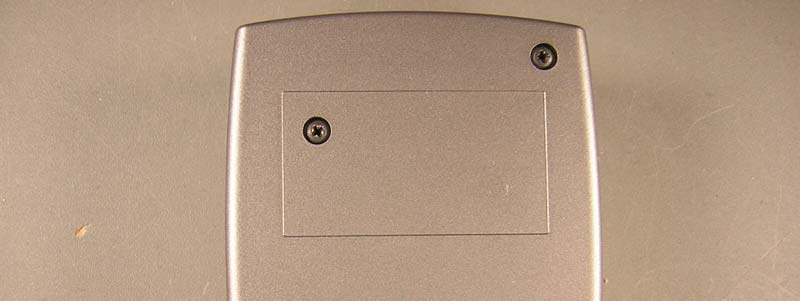

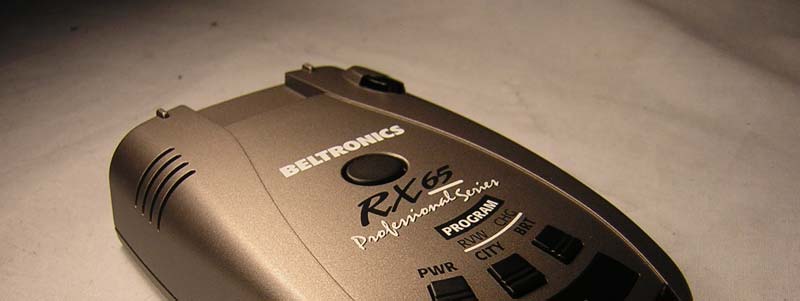

REPORT: EE1095-1 FCC ID: QL4G7M4 EXHIBIT: External Photos MODEL: RX65 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 2 REPORT: EE1095-1 FCC ID: QL4G7M4 EXHIBIT: External Photos MODEL: RX65 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 2

MATERIAL: .003 THICK MYLAR, FLEXCAL (INCLUDING ADHESIVE) LABEL TO HAVE PERMANENT PRESSURE SENSITIVE ADHESIVE ON REAR SURFACE

REPORT: EE1095-1 FCC ID: QL4G7M4 EXHIBIT: Internal Photos MODEL: RX65 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 2 REPORT: EE1095-1 FCC ID: QL4G7M4 EXHIBIT: Internal Photos MODEL: RX65 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 2

Test Report Report No EE1095-1 Client Beltronics USA, Inc. 5442 West Chester Road West Chester, OH 45069 Phone (513)-870-8535 Fax (513)-870-8523 FRN 0007600588 Model RX65 FCC ID QL4G7M4 Equipment Type Radar Detector Equipment Code CRD Results As detailed within this report Prepared by _____________________ Evan Gould – Test Engineer Authorized by __________________________ Michael Buchholz – EMC Manager Issue Date 1/17/05 Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this report. Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Curtis-Straus REPORT: EE1095-1 FCC ID: QL4G7M4 Page 2 of 10 _____________________________________________________________ Table Of Contents Summary.........................................................................................................................3 Statement of Conformity..................................................................................................3 Test Methodology............................................................................................................3 Test Equipment Used......................................................................................................4 Radiated Emissions Measurements................................................................................5 Terms And Conditions.....................................................................................................6 LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Curtis-Straus REPORT: EE1095-1 FCC ID: QL4G7M4 Page 3 of 10 _____________________________________________________________ Summary This report is an application for Certification of a radar detector operating pursuant to 47 CFR 15.109(h). This report is designed to demonstrate the compliance of the RX65 with the requirements outlined in Part 15 (using the methods outlined in Part 2) of 47 CFR. Statement of Conformity 47 CFR 15.109(h) states that “Radar detectors shall comply with the emissions limits...of [section 15.109(a)] over the frequency range of 11.7 – 12.2GHz.” The applicable limit being 500μV/m measured at a distance of 3m. The Escort RX65 has been tested and found to comply with this requirement: Test Methodology Radiated emission testing was performed according to the procedures in ANSI C63.4 (2003). The testing was performed at a distance of 1 meter. The device’s performance was investigated in the range 11.7-12.2GHz. The RX65 was powered by an HP E3612A variable DC power supply. Since the device is a hand-held unit, the emissions were maximized around the three orthogonal axes and the maximum reading was recorded. The integrated antenna cannot be maximized separately. LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Curtis-Straus REPORT: EE1095-1 FCC ID: QL4G7M4 Page 4 of 10 _____________________________________________________________ Test Equipment Used REV. 21-DEC-2004 SPECTRUM ANALYZER RANGE MN M FR SN A SSET C ALIBRATION DUE ORANGE 9kHz-26.5GHz E4407B HP US39440975 00394 05-NOV-2005 OPEN AREA TEST SITE (OATS) FCC CODE IC CODE VCCI CODE CALIBRATION DUE SITE T 93448 IC 2762-T R-905 25-MAR-2005 ANTENNA RANGE MN M FR SN A SSET C ALIBRATION DUE YELLOW HORN 1-18GHZ 3115 EMCO 9608-4898 00037 22-MAY-2005(EMI) P REAMP RANGE MN MFR SN ASSET CALIBRATION DUE ORANGE-BLACK 1-20GHZ SMC-12A C-S 637367 00761 21-JUL-2005 Unless otherwise noted the calibration interval is one year. All equipment is calibrated using standards traceable to NIST or other nationally recognized calibration standard. LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Curtis-Straus REPORT: EE1095-1 FCC ID: QL4G7M4 Page 5 of 10 _____________________________________________________________ Radiated Emissions Measurements LIMIT Average: 500μV/m = 54dBμV/m @ 3m [15.109(a)] Note: If peak measurements meet the Average limit, then Average measurements are not required. MEASUREMENTS Radiated Emissions Table Curtis -Straus LLC Date: 30-Dec-04 Company: Escort Work Order: E1095 Engineer: Evan Gould EUT Desc: RX65 Frequency Range: 11.7-12.2GHz Measurement Distance: 1 m Notes: AntennaPreampAntennaCableAdjusted FCC Class B PolarizationFrequencyReadingFactorFactorFactorReadingLimitMarginResult (H / V)(MHz)(dBμV)(dB)(dB/m)(dB)(dBμV/m)(dBμV/m)(dB)(Pass/Fail) noise floor12180.033.721.539.23.054.463.5-9.1Pass Table Result: Pass by -9.1 dB Worst Freq: 12180.0 MHz Test Site: "T" Pre-Amp: Or-Blk Cable: 7 Microflex Analyzer: Orange Antenna: Yellow Horn ANALYZER PLOT LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Curtis-Straus REPORT: EE1095-1 FCC ID: QL4G7M4 Page 6 of 10 _____________________________________________________________ Terms And Conditions Paragraph 1. SERVICES. LABORATORY will: 1.1 Use the degree of care and skill ordinarily exercised by and consistent with the standards of the profession. 1.2 Perform all technical services in substantial accordance with the generally accepted laboratory principles and practices. 1.3 Retain all pertinent records relating to the services performed for a period of three (3) years following submission of the report describing such services, during which period the records will be made available to CLIENT upon reasonable request. Paragraph 2. CLIENT’S RESPONSIBILITIES. CLIENT or his authorized representative will: 2.1 Provide LABORATORY with all plans, schematics, specifications, addenda, change orders, drawings and other information for the proper performance of technical services. 2.2 Designate a person to act as CLIENT’s representative with res…
