QL4G3M1Radar Detector

with 65 Digital Voice Messages and Digital Display with 10 Digital Voice Messages and Digital Display Operating instructions for models E926CS and E916CS TM Ultimate Performance. Proven Technology. P R O T E C T I O N P R O T E C T I O N 360 ̊ 10163_916-926 Op. Manual.FINAL 5/2/02 1:26 PM Page C Re Thank you for purchasing an EXPRESS 926 or EXPRESS 916 Radar/Laser/Safety detector. Your new unit offers the most advanced technology available for detecting all Radar and Laser speed monitoring devices. In addition, EXPRESS 926 features Digital Voice Messages for Radar/Laser and sws ™ . To ensure maximum benefit from your unit, please read all instruc- tions before operation. Remember, owning a Radar detector does not give you a license to speed. Alerts from a Radar detector serve as an effective reminder to check your speed. Laws vary throughout North America governing the use of a Radar detector. It is your responsibility to follow these laws. Safety Warning System ® (sws ™ ) EXPRESS 926 and EXPRESS 916 detect encoded signals from sws ™ transmitters and provide distinct alerts for: Highway Construction/Maintenance, Highway Hazard Zones, Weather Related Hazards, Travel Information/Convenience and Emergency/Slow Moving Vehicles. EXPRESS 926 also provides 60 Digital Voice Messages. For a complete description of sws ™ audio and visual alerts, see page 18. VG-2 Guard ® Alert EXPRESS 926 and EXPRESS 916 features VG-2 Guard ® which alerts to the presence of the Interceptor VG-2 (Radar Detector Detector). For a complete description of the VG-2 Guard ® audio/visual alert, see page 17. Safety Warning System ® with Digital Voice Messages Choose between Digital Voice Messages with a unique sws ™ tone or sws ™ tone only (see page 8). Digital Voice Prompts for Radar/Laser/VG-2 Guard ® Choose between Radar/Laser/ VG-2 Guard ® Digital Voice prompts followed by “beeps” or “beeps” only (see page 9). INTRODUCTION SELECTABLE FEATURES 2 10163_916-926 Op. Manual.FINAL 5/2/02 1:26 PM Page 2 Re Profile of Features➤page 4 Description of Features➤page 5 Power Up Test Sequence ➤page 5 Tutorial Mode ➤page 5 Memory Retention of Feature Selections ➤page 5 Adjusting the Audio Level ➤page 6 DRK (Dim/Dark) Button ➤page 6 AUD (Audio Mute) Button ➤page 6 CTY (City/Highway) Button ➤page 8 Reset to Factory Settings ➤page 8 Selectable Features➤page 8 Entering Selectable Features Mode ➤page 10 Installation➤page 10 General Guidelines ➤page 10 Understanding Radar, Laser and sws ™ ➤page 13 Interpretation of Alerts➤page 14 Radar Alerts ➤page 14 Instant-On/Pulsed Radar Alert ➤page 16 Typical False Alert (Radar) ➤page 16 Laser Alerts ➤page 17 VG-2 Guard ® Alert ➤page 17 Safety Warning System ® (sws ™ ) Alerts ➤page 18 Performance Verification➤page 19 Conditions That Affect Radar Alerts ➤page 19 Conditions That Affect Laser Alerts ➤page 19 Troubleshooting➤page 20 Consumer Warranty➤page 21 Service➤page 22 Warranty Service ➤page 22 Post-Warranty Service ➤page 22 Specifications➤page 23 Accessories➤page 23 TABLE OF CONTENTS 3 10163_916-926 Op. Manual.FINAL 5/2/02 1:26 PM Page 3 Re 1. P/V(Power/Volume) Button:pressing P/Vbriefly will turn the unit ON. Pressing P/Va second time will bypass the power up test sequence. Holding the P/Vand holding will change the audio level. 2. sws ™ Indicator:illumination of green Safety Warning System ® LEDconfirms potential road hazards ahead. 3. Digital Display:communicates all mode selections, Radar Signal Strength 1-9), presence of Laser (L) and sws ™ category (1-5). Display also indicates volume level selection. 4. Ka/X/K Band Indicators:the Radar band received is confirmed by the illumination of the appropriate letter. 5. DRK(Dim/Dark) Button:provides dim or dark settings of the display for discreet night travel. Audio alerts are not affected. 6. AUD(Audio Mute) Button:provides automatic and manual muting of X, K, Super Wideband Ka Radar and manual muting of sws ™ alerts. 7. CTY(City/Highway) Button:minimizes unwanted X band alerts without reducing sensitivity. EXPRESS 926 includes city X/K/Ka for additional selectivity. PROFILE OF FEATURES 5 9 8 10 7 6 4 3 11 2 1 4 10163_916-926 Op. Manual.FINAL 5/2/02 1:26 PM Page 4 Re 8. Antenna Opening:Radar and sws ™ signals are received by a patented diecast antenna with integrated transition to microstrip mixer. 9. Laser Optical Sensors:collect Laser signals from in front and behind. 10. Audio Alert Speaker:all audible alerts and Digital Voice Messages are emitted from this location. 11. Power Jack:EXPRESS 926 and EXPRESS 916 operate in any vehicle with a 12 volt DCnegative ground system (10.5 volt to 16 volt range). Note: EXPRESS 916 contains the same feature set as EXPRESS 926 pictured, except for city X/K/Ka and 60 SWS ™ Digital Voice Messages. Power-Up Test Sequence Each time your unit is turned ON, alerts for Laser, Ka, K, X and Safety Warning System ® are presented. After this test sequence, illumination of digits 1, 2, 3 and/or 4 indicates if Selectable Features are engaged (see page 8). To bypass the power-up test sequence, press the P/Vbutton again. If your unit presents an illumination pattern other than this standard power-up test sequence, return it to BELTRONICS for servicing. Tutorial Mode The Tutorial mode allows you to become more familiar with all audible and visual alerts. To engage this mode, press and hold CTY, then press AUDwhen the unit is OFF. The unit will cycle continuously through audio/visual alerts for Laser, Ka, K, X and VG-2 Guard ® Alert as well as sample sws ™ messages or sws ™ categories (EXPRESS 916). To exit tutorial mode, press the P/V button and your unit will be ONand ready to receive signals. Memory Retention of Feature Selections Any time your unit is turned OFFor unplugged from the cigarette lighter socket, all feature settings are retained in the unit's memory. Memory retention eliminates the need to reset your preferred feature settings each time your unit is turned OFFand then back ON. DESCRIPTION OF FEATURES 5 10163_91…

Text truncated - open the document above for the full version.

Modifications not expressly approved by the manufacturer could void the user’s FCC granted authority to operate the equipment. Printed in Canada153003-00 11263_FCC card insert 8/28/02 5:06 PM Page 1 11263_FCC card insert 8/28/02 5:06 PM Page 2

with 65 Digital Voice Messages and Digital Display with 10 Digital Voice Messages and Digital Display Operating instructions for models E926CS and E916CS TM Ultimate Performance. Proven Technology. P R O T E C T I O N P R O T E C T I O N 360 ̊ 10163_916-926 Op. Manual.FINAL 5/2/02 1:26 PM Page C Re Thank you for purchasing an EXPRESS 926 or EXPRESS 916 Radar/Laser/Safety detector. Your new unit offers the most advanced technology available for detecting all Radar and Laser speed monitoring devices. In addition, EXPRESS 926 features Digital Voice Messages for Radar/Laser and sws ™ . To ensure maximum benefit from your unit, please read all instruc- tions before operation. Remember, owning a Radar detector does not give you a license to speed. Alerts from a Radar detector serve as an effective reminder to check your speed. Laws vary throughout North America governing the use of a Radar detector. It is your responsibility to follow these laws. Safety Warning System ® (sws ™ ) EXPRESS 926 and EXPRESS 916 detect encoded signals from sws ™ transmitters and provide distinct alerts for: Highway Construction/Maintenance, Highway Hazard Zones, Weather Related Hazards, Travel Information/Convenience and Emergency/Slow Moving Vehicles. EXPRESS 926 also provides 60 Digital Voice Messages. For a complete description of sws ™ audio and visual alerts, see page 18. VG-2 Guard ® Alert EXPRESS 926 and EXPRESS 916 features VG-2 Guard ® which alerts to the presence of the Interceptor VG-2 (Radar Detector Detector). For a complete description of the VG-2 Guard ® audio/visual alert, see page 17. Safety Warning System ® with Digital Voice Messages Choose between Digital Voice Messages with a unique sws ™ tone or sws ™ tone only (see page 8). Digital Voice Prompts for Radar/Laser/VG-2 Guard ® Choose between Radar/Laser/ VG-2 Guard ® Digital Voice prompts followed by “beeps” or “beeps” only (see page 9). INTRODUCTION SELECTABLE FEATURES 2 10163_916-926 Op. Manual.FINAL 5/2/02 1:26 PM Page 2 Re Profile of Features➤page 4 Description of Features➤page 5 Power Up Test Sequence ➤page 5 Tutorial Mode ➤page 5 Memory Retention of Feature Selections ➤page 5 Adjusting the Audio Level ➤page 6 DRK (Dim/Dark) Button ➤page 6 AUD (Audio Mute) Button ➤page 6 CTY (City/Highway) Button ➤page 8 Reset to Factory Settings ➤page 8 Selectable Features➤page 8 Entering Selectable Features Mode ➤page 10 Installation➤page 10 General Guidelines ➤page 10 Understanding Radar, Laser and sws ™ ➤page 13 Interpretation of Alerts➤page 14 Radar Alerts ➤page 14 Instant-On/Pulsed Radar Alert ➤page 16 Typical False Alert (Radar) ➤page 16 Laser Alerts ➤page 17 VG-2 Guard ® Alert ➤page 17 Safety Warning System ® (sws ™ ) Alerts ➤page 18 Performance Verification➤page 19 Conditions That Affect Radar Alerts ➤page 19 Conditions That Affect Laser Alerts ➤page 19 Troubleshooting➤page 20 Consumer Warranty➤page 21 Service➤page 22 Warranty Service ➤page 22 Post-Warranty Service ➤page 22 Specifications➤page 23 Accessories➤page 23 TABLE OF CONTENTS 3 10163_916-926 Op. Manual.FINAL 5/2/02 1:26 PM Page 3 Re 1. P/V(Power/Volume) Button:pressing P/Vbriefly will turn the unit ON. Pressing P/Va second time will bypass the power up test sequence. Holding the P/Vand holding will change the audio level. 2. sws ™ Indicator:illumination of green Safety Warning System ® LEDconfirms potential road hazards ahead. 3. Digital Display:communicates all mode selections, Radar Signal Strength 1-9), presence of Laser (L) and sws ™ category (1-5). Display also indicates volume level selection. 4. Ka/X/K Band Indicators:the Radar band received is confirmed by the illumination of the appropriate letter. 5. DRK(Dim/Dark) Button:provides dim or dark settings of the display for discreet night travel. Audio alerts are not affected. 6. AUD(Audio Mute) Button:provides automatic and manual muting of X, K, Super Wideband Ka Radar and manual muting of sws ™ alerts. 7. CTY(City/Highway) Button:minimizes unwanted X band alerts without reducing sensitivity. EXPRESS 926 includes city X/K/Ka for additional selectivity. PROFILE OF FEATURES 5 9 8 10 7 6 4 3 11 2 1 4 10163_916-926 Op. Manual.FINAL 5/2/02 1:26 PM Page 4 Re 8. Antenna Opening:Radar and sws ™ signals are received by a patented diecast antenna with integrated transition to microstrip mixer. 9. Laser Optical Sensors:collect Laser signals from in front and behind. 10. Audio Alert Speaker:all audible alerts and Digital Voice Messages are emitted from this location. 11. Power Jack:EXPRESS 926 and EXPRESS 916 operate in any vehicle with a 12 volt DCnegative ground system (10.5 volt to 16 volt range). Note: EXPRESS 916 contains the same feature set as EXPRESS 926 pictured, except for city X/K/Ka and 60 SWS ™ Digital Voice Messages. Power-Up Test Sequence Each time your unit is turned ON, alerts for Laser, Ka, K, X and Safety Warning System ® are presented. After this test sequence, illumination of digits 1, 2, 3 and/or 4 indicates if Selectable Features are engaged (see page 8). To bypass the power-up test sequence, press the P/Vbutton again. If your unit presents an illumination pattern other than this standard power-up test sequence, return it to BELTRONICS for servicing. Tutorial Mode The Tutorial mode allows you to become more familiar with all audible and visual alerts. To engage this mode, press and hold CTY, then press AUDwhen the unit is OFF. The unit will cycle continuously through audio/visual alerts for Laser, Ka, K, X and VG-2 Guard ® Alert as well as sample sws ™ messages or sws ™ categories (EXPRESS 916). To exit tutorial mode, press the P/V button and your unit will be ONand ready to receive signals. Memory Retention of Feature Selections Any time your unit is turned OFFor unplugged from the cigarette lighter socket, all feature settings are retained in the unit's memory. Memory retention eliminates the need to reset your preferred feature settings each time your unit is turned OFFand then back ON. DESCRIPTION OF FEATURES 5 10163_91…

Text truncated - open the document above for the full version.

Modifications not expressly approved by the manufacturer could void the user’s FCC granted authority to operate the equipment. Printed in Canada153003-00 11263_FCC card insert 8/28/02 5:06 PM Page 1 11263_FCC card insert 8/28/02 5:06 PM Page 2

Curtis-Straus LLC 527 Great Road Littleton, Massachusetts 01460 Tel: 978.486.8880 Fax: 978.486.8828 Web: www.curtis-straus.com Worldwide Regulatory Approvals Experts ® Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with 47 CFR 0.457(d)(2) pertaining to confidential material. Beltronics USA, Inc. requests that the following documents regarding this submission for FCC ID: QL4G3M1 be kept confidential: 1. Block Diagram 2. Circuit Description 3. Schematics 4. Model Groupings The material above contains technical data, which would customarily be guarded from competitors. We at Curtis-Straus LLC are acting as an Agent on behalf of Beltronics USA, Inc. in requesting confidentiality with regards to the preceding documents. Sincerely, Michael Buchholz Senior EMC Manager Curtis-Straus LLC 527 Great Road Littleton, MA 01460

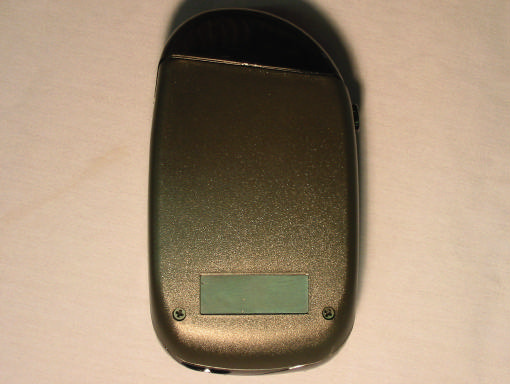

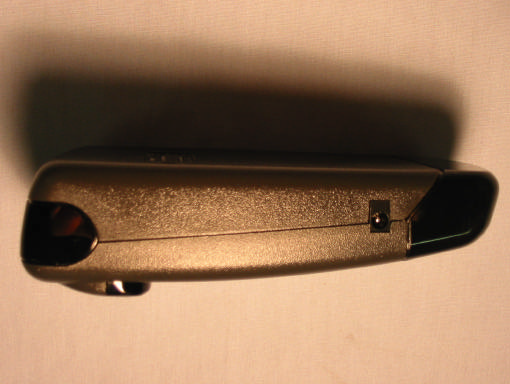

External Photos Model: Express 906 FCC ID: QL4G3M1 Model: Express 906 FCC ID: QL4G3M1 Model: Express 916 FCC ID: QL4G3M1 Model: Express 916 FCC ID: QL4G3M1 Model: Express 916 FCC ID: QL4G3M1 Model: Express 916 FCC ID: QL4G3M1

External Photos Model: Express 906 FCC ID: QL4G3M1 Model: Express 906 FCC ID: QL4G3M1 Model: Express 916 FCC ID: QL4G3M1 Model: Express 916 FCC ID: QL4G3M1 Model: Express 916 FCC ID: QL4G3M1 Model: Express 916 FCC ID: QL4G3M1

CUSTOM ANODIZED A LUMINUM TRAVEL CA S E BEL’s VECTORSERIES incorporates Motorola Flash Microcontroller technology for software upgrade. Should new police traffic radar monitoring technologies emerge, like Spread Spectrum, BEL’s VECTORSERIES has the highest possible capability to adapt to new types of traffic radar monitoring. VECTOR 985 detects encoded signals from SWS ™ transmitters and provides Digital Voice and Text Messages for: Highway Construction/Maintenance, Highway Hazard Zones, Weather Related Hazards, Emergency/Slow Moving Vehicles and Travel/Convenience Information. Software Upgradable - an industry first! Accessories: ■ NEW! 8’ Coiled Power Cord ■ NEW! 12’ Straight Power Cord ■ NEW! Windshield/Visor Bracket ■ Hook & Loop Fastener ■ 4-non-skid Dash Pads ■ Spare Fuse ■ NEW! Custom Anodized Aluminum Travel Case Digital Voice/ Audio Speaker Identifies Radar Frequencies, Laser, SWS ™ and all Feature Settings Power Jack Front and Rear Laser Optical Openings Power/Start-up Mode Bright/Dark and Adjustable Dim Modes AutoScan ™ , Highway City X and City X/K/Ka filtering modes Radar Antenna I NCLUDES 64 D IGITALVOICE AND T EXT M ESSAGES MOTOROLA digital dna TM ■ Digital Broadband Technology™ with Varactor Tuning:Only BEL combines a Varactor Tuned low-noise bi-polar transistor oscillator for even greater sensitivity than BEL’s industry winning 2001 detector line. ■ Fundamental Mixer Technology ® (FMT ® ):Patented BEL technology delivers 2 times the X band sensitivity, 4 times the K band sensitivity and 15 times the Ka band sensitivity when compared to harmonic mixer technology used by major competitors. ■ Image Rejection Technology ® (IRT ® ):The “no compromise” solution for the most sensitive X/K/Super Wideband Ka Radar detector today – without sacrificing sensitivity on any portion of critical Super Wideband Ka. (Patent Pending) ■ : A patent-pending, industry first! Digital PLL Synthesized Oscillator delivers the oscillator performance under all operating conditions. ■ Auto Calibration:All tuning parameters are calibrated against the precision PLL frequency synthesizer to provide complete, accurate and programmable coverage of ALL Radar bands. ■ Shadow Technology ® II:An improved, second generation in undetectability. Only Shadow Technology ® IIprovides complete immunity to the Interceptor VG-2. ■ Advanced Auto Correlation Noise Discrimination System: Identifies Laser signals beneath the “noise” threshold for extended detection range and early warning. ■ Total Tracking Laser ™ (TTL ™ ):Twin Laser ports with energy far outside the main Laser beam. This ensures superior off-axis coverage and the widest “field-of-view” for 360° protection. 36O P R O T E C T I O N P R O T E C T I O N P R O T E C T I O N P R O T E C T I O N P R O T E C T I O N P R O T E C T I O N P R O T E C T I O N 360 ̊ DIGITAL PLL SYNTHESIZED OSCILLATOR VECTOR Series R adar Alert V oltage Meter Mode Laser Alert sws ™ A dvisory Fe a ture Selection T ech Mode NEW! Digital Broadband Technology ™ with MODEL V985 New Features! AccuSweep TM : accurately pinpoints most commonly encountered Ka frequencies without scanning the entire Ka frequency. AutoScan TM : automatically fine-tunes sensitivity on X and K bands without touching a button! Tech Mode: identifies and reports the actual transmitted police radar frequency. Voltage Meter Mode: provides a continuous readout of vehicle’s battery voltage while you drive. Safety Warning System ® (SWS ™ ) y Manual Mute/ Volume Control MODEL V985 VECTOR958with Digital Broadband Technology ™ Digital Broadband Technology ™ Compact Travel Case holds all accessories and stores easily. NEW! VECTOR958with FCC ID: QL4G1S7 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: QL4G1S7 THIS DEVICE COMPLIES WITH PART 15OF THE FCC RULES. OPERATION ISSUBJECT TO THE FOLLOWING TWOCONDITIONS: (1) THIS DEVICE MAYNOT CAUSE HARMFUL INTERFERENCE,AND (2) THIS DEVICE MUST ACCEPTANY INTERFERENCE RECEIVEDINCLUDING INTERFERENCE THAT MAYCAUSE UNDESIRED OPERATION.

CUSTOM ANODIZED A LUMINUM TRAVEL CA S E BEL’s VECTORSERIES incorporates Motorola Flash Microcontroller technology for software upgrade. Should new police traffic radar monitoring technologies emerge, like Spread Spectrum, BEL’s VECTORSERIES has the highest possible capability to adapt to new types of traffic radar monitoring. VECTOR 985 detects encoded signals from SWS ™ transmitters and provides Digital Voice and Text Messages for: Highway Construction/Maintenance, Highway Hazard Zones, Weather Related Hazards, Emergency/Slow Moving Vehicles and Travel/Convenience Information. Software Upgradable - an industry first! Accessories: ■ NEW! 8’ Coiled Power Cord ■ NEW! 12’ Straight Power Cord ■ NEW! Windshield/Visor Bracket ■ Hook & Loop Fastener ■ 4-non-skid Dash Pads ■ Spare Fuse ■ NEW! Custom Anodized Aluminum Travel Case Digital Voice/ Audio Speaker Identifies Radar Frequencies, Laser, SWS ™ and all Feature Settings Power Jack Front and Rear Laser Optical Openings Power/Start-up Mode Bright/Dark and Adjustable Dim Modes AutoScan ™ , Highway City X and City X/K/Ka filtering modes Radar Antenna I NCLUDES 64 D IGITALVOICE AND T EXT M ESSAGES MOTOROLA digital dna TM ■ Digital Broadband Technology™ with Varactor Tuning:Only BEL combines a Varactor Tuned low-noise bi-polar transistor oscillator for even greater sensitivity than BEL’s industry winning 2001 detector line. ■ Fundamental Mixer Technology ® (FMT ® ):Patented BEL technology delivers 2 times the X band sensitivity, 4 times the K band sensitivity and 15 times the Ka band sensitivity when compared to harmonic mixer technology used by major competitors. ■ Image Rejection Technology ® (IRT ® ):The “no compromise” solution for the most sensitive X/K/Super Wideband Ka Radar detector today – without sacrificing sensitivity on any portion of critical Super Wideband Ka. (Patent Pending) ■ : A patent-pending, industry first! Digital PLL Synthesized Oscillator delivers the oscillator performance under all operating conditions. ■ Auto Calibration:All tuning parameters are calibrated against the precision PLL frequency synthesizer to provide complete, accurate and programmable coverage of ALL Radar bands. ■ Shadow Technology ® II:An improved, second generation in undetectability. Only Shadow Technology ® IIprovides complete immunity to the Interceptor VG-2. ■ Advanced Auto Correlation Noise Discrimination System: Identifies Laser signals beneath the “noise” threshold for extended detection range and early warning. ■ Total Tracking Laser ™ (TTL ™ ):Twin Laser ports with energy far outside the main Laser beam. This ensures superior off-axis coverage and the widest “field-of-view” for 360° protection. 36O P R O T E C T I O N P R O T E C T I O N P R O T E C T I O N P R O T E C T I O N P R O T E C T I O N P R O T E C T I O N P R O T E C T I O N 360 ̊ DIGITAL PLL SYNTHESIZED OSCILLATOR VECTOR Series R adar Alert V oltage Meter Mode Laser Alert sws ™ A dvisory Fe a ture Selection T ech Mode NEW! Digital Broadband Technology ™ with MODEL V985 New Features! AccuSweep TM : accurately pinpoints most commonly encountered Ka frequencies without scanning the entire Ka frequency. AutoScan TM : automatically fine-tunes sensitivity on X and K bands without touching a button! Tech Mode: identifies and reports the actual transmitted police radar frequency. Voltage Meter Mode: provides a continuous readout of vehicle’s battery voltage while you drive. Safety Warning System ® (SWS ™ ) y Manual Mute/ Volume Control MODEL V985 VECTOR958with Digital Broadband Technology ™ Digital Broadband Technology ™ Compact Travel Case holds all accessories and stores easily. NEW! VECTOR958with FCC ID: QL4G1S7 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: QL4G1S7 THIS DEVICE COMPLIES WITH PART 15OF THE FCC RULES. OPERATION ISSUBJECT TO THE FOLLOWING TWOCONDITIONS: (1) THIS DEVICE MAYNOT CAUSE HARMFUL INTERFERENCE,AND (2) THIS DEVICE MUST ACCEPTANY INTERFERENCE RECEIVEDINCLUDING INTERFERENCE THAT MAYCAUSE UNDESIRED OPERATION.

Internal Photos Model: Express 906 FCC ID: QL4G3M1 Model: Express 906 FCC ID: QL4G3M1 Model: Express 916 FCC ID: QL4G3M1 Model: Express 916 FCC ID: QL4G3M1 Model: Express 926 FCC ID: QL4G3M1 Model: Express 926 FCC ID: QL4G3M1 Model: Express 936 FCC ID: QL4G3M1 Model: Express 936 FCC ID: QL4G3M1

Company: Beltronics USA, Inc. FRN: 0007600588 Models: Express 906 Express 916 Express 926 Express 936 FCC ID: QL4G3M1 Equipment Code: CRD Report prepared for: Report prepared by: Beltronics USA, Inc. Evan D. Gould 5442 West Chester Road Curtis-Straus LLC West Chester, OH 45069 527 Great Road Phone: (513)-870-8535 Phone: (978)-486-8880 FAX: (513)-870-8523 FAX: (978)-486-8828 EMC Manager Worldwide Regulatory Approvals Experts (A2LA Certificate Number 1627-01) Technical Report REPORT:C0610-3 FCC ID:QL4G3M1 Page 2 of 8 Introduction This report is an application for Certification of Radar Detectors operating pursuant to 47 CFR 15.109, as amended by ET Docket No. 01-278; FCC 02-211, published in the Federal Register Vol. 67, No. 145 on Monday July 29, 2002. REPORT:C0610-3 FCC ID:QL4G3M1 Page 3 of 8 Statement of Conformity 47 CFR 15.109(h) states that “Radar detectors shall comply with the emissions limits...of [section 15.109(a)] over the frequency range of 11.7 – 12.2GHz.” The applicable limit being 500μV/m measured at a distance of 3m. The following Beltronics M1 platform models have been tested and found to comply with this requirement: Express 906 Express 916 The M1 platform versions of the Express 926 and 936 were not tested, however the RF portions of all four of these models are identical. The only differences between the models are low frequency interface circuitry. Therefore, the Express 926 and 936 are considered compliant with the requirement stated above. REPORT:C0610-3 FCC ID:QL4G3M1 Page 4 of 8 Test Methodology Radiated emission testing was performed according to the procedures in ANSI C63.4 (2001). The testing was performed at an antenna to EUT distance of 1 meter. Performance was investigated in the range 11.7-12.2GHz. The Express models were powered by a R.O.C. SPN4025A 12VDC 400mA power supply. Since the devices are hand-held units, the emissions were maximized around the three orthogonal axes and the maximum reading was recorded. The integrated antenna cannot be maximized separately. REPORT:C0610-3 FCC ID:QL4G3M1 Page 5 of 8 Test Equipment SPECTRUM ANALYZERS x Analyzer Model No. Company Serial No. Calibration Due X ORANGE 9kHz-26.5GHz E4407B HP US39440975 07-JUN-2003 OPEN AREA TEST SITES (OATS) x Site FCC Code IC Code VCCI Code Calibration Due X “T” Texas 93448 IC 2762-T R-905/ C-480 04-FEB-2004 X “M” Maine 93448 IC 2762-M R-904/ C-480 04-FEB-2004 ANTENNAS x Antenna Model No. Company Serial No. Calibration Due X YELLOW Horn: 1-18GHz 3115 EMCO 9608-4898 08-MAY-2003 X BLACK Horn: 1-18GHz 3115 EMCO 9703-5148 12-JUN-2003 PREAMPLIFIERS / ATTENUATORS x Preamplifier Model No. Company Serial No. Calibration Due X ORANGE-BLACK 1-20GHZ SMC-12A MITEQ 690639 06-SEP-2002 Unless otherwise noted the calibration interval is one year. All equipment is calibrated using standards traceable to NIST or other nationally recognized calibration standard. All Open Area Test Sites are located at 527 Great Road, Littleton, MA 01460. REPORT:C0610-3 FCC ID:QL4G3M1 Page 6 of 8 Sample Setup Photo Model: Express 906 REPORT:C0610-3 FCC ID:QL4G3M1 Page 7 of 8 Measurement Results All measurements taken were peak detector readings of the noise floor. There were no emissions detected from the EUTs. Radiated Emissions Table Curtis-Straus LLC Date:08-Aug-0216-Aug-0223-Aug-02Company:BeltronicsTable1 Engineer:Evan GouldEUT Desc:various radar detector modelsWork Order:C0610 Frequency Range:11.7-12.2GHzMeasurement Distance:1 m Notes:Emissions maximized Horizontally and Vertically. All measurements are noise floor readings. AntennaPreampAntennaCableAdjusted47 CFR 15.209(a) PolarizationFrequencyReadingFactorFactorFactorReadingLimitMarginResult (H / V)(MHz)(dBμV)(dB)(dB/m)(dB)(dBμV/m)(dBμV/m)(dB)(Pass/Fail) 906 M1 12150.031.720.138.94.755.263.5-8.3Pass E916 M1 11700.031.720.239.04.655.163.5-8.4Pass Test Sites:"T"Pre-Amp:Or-BlkCable:3m MicroflexAnalyzer:OrangeAntennas:Black Horn "M"Yellow Horn REPORT:C0610-3 FCC ID:QL4G3M1 Page 8 of 8 Sample Emission Plot
