QLBPTSS2003LP900 MHz Frequency Hopping Spread Spectrum Module

FCC ID: QLBPTSS2003LP SECTION 8 USER'S MANUAL FCC ID: QLBPTSS2003LP Pegasus Technologies, Inc. PTSS2003LP Transceiver Users Manual (Preliminary) RF Transceiver Installation Instructions The PTSS2003LP Transceiver Frequency Hopping Spread Spectrum transceiver. This transceiver should only be installed by qualified service personnel. The transceiver detects level, low battery or other data signals from the external binary inputs and broadcasts that data to the system's host receiver. MOUNTING LOCATION The PTSS2003LP Transceiver is a module as defined by the FCC and therefore must be mounted to another host device in order to function. This device is intended only for OEM integrators under the following conditions: 1) The integrator must position this device in any end product such that the antenna to user/bystander distance is greater than 20 cm when the transmitter is functioning (excluding hands, wrists, feet and ankles). 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example applications where the antenna to user distance is < 20 cm or to be co-located with another transmitter), then the original FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. NOTICE TO CUSTOMER Any Pegasus Technologies customer incorporating the PTSS2003LP transceiver module into its own product must have an external notice affixed to its product. This notice must be placed in a conspicuous location and can use wording such as: “Contains FCC ID: QLBPTSS2003LP” or “Contains Transceiver Module FCC ID: QLBPTSS2003LP”. Any similar wording that expresses the same meaning may be used. NOTE: The end user should NOT be provided any instructions on how to remove or install the device. RF Exposure Manual Information That Must be Included to End User The users manual for end users must include the following information in a prominent location "IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter." FCC ID: QLBPTSS2003LP INSTALLATION INSTRUCTIONS 1. Supply the transceiver with DC power by inserting a 3.6 Volt battery into the battery holder on the customers host application circuit board. 2. The unit will come pre-programmed with a Network ID and Hop Seed. However, the customer does have the option of field programming the unit. 3. If possible, avoid installing the PTSS2003LP in areas near large metallic objects such as air conditioners, heaters, screens and heaters. CAUTION: This device is required to comply with FCC RF exposure requirements for mobile and fixed transmitting devices. The FCC requires that the antenna used for this transmitter must be installed to provide a separation of at least 20 cm (8 inches) from all persons (not including hands, wrists, feet, and ankles) and must not be co-located or operating in conjunction with any other antenna or transmitter. FCC NOTICE The Model PTSS2003LP transceiver generates and uses radio frequency energy. If not installed and used in accordance with the manufacturer's instructions, it may cause interference to radio and television reception. The transceiver has been tested and found to comply with the specifications in Part 15 of FCC Rules for Spread Spectrum Intentional Radiators and FCC Part 15 Subpart C, Specifications. If this equipment causes interference to radio or television reception - which can be determined by turning the equipment on and off - the installer is encouraged to correct the interference by one or more of the following measures: 1) Reorient the antenna of the radio/television. 2) Connect the AC transformer to a different outlet so the control panel and radio/television are on different branch circuits. 3) Relocate the control panel with respect to the radio/television. If necessary, the installer should consult an experienced radio/television technician for additional suggestions, or send for the "Interference Handbook" prepared by the Federal Communications Commission. This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, stock number 004-000-00450-7. CAUTION: No field changes or modifications to the PTSS2003LP should be made unless they are specifically covered in this manual. All adjustments must be made at the factory under the specific guidelines set forth in our manufacturing processes. Any modification to the equipment could void the user's authority to operate the equipment and render the equipment in violation of FCC Part 15, Subpart C, 15.247. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. LIMITED WARRANTY THERE ARE NOT WARRANTIES, EXPRESS OR IMPLIED, OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR OTHERWISE, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. In no case shall Seller be liable to anyone for any consequential or incidental damages for breach of this or any other warranty, express or implied, or upon any other basis of liability whatsoever, even if the loss or damage is caused by S…

Text truncated - open the document above for the full version.

FCC ID:QLBPTSS2003LP

Friday, March 19, 2004 Mr. Bill Graff ATCB 6731 Whittier Ave McLean, VA 22101 Bill, Below is the response to your letter sent March 2, 2004 for Pegasus Technologies. FCC ID: QLBPTSS2003LP I have a few comments on this Application. 1.) No Form 731 has been uploaded with this filing. The only document uploaded to the Form 731 folder at our website is a copy of the Test Report. Please provide a correct Form 731. Form 731 has been re-uploaded to the Web Site. 2.) The detail presented of the emission during the zero-span timing plots appears to show five discrete bursts. Please explain how this meets the definition of a pseudo-random hop sequence. The original plot provided was repeated with adjustment to the software control as specified by the manufacturer for a pseudo random hop sequence.. The original data was provided after a 15 second sweep, with the max hold function. The plot provided now has a 10 second sweep, with the same max hold condition. 3.) Please identify the IF bandwidth of the receiver. This is to insure that receivers associated with frequency hopping radios track with the hop sequence of the transmitter. The IF bandwidth is set by the transceiver IC (XE1202). This is a low IF or 0 IF receiver, whose bandwidth is 200 KHz. 4.) Photos must always be separated into inside views and outside views. This is an FCC requirement and is necessary even if we are looking at a modular approval. Please review your photos and segregate into a complete assembly version (for the outside view), and a disassembled version (for the inside view). Please upload to the ATCB website. Photos have been uploaded to the ATCB website, in the order you designated. 5.) Another FCC requirement is that the Test Setup Photos must be provided as a separate exhibit. Please provide. Test Setup Photos have been uploaded as you designated. 6.) Please show the calibration dates for the instrumentation listed in the Test Report. Calibration dates have been uploaded as part of the revised report. 7.) Section 2.6 of the Test Report. The circuit board is described as using an HLF connector yet the antenna is listed as incorporating a reverse SMA. Please clarify. The module has an HLF connector, but the pigtail is terminated in a test board that has a reverse SMA connector. The final configuration will provide a pigtail connector terminating in HLF for the module and reverse SMA for the antenna. 8.) The peak power listed in the Test Report (about 16mW) does not match the RF Exposure exhibit (232mW). Please review. This was a report error. A corrected report has been uploaded. 9.) According to current FCC requirements, it is not appropriate to calculate an MPE distance for the RF Exposure Exhibit. The Commission instead wants MPE estimations to show the appropriate field density at 20cm. Please review. Due to the report correction, RF exposure limits no longer apply to this unit. I hope this satisfies this information request. 10.) Please review table 4a. 4b and 4c. Why are the second harmonic emissions at approximately 1800MHz for all three tables shown in terms of dBd? This is a field strength measurement at three meters. If these are actually in terms of dBc instead, it is appropriate to include a field strength reading of the carrier. This data was presented following a format previously accepted under another submittal. It has been revised in the table to show compliance with restricted band frequencies. Even though these frequencies are not in a restricted band, they meet restricted band requirements. 11.) How were the average limits calculated in table 5a, 5b, and 5c for the second harmonic reading? Incorrectly. We have updated the tables accordingly. 12.) Please expand on the manufacturer supplied data for average time of occupancy per channel during 10 seconds. Provide a detailed calculation if necessary. Again, this was from a previous template, which required the manufacturer to take the data, since he was unable to provide a means to have us take it. The statement and previous data was inadvertently left on. We have corrected the table to provide the correct value for average time of occupancy. Thank you for your patience in awaiting this response, and please do not hesitate to contact me for any further clarification. Sincerely, Louis A. Feudi Operations Manager Acting Engineering Manager

February 12, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: On behalf of Pegasus Technologies, we request confidentiality of certain materials provided with the submission of the RE0012 , under FCC ID: PWZRE0012 in accordance with FCC Regulations 0.459. This request applies to the schematics, block diagram and Theory of Operation. These items are considered as Trade Secrets and therefore public access to the proprietary material could result in duplication of equipment and could severely damage the company’s business advantage. Sincerely, Sandi McEnery Agent

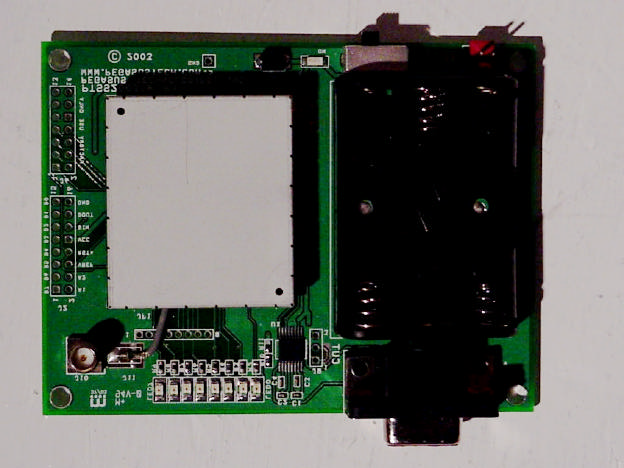

FCC ID: QLBPTSS2003LP Photo 1.(EUT) Top View FCC ID: QLBPTSS2003LP Photo 2.(EUT) Bottom View FCC ID: QLBPTSS2003LP Photo 3.Antenna

FCC ID: QLBPTSS2003LP SECTION 3 LABELING INFORMATION FCC ID: QLBPTSS2003LP

FCC ID: QLBPTSS2003LP Photo 4.(EUT) Top View, Transmitter Removed FCC ID: QLBPTSS2003LP Photo 5.(EUT) Bottom View, Transmitter Removed FCC ID: QLBPTSS2003LP Photo 6.Transmitter Board, Bottom Side FCC ID: QLBPTSS2003LP Photo 7.Transmitter Board, Top Side

SECTION 6 RF EXPOSURE INFORMATION 6.1 RF Safety Requirements for Mobile Transmitters Power Output The EUT’s maximum expected output power as shown in section 2.7 is Frequency of Fundamental (MHz) Measurement (Watt)* Antenna Gain (dBi) P ERP (Watt) 915.00.0160.00.016 MPE Calculations Taking the RF Density Field Equation: S= (EIRP in mW)/ (4ðR²) and solving for Field strength at R = 20 cm S=(16)/(5026.548) S=.003

Pegasus Technologies, Inc. FCC Part 15, Certification Application PTSS2003LP Spread Spectrum Transceiver Module February 11, 2004 1 MEASUREMENT/TECHNICAL REPORT COMPANY NAME:Pegasus Technologies, Inc. MODEL:PTSS2003LP FCC ID:QLBPTSS2003LP DATE:February 11, 2004 This report concerns (check one): Original grant X Class II change_____ Equipment type: Spread Spectrum Transceiver Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? yes_____ No X If yes, defer until:_________________ date N.A. agrees to notify the Commission by N.A. date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: United States Technologies, Inc. 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 2 TABLE OF CONTENTS AGENCY AGREEMENT LETTER OF CONFIDENTIALITY SECTION 1 GENERAL INFORMATION 1.1Product Description 1.2Related Submittal(s) SECTION 2 TESTS AND MEASUREMENTS 2.1Configuration of Tested EUT 2.2Test Facility 2.3Test Equipment 2.4Modifications 2.5 Deviations to Test Methods 2.6Antenna Description 2.7Peak Power (Antenna Conducted at Antenna Terminal) 2.8Antenna Conducted Spurious Emissions 2.9Peak Radiated Spurious Emissions 2.10Average Radiated Spurious Emissions 2.11Minimum 20 dB Bandwidth 2.12Number of Hopping Channels 2.13Average Time of Occupancy per Channel 2.14Power Line Conducted Emissions for Transmitter 2.15Radiated Emissions for Digital Device & Receiver (if Applicable) 2.16Power Line Conducted for Digital Device & Receiver (if Applicable) SECTION 3 LABELING INFORMATION SECTION 4 BLOCK DIAGRAM(S)/ SCHEMATIC(S) SECTION 5 PHOTOGRAPHS SECTION 6 RF EXPOSURE INFORMATION SECTION 7 THEORY OF OPERATION SECTION 8 USER'S MANUAL FCC ID:QLBPTSS2003LP 3 SECTION 1 GENERAL INFORMATION FCC ID:QLBPTSS2003LP 4 GENERAL INFORMATION 1.1Product Description The Equipment Under test is the Pegasus Technologies, Inc., Model PTSS2003LP Spread Spectrum Data Transceiver Module. The EUT is a Modular frequency hopping spread spectrum data transceiver that operates in the 902 – 928 MHz frequency band. The manufacturer is requesting a modular approval for this device as shown on the following page. The modulation used is binary frequency shift keying with a deviation of 100 kHz. The RF data rate is 76.8 kbps. FCC ID:QLBPTSS2003LP 5 FCC ID:QLBPTSS2003LP 6 1.2Related Submittal(s)/Grant(s) The EUT will be used with part of a system to send/receive data. The transceiver presented in this report will be used with other like transmitters The EUT is subject to the following authorizations: a)Certification as a transceiver b)Verification as a receiver and digital device The information contained in this report is presented for the certification & verification authorization(s) for the EUT. FCC ID:QLBPTSS2003LP 7 SECTION 2 TESTS AND MEASUREMENTS FCC ID:QLBPTSS2003LP 8 TEST AND MEASUREMENTS 2.1 Configuration of Tested System The sample was tested per ANSI C63.4, Methods of Measurement from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (1992). Conducted and radiated emissions data were taken with the test receiver or spectrum analyzer's resolution bandwidth adjusted to 9 kHz and 120 kHz, respectively. All measurements are peak unless stated otherwise. The video filter associated with the spectrum analyzer was off throughout the evaluation process. Interconnecting cables were manipulated as necessary to maximize emissions. A block diagram of the tested system is shown in Figure 1. Test configuration photographs for spurious and fundamental emissions are shown in Figure 2. The sample used for testing was received by U.S. Technologies on January 2, 2003 in good condition. 2.2 Test Facility Testing was performed at US Tech's measurement facility at 3505 Francis Circle, Alpharetta, GA. This site has been fully described and submitted to the FCC, and accepted in their letter marked 31040/SIT. Additionally this site has also been fully described and submitted to Industry Canada (IC), and has been approved under file number IC2982. 2.3 Test Equipment Table 2 describes test equipment used to evaluate this product. 2.4 Modifications No modifications were made by US Tech, to bring the EUT into compliance with FCC Part 15, Limits for the transmitter portion of the EUT or the Class B Digital Device Requirements. 2.5 Deviations to Test Methods None FIGURE 1 FCC ID:QLBPTSS2003LP 9 4” S to Monopole Antenna 6’ U TEST CONFIGURATION Transceiver (EUT) AC/DC Adapter FCC ID:QLBPTSS2003LP 10 TABLE 1 EUT and Peripherals PERIPHERAL MANUFACTURER MODEL NUMBER SERIAL NUMBER FCC ID:CABLES P/D Transceiver Module Pegasus Technologies, Inc. (EUT) PTSS2003LP15101, 15102QT8PTSS2003LP (Pending) 4” S to Monopole Antenna Monopole Antenna Linx ANT-915-CW- QW NoneN/A AC/DC AdapterAC-E344A97J I4N/A6’ U FCC ID:QLBPTSS2003LP 11 TABLE 2 TEST INSTRUMENTS TYPEMANUFACTURERMODELSN.LAST CAL. SPECTRUM ANALYZERHEWLETT-PACKARD8593E3205A0012412/30/03 SPECTRUM ANALYZERHEWLETT-PACKARD8558B2332A09900 2/28/03 S A DISPLAYHEWLETT-PACKARD182T2404A02387 2/28/03 RF PREAMPHEWLETT-PACKARD8447D2944A07436 5/10/03 RF PREAMPHEWLETT-PACKARD8449B3008A00480 6/19/03 HORN ANTENNAEMCO31153723 7/11/03 BICONICAL ANTENNAEMCO31109307-1431 5/7/03 LOG PERIODIC ANTENNAEMCO31469110-3600 7/21/03 BILOGCHASECBL6112A2238 3/27/03 LISNSOLAR ELE.80289104941/20/04 LISNSOLAR ELE.80289104951/20/04 FCC ID:QLBPTSS2003LP 12 2.6 Antenna Description (Paragraph 15.203) An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this section. The Pegasus Technologies, Inc. Model PTSS2003LP Spread Spectrum Transceiver Module incorporates a Hirose H.FL connector and will be used with approved antennas only. This device will currently be us…

Text truncated - open the document above for the full version.

FCC ID: QLBPTSS3003LP Date:January 29, 2004 UST Project:04-0015 Customer:Pegasus Technologies, Inc. Model:PTSS2003LP Spread Spectrum Transceiver Module FIGURE 2a Photograph(s) for Spurious and Fundamental Emissions Photograph Shows Worst Case Configuration FCC ID: QLBPTSS3003LP Test Date:January 29, 2004 UST Project:04-0015 Customer:Pegasus Technologies, Inc. Model:PTSS2003LP Spread Spectrum Transceiver Module FIGURE 2b Photograph(s) for Spurious and Fundamental Emissions Photograph Shows Worst Case Configuration FCC ID: QLBPTSS3003LP Test Date:January 29, 2004 UST Project:04-0015 Customer:Pegasus Technologies, Inc. Model:PTSS2003LP Spread Spectrum Transceiver Module FIGURE 2c Photograph for Conducted Emissions Photograph Shows Worst Case Configuration
