QN8HH-800HICARE HUB

[HOW TO USE] [ FOR HICARE HUB ] 2 FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: QN8HH-800 WARNING! Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RF EXPOSURE WARNING! This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Table of contents Product Overview.................................................................................................. 4 1.1. Product Configuration ......................................................................................... 4 1.2. HicareHub App Install .......................................................................................... 4 1.3. Product Basics ........................................................................................................ 4 1.4. Execute HicareHub App ....................................................................................... 5 1.5. How to use HicareHub APP ................................................................................ 6 1.6. Video Chat .............................................................................................................. 7 1.7. Measurement ....................................................................................................... 10 1.8. Phone ..................................................................................................................... 18 1.9. Photo .................................................................................................................. 19 1.10. Others ................................................................................................................ 20 1.11. Specification ..................................................................................................... 22 1.12. Operation status .............................................................................................. 22 1.13. Thanks for purchasing the product. Be sure to read the ‘How to use’ for convenient and safe use. Introduce HicareHub App that can be used to HICARE HUB services (1) This guide has been prepared based on an updated version 0.0.1-16 on 07/08/2014. (2) HicareHub App installed on Tablet is basically the one recommended for use in 3G / 4G connection status, 3G / 4G connection may be subject to additional charges. (3) Where Internet access is poor, call quality can be degraded. (4) The measures submitted by using the product is strictly for reference, you should consult with an expert analysis of the measure. (5) Measuring devices that work with this product, please refer to the instruction manual of the product. (6) Display the picture of this manual may differ from the actual product. (7) The contents of this manual may vary according to the software version or carriers of goods, some are subject to change without prior notice. Product Overview 1.1. This product provides wired and wireless interfaces for health meter, smart devices and smart devices works by utilizing a screen of a display for the user UI, is an electronic sphygmomanometer utilizes a wireless network capabilities and mobile communication capabilities of smart devices Product Configuration 1.2. - HH-800 - Blood Pressure Cuff - Manual - Power Cable / Adaptor - Battery HicareHub App Install 1.3. The installer will install the product to register the product. Questions on the product and A / S, please contact service administrator. Product Basics 1.4. 1. Use the USB cable to connect the Hicare Hub and smart devices 2. Connect the battery and Adaptor 3. Press the power button located on the front of the product 4. HicareHub APP in smart devices will run later Execute HicareHub App 1.5. Select HicareHub App. The Hicare LOGO and Log-In screen appear. Fill in ID & PASSWORD and select ‘Verify Account’ Check the person who logs in. Select yours. How to use HicareHub APP 1.6. The photo below is a main screen. Video Chat Measurement Phone Photo Notification Other 1 1 2 3 4 2 3 4 5 6 5 6 Video Chat 1.7. ▶ Receiving a call 1. When a call comes in, the screen changes a call notification. 2. To answer the call, choose the Answer, and select Decline to ignore. Caller’s screen My screen Talk time Switch camera : Du…

Text truncated - open the document above for the full version.

Seers Technology Co., Ltd. #1210, Tech Center, SKⓝTechnopark, 124, Sagimakgol-ro, Jungwon-gu, Seongnam-si, Gyeonggi-do, South Korea Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: Mar 12, 2015 SUBJECT: FCC Application for (FCCID: QN8HH-800) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Dae Yeop Kang / Manager ─────────────

Date : Jan. 10, 2014 Rev : 2.1 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 44364 S. Grimmer Blvd. Fremont, CA 94538 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter HACS-F003 FCC Confidentiality Request Letter Rev : 2.1 DATE : 3/12/2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT : Request for Confidentiality for FCC ID : QN8HH-800 We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Schematics 3 Operation Description 4 SHORT-TERM CONFIDENTIAL ( DAYS) 5 6 7 8 The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Dae Yep Kang Signed by: Company Name : Seers Technology Co., Ltd. Company Address : #1210 Tech Center, SKⓝTechnopark, 124, Sagimakgol-ro, Jungwon-gu, Seongnam-si, Gyeonggi-do Contact Person Name/Title (in print) : Danny/Researcher

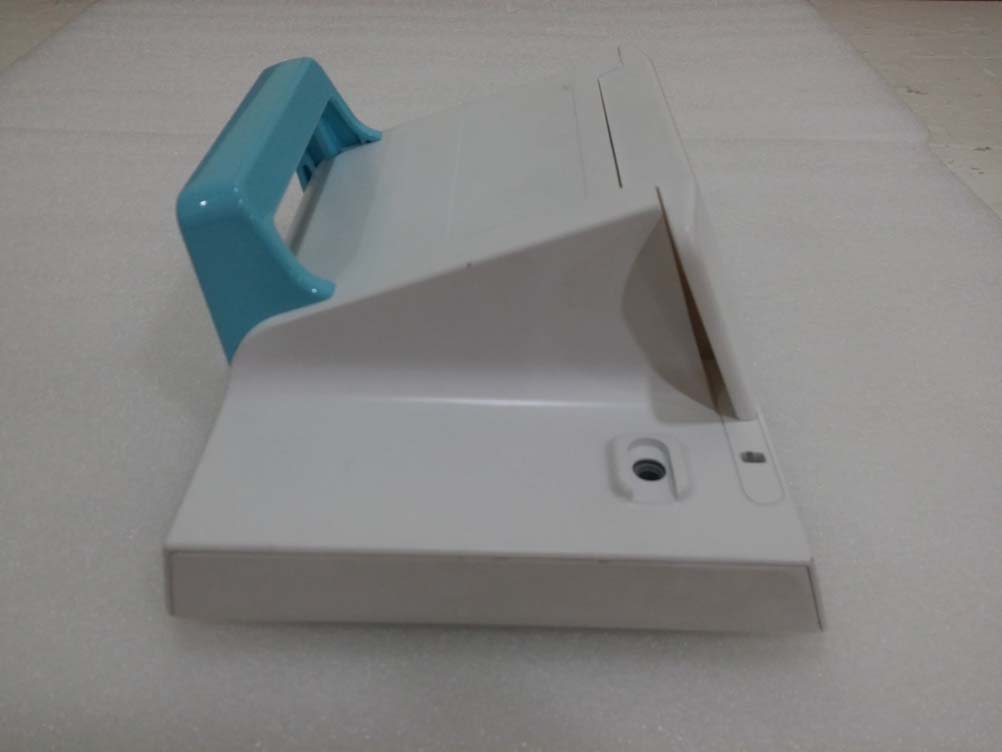

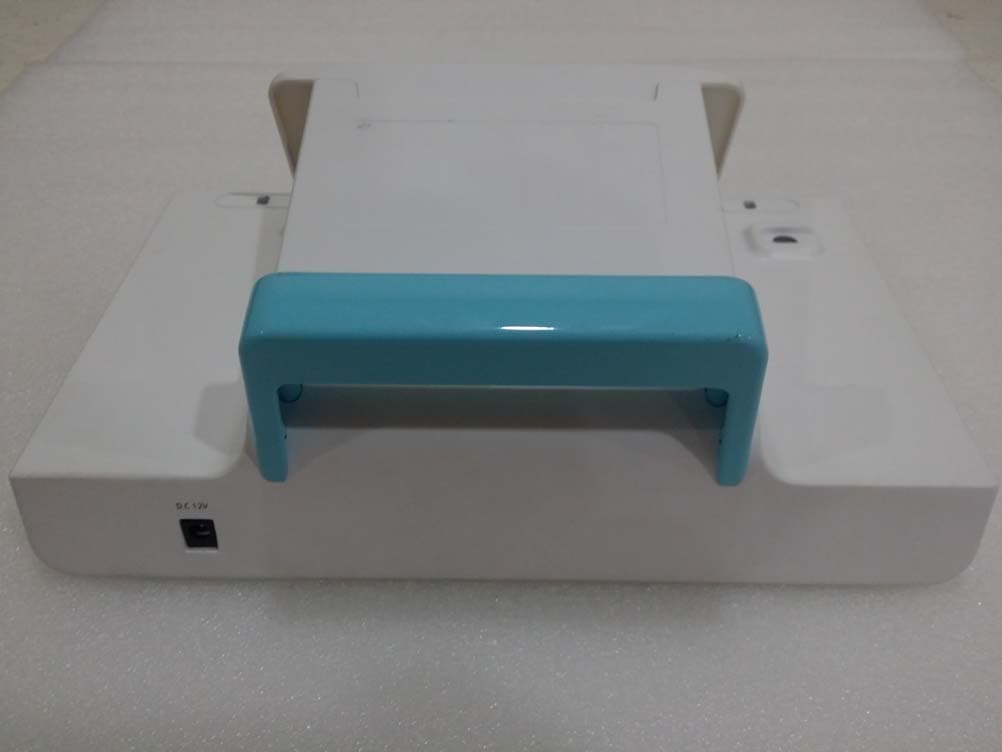

FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0001 Appendix 3. External Photos of EUT Page Number : Page 1 to 5 BWS TECH Inc. Issue Date : January 27, 2015 Appendix 3. External Photographs of EUT Front FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0001 Appendix 3. External Photos of EUT Page Number : Page 2 to 5 BWS TECH Inc. Issue Date : January 27, 2015 Rear FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0001 Appendix 3. External Photos of EUT Page Number : Page 3 to 5 BWS TECH Inc. Issue Date : January 27, 2015 Right FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0001 Appendix 3. External Photos of EUT Page Number : Page 4 to 5 BWS TECH Inc. Issue Date : January 27, 2015 Left FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0001 Appendix 3. External Photos of EUT Page Number : Page 5 to 5 BWS TECH Inc. Issue Date : January 27, 2015 Adaptor

FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0001 Appendix 2. FCC ID Label and location Page Number : Page 1 to 1 BWS TECH Inc. Issue Date : January 27, 2015 Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information and location Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. Label Location The label shown above shall be permanently affixed at a conspicuous location(cabinet out side) on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) FCC ID LABEL & Caution

FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0001 Appendix 4. Internal Photos of EUT Page Number : Page 1 to 2 BWS TECH Inc. Issue Date : January 27, 2015 Appendix 4. Internal Photographs of EUT Main Board-Front Main Board-Front Main Board-Front(BT) Main Board-Rear FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0001 Appendix 4. Internal Photos of EUT Page Number : Page 2 to 2 BWS TECH Inc. Issue Date : January 27, 2015 FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0001 Appendix 4. Internal Photos of EUT Page Number : Page 3 to 2 BWS TECH Inc. Issue Date : January 27, 2015 NIBP Main Board-Front NIBP Main Board-Front FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0001 Appendix 4. Internal Photos of EUT Page Number : Page 4 to 2 BWS TECH Inc. Issue Date : January 27, 2015 Inverter Board-Rear

FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 RF Exposure Report Issue Date : January 27, 2015 Appendix 11. RF Exposure Requirement 1.Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 - - F/1500 6 1500-100,000 - - 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/ 2 cm Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/ 2 cm . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 2.Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 23°Cand 42％ RH. FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 RF Exposure Report Issue Date : January 27, 2015 3.Test Result of RF Exposure Evaluation Operating mode Frequency RF Output Power(dBm) BDR(GFSK) 2402 1.7 BDR(GFSK) 2441 1.9 BDR(GFSK) 2480 2.1 EDR(π/4-DQPSK) 2402 -1.5 EDR(π/4-DQPSK) 2441 -1.2 EDR(π/4-DQPSK) 2480 -1.0 EDR(8DPSK) 2402 -1.5 EDR(8DPSK) 2441 -1.2 EDR(8DPSK) 2480 -1.0 BLE(GFSK) 2402 5.4 BLE(GFSK) 2440 5.5 BLE(GFSK) 2480 5.6 Maximum RF Power=5.6dBm+2.0dBi=7.6dBm=5.75mW 5.75/(4*3.14*400)=0.00114 Frequency Band(MHz)Maximum RF Power(mW) Power Density at R = 20cm(mW/ 2 cm) 2402-2480 5.75 0.00114 Note: The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/ 2 cm.

FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0003 FCC Test Report Page Number : 2 of 35 BWS TECH Inc. Data of Issue : March 13, 2015 TABLE OF CONTENTS 1. General Information................................................................... 3 2. Description of Test Facility......................................................... 4 3. Test Methodology...................................................................... 5 4. Summary of Test Results............................................................ 6 5. Test Data.................................................................................. 7 5.1 6dB Bandwidth..................................................................... 7 5.2 Maximum Peak Conducted Output Power................................ 9 5.3 Power Spectral Density.......................................................... 10 5.4 Conducted Spurious Emission............................................... 12 5.5 Radiated Spurious Emission.................................................. 16 5.6 Band Edge Measurement....................................................... 22 5.7 AC Power Conducted Emission.............................................. 31 5.8 Antenna Application............................................................. 35 FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0003 FCC Test Report Page Number : 3 of 35 BWS TECH Inc. Data of Issue : March 13, 2015 FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) 1. General Information 1.1 Applicant 1.2 Manufacturer 1.3 EUT Description  EUT Type : HICARE HUB  Model Name : HH-800(Basic), HH-801 : a Model without BP Module from Basic Model  S/N : Prototype  Freq. Range : 2402-2480 MHz  Number of Channels : BLE(40 Channel)  Modulation Method : BLE(GFSK)  Power source : AC Input: 100-240 V 50/60 Hz, DC Output: 12 V, 2.5-3 A  Battery : 7.4 A, 1350 mAh  Antenna Peak Gain : 1.99 dBi 1.4 Other Information  FCC Rule Part(s) : Part 15 Subpart C §15.247  Test Procedure : ANSI C63.10-2013, KDB 558074 D01 DTS Meas Guidance v03r02  FCC ID : QN8HH-800  Date of Test :January 07, 2015 to January 27, 2015  Place of Test : BWS TECH Inc.(FCC Registration Number : 287786) #23, Gokhyeon-ro 480 Beon-gil, Mohyeon-myeon, Cheoin-gu, Yongin-si, Gyeonggi-do 449-853, South Korea TEL: +82 31 333 5997 FAX: +82 31 333 0017  Company Name : Seers Technology Co., Ltd.  Company Address : #1210 Tech Center, SKⓝTechnopark, 124, Sagimakgol-ro, Jungwon-gu,Seongnam-si, Gyeonggi-do, South Korea  Phone/Fax : Tel No. : +82-31-776-3036~8 Fax No. : +82-31-776-3039  Company Name : Seers Technology Co., Ltd.  Company Address : #1210 Tech Center, SKⓝTechnopark, 124, Sagimakgol-ro, Jungwon-gu,Seongnam-si, Gyeonggi-do, South Korea  Phone/Fax : Tel No. : +82-31-776-3036~8 Fax No. : +82-31-776-3039 FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0003 FCC Test Report Page Number : 4 of 35 BWS TECH Inc. Data of Issue : March 13, 2015 2. Description of Test Facility Site Description Test Lab. : Accredited by Industry Canada, February 27, 2012 The Certificate Registration Number is 4963A-2. Accredited by FCC, September 03, 2013 The Certificate Registration Number is 287786. Accredited by VCCI, July 10, 2012 The Certificate Registration Number is C-4326 Accredited by RRA(EMC,RF, SAR), November 27, 2014 The Certificate Registration Number is KR0017 Accredited by KOLAS(KS Q ISO/IEC 17025), October 7, 2014 The Certificate Registration Number is KT174 Name of Firm : BWS TECH Inc. Site Location : #23, Gokhyeon-ro 480 Beon-gil, Mohyeon-myeon, Cheoin-gu, Yongin-si, Gyeonggi-do 449-853, South Korea FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0003 FCC Test Report Page Number : 5 of 35 BWS TECH Inc. Data of Issue : March 13, 2015 3. Test Methodology The tests documented in this report were performed in accordance with ANSI C63.10: 2013 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 EUT Configuration The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application 3.2 EUT Exercise The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 3.3 FCC Part 15.205 Restricted Bands Of Operations (a) Except as shown in paragraph (d) of this section, only spurious emissions are permitted in any of the frequency bands listed below: 1 Until February 1, 1999, this restricted band shall be 0.490-0.510 MHz. 2 Above 38.6 (b) Except as provided in paragraphs (d) and (e), the field strength of emissions appearing within these frequency bands shall not exceed the limits shown in Section 15.209. At frequencies equal to or less than 1000 MHz, compliance with the limits in Section 15.209 shall be demonstrated using measurement instrumentation employing a CISPR quasi-peak detector. Above 1000 MHz, compliance with the emission limits in Section 15.209 shall be demonstrated based on the average value of the measured emissions. The provisions in Section 15.35 apply to these measurements. 3.4 Description Of Test Modes The EUT has been tested under operating condition. After verification, all tests were carried out with the worst case test modes as shown below GFSK(1Mbps) Channel Low (2402MHz), Mid (2440MHz) and High (2480MHz), these were chosen for full testing FCC ID: QN8…

Text truncated - open the document above for the full version.

FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0001 Appendix 1. Test Setup Photos Page Number : Page 1 to 4 BWS TECH Inc. Issue Date : January 27, 2015 Appendix 1. Test Setup Photos Radiated Test(0.009-30MHz) FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0001 Appendix 1. Test Setup Photos Page Number : Page 2 to 4 BWS TECH Inc. Issue Date : January 27, 2015 Radiated Test(30-1000MHz) FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0001 Appendix 1. Test Setup Photos Page Number : Page 3 to 4 BWS TECH Inc. Issue Date : January 27, 2015 Radiated Test(Above 1GHz) FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0001 Appendix 1. Test Setup Photos Page Number : Page 4 to 4 BWS TECH Inc. Issue Date : January 27, 2015 Conducted Test(2402~2480MHz) FCC ID: QN8HH-800 Seers Technology Co., Ltd. HICARE HUB / HH-800 Report No: BWS-15-RF-0001 Appendix 1. Test Setup Photos Page Number : Page 5 to 4 BWS TECH Inc. Issue Date : January 27, 2015 AC Power Conducted Emission(0.15-30MHz)
