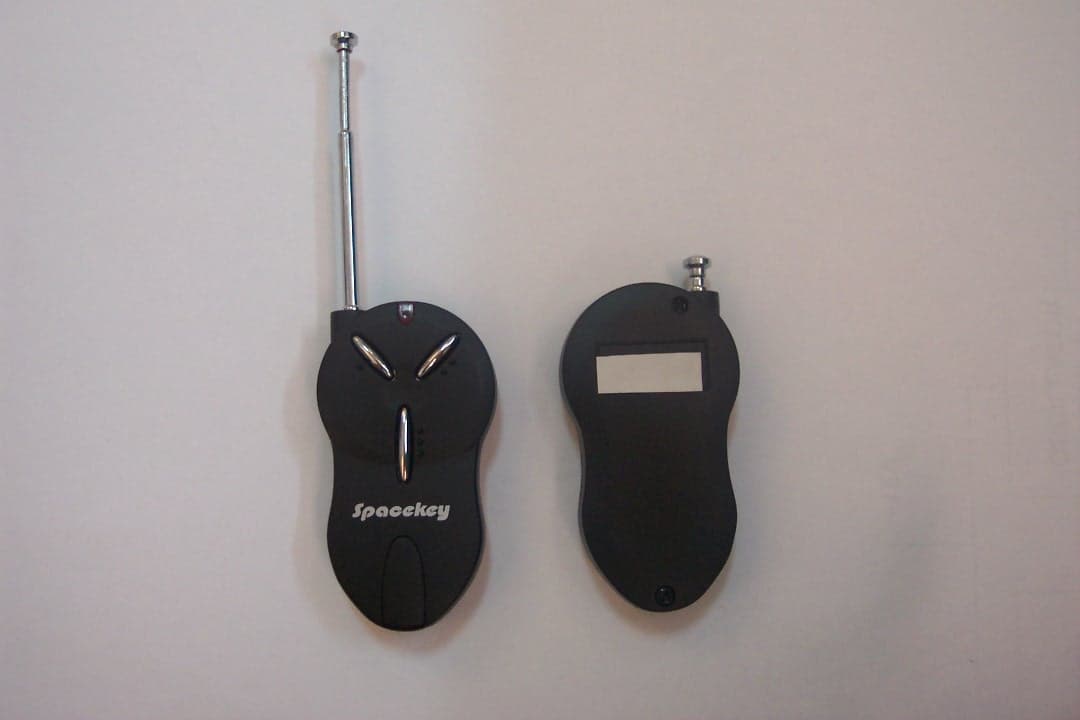

QNMSK2650AUTO SECURITY SYSTEM

VB-150 Controller User Manual Button 1 Button 2 Button 3 1. Press Button 1, Arm Function. 2. Press Button 2, Disarm Function. 3. Press Button 3, Mute Arm Function. Note 1: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE2: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this Equipment. Such modifications could void the user authority to operate the equipment.

VB150 Block Diagram High Frequency Amplifier II High Frequency Amplifier I Function Control Buttons Modulation IC LCD Power Supply Antenna

FCC ID Location FCC ID Label Sample FCC ID: QNMSK2650 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

VB150 Controller Operational Description After pressing any function button, the IC will operate the related encoding data. The data will be modulated by high frequency modulation circuit. The modulated high frequency signal is amplified by two block high frequency amplifier circuit. The signal is sent out by the antenna. The encoded signal was modulated on a 433.92MHz carrier by a method of amplitude modulation.

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:23-Jun-2003Sheet of File:E:\job\Vb150.ddbDrawn By: L1 L8 C18 VC1 Y1 C2 Q1 L2 R1 C3 3P L3 C5 C6 L4 C8 R3 IN POW Q2 C7 C9 2P L5 C10 C11 L6 C14 Q3 C12 C13 L7 R6 C15 C16 R9 R8 R4 R5 IN POW R7 C17 VC2 C19 C120 R14 R15 R10 Q4 R16 D3 IN MOD OUT POW U1 K2 K1 K3 X1 OUT MOD R11R13 R12 D2 R17 VB150F D3

Report No.: 03.06.1007EF Page: 1 of 12 FCC ID: QNMSK2650 Authorized Signature: Kent Hsu Laboratory Manager SGS-CSTC Co.,Ltd This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Co., Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 Registration number:282399  FCC TEST REPORT Application No. : 03.06.1007E Applicant : SPACKEY AUTO ELECTRONIC CO., LTD. FCC ID : QNMSK2650 Fundamental Frequency : 433.92 MHz Equipment under Test (EUT): Name : Auto Security System Model No. : VB-150 Standards : FCC PART 15, SUBPART C : 2002 Date of Receipt : 24 June 2003 Date of Test : 27 June to 01 July 2003 Date of Issue : 03 July 2003 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID: QNMSK2650  Report No.: 03.06.1007EF Page: 2 of 12 SGS-CSTC Standards Technical Services Co., Ltd. 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS .............................................................................................................................................................. 2 3 GENERAL INFORMATION.................................................................................................................................. 3 3.1 C LIENT INFORMATION............................................................................................................................................ 3 3.2 D ETAILS OF E.U.T. ................................................................................................................................................. 3 3.3 D ESCRIPTION OF SUPPORT UNITS........................................................................................................................... 3 3.4 T EST LOCATION...................................................................................................................................................... 3 3.5 O THER INFORMATION REQUESTED BY THE CUSTOMER.......................................................................................... 3 3.6 T EST FACILITY........................................................................................................................................................ 4 4 TEST RESULTS....................................................................................................................................................... 5 4.1 T EST INSTRUMENTS................................................................................................................................................ 5 4.2 E.U.T. OPERATION................................................................................................................................................. 5 4.3 T EST PROCEDURE & MEASUREMENT DATA........................................................................................................... 6 4.3.1 Radiated Emissions ...................................................................................................................................... 6 4.3.2 Occupied Bandwidth .................................................................................................................................... 8 4.3.3 Calculation Of Duty Cycle: ......................................................................................................................... 9 4.4 P HOTOGRAPHS - RADIATED EMISSION TEST SETUP IN CHAMBER......................................................................... 10 5 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS .........................................................................11-12 FCC ID: QNMSK2650  Report No.: 03.06.1007EF Page: 3 of 12 SGS-CSTC Standards Technical Services Co., Ltd. 3 General Information 3.1 Client Information Applicant: SPACKEY AUTO ELECTRONIC CO., LTD. Address of Applicant: XIAMAO INDUSTRIAL ZONE 18, BAIYUN DIST., GUANGZHOU CITY CHINA Name: Auto Security System Model No.: VB-150 3.2 Details of E.U.T. Power Supply: 6.0V DC ( 3V x 2 “CR2025” Button Cells) Power Cord: N/A- 3.3 Description of Support Units The EUT was tested as an independent unit. 3.4 Test Location All tests were performed at:- SGS-CSTC Standards Technical Services Ltd., Guangzhou Safety & EMC Laboratory, 1/F, Building No. 1, Agriculture Machinery Materials Company Warehouse Ltd., Wushan Road Shipai, Tianhe District, Guangzhou, China. P.C. 510630. Tel: +86 20 3848 1001 Fax: +86 20 3848 1006 3.5 Other Information Requested by the Customer None. FCC ID: QNMSK2650  Report No.: 03.06.1007EF Page: 4 of 12 SGS-CSTC Standards Technical Services Co., Ltd. 3.6 Test Facility The test facility is recognized, certified, or accredited by the …
