QNMSK8031AUTO SECURITY SYSTEM

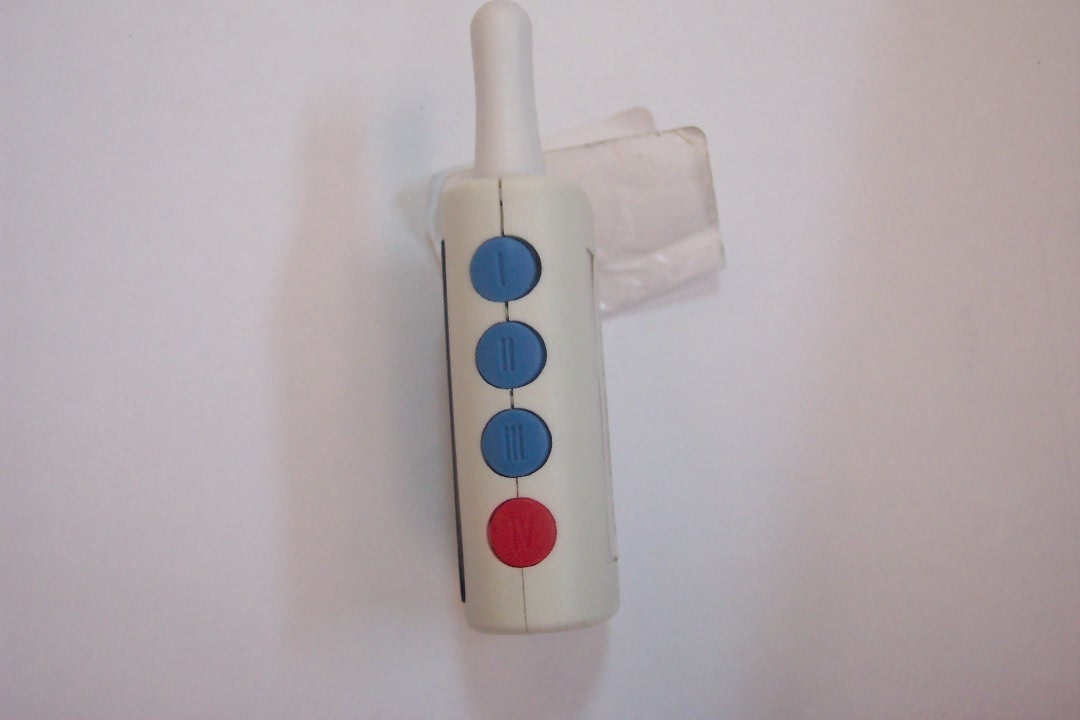

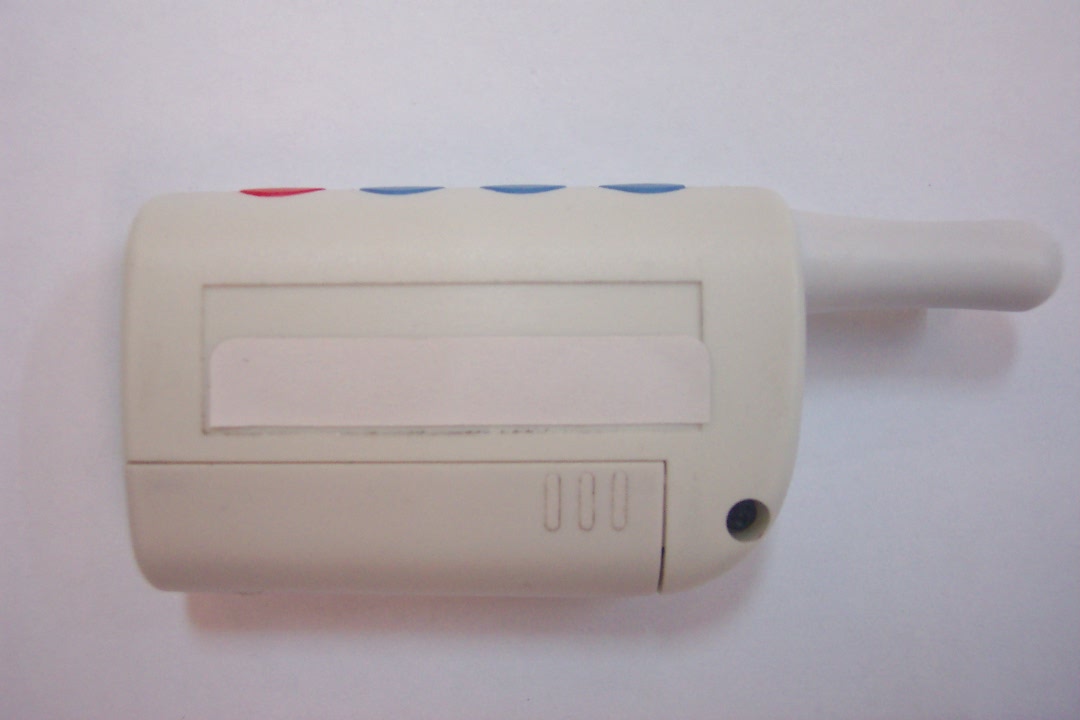

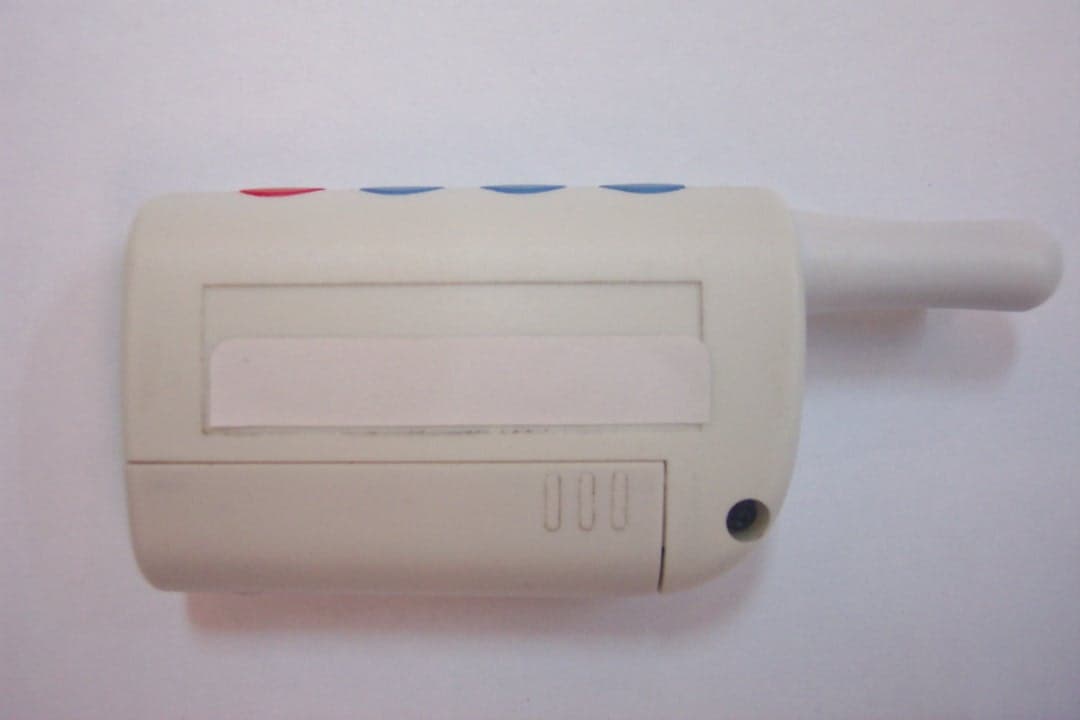

VB-131 Controller User Manual Button 1 Button 2 Button 3 Button 4 1. Press Button 1, Arm Function. 2. Press Button 2, Disarm Function. 3. Press Button 3, Mute Arm Function. 4. Press Button 4, Open Car Trunk Function. Note 1: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE2: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this Equipment. Such modifications could void the user authority to operate the equipment.

VB131 Block Diagram Function Control Buttons High Frequency Amplifier II High Frequency Amplifier I Buzz Modulation IC LCD Power Supply Antenna

FCC ID Location FCC ID Label Sample FCC ID: QNMSK8031 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

VB131 Controller Operational Description After pressing any function button, the IC will operate the related encoding data. The data will be modulated by high frequency modulation circuit. The modulated high frequency signal is amplified by two block high frequency amplifier circuit. The signal is sent out by the antenna. And that time , the IC will send out related icon to display data and the necessary sound signal to drive the LCD displaying and the buzz sounding. The encoded signal was modulated on a 433.92MHz carrier by a method of amplitude modulation.

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:23-Jun-2003Sheet of File:E:\job\R7000.ddbDrawn By: R1 OSC1 OSC2 C6C5 R7 C2 VDD K1 K2 K3 K4 COM0 1 COM1 2 COM2 3 SEG0 4 SEG1 5 SEG2 6 SEG3 7 SEG4 8 SEG5 9 SEG6 10 SEG7 11 SEG8 12 SEG9 13 SEG10 14 LCD MOUDLE LCD1 L1 VDD VDD R2 VDD VDD VDD VDD R5 B1 R3 BAT1 1.5V Q1 Q2 Q3 Q4 Q5 Q6 Q10 R8 R12 R9 R10 R11 R13 R14 R15 R16 C3 15P C4 Vin 3 GND 1 Vout 2 U2 OUT 1 VDD 2 GND 3 NC 5 NC 4 U3 VLC0 6 VLC1 7 XIN 12 XOUT 11 BIAS 5 SEG10 54 P3.0 25 SEG9 55 SEG8 56 P2.1 22 SEG7 57 P1.0 17 SEG6 58 P3.2 27 SEG5 59 SEG4 60 P3.1 26 SEG2 62 SEG1 63 SEG3 61 SEG0 64 COM3 4 COM2 3 COM1 2 COM0 1 P1.3 20 P2.3 24 P2.2 23 P1.2 19 P1.1 18 RESET 16 P6.2 31 P6.1 30 P6.0 29 XTIN 14 XTOUT 15 P6.3 32 VLC2 8 TEST 13 VSS 10 VDD 9 P2.0 21 P3.3 28 U1 E' 2 GND 3 V+ 1 NC 4 L- 6 VOUT 7 NC 5 L+ 8 U4 L2 1 2 EL1 EL-LAMP R4 TX DATA(MOD) RX DAATA TX POWER TX CONTROLL BATT SAVE 1.5V C7 C8 R17 C9 123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:23-Jun-2003Sheet of File:E:\job\R7000.ddbDrawn By: L1 C2 R1 C1 E1 D3 C29 Q5 L9 C30 R23 C31 C32 L10 C35 C33 L11 C37 R26 TX POW Q6 R25 C36 C38 L12 C39 C40 L13 C43 R31C44 TX POW Q7 C24 C23 L14 X3 L15 R27 VC2 C50 R28 R30 C42 TX POW D5 C41 C49 D2 R20 R19 R21 0 D6 TX CO D4 TX CO C34 1p R29 TX CO R24 TX POW VB131RF-B 1.5V TX CO TX POW MOD C51 OUT TX POW

Report No.: 03.06.1008EF Page: 1 of 13 FCC ID: QNMSK8031 Authorized Signature: Kent Hsu Laboratory Manager SGS-CSTC Co.,Ltd This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Co., Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 Registration number:282399  FCC TEST REPORT Application No. : 03.06.1008E Applicant : SPACKEY AUTO ELECTRONIC CO., LTD. FCC ID : QNMSK8031 Fundamental Frequency : 433.92 MHz Equipment under Test (EUT): Name : Auto Security System Model No. : VB-131 Standards : FCC PART 15, SUBPART C : 2002 Date of Receipt : 24 June 2003 Date of Test : 27 June to 01 July 2003 Date of Issue : 03 July 2003 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID: QNMSK8031  Report No.: 03.06.1008EF Page: 2 of 13 SGS-CSTC Standards Technical Services Co., Ltd. 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS .............................................................................................................................................................. 2 3 GENERAL INFORMATION.................................................................................................................................. 3 3.1 C LIENT INFORMATION............................................................................................................................................ 3 3.2 D ETAILS OF E.U.T. ................................................................................................................................................. 3 3.3 D ESCRIPTION OF SUPPORT UNITS........................................................................................................................... 3 3.4 T EST LOCATION...................................................................................................................................................... 3 3.5 O THER INFORMATION REQUESTED BY THE CUSTOMER.......................................................................................... 3 3.6 T EST FACILITY........................................................................................................................................................ 4 4 TEST RESULTS....................................................................................................................................................... 5 4.1 T EST INSTRUMENTS................................................................................................................................................ 5 4.2 E.U.T. OPERATION................................................................................................................................................. 5 4.3 T EST PROCEDURE & MEASUREMENT DATA........................................................................................................... 6 4.3.1 Radiated Emissions ...................................................................................................................................... 6 4.3.2 Occupied Bandwidth .................................................................................................................................... 8 4.3.3 Calculation Of Duty Cycle: ......................................................................................................................... 9 4.4 P HOTOGRAPHS - RADIATED EMISSION TEST SETUP IN CHAMBER......................................................................... 10 5 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS .........................................................................11-13 FCC ID: QNMSK8031  Report No.: 03.06.1008EF Page: 3 of 13 SGS-CSTC Standards Technical Services Co., Ltd. 3 General Information 3.1 Client Information Applicant: SPACKEY AUTO ELECTRONIC CO., LTD. Address of Applicant: XIAMAO INDUSTRIAL ZONE 18, BAIYUN DIST., GUANGZHOU CITY CHINA Name: Auto Security System Model No.: VB-131 3.2 Details of E.U.T. Power Supply: 1.5V DC ( 1 x ‘AAA’ Size Battery ) Power Cord: N/A- 3.3 Description of Support Units The EUT was tested as an independent unit. 3.4 Test Location All tests were performed at:- SGS-CSTC Standards Technical Services Ltd., Guangzhou Safety & EMC Laboratory, 1/F, Building No. 1, Agriculture Machinery Materials Company Warehouse Ltd., Wushan Road Shipai, Tianhe District, Guangzhou, China. P.C. 510630. Tel: +86 20 3848 1001 Fax: +86 20 3848 1006 3.5 Other Information Requested by the Customer None. FCC ID: QNMSK8031  Report No.: 03.06.1008EF Page: 4 of 13 SGS-CSTC Standards Technical Services Co., Ltd. 3.6 Test Facility The test facility is recognized, certified, or accredited by the follo…
