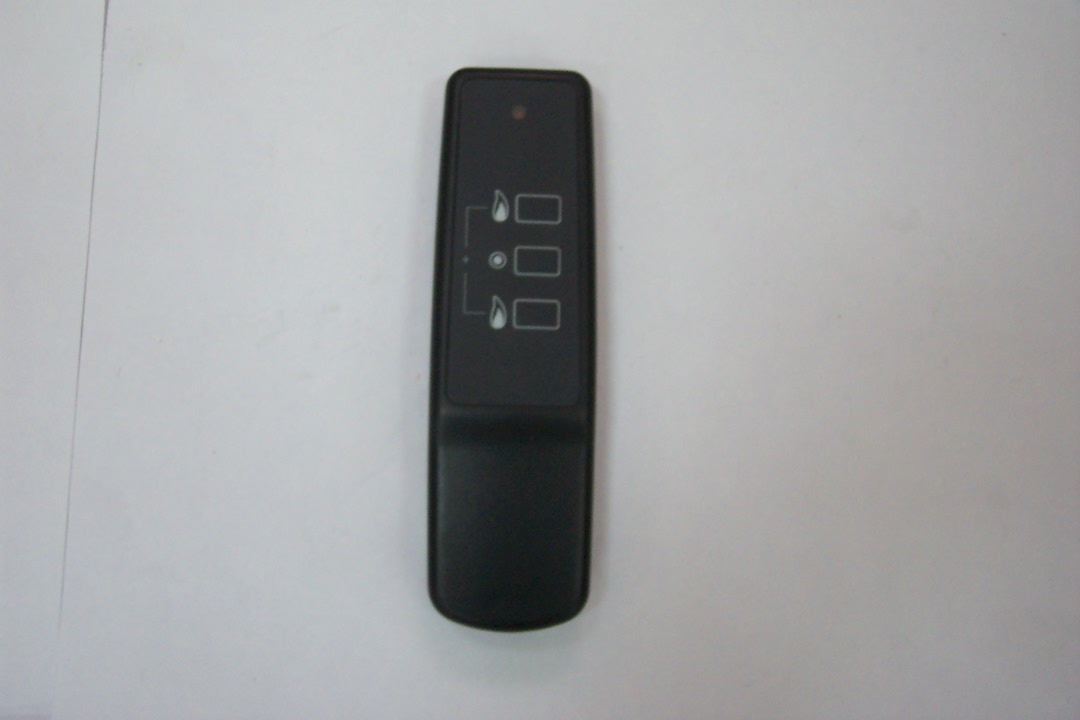

QNMVB-CA17GRemote Control Transmitter

Transmitter VB-CA17G User Guide: 1. Press the button I and button III simultaneously, the related receiving device will turn on and enter working status. 2. Then press the button II, the related receiving device will turn off, and stop working. Battery Type: 23A 12V NOTE： THE MANUFACTURE IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT.

Principles in Pane Chart: Pressing the button input Fixed coding High frequency surge High frequency transmitting

FCC ID Location FCC ID Label Sample FCC ID: QNMVB-CA17G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Approval for Transmitter VB-CA17G Working principles: Coding IC: PT2262 makes up of 3-status fixed coding method. While pressing on the button, the 17 th foot of PT2262 will output the PWM data, resonating with the high frequency transistor: 2SC3356 (R25) in 315 MHz, and transmitting high frequency modulation signal of ASK to the space by built-in antenna.

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:30-Dec-2004Sheet of File:D:\813new\VB-CA17G0.ddbDrawn By: A0 1 A1 2 A2 3 A3 4 A4 5 A5 6 A6/D5 7 A7/D4 8 VSS 9 A8/D3 10 A9/D2 11 A10/D1 12 A11/D0 13 TE 14 OSC1 15 OSC2 16 DOUT 17 VCC 18 IC1 PT2262 1817161514131211 87654321 0807060504030201 A? PM 41 23 SW3 41 23 SW2 41 23 SW1 R4 100K R2 47 R7 12K R8 12K R5 4.7K R6 4.7K D2 LL4148 D1 LL4148 R15 105 R9 1.5M Q1 2SC3356 R25 C4 20P R3 10K C3 102 C1 0.5P 12 ++ 12 - - 1 2 3 4 SAW1 315MHz LED R1 5.6K TFM VB-CA17G0 C2 5P R10 0 L1 4.7V L1 5.1V

Report No.: GLEM0041202599HS Page: 1 of 15 FCC ID: QNMVB-CA17G Authorized Signature: Kent Hsu Laboratory Manager SGS-CSTC Co.,Ltd. This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : GLEM0041202599HS Applicant : WELLSEEK TECHNOLOGY DEVELOPMENT CO., LTD FCC ID : QNMVB-CA17G Fundamental Frequency : 315MHz Equipment under Test (EUT): Name : Controller Model : VB-CA17G Standards : FCC PART 15, SUBPART C : 2004 (Section 15.231) Date of Receipt : 28 December 2004 Date of Test : 29 to 30 December 2004 Date of Issue : 31 December 2004 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID: QNMVB-CA17G Report No.: GLEM0041202599HS Page: 2 of 15 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS .............................................................................................................................................................. 2 3 GENERAL INFORMATION.................................................................................................................................. 3 3.1 CLIENT INFORMATION............................................................................................................................................ 3 3.2 DETAILS OF E.U.T. ................................................................................................................................................. 3 3.3 DESCRIPTION OF SUPPORT UNITS........................................................................................................................... 3 3.4 TEST LOCATION...................................................................................................................................................... 3 3.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER.......................................................................................... 3 3.6 TEST FACILITY........................................................................................................................................................ 4 4 TEST RESULTS....................................................................................................................................................... 5 4.1 TEST INSTRUMENTS................................................................................................................................................ 5 4.2 E.U.T. OPERATION................................................................................................................................................. 5 4.3 TEST PROCEDURE & MEASUREMENT DATA........................................................................................................... 6 4.3.1 Radiated Emissions ...................................................................................................................................... 6 4.3.2 Occupied Bandwidth .................................................................................................................................. 10 4.3.3 Calculation Of Duty Cycle: ........................................................................................................................ 11 5 PHOTOGRAPHS - TEST SETUP........................................................................................................................ 13 6 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS .........................................................................14-15 FCC ID: QNMVB-CA17G Report No.: GLEM0041202599HS Page: 3 of 15 SGS-CSTC Standards Technical Services Ltd. 3 General Information 3.1 Client Information Applicant: WELLSEEK TECHNOLOGY DEVELOPMENT CO., LTD Address of Applicant: XIAMAO INDUSTRIAL ZONE 18, BAIYUN DIST., GUANGZHOU CITY CHINA 3.2 Details of E.U.T. Product Name: Controller Model: VB-CA17G Power Supply: 12V (1 x Alkaline Battery, 23 A). 3.3 Description of Support Units The EUT was tested as an independent unit: a 315MHz radio transmitter. 3.4 Test Location All tests were performed at:- SGS-CSTC Standards Technical Services Ltd., Guangzhou Safety & EMC Laboratory, 1/F, Building No. 1, Agriculture Machinery Materials Company Warehouse Ltd., Wushan Road Shipai, Tianhe District, Guangzhou, China. P.C. 510630. Tel: +86 20 3848 1001 Fax: +86 20 3848 1006 3.5 Other Information Requested by the Customer None. FCC ID: QNMVB-CA17G Report No.: GLEM0041202599HS Page: 4 of 15 SGS-CSTC Standards Technical Services Ltd. 3.6 Test Facility The test facility is recognized, certified, or accredited b…
