QNU-VPSPIO-01USB External HDD KIT

U U s s e e r r ’ ’ s s M M a a n n u u a a l l S S P P I I O O USB 2.0 External HDD Enclosure Revision 1.0 FCC Compliance Statement Caution: Any changes or modification in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, use and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: *Reorient or relocate the receiving antenna. *Increase the separation between the equipment and receiver. *Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. *Consult the dealer or an experienced radio/TV technician for help. * Product Introduction *Slim, small, and light portable storage device using 2.5” Hard disk. *Max. 480Mbps with USB 2.0 interface. *Device operation indicator of Blue LED *USB bus-powered. *Plug & Play and Hot Plugging *Bundle auto back-up software *Password protection for security *Aluminum for heat management & deluxe case * Feature and system requirement [Features] *Interface: USB 2.0 *Transfer rate: Max. 480Mbps *Size: L:128mm x W:75mm x H:14.5 mm *Weight: 160g(With 2.5” HDD) *Cable: Standard USB 2.0 Cable. [System Environment] *OS: Windows 98SE/ME/2000/XP, Mac OS 8.6 & higher *System: Pentium or higher IBM compatible PC or Mac. *Memory: over 32MB *Interface: USB Port (For USB2.0 support, USB2.0 based main board or USB 2.0 PCI Adapter card, or PCMCIA cards are required) *CD Drive for driver installation or internet connection for download of installation driver * Contents SPIO, USB Cable, Manual, Driver & Auto backup Software CD, Bag * Notice l Do not drop or aggressively handle the SPIO as this may cause damage to the hard disk. l Avoid exposing the SPIO to extreme temperatures or humidity. Either may cause damage to the hard disk. l Do not remove or disconnect the SPIO from your computer while the SPIO is transferring the data. This may cause damage to the hard disk. l New hard disk requires FDISK and Formatting. * Hardware Installation HardCopy(Auto Backup Program) Installation 1. Insert the 2.5" Hard disk into 50pin IDE connector. 2. Screw and fix the HDD with mid-frame. 3. Mid-frame has small groove for insertion of Aluminum cover. Close the cover as shown at the picture. ( Please be careful bending of Aluminum link during disassembly ) 4. The H-type assistant power cabel can be used when you get a message of "power insurfficiency". Connect the cable as shown at the picture. Insert the program into CDROM Drive. There is a directory of [Hardcopy]. Double click on the “Hardcopy.exe” icon. Click OK to install the Hardcopy under the default directory. Don’t need to restart your computer. You are ready to use Hardcopy. You can find Hardcopy icon on the desktop 1. Backing up the Data for the First time B. Menu; New Job: Make a new job. Open: open the activated job. Delete: remove the job. Stop: disable the job. 2. Option for backup operation A. Basic: B. Advanced: 4. File option: You can backup specific file with selection of file name and file extension. 5. Schedule Time: User can setup the specific backup time. If you want to backup specific time like as 12:30 PM, it is a solution. After this schedule time setting, previous general period setting is disregarded. * You can change the property of job after open the specific job. <Driver installation> You can see the left window after select New Job or Open. 1.Job name: Make a new job name. 2.Period: set up the regular backup schedule (default is 10min.) 3.Drive: Select the object folder and backup destination. 4,Create folder: Make a new backup folder name. 1.Execute A.File/Folder: backup file and folder. B.File: backup only file. 2.Folder option: Make a backup folder by backup time. 3.Copy option: can backup hidden file, backup with file compression. After connecting the Spio to your computer via the USB cable, the Plug & play function will detect the Spio Follow the installation process in Figure 1 though 5 Figure 4. Figure 1. Figure 2. Password Protection With the password protection of SPIO, you can secure the data in hard disk drive. It requires driver installation to use this function. After the password protection, other computers can not recognize the SPIO. This password protection applied to Hard disk and control chip, so it is safe from burglary. Password protected product can be used at other system after driver installation with right password. Warning: You may lose all data if you forget the password. < Password Usage > Figure 4. Figure 5. Warranty 1. After driver installation, you can find new icon at system tray. You can find selection window when you click the icon. 3. You’ll get the message “Drive is now protected” 4. When you connect the SPIO to computer, you can get the password protection window. If you want to disable protection, just check the blank of “Disable protection” You’ll get the message “ Drive is now unprotected” 5. When you forget the password, you need to select [I Forgot]. If you want to use the hard disk, you need to erase the data. 2. You can find password input window. Input your password. Don’t forget it. Warning: You may lose all data if you forget the password. l Limited Warranty Valueplus warrants that the product enc…

Text truncated - open the document above for the full version.

U1 16Bit Data Line USB Controller ISD300A C2 9pF Block Diagram PD0 –PD15 SCL/SDA VCC3.3V Data+/Data-USB Cable J1 CON7 VI GND VO 5V GND 5V DA0-DA2 Data Line PD0 –PD15 40 Pin IDE Connector 2.5”Inch Hard Disk (Option) C3 9pF Y1 or Y2 30M 3031 U3 EZ1117 3.3V VCC3.3V 5V U2 24LC02 5V 3 2 1 VCC3.3V CN1 Reset DIOR DIOW DMARQ DMACK CS0-1 Reset DIOR DIOW IORDY DMA CS0-1 DA0-DA2 Control Control 12 12 AVCC VCC3.3V AVCC 10uF X 2 0.1uF X 11 10uF X 2 0.1uF X 2

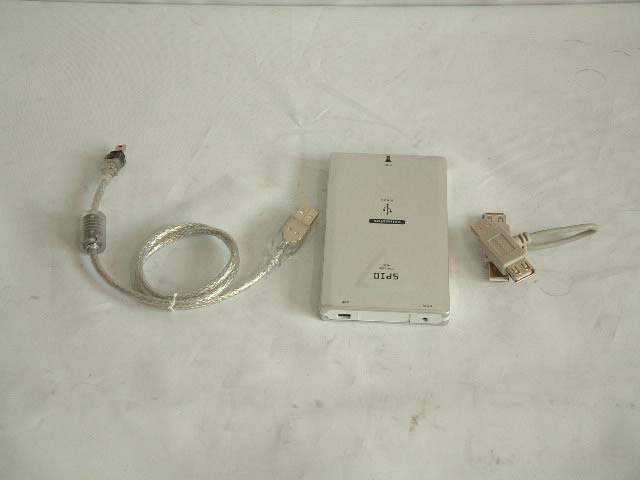

Test report Our reference : KEL02-F09056 Page : B1 of Appendix Issued date : 2003-03-05 Appendix-B : External Photographs of E.U.T <FRONT VIEW OF EUT> <REAR VIEW OF EUT>

Test report Our reference : KEL02-F09056 Page : D1 of Appendix Issued date : 2003-03-05 Appendix-D : FCC ID label location information and Sample - FCC ID label location information The label included following statement will be attached on the bottom side of product. - FCC ID label sample

Test report Our reference : KEL02-F09056 Page : C1 of Appendix Issued date : 2003-03-05 Appendix-C : Internal Photographs of E.U.T <INTERNAL VIEW OF E.U.T> Test report Our reference : KEL02-F09056 Page : C2 of Appendix Issued date : 2003-03-05 <FRONT VIEW OF MAIN BOARD> Test report Our reference : KEL02-F09056 Page : C3 of Appendix Issued date : 2003-03-05 <REAR VIEW OF MAIN BOARD> Test report Our reference : KEL02-F09056 Page : C4 of Appendix Issued date : 2003-03-05 <FRONT VIEW OF HDD> Test report Our reference : KEL02-F09056 Page : C5 of Appendix Issued date : 2003-03-05 <REAR VIEW OF HDD>

352 Youngduk-Ri, Kihung-Eup, Yongin-City, Kyunggi-Do, Korea 449-908 TEL : (82)31-206-4693 FAX : (82)31-206-3051 http://www.kesilab.com [email protected] http://www.koreaemc.co.kr [email protected] CERTIFICATE OF COMPLIANCE d d re s s :g., Sunae dong, Bundan ungki-, Korea ternal HDD KIT FCC ID : QNU-VPSPIO-01 A p p l i c a n t ’s A d d re s s :g., Sunae dong, Bundang ku, Seongnam, M a n u f a c t u re r ’s Ag ku, Seongnam, Dec Produc Model duct herewith complies with the requirements of the FCC Rules and Regulations as listed Emissions. ORY -Eup, i-Do, 449-908, KOREA EL02-F09056 Authorized Signature : (CLASS B) CERTIFICATION OF COMPLIANCE is hereby issued to the named Applicant and is VALID ONLY for the equipment identified below: Date of Tested : Mar. 04. 2003 Applicant’s Name : ValuePlus, Inc. 8F, Hyundai Office Bld Kyungki-, Korea Manufacturer’s Name : ValuePlus, Inc. 8F, Hyundai Office Bld Ky lares that the product t Description : USB Ex Brand Name : SPIO Number : spio 252 Conforms to FCC Rules and Regulations Part 15 Subpart B requirements. This pro below: Part 15.107: Conducted Emissions. Part 15.109: Radiated Spurious TESTED and CERTIFIED by: KOREA EMC LABORAT 352 Youngduk-Ri, Kihung Yongin-Si, Kyungg Date :Mar. 05. 2003 Report No :K M. S. CHO / President Test report Our reference : KEL02-F09056 Page : 2 of 13 Issued date : 2003-03-05 ge 3 1.5 General Setup of the test Shield room 5 7 2.11 Power Line Conducted Emissions 8 diatedmissions Tests 8 3. M 3.3 Radiated Emission Data 11 g Requirement 13 Ap cted and Radiated) aphs of E.U.T cation information and sample - E : Block Diagram - F : User’s Manual TABLE OF CONTENTS DESCRIPTION Pa 0. VERIFICATION OF COMPLIANCE 1. GENERAL INFORMATION 1.1 Product Description 4 1.2 Related Submittal(s)/Grant(s) 4 1.3 Tested System Details 4 1.4 System Configuration 4 1.6 Test Facility 5 2. Measurement Procedure 2.1 System test configuration 6 2.1.1 Video mode Justification 6 2.1.2 EUT Exercise S/W 6 2.2 Special Accessories 6 2.3 Equipment Modification 6 2.4 Connected Cable 6 2.5 System Configuration Diagram 6 2.6 Preliminary testing 7 2.7 Shielded Enclosure 7 2.8 Data Reporting Format 7 2.9 Operating Condition 2.10 Conditioning of the EUT 7 2.12 Open field Ra E easurement Data 3.1 Conducted Emission Data 9 3.2 Conducted Emission Graph 10 3.4 Summary 12 4. Labelin pendix - A : Test set-up Photographs (Condu - B : External Photographs of E.U.T - C : Internal Photogr Korea EMC Laboratory - D : FCC ID label lo Test report Our reference : KEL02-F09056 Page : 3 of 13 Issued date : 2003-03-05 0 . VERIFICATION OF COMPLIANCE Eq u i p m e n t U n d e r T e s t : USB External HDD KIT Mo d e l N u m b e r : spio 252 Serial Number : Prototype Manufacturer : ValuePlus, Inc. 8F, Hyundai Office Bldg., Sunae dong, Bundang ku, Seongnam, Kyungki-, Korea Type of Test : FCC CLASS B Report Number : KEL02-F09056 Date Tested : Mar. 04. 2003 Tested By : Y. H. KIM The results show that the sample equipment tested as described in this reports is in compliance with the CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B. Korea EMC Laboratory Test report Our reference : KEL02-F09056 Page : 4 of 13 Issued date : 2003-03-05 1. GENERAL INFORMATION 1.1 PRODUCT DESCRIPTION T h e spio 252 is a USB External HDD KIT ma d e b y V a l u e P l u s , I n c . i n K o r e a . R e f e r t o t h e u s e r ' s ma n u a l f o r mo r e information. ITEM SPECIFICATION Interface USB 2.0 Transfer rate: Max. 480 Mbps Dimension 128 mm x 75 mm x 14.5 mm 1.2 Related Submittal(s)/Grant(s) N/A 1.3 Tested System Details Type Model Name FCC ID Serial NO Manufacturer USB External HDD KIT spio 252 QNU-VPSPIO-01 Prototype ValuePlus, Inc. NOTE PC E-6565 DoC NONE FUJITSU Adapter CA01007-0750 Verification 01243994B FUJITSU Printer 2225C DSI6XU2225 3119S96116 HP Adapter 0912-TY Verification NONE HANSUNG Speaker ST-40 - NONE COMPAQ MIC RM-1000 - NONE HANIL Keyboard 7800 DoC K1A114785 BTC Serial Mouse M-CE15-9F DZLMCE15 LT292R00285 LOGITECH 1.4 System Configuration Korea EMC Laboratory Type Model Name Serial NO Manufacturer Remark Main B/D HDD spio 252 MHM2100AT NONE 01007943 ValuePlus, Inc. Fujitsu(Thailand)Co., Ltd. Korea Thailand Test report Our reference : KEL02-F09056 Page : 5 of 13 Issued date : 2003-03-05 1.5 General Set-up of the Test Shielded Room The EUT was set up in accordance with the suggested configuration given in FCC measurement Procedure ANSI C63.4 2000. The measurement are performed in the shielded room which dimension is 3.0*7.0*2.5(m). The EUT was placed on a non conductive table which is 1.0*1.5(m), 80 cm above an earthed ground plane and is kept at least 1m from any other earthed ground plane except the rear of table top being removed 40 cm from a vertical conducting plane. Power to the EUT was provided through the LISN(ESH3-Z5, Rohde & Schwarz) which has the Impedance vs Frequency Characteristic in accordance with the conducted setup photographs in Appendix-A Impedance Characteristic of LISN. Peripheral equipment required to provide a functional system(support equipment) for EUT testing was powered through another LISN(KNW-407, KYORITSU). Power to the LISN was filtered to eliminate ambient signal interference. A coaxial type connector which provides a 50 Ohm terminating impedance was provided for the test instrument. The excess length of the power cord was wrapped in the two non metallic pegs attached to the top of the LISN. The two pegs are 9 cm high, approximately 2.0 cm in diameter and that are spaced 6 cm on the center apart. 1.6 Test Facility Location: Korea EMC Laboratory 352 Yungduck-Ri Kihung-Eup,Yongin-City Kyungki-Do,Korea Site : - 3/10m Open Fielded Radiated - Indoor Line Conducted Room(Shielded) The Open Field Radiated and Indoor Line Conducted sites are constructed and calibrated to meet the FCC requirements in documents ANSI C63.4 2000. Korea EMC Lab. was refiled in FCC in Feb. 2001. INSTRUMENTATION Description Model Manufacturer Serial No Du…

Text truncated - open the document above for the full version.

Test report Our reference : KEL02-F09056 Page : A1 of Appendix Issued date : 2003-03-05 Appendix-A : Test Setup Photographs - Conducted Setup Photographs LINE CONDUCTED SETUP PHOTOGRAPH - FRONT VIEW LINE CONDUCTED SETUP PHOTOGRAPH - REAR VIEW Test report Our reference : KEL02-F09056 Page : A2 of Appendix Issued date : 2003-03-05 - Radiated Setup Photograph RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 30 - 300 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 30 - 300 MHz ) Test report Our reference : KEL02-F09056 Page : A3 of Appendix Issued date : 2003-03-05 RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 300- 1000 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 300 - 1000 MHz )
