QNX-ASHKBProximity Reader with Keypad

Baran Advanced Technologies (1986) Ltd.
Proximity Reader with Keypad - FCC ID QNX-ASHKB - Baran Advanced Technologies (1986) Ltd.
Click to zoom

Application Details

Equipment Class
DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant
Jul 08, 2003
Application Purpose
Original Equipment
Date of Application
Jul 08, 2003
Equipment Note
Proximity Reader with Keypad
Frequency Range
13.56000000 - 13.56000000
Company
Baran Advanced Technologies (1986) Ltd.
Country
Israel

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗
↗

Operational Description

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Operation Modes: The iCLASS reader is equipped with 2 electronically interlocked devices. The iCLASS Proximity Reader and the Piezoelectric Keypad. The iCLASS reader supports the following operation modes: 1. Prox – Pin. Present iCLASS Prox card. The unit will read the content and send it over the Data wires to the Controller. Enter PIN code. The unit will send the PIN code over the same Data wires to the host. The Keypad and the Prox reader are interlocked so that when one is functioning the other is inhibited until the data is transmitted. 2. Prox Only. The prox electronics is independently communicating via Data wires. 3. Keypad only. The keypad electronics is independently communicating via Data wires. Verification Power up the unit. The buzzer will beep once . In the same time the RED or the Green LED will come ON depending on the Central Controller setup. Present a valid HID encrypted iCLASS card at 2. 5 cm distance maximum. The unit will activate the Buzzer once and the illuminated LED will blink. Enter a key . The unit will activate the Buzzer once. Wiring Recommended cable is ALPHA 1295 ( 22AWG) 5-conductor stranded with overall shield or equivalent. COLOR FUNCTION ELECTRICAL FUNCTION RED Input Voltage 10 VDC - 16 VDC BLACK Ground GREEN Data 0 Open collector 1Kohm pull-up to internal +5V WHITE Data 1 Open collector 1Kohm pull-up to internal +5V BROWN LED Input BLUE CCTV output Open collector 0,150 mA activated with each key for 30 sec VIOLET Housing Ground ORANGE Buffered Input GREY Tamper Output Open collector 0,100 A “Low” when light sensed 1. Blue Wire - PRESSING any key on the keypad will generate a 30 seconds 0.25 amp permanent duty grounding output. 2. Orange Wire - When the Hold Line, Orange wire, is pulled “low”, the iClass data communication is inhibited. 3. Grey Wire - When the photodiode senses ambient light the wire is pulled “LOW” NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this equipment not expressly approved by the party responsible for compliance Baran Advanced Technologies (86) Ltd. could void the user’s authority to operate the equipment. This product satisfies the requirements of : FCC 47 CFR:2002 part 15, subpart C sections 15.225, 15.207 and subpart B, class B. EVERSWITCH iCLASS™ PROXIMTY READ PLUS KEYPAD Model: ASHKB Output formats- iCLASS Card - Wiegand 26 - Keypad: - 8 Bit Power Supply : 10 - 16 VDC reverse voltage protected Power Consumption: Ave. 70mA Peak 250 mA Transmitter/Receiver frequency: 13.56 Mhz Mounting: Universal USA and EUROPE Environment: IP68 ; 100% relative humidity Operating Temperature: - 20 to + 70ºC Dimensions: 120 x 90 x 25 ( 4,72 / 3.54 /1.00 ) Antitamper Optical protection Certifications:

Cover Letter(s)

June 30, 2003 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 USA Subject: Application for certification of a proximity reader with keypad, model ASHKB, FCC ID: QNX- ASHKB Dear Gentlemen, Please find attached our application for certification of a proximity reader with keypad, model ASHKB, FCC ID: QNX-ASHKB, prepared in accordance with FCC Rules, parts 15 and 2. The product testing and this application for certification were performed by Hermon Laboratories, which is listed by FCC. Hermon Labs responsible person is Mr. Gonen Usishkin, tel: 011 972 4628 8001, fax:011 972 4628 8277, e-mail: [email protected] . Please send an invoice to Hermon Labs. We hope this application satisfies your requirements Sincerely yours Yossi Ron President & CEO

Cover Letter(s)

July 18, 2003 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 USA Subject: Request for confidentiality of ASHKB transmitter, FCC ID: QNX-ASHKB Dear Gentlemen: We apply to you with request to withhold Baran Advanced Technologies (1986) Ltd trade secrets in Application for Certification for FCC ID: QNX-ASHKB. These trade secrets can be found in the transmitter schematic diagram (2 pages of this Application). Many thanks in advance. Sincerely yours Yossi Ron President & CEO

External Photos

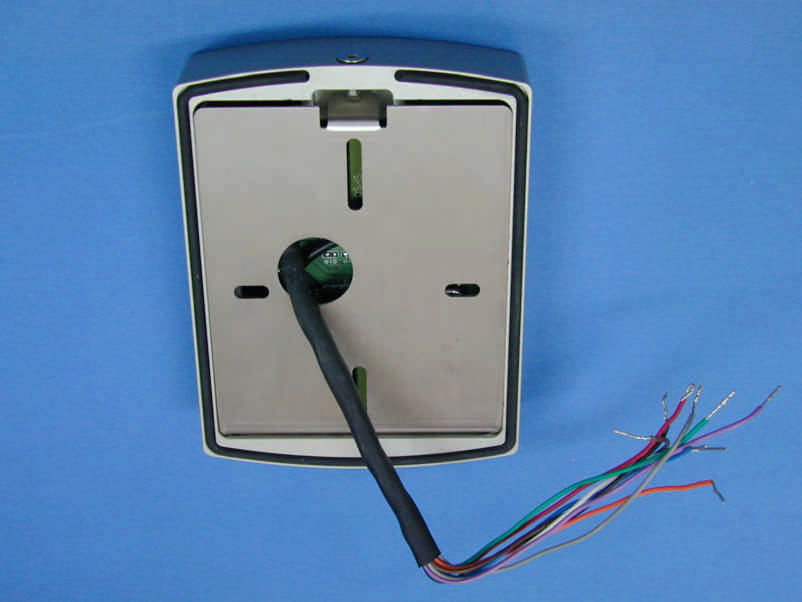

Front view Rear view

ID Label/Location Info

Label Proximity FCC ID:QNX-ASHKB Manufacturer:Baran Advanced Technologies (1986) Ltd. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. This label (see above) will be glued on the bottom side as shown in Photo below:

Internal Photos

Internal view Middle PCB first side_1 Middle PCB first side_2 Middle PCB second side Bottom PCB first side Bottom PCB second side Three loops of wires – integral antenna

Internal Photos

Top PCB first side Top PCB second side

Operational Description

6/18/2003 Product Technical Description The ICLASS Proximity reader with Keypad ASHKB is used to facilitate Controlled Access. The unit reads data embedded on special encoded Proximity cards, allows for P.I.N. number enter and deliver it to a central controller using Wiegand protocol. The iCLASS Proximity reader ASHKB is built of 3 parts as follows: 1. PCB with Piezoelectric switches . 12 units connected into a Matrix of 3 Columns and 4 Rows. This PCB holds the antenna for the HID module. The Antenna is built onto the PCB as 3 Loops of 3 Ounces Copper Wires. The same PCB holds the Tuning capacitors for the antenna. The Antenna is tuned at the factory and there is no access to it unless the product is damaged. 2. HID manufactured iCLASS Module Model OEM 100 Reader/Writer OEM Module Allows for easy integration of iCLASS read/write contactless smart card technology into third-party manufactured product. • Base Model Number: 3100* Frequency of 13.56 MHz • Provides Wiegand and TTL output formats in a compact package. • Dimensions: 3.600" x 1.450" x .454" (9.144 cm x 3.683 cm x 1.153 cm). The Module is Proprietary to HID and electronic design not disclosed. This module is connected via Coaxial cable 10 cm long to the antenna. 3. Electronic Interface. This part provides the management and the outside communication for the Piezoelectric switches and the OEM 100 HID module. The entire unit is integrated into an aluminum shell and Potted. There is no access to the electronics unless the product function is impaired. The unit is designed to work on 10 to 16 VDC with a consumption of 70 mA and peaks of 250 mA.

Test Report

This report is in conformity with EN 45001 and ISO/IEC 17025. The A2LA logo endorsement applies only to the test methods and the standards that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report must not be reproduced in any form except in full with the approval of Hermon Laboratories Ltd. Page 1 of 42 Document ID: BARRAD_FCC.15499 Date of Issue: June 2003 HERMON LABORATORIES Electrical Hermon Laboratories Ltd. P.O.Box 23 Binyamina 30500, Israel Tel.+972 46288001 Fax.+972 46288277 e-mail: [email protected] ELECTROMAGNETIC EMISSION TEST REPORT ACCORDING TO 47CFR PART 15, SUBPART C § 15.225, § 15.207, § 15.209 and SUBPART B for Baran Advanced Technologies (1986) Ltd. EQUIPMENT UNDER TEST: Everswitch iClass TM proximity reader with keypad Model: ASHKB Page 2 of 42 Document ID: BARRAD_FCC.15499 Date of Issue: June 2003 HERMON LABORATORIES Hermon Laboratories Ltd. P.O.Box 23 Binyamina 30500, Israel Tel.+972 46288001 Fax.+972 46288277 e-mail: [email protected] Contents 1 Project information......................................................................................................................................................... 3 2 Summary of tests ........................................................................................................................................................... 4 3 EUT description .............................................................................................................................................................. 5 3.1 GENERAL DESCRIPTION................................................................................................................................................ 5 3.2 EUT TEST CONFIGURATION.......................................................................................................................................... 5 3.3 TRANSMITTER DESCRIPTION.......................................................................................................................................... 7 4 Tests results ................................................................................................................................................................... 8 4.1 FIELD STRENGTH OF EMISSION WITHIN THE ASSIGNED BAND ACCORDING TO § 15.225 (A) ................................................... 8 4.2 OUT OF BAND RADIATED SPURIOUS EMISSIONS ACCORDING TO § 15.225 (B), §15.209 ...................................................... 9 4.3 FREQUENCY TOLERANCE OF THE CARRIER SIGNAL ACCORDING TO § 15.225 (C) .............................................................. 11 4.4 RECEIVER SPURIOUS EMISSIONS, ACCORDING TO §15.109 ............................................................................................ 13 4.5 CONDUCTED EMISSION TEST ACCORDING TO §15.207, §15.107 .................................................................................... 14 Appendix A Plots.............................................................................................................................................................. 15 Appendix B Test setup photographs .............................................................................................................................. 29 Appendix C Test equipment used for tests .................................................................................................................... 33 Appendix D Test equipment correction factors............................................................................................................. 34 Appendix E General information..................................................................................................................................... 41 T EST FACILITY DESCRIPTION ................................................................................................................................................... 41 A BBREVIATIONS AND ACRONYMS ............................................................................................................................................. 41 SPECIFICATION REFERENCES.................................................................................................................................................. 41 FCC EQUIPMENT CODES AND DESCRIPTIONS........................................................................................................................... 42 Page 3 of 42 Document ID: BARRAD_FCC.15499 Date of Issue: June 2003 HERMON LABORATORIES Hermon Laboratories Ltd. P.O.Box 23 Binyamina 30500, Israel Tel.+972 46288001 Fax.+972 46288277 e-mail: [email protected] 1 Project information Description of equipment under test Test item Everswitch iClass TM proximity reader with keypad Manufacturer Baran Advanced Technologies (1986) Ltd. Types (Models) ASHKB Equipment FCC code 1 DSR Applicant information Applicant’s responsible person Mr. Armand Rosenberg, Research and Development Director Company Baran Advanced Technologies (1986) Ltd. P.O.Box 1911 Address 8, Omarim street, industrial zone City Omer Postal code 84965 Country Israel Telephone number +972 8620 0020 Telefax number +972 8620 0021 Test performance Project number: 15499 Location Hermon Laboratories Receipt date April 8, 2003 Test started April 8, 2003 Test completed April 15, 2003 Purpose of test Apparatus compliance verification in accordance with emission requirements Test specification 47CFR Part 15, §15.225, §15.207, §15.209 and subpart B 1 FCC Equipment codes – see Appendix E Page 4 of 42 Document ID: BARRAD_FCC.15499 Date of Issue: June 2003 HERMON LABORATORIES Hermon Laboratories Ltd. P.O.Box 23 Binyamina 30500, Israel Tel.+972 46288001 Fax.+972 46288277 e-mail: [email protected] 2 Summary of tests The EUT was found complying with the limits of 47CFR Part 15, §15.225, §15.207, §15.209 and subpart B. Parameter Subclause Tested by Date tested Verdict Remarks Trans…

Text truncated - open the document above for the full version.

Test Setup Photos

Photograph 1 Radiated emission measurements test setup view with loop antenna, 9 kHz – 30 MHz range, anechoic chamber method Photograph 2 Radiated emission measurements test setup view with biconilog antenna, 30 MHz – 1000 MHz range, anechoic chamber method Photograph 3 Conducted emission measurements test setup view Photograph 4 Conducted emission measurements test setup view

Contact Information

Applicant

Raul Kafka(R&D engineer)
[email protected]97286200020Fax: 97286200021

Technical Contact

Hermon LaboratoriesGonen Usishkin
[email protected]972-4-628-8001

Harakevet Industrial zone, · Binyamina · Israel

Test Firm

Hermon Laboratories Ltd.Alexander Usoskin
[email protected]972-4628-8001Fax: 972-4628-8277

Technical Specifications

#Rule PartsFrequency RangePower Output
115C13.56 MHz - 13.56 MHz-
