QOCPROMISDBluetooth Serial Adapter W/ RS232 Interface

Promi-SD™ User Manual ver 1.3 www.initium.co.kr 1 by Bluetooth Enabling Wireless Serial Communications Promi-SD™ User Manual Version 1.3 Promi-SD™ User Manual ver 1.3 www.initium.co.kr 2 Revision History: User Manual of Promi-SD™ Version Changed Contents Date 1.1 Draft version 01/02/2003 1.2 Added Technical Specifications/Troubleshooting. 06/14/2003 1.3 Amended Power Consumption data of Promi-SD101/102/202 06/24/2003 Firmware/Hardware Version of current models Model Name Firmware version Hardware version Hardware Handshaking DTR/DSR Promi-SD101 PSDv2h 1.0 Manual N/A Promi-SD102 PSDv2i 2.0 Auto Detection Available for Loop-back Promi-SD202 PSDv2h 2.0 Auto Detection Available for Loop-back Firmware/Hardware in Plan Model Name Firmware version Hardware version Hardware Handshaking DTR/DSR Release Date Promi-SD101 PSDv3a 2.0 Auto Detection Available for loop-back & full transfer. Aug 11, 2003 Promi-SD102 PSDv3a 2.0 Auto Detection Available for loop-back & full transfer. July 14, 2003 Promi-SD202 PSDv3a 2.0 Auto Detection Available for loop-back & full transfer. July 14, 2003 Promi-SD™ User Manual ver 1.3 www.initium.co.kr 3 Contents 1. Product Description ............................................ 5 1.1 About Promi-SD™....................................................................................................... 5 1.2 External View ............................................................................................................... 8 1.3 LED Indicator ............................................................................................................... 9 1.4 Block Diagram .............................................................................................................9 1.5 Power Supply.............................................................................................................10 1.6 Interface- RS232 / Bluetooth ..................................................................................... 11 1.6.1 RS232 Interface 11 1.6.2 Bluetooth Interface 12 2. Configuration .................................................... 13 2.1 Using Promi-WIN™ ................................................................................................. 13 2.1.1 Making the first Promi-SD TM /Bluetooth connection 13 2.1.2 Setting Operating Mode for Automatic Connection 17 2.2. Using a Terminal Program ........................................................................................ 18 2.2.1 Connecting Promi-SD™ to host. 18 2.2.2 Making the first Promi-SD™/Bluetooth connection 18 2.2.3 Making Promi-SD™ do INQUIRY SCAN and PAGE SCAN 20 2.2.4 Releasing the existing Bluetooth connection 21 2.2.5 Automatic connection of two Promi-SD™ Units 22 2.2.6 AT command vs. Operational Status 23 3. Technical Specifications.................................... 25 3.1 Default Serial Settings ............................................................................................... 25 3.2 Power Consumption .................................................................................................. 25 3.3 Environmental ............................................................................................................26 3.4 Serial Interface........................................................................................................... 26 3.5 Maximum distance between Promi-SD™s ................................................................ 27 4. Troubleshooting ................................................ 28 4.1 ON/OFF of Hardware Flow control ............................................................................ 28 Promi-SD™ User Manual ver 1.3 www.initium.co.kr 4 4.2 Enabling/Disabling of Response Signals................................................................... 28 -OK, CONNECT, DISCONNECT & ERROR ............................................................. 28 4.3 How to use a Gender Changer .................................................................................. 29 4.4 Hardware Reset......................................................................................................... 30 4.5 How to get Bluetooth CF cards connected to Promi-SD ........................................... 30 5. About New Products ......................................... 34 5.1 Promi-SD202 ............................................................................................................. 34 6. For Multi-Serial Connections............................ 35 6.1 Promi-MSP™ ............................................................................................................ 35 7. Legal Notice...................................................... 36 8. About this Manual ............................................. 38 Appendix A: Power Adaptor Specification............... 41 Appendix B: AT command sets ............................... 44 Promi-SD™ User Manual ver 1.3 www.initium.co.kr 5 1. Product Description 1.1 About Promi-SD™ Promi-SD™ is developed for long range, easy-to-install, low-cost, wireless serial communications. Provided is point-to-point wireless connection without standard RS232 cables. For point-to-multipoint connections, please refer to our Promi-MSP™, providing all the features of RS485. Product line Model Name Part No. Spec. Promi-SD101 PSD00-10100 Class 2 / Output Power: 2.5mW (4dBm) 5V DC power supply Rechargeable Li-poly Battery, internal w/ Power Adapter w/ Setup Software & manual on CD Promi-SD102 PSD00-10200 Class 2 / Output Power: 2.5mW (4dBm) 5V/12V DC power supply w/o Battery & Power Adapter w/ Setup Software & manual on CD w/ USB Power Cable & DC Power Cable (Optional: 5V Power Adapter) Promi-SD202 PSD00-20200 Class 1 / Output Power: 63mW (18dBm) 5V DC power supply w/o Battery & Power Adapter w/ Setup Software & manual on CD w/ USB Power Cable & DC Power Cable (Optional: 5V Power Adapter) Promi-SD™ User Manual ver 1.3 www.initium.co.kr 6 Fig. 1.1.1 A CD-ROM inclusive a setup softwar…

Text truncated - open the document above for the full version.

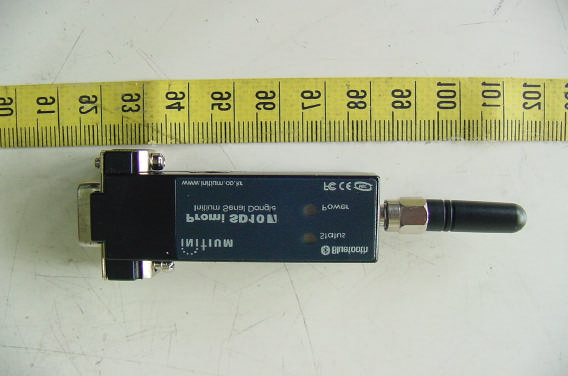

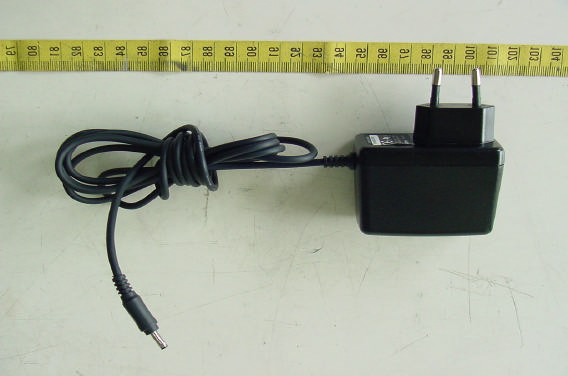

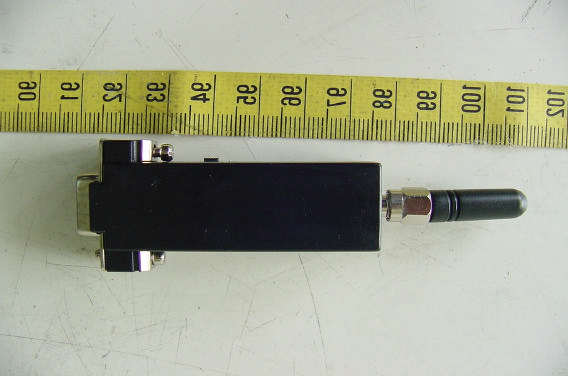

ETC Report No. : ET92R-06-095 FCC ID. : QOCPROMISD Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Top View of EUT Bottom View of EUT ETC Report No. : ET92R-06-095 FCC ID. : QOCPROMISD Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Side View of EUT ETC Report No. : ET92R-06-095 FCC ID. : QOCPROMISD Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of Adapter Side View of Adapter

FCC ID Label This statement will be placed in User’s Manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.

ETC Report No. : ET92R-06-095 FCC ID. : QOCPROMISD Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Component View of PCB ETC Report No. : ET92R-06-095 FCC ID. : QOCPROMISD Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Solder View of PCB Component View of PCB ETC Report No. : ET92R-06-095 FCC ID. : QOCPROMISD Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Solder View of PCB ETC Report No. : ET92R-06-095 FCC ID. : QOCPROMISD Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of Adapter Component View of Adapter ETC Report No. : ET92R-06-095 FCC ID. : QOCPROMISD Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Solder View of Adapter

Promi-SD TM is developed for long range, easy-to-install, low-cost wireless serial communications. Provided is point-to-point wireless connection without standard RS232 cables. This Bluetooth Serial Adapter designed with a transmitting method of hopping spread spectrum technology using the 2400 to 2483.5 MHz ISM band. It includes an integrated antenna and a RS-232 connector interface, offering a simple Bluetooth solution for electronic devices withRS-232 interface.

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Bluetooth Serial Adapter MODEL : Promi-SD10x FCC ID. : QOCPROMISD for APPLICANT : Initium Co., Ltd. ADDRESS : 8F Gongdeok Bldg. 276-6, Seohyun, Bundang, Sungnam, Kyunggi 463-824, Koera Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http// [email protected] Report Number : ET92R-06-095 ETC Report No. : ET92R-06-095 FCC ID. : QOCPROMISD Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Initium Co., Ltd. 8F Gongdeok Bldg. 276-6, Seohyun, Bundang, Sungnam, Kyunggi 463- 824, Koera Manufacturer : Initium Co., Ltd. 8F Gongdeok Bldg. 276-6, Seohyun, Bundang, Sungnam, Kyunggi 463- 824, Koera. Description of EUT : a) Type of EUT : Bluetooth Serial Adapter b) Trade Name : Promi-SD10x c) Model No. : Promi-SD10x d) Power Supply : DC 4.4V-5.25V Regulation Applied : FCC Rules and Regulations Part 15 Subpart B & C (2002) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relates only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Jul. 21, 2003 Test Engineer : (S. S. Liou) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET92R-06-095 FCC ID. : QOCPROMISD Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION.......................................................................................................1 1.1 Product Description........................................................................................................................1 1.2 Characteristics of Device................................................................................................................1 1.3 Test Methodology..........................................................................................................................1 1.4 Test Facility....................................................................................................................................1 2 PROVISIONS APPLICABLE.......................................................................................................2 2.1 Definition........................................................................................................................................2 2.2 Requirement for Compliance...........................................................................................................3 2.3 Restricted Bands of Operation........................................................................................................5 2.4 Labeling Requirement.....................................................................................................................6 2.5 User Information............................................................................................................................6 3. SYSTEM TEST CONFIGURATION...........................................................................................7 3.1 Justification.....................................................................................................................................7 3.2 Devices for Tested System.............................................................................................................7 4 RADIATED EMISSION MEASUREMENT..............................................................................8 4.1 Applicable Standard.......................................................................................................................8 4.2 Measurement Procedure.................................................................................................................8 4.3 Measuring Instrument...................................................................................................................10 4.4 Radiated Emission Data................................................................................................................11 4.4.1 RF Portion(Max power)...........................................................................................................11 4.4.2 RF Portion(Min power)............................................................................................................14 4.4.3 Radiated Emissions in Restricted Bands....................................................................................17 4.4.4 Other Emissions.......................................................................................................................19 4.5 Field Strength Calculation.............................................................................................................19 4.6 Photos of Radiation Measuring Setup............................................................................................20 5 CONDUCTED EMISSION MEASUREMENT........................................................................21 5.1 Standard Applicable.....................................................................................................................21 5.2 Measurement Procedure...............................................................................................................21 5.3 Conducted Emission Data.............................................................................................................22 5.4 Result Data Calculation.................................................................................................................24 5.5 Conducted Measurement Equipment.............................................................................................25 5.6 Photos of Conduction Meas…

Text truncated - open the document above for the full version.

ETC Report No. : ET92R-06-095Sheet15 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 Appendix 3 : Plotted Data for Total Used Hopping Frequencies ETC Report No. : ET92R-06-095Sheet16 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet17 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet18 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 Appendix 4 : Plotted Data for Channel Bandwidth ETC Report No. : ET92R-06-095Sheet19 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet20 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet21 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet22 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet23 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet24 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet25 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 Appendix 5 : Plotted Data for Channel Dwell Time ETC Report No. : ET92R-06-095Sheet26 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet27 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet28 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet29 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet30 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet31 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet32 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet33 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet34 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet35 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet36 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet37 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet38 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 Appendix 6 : Plotted Data for Output Peak Power ETC Report No. : ET92R-06-095Sheet39 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet40 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet41 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet42 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet43 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet44 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet45 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 Appendix 7 : Plotted Data for 100 kHz Bandwidth from Band Edge ETC Report No. : ET92R-06-095Sheet46 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet47 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet48 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet49 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet50 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 Appendix 8 : Plotted Data for Out-of-Band Conducted Emission ETC Report No. : ET92R-06-095Sheet51 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet52 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet53 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet54 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet55 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet56 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet57 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet58 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet59 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet60 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet61 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet62 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 ETC Report No. : ET92R-06-095Sheet63 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0 Appendix 9 : Plotted Data for Peak Power Spectral Density ETC Report No. : ET92R-06-095Sheet64 of 69 Sheets FCC ID. : QOCPROMISD Rev No 1 0

ETC Report No. : ET92R-06-095 FCC ID. : QOCPROMISD Rev. No 1.0 Photos of Radiation Measuring Setup ETC Report No. : ET92R-06-095 FCC ID. : QOCPROMISD Rev. No 1.0 Photos of Conduction Measuring Setup
