QOQBLE113BLE113 Bluetooth smart module

BLE113 DATA SHEET Wednesday, 27 November 2013 Version 1.2 Bluegiga Technologies Oy Copyright © 2000-2013 Bluegiga Technologies All rights reserved. Bluegiga Technologies assumes no responsibility for any errors which may appear in this manual. Furthermore, Bluegiga Technologies reserves the right to alter the hardware, software, and/or specifications detailed here at any time without notice and does not make any commitment to update the information contained here. Bluegiga’s products are not authorized for use as critical components in life support devices or systems. The WRAP is a registered trademark of Bluegiga Technologies The Bluetooth trademark is owned by the Bluetooth SIG Inc., USA and is licensed to Bluegiga Technologies. All other trademarks listed herein are owned by their respective owners. Bluegiga Technologies Oy VERSION HISTORY Version Comment 0.1 Draft 0.2 Confidential watermark added 0.3 Marketing information updated 0.4 Current consumption, recommended land pattern, layout guide, example schematic, antenna characteristics 0.5 Minor changes 0.51 Absolute maximum ratings: all supply nets must have the same voltage 0.52 Pin dimensions and recommended land pattern 0.53 FCC and IC statements 0.54 TXP vs HW config setting 0.55 Dimensions 0.56 CE, MIC Japan, KCC 0.57 Chapter 2.1 rephrased 0.58 Missing dimensions added to Figure 7 1.0 Preliminary datasheet -> production datasheet. No changes 1.1 Pull-up resistors added to P1_0 and P1_1 in the example schematic 1.2 5 mm restriction removed from the FCC statement Bluegiga Technologies Oy TABLE OF CONTENTS 1 BLE113 Product numbering ..........................................................................................................................6 2 Pinout and Terminal Description ...................................................................................................................7 2.1 I/O Ports .............................................................................................................................................. 10 2.2 UART ................................................................................................................................................... 10 2.3 Electrical Characteristics ..................................................................................................................... 11 2.4 Absolute Maximum Ratings ................................................................................................................ 11 2.5 Recommended Operating Conditions ................................................................................................. 11 2.6 DC Characteristics .............................................................................................................................. 11 2.7 Current Consumption .......................................................................................................................... 12 2.8 Antenna characteristics ....................................................................................................................... 13 3 Physical Dimensions .................................................................................................................................. 16 4 Power-On Reset and Brownout Detector ................................................................................................... 18 5 Design Guidelines ...................................................................................................................................... 19 5.1 General Design Guidelines ................................................................................................................. 19 5.2 Layout Guide Lines ............................................................................................................................. 19 5.3 BLE113-A Layout Guide ..................................................................................................................... 20 6 Soldering Recommendations ..................................................................................................................... 22 7 Block diagram ............................................................................................................................................. 23 8 Certifications ............................................................................................................................................... 26 8.1 Bluetooth ............................................................................................................................................. 26 8.2 FCC and IC ......................................................................................................................................... 26 8.3 CE ....................................................................................................................................................... 29 8.4 MIC Japan ........................................................................................................................................... 29 8.5 KCC (Korea) ........................................................................................................................................ 29 9 Contact Information .................................................................................................................................... 30 Bluegiga Technologies Oy BLE113 Bluetooth® Smart Module DESCRIPTION BLE113 is a Bluetooth Smart module targeted for small and low power sensors and accessories. It integrates all features required for a Bluetooth Smart application: Bluetooth radio, software stack and GATT based profiles. BLE113 Bluetooth Smart module can also host end user applications, which means no external micro controller is required in size or price constrained devices. BLE113 module has flexible hardware interfaces to connect to different peripherals and sensors. BLE113 can be powered directly f…

Text truncated - open the document above for the full version.

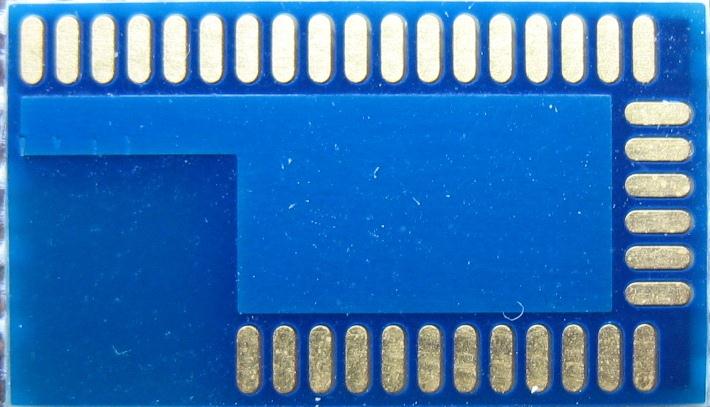

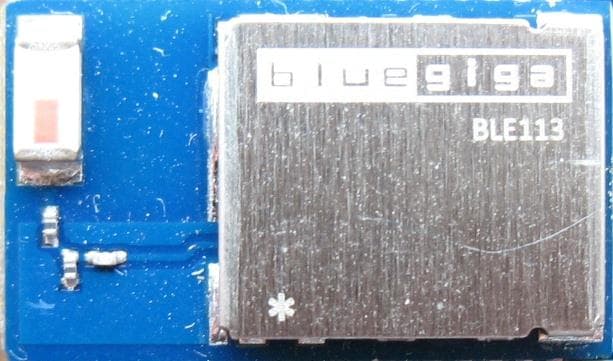

Bluegiga Technologies Sinikalliontie 5A, P.O. Box 120 02630 Espoo FINLAND Tel +358 9 435 5060 | Fax +358 9 435 50660 Co ID 0934238-1, VAT registered, domicile: Espoo www.bluegiga.com | [email protected] External Top External Bottom 15.725mm 9.15mm Bluegiga Technologies Sinikalliontie 5A, P.O. Box 120 02630 Espoo FINLAND Tel +358 9 435 5060 | Fax +358 9 435 50660 Co ID 0934238-1, VAT registered, domicile: Espoo www.bluegiga.com | [email protected] Internal

Bluegiga Technologies Sinikalliontie 5A, P.O. Box 120 02630 Espoo FINLAND Tel +358 9 435 5060 | Fax +358 9 435 50660 Co ID 0934238-1, VAT registered, domicile: Espoo www.bluegiga.com | [email protected] LABEL OF BLE113

Bluegiga Technologies Sinikalliontie 5A, P.O. Box 120 02630 Espoo FINLAND Tel +358 9 435 5060 | Fax +358 9 435 50660 Co ID 0934238-1, VAT registered, domicile: Espoo www.bluegiga.com | [email protected] External Top External Bottom 15.725mm 9.15mm Bluegiga Technologies Sinikalliontie 5A, P.O. Box 120 02630 Espoo FINLAND Tel +358 9 435 5060 | Fax +358 9 435 50660 Co ID 0934238-1, VAT registered, domicile: Espoo www.bluegiga.com | [email protected] Internal

Reference number: 268252-1 Page 2 of 50 Table of Contents PRODUCT DESCRIPTION 3 Equipment Under Test (EUT) 3 Description of the EUT 3 Ratings and declarations 3 P ower Supply 3 Mechanical Size of the EUT 4 Peripherals 4 Samples 4 GENERAL REMARKS 5 Disclaimer 5 SUMMARY OF TESTING 6 EUT Test Conditions During Testing 6 TEST RESULTS 7 Maximum Peak Conducted Output Power 7 Transmitter Radiated Emissions 30 – 1000 MHz 11 Transmitter Radiated Emissions 1 000 – 26 500 MHz 15 Transmitter Band Edge Measurement and Conducted Spurious Emissions 24 6 dB Bandwidth of the Channel 33 Power Spectral Density 37 99% Occupied Bandwidth 41 Receiver Radiated Emissions 30 – 26 500 MHz 45 Conducted emissions 48 LIST OF TEST EQUIPMENTS 50 Reference number: 268252-1 Page 3 of 50 Product Description PRODUCT DESCRIPTION Equipment Under Test (EUT) Bluetooth module Model: BLE113 Type: - Serial no: - HW version: - SW version: - FCC ID number: QOQBLE113 Industry Canada number: 5123A-BLE113 Description of the EUT The EUT is a Bluetooth low energy single mode module targeted for low power sensors and accessories. Device can be used with batteries or from DC power supply. Classification of the device Fixed device Mobile Device (Human body distance > 20cm) Portable Device (Human body distance < 20cm) Modifications Incorporated in the EUT No modifications were applied to the EUT during testing Ratings and declarations Operating Frequency Range (OFR): 2402 – 2480 MHz Channels: 40 Channel separation: 2 MHz Channel bandwidth: 674.4 kHz Conducted power: 0.54 dBm Transmission technique: Digital Transmission Modulation: GFSK Antenna connector type Internal antenna Antenna gain: 0.5 dBi Power Supply Battery operated Operating voltage range 2,0 – 3,6 VDC Normal input voltage: 3.0 V coin battery or 2 x 1,5V AAA batteries Tested by using external power supply and 3.6 VDC voltage level Reference number: 268252-1 Page 4 of 50 Product Description Mechanical Size of the EUT Height: 1.9 mm Width:15.73 mm Depth: 9.15 mm Peripherals Peripheral DC power supply Thandar TS3021S. Samples All tests were performed with two samples installed on to the evaluation board provided by the client. Sample A: equipped with 50Gconnector Sample B: normal construction. All conducted measurements were made to sample A, and radiated measurements to sample B. No modifications were done during the tests. Reference number: 268252-1 Page 5 of 50 General remarks GENERAL REMARKS Disclaimer This test report is issued under SGS Fimko general terms of delivery (available on request and accessible at www.fi.sgs.com ). Attention is drawn to the limitations of liability, indemnification and jurisdictional issues defined therein. Unless otherwise stated: (a) the results shown in this document refer only to the sample(s) tested and (b) such sample(s) are retained for three months. This document cannot be reproduced except in full, without prior approval of SGS Fimko. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law Reference number: 268252-1 Page 6 of 50 Summary of Testing SUMMARY OF TESTING Test SpecificationDescription of TestResult §15.247(b)(3) / RSS-210 A8.4 Maximum Peak Conducted Output Power PASS §15.247(a)(2) / RSS-210 A8.2 6 dB Bandwidth PASS §15.247(e) / RSS-210 A8.2 Power Spectral Density PASS RSS-GEN 4.6.1 99% Occupied Bandwidth PASS §15.247(d) / RSS-210 A8.5 100 kHz Bandwidth of Frequency Band Edges and Conducted Spurious Emissions PASS §15.209(a), §15.247(d) / RSS-210 A8.5 Radiated Emissions Within The Restricted Bands PASS §15.109 / RSS-GEN 7.2.3.2 Unintentional Radiated Emissions PASS §15.207 / RSS-GEN 7.2.2 Conducted emissions PASS EUT Test Conditions During Testing The EUT was in continuous transmit mode during all the tests. The hopping was stopped and the EUT was configured into the wanted channel. Normal modulation and duty cycle was applied in all the tests. Following channels were used during the tests when the hopping was stopped: Channel LOW (CH 0) = 2402 MHz Channel MID (CH 20) = 2442 MHz Channel HIGH (CH 39) = 2480 MHz Test Facility Testing Location / address: FCC registration number: 90598 SGS Fimko Ltd Särkiniementie 3 FI-00210, HELSINKI FINLAND Testing Location / address: FCC registration number: 178986 Industry Canada registration number: 8708A-2 SGS Fimko Ltd Karakaarenkuja 4 FI-02610, ESPOO FINLAND Reference number: 268252-1 Page 7 of 50 Conducted Output Power Test TEST RESULTS Maximum Peak Conducted Output Power Standard: ANSI C63.10 (2009) Tested by: JJM Date: 5.4.2013 Humidity: 18 % Temperature: 23 °C Measurement uncertainty ±2,87dB Level of confidence 95 % (k = 2) FCC Rule: 15.247(b) (1) For frequency hopping systems operating in the 2400-2483.5 MHz, employing less that 75 channels limit is 0.125 Watt. Maximum Conducted Output Power is defined as the total transmit power delivered to all antennas and antenna elements averaged across all symbols in the signalling alphabet when the transmitter is operating at its maximum power control level. Power must be summed across all antennas and antenna elements. The average must not include any time intervals during which the transmitter is off or is transmitting at a reduced power level. If multiple modes of operation are possible (e.g., alternative modulation methods), the maximum conducted output power is the highest total transmit power occurring in any mode. Results: ChannelConducted Power [dBm] Limit [dBm]Margin [dBm]Result Low 0.54 30 29.46 PASS Mid -0.39 30 30.39 PASS High -1.27 30 31.27 PASS Reference number: 268252-1 Page 8 of 50 Conducted Output Power Test Date: 5.APR.2013 14:27:56 Figure 1. Channel LOW. Reference number: 268252-1 Page 9 of 50 Conducted Output Power Test Date: 5.APR.2013 14:29:05 Figure 2. Channel MID. Reference number: 268252-1 Page 10 of 50 Conducted Output Power Test Date: 5.APR.2013 14:30:28 Figure 3. Channel HIGH. Reference number: 268252-1 …

Text truncated - open the document above for the full version.

Bluegiga Technologies Sinikalliontie 5A, P.O. Box 120 02630 Espoo FINLAND Tel +358 9 435 5060 | Fax +358 9 435 50660 Co ID 0934238-1, VAT registered, domicile: Espoo www.bluegiga.com | [email protected] Figure 1: Setup for radiated emissions Figure 2: Setup for radiated emissions Bluegiga Technologies Sinikalliontie 5A, P.O. Box 120 02630 Espoo FINLAND Tel +358 9 435 5060 | Fax +358 9 435 50660 Co ID 0934238-1, VAT registered, domicile: Espoo www.bluegiga.com | [email protected] Figure 3: Setup for conducted emissions
