QOQWRAP312X0Bluetooth Access Server

USER MANUAL WRAP™ PRODUCT SERIES Version 1.1.3 2002-10-28 USER MANUAL WRAP PRODUCT SERIES © BlueGiga Technologies 2002 BlueGiga Technologies assumes no responsibility for any errors which may appear in this manual, reserves the right to alter the devices, software or specifications detailed herein at any time without notice, and does not make any commitment to update the information contained herein. BlueGiga Technologies’ products are not authorized for use as critical components in life support devices or systems. The Bluetooth trademark is owned by the Bluetooth SIG Inc., U.S.A. and licensed to BlueGiga Technologies. ARM and ARM7TDMI are trademarks of ARM Ltd. Linux is a trademark of Linus Torvalds. μClinux is a trademark of Lineo Inc. All other trademarks listed herein are owned by their respective owners. USER MANUAL WRAP PRODUCT SERIES TABLE OF CONTENTS 1 INTRODUCTION.......................................................................................................................................4 1.1 LICENSES AND WARRANTY.................................................................................................................4 1.2 CERTIFICATION INFORMATION............................................................................................................5 1.3 BLUEGIGA TECHNOLOGIES CONTACT INFORMATION.........................................................................6 2 QUICK START..........................................................................................................................................7 2.1 MANAGEMENT CONSOLE.....................................................................................................................7 2.2 ACCESSING WITH TELNET....................................................................................................................8 3 CONFIGURATION...................................................................................................................................10 3.1 USING THE SETUP APPLICATION........................................................................................................10 3.2 NETWORK CONFIGURATION..............................................................................................................10 3.3 BLUETOOTH SETTINGS.......................................................................................................................10 3.3.1 GENERAL BLUETOOTH SETTINGS..............................................................................................11 3.3.2 LAN ACCESS PROFILE SETTINGS...............................................................................................11 3.3.3 SERIAL PORT PROFILE SETTINGS...............................................................................................11 3.3.4 OBEX SETTINGS........................................................................................................................12 3.3.5 OPTIONAL COMMAND LINE PARAMETERS FOR BLUETOOTH SERVER []....................................12 3.4 RAMDISK SETTINGS...........................................................................................................................13 3.5 SYSTEM LOGGER SETTINGS...............................................................................................................13 3.6 WEB SERVER SETTINGS.....................................................................................................................13 3.7 SMS GATEWAY SETTINGS.................................................................................................................13 3.8 /ETC/RC.USER.....................................................................................................................................13 3.9 RESETTING CONFIGURATION.............................................................................................................14 3.10 ADVANCED CONFIGURATION..........................................................................................................14 4 USING THE SYSTEM..............................................................................................................................15 4.1 BLUETOOTH.......................................................................................................................................15 4.1.1 BLUETOOTH SERVER SOCKET INTERFACE PASSWORD PROTECTION........................................15 4.1.2 LAN ACCESS PROFILE................................................................................................................15 4.1.3 SERIAL PORT PROFILE...............................................................................................................15 4.1.4 OBJECT PUSH AND FILE TRANSFER PROFILE.............................................................................16 4.2 SERVERS.............................................................................................................................................16 4.2.1 WEB SERVER..............................................................................................................................17 4.2.2 SMS GATEWAY SERVER............................................................................................................17 4.2.3 TELNET......................................................................................................................................17 4.3 UTILITIES...........................................................................................................................................17 4.4 TRANSFERRING FILES TO/FROM WRAP.............................................................................................19 4.4.1 TRANSFERRING FILES TO/FROM WRAP USING FTP.................................................................19 4.4.2 TRANSFERRING FILES TO/FROM WRAP USING TERMINAL SOFTWARE....................................20 4.5 APPLICATION EXAMPLES...............................…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 October 11, 2002 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act,BlueGiga Technologies Inc. requests confidentiality for the following products: FCC ID Number ProductTitle/Model QOQWRAP312X0WRAP TM 3000, 1260 and 1210. For theproduct stated above, we request that the following information be held confidential: 1. Circuit diagrams submitted as Equipment Authorization Electronic Filing attachment:"schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment:“blockdiagram”. 3. Operational Description submitted as Equipment Authorization Electronic Filing attachment:"operational description". The above exhibits containBlueGiga Technologies Inc.trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our Bluetooth products. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Jarkko Jukarainen BlueGiga Technologies Inc. Taivalmäki 11 FI-02200 Espoo Finland Email: [email protected] Phone: +358 9 4124 0450

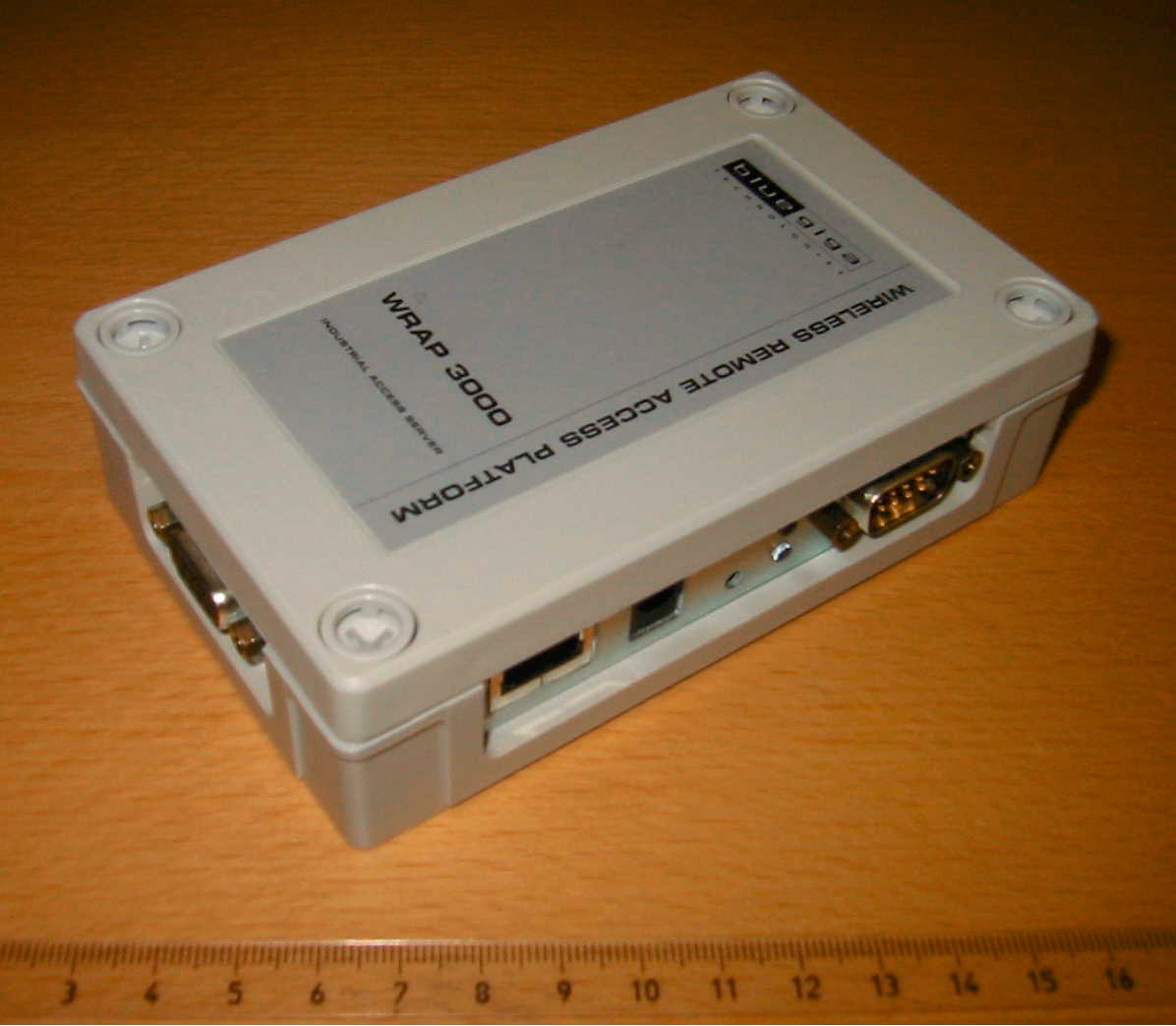

Trade Name: BlueGiga Technologies Inc. Model No: WRAP TM 3000 FCC ID: QOQWRAP312X0 Tested to comply with FCC Standards FOR HOME OR OFFICE USE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device my not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 0682 S/N: WRAPYYMMDDNNNN BT: 00:00:00:00:00:00 MAC: 00:00:00:00:00:00 Use only with power supply: FRIWO, FW 7207/08. 7.5 V DC. Labale position: Bottom side of WRAP. Middle of bottom. LABEL WRAP bottom (Fibox) USER UART power connetor ... managment UART

WRAP1260 WRAP3000 AllWRAP

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC14issue test report consist of 64 PagesPage 1 (64) Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 5_3918-02-03/02 FCC Part 15.247 / CANADA RSS-210 WRAP3000, WRAP1260, WRAP1210 FCC ID: QOQWRAP312X0 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report nr.:5_3918-02-03/02Issue date: 2002-08-13Page 2 (64) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail : [email protected] Internet : www.cetecom.de Accredited testing laboratory The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR-registration number : TTI-P-G 166/98-30 Accredited Bluetooth™ Test Facility (BQTF) BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report nr.:5_3918-02-03/02Issue date:2002-08-13Page 3 (64) 1.3Details of applicant Name : BlueGiga Technologies Street : Tailvalmäki 11 City : Fin-02200 Espoo Country : Finland Telephone : +358-9-4124-0450 Telefax : +358-9-4124-0452 Contact : Mr. Pasi Kuusrainen Telephone : +358-9-4124-0450 1.4Application details Date of receipt of application : 2002-07-18 Date of receipt of test item : 2002-07-31 Date of test : 2002-08-12 1.5Test item Type of equipment : Bluetooth Access Point Type designation: WRAP3000, WRAP1260, WRAP1210 Manufacturer: applicant Street: City: Country: Serial number: 0206250050 Hardware: Software : Additional informations: : Frequency: 2402 – 2480 MHz Type of modulation: 1M00FXD / 79M8FXD (FHSS) Number of channels : 79 Antenna: integral antenna / print F-antenna Power supply: 100 - 240V AC / 7,5 DC Adapter Output power: Conducted: 0.697 mW; EIRP:0.689 mW (worst case) Temperature range: ±0°C - +70°C Model name: Model WRAP1260 and WRAP1210 are identical exept the model name. Model WRAP3000 and WRAP1260 are identical exept WRAP1260 is designated without Ethernet part. Model WRAP3000, the worst case, was choosen for test. 1.6Test standards: FCC Part 15 §15.247 CANADA RSS-210 CETECOM ICT Services GmbH Test report nr.:5_3918-02-03/02Issue date:2002-08-13Page 4 (64) 2 Technical test 2.1Summary of test results The radiated measurements were performed vertical andhorizontal over the whole frequency range.We start at 1 m high with vertical receiving antenna and rotate the dish continuously. During rotation we use the antenna lift system to vary the high from 1 to 4 m. So we find maximum radiation output. At this points we do manual remeasurements. After this we do the same measurements in horizontal position of the receiving antenna. This (horizontal and vertical) is made for all the three planes of the test sample. We use the maximum received results. The detector function and selection of bandwidth are according ANSI C63.2-1996 item 8.2.1 and ANSI C63.4-1992 Item 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna 1GHz: Average, RBW 1MHz, VBW 10 MHz, waveguide horn The product fullfills also the requirements for CANADA RSS-210 No deviations from the technical specification(s) were ascertained in the course of the tests performed. Final verdict : PASS Technical responsibility for area of testing : 26.02.02RSC 8411 Berg M. DateSectionNameSignature Technical responsibility for area of testing : 26.02.02RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report nr.:5_3918-02-03/02Issue date:2002-08-13Page 5 (64) 2.2Testreport TEST REPORT Testreport no. : 5_3918-02-03/02 CETECOM ICT Services GmbH Test report nr.:5_3918-02-03/02Issue date:2002-08-13Page 6 (64) TEST REPORT REFERENCE LIST OF MEASUREMENTS ParagraphPARAMETER TO BE MEASUREDPAGE Transmitter parameters § 15.204Antenna gain 7 § 15.247 (a) Carrier frequency separation8 § 15.247 (a)Number of hopping channels9 § 15.247 (a)Time of occupancy (dwell time)11 § 15.247 (d) Power spectral density (Inquiry/Page mode)16 § 15.247 (a)(1) Spectrum bandwidth of a FHSS System17 § 15.247 (b)(2) Maximum peak output power21 §15.247Band edge compliance26 § 15.247 (c)(1) Emission limitations 35 Receiver parameters § 15.109Spurious radiations - Radiated46 § 15.207 Conducted emissions 51 Test equipment listing53 Photographs of the equipment55 CETECOM ICT Services GmbH Test report nr..: 5_3918-02-03/02Issue Date: 2002-08-13Page 7 (64) Equipment under test : WRAP3000 Ambient temperature : 24.7° °° °C Relative humidity : 50% REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) - Antenna GainSUBCLAUSE § 15.204 The gain is 0 dBi (manufacturer declarartion) CETECOM ICT Services GmbH Test report nr..: 5_3918-02-03/02Issue Date: 2002…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report nr..: 5_3918-02-03/02Issue Date: 2002-08-13Page 54 (63) RADIATED EMISSIONS Test site CETECOM ICT Services GmbH Test report nr..: 5_3918-02-03/02Issue Date: 2002-08-13Page 55 (63) Test site
