QOQWT41WT41 Bluetooth Module

WT41-A / WT41-N DATA SHEET Thursday, 10 March 2011 Version 1.2 Bluegiga Technologies Oy Copyright © 2000-2011 Bluegiga Technologies All rights reserved. Bluegiga Technologies assumes no responsibility for any errors which may appear in this manual. Furthermore, Bluegiga Technologies reserves the right to alter the hardware, software, and/or specifications detailed here at any time without notice and does not make any commitment to update the information contained here. Bluegiga’s products are not authorized for use as critical components in life support devices or systems. The WRAP is a registered trademark of Bluegiga Technologies The Bluetooth trademark is owned by the Bluetooth SIG Inc., USA and is licensed to Bluegiga Technologies. All other trademarks listed herein are owned by their respective owners. Bluegiga Technologies Oy VERSION HISTORY Version Comment 0.1 First draft 0.2 Description and product codes added 0.21 Dimensions updated, layout guide added, UART and USB chapters added 0.22 Pin descriptions, PCM, USB, UART, SPI 0.3 Physical dimensions corrected 0.31 Product codes corrected 0.32 Recommendation for a power-up reset circuitry added to chapter 10 0.4 Pins 1 and 52 (GND) removed. Dimensions updated, recommended land pattern added 0.5 Certification information added 0.6 Physical dimensions and recommended PCB land pattern updated 0.7 Figure 5 recommended land pattern corrected 1.0 Radio and antenna characteristics, layout guide for WT41-N 1.1 Japan certification info added 1.2 FCC RF radiation exposure statement updated Bluegiga Technologies Oy TABLE OF CONTENTS 1 Ordering Information......................................................................................................................................7 2 Pinout and Terminal Description ...................................................................................................................8 3 Electrical Characteristics ............................................................................................................................ 11 3.1 Absolute Maximum Ratings ................................................................................................................ 11 3.2 Recommended Operating Conditions ................................................................................................. 11 3.3 Transmitter Performance For BDR ..................................................................................................... 11 3.4 Radiated Spurious Emissions ............................................................................................................. 12 3.5 Receiver Performance ........................................................................................................................ 13 3.6 Current Consumption .......................................................................................................................... 13 3.7 Antenna Performance and Radiation Patterns ................................................................................... 14 4 Physical Dimensions .................................................................................................................................. 18 5 Layout Guidelines ....................................................................................................................................... 20 5.1 WT41-A ............................................................................................................................................... 20 5.2 WT41-N ............................................................................................................................................... 20 5.2.1 Layout for WT41-N with u.fl connector close to RF pin ............................................................... 20 5.2.2 Layout for WT41-N with 50 ohm trace from RF pin to a SMA connector .................................... 21 6 UART Interface ........................................................................................................................................... 23 6.1 UART Bypass ...................................................................................................................................... 25 6.2 UART Configuration While Reset is Active ......................................................................................... 25 6.3 UART Bypass Mode ............................................................................................................................ 25 7 USB Interface ............................................................................................................................................. 26 7.1 USB Data Connections ....................................................................................................................... 26 7.2 USB Pull-Up resistor ........................................................................................................................... 26 7.3 USB Power Supply .............................................................................................................................. 26 7.4 Self-Powered Mode ............................................................................................................................. 26 7.5 Bus-Powered Mode ............................................................................................................................. 27 7.6 USB Suspend Current ......................................................................................................................... 28 7.7 USB Detach and Wake-Up Signaling.................................................................................................. 28 7.8 USB Driver .......................................................................................................................................... 29 7.9 USB v2.0 Compliance and Compatibility .........................................................…

Text truncated - open the document above for the full version.

TDSK 0703-SE_BT/WLAN_6Location May 08, 200 8 Murata Proprietary, Murata Confidential - 1 - Technical Data Sheet Of Chip Dielectric Antenna for BT/WLAN Note Please confirm the latest specification for antenna shape and dimensions. Capacitors and Inductors used in this report are as follows unless otherwise specified. The values of each components are mentioned in the report. In case using different series or manufactures' components, another value may be required to get the proper result. Capacitors: GRM15 series (Murata) Inductors: LQG15HS series (Murata) Kanazawa Murata Mfg.Co., Ltd Antenna Products Department Antenna : ANCG12G44SAA145 PWB size : 37x80mm TDSK 0703-SE_BT/WLAN_6Location May 08, 200 8 Murata Proprietary, Murata Confidential - 2 - Measurement condition Condition1 : L1 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm Condition2 : L2 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm 0.5pF 0.5pF 6.8nH Open TDSK 0703-SE_BT/WLAN_6Location May 08, 200 8 Murata Proprietary, Murata Confidential - 3 - Condition3 : L3 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm Condition4 : L4 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm 0.5pF 6.8nH 0.8pF 8.2nH TDSK 0703-SE_BT/WLAN_6Location May 08, 200 8 Murata Proprietary, Murata Confidential - 4 - Condition5 : L5 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm Condition6 : L6 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm 0.5pF 0.5pF 12nH 8.2nH TDSK 0703-SE_BT/WLAN_6Location May 08, 200 8 Murata Proprietary, Murata Confidential - 5 - Measurement direction Y (-90deg) Z (0deg) YZ plane vertical Z (0deg) ZX plane X (-90deg) horizontal XY Antenna Antenna 3D Measurement Stargate32 (Satimo) TDSK 0703-SE_BT/WLAN_6Location May 08, 200 8 Murata Proprietary, Murata Confidential - 6 - Measurement Conclusion 80 mm Condition1Condition2Condition3Condition4Condition5Condition6 AntennaANCG1seriesANCG1seriesANCG1seriesANCG1seriesANCG1seriesANCG1series PWB Size [mm]37x8037x8037x8037x8037x8037x80 Shunt [ pF]0.50.50.80.50.50.5 Fine tune-6.8nH8.2nH6.8nH12nH8.2nH Efficiency [dB] at 2400MHz-2.3-2.8-2.5-3.0-2.1-3.0 at 2442MHz-1.7-1.7-1.8-2.3-1.6-2.0 at 2484MHz-2.5-2.6-2.7-2.9-2.2-2.9 ave. at 3 Freq.-2.2-2.4-2.3-2.7-2.0-2.7 Band Width94MHz93MHz86MHz103MHz112MHz80MHz TDSK 0703-SE_BT/WLAN_6Location May 08, 200 8 Murata Proprietary, Murata Confidential - 7 - Measurement result Return loss Condition1 : L1 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm Condition2 : L2 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm TDSK 0703-SE_BT/WLAN_6Location May 08, 200 8 Murata Proprietary, Murata Confidential - 8 - Condition3 : L3 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm Condition4 : L4 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm TDSK 0703-SE_BT/WLAN_6Location May 08, 200 8 Murata Proprietary, Murata Confidential - 9 - Condition5 : L5 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm Condition6 : L6 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm TDSK 0703-SE_BT/WLAN_6Location May 08, 200 8 Murata Proprietary, Murata Confidential - 10 - Antenna gain 3D measurement Condition1 : L1 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm [dBi][dB] hor.ver.hor.ver. MAX2.5-7.11.8-1.0 AVE-4.5-10.6-4.9-4.5-2.3 MAX2.9-6.52.5-0.4 AVE-3.9-10.1-4.5-3.9 -1.7 MAX2.2-7.51.7-0.7 AVE-4.6-10.9-5.4-4.5-2.5 LINEAR YZ-plane Efficiency POLARIZATION 2400 ZX-plane MHz 2442MHz 2484 MHz Condition2 : L2 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm [dBi][dB] hor.ver.hor.ver. MAX-0.5-8.00.5-3.0 AVE-5.2-13.0-5.3-5.8-2.8 MAX0.6-6.51.5-1.7 AVE-4.1-11.6-4.1-4.4 -1.7 MAX-0.5-7.80.5-2.6 AVE-5.1-12.4-5.2-5.3-2.6 MHz 2442MHz 2484 MHz LINEAR YZ-plane Efficiency POLARIZATION 2400 ZX-plane Condition3 : L3 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm [dBi][dB] hor.ver.hor.ver. MAX0.6-8.61.2-1.7 AVE-4.4-12.5-5.0-4.4-2.5 MAX1.0-7.11.5-0.9 AVE-4.0-11.7-4.7-3.7 -1.8 MAX-0.4-8.00.0-1.9 AVE-5.3-12.7-6.2-4.8-2.7 MHz 2442MHz 2484 MHz LINEAR YZ-plane Efficiency POLARIZATION 2400 ZX-plane Condition4 : L4 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm [dBi][dB] hor.ver.hor.ver. MAX-0.9-10.6-3.3-1.8 AVE-4.0-13.5-9.5-4.1-3.0 MAX-0.7-10.5-2.3-1.1 AVE-3.2-13.1-8.6-3.3 -2.3 MAX-0.9-11.2-2.4-1.4 AVE-3.8-13.8-9.1-3.9-2.9 LINEAR YZ-plane Efficiency POLARIZATION 2400 ZX-plane MHz 2442MHz 2484 MHz TDSK 0703-SE_BT/WLAN_6Location May 08, 200 8 Murata Proprietary, Murata Confidential - 11 - Condition5 : L5 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm [dBi][dB] hor.ver.hor.ver. MAX0.4-7.5-1.6-0.4 AVE-3.4-10.1-8.0-3.2-2.1 MAX0.7-6.6-1.30.2 AVE-3.0-9.6-7.3-2.6 -1.6 MAX-0.5-7.4-2.0-0.5 AVE-3.6-10.4-7.9-3.2-2.2 MHz 2442MHz 2484 MHz LINEAR YZ-plane Efficiency POLARIZATION 2400 ZX-plane Condition6 : L6 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm [dBi][dB] hor.ver.hor.ver. MAX-0.9-7.6-2.6-1.7 AVE-4.9-10.8-8.7-4.5-3.0 MAX0.0-6.2-1.1-0.3 AVE-3.7-9.7-7.5-3.3 -2.0 MAX-1.1-7.9-2.0-1.0 AVE-4.7-10.8-8.5-4.3-2.9 LINEAR YZ-plane Efficiency POLARIZATION 2400 ZX-plane MHz 2442MHz 2484 MHz TDSK 0703-SE_BT/WLAN_6Location May 08, 200 8 Murata Proprietary, Murata Confidential - 12 - Radiation Pattern Condition1 : L1 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm YZ planeZX plane HOR.VER.HOR.VER. MAX2.9-6.5MAX2.5-0.4 AVE-3.9-10.1AVE-4.5-3.9 -30 -25 -20 -15 -10 -5 0 0 90 180 270 horizontal vertical -30 -25 -20 -15 -10 -5 0 0 90 180 270 horizontal vertical Condition2 : L2 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm YZ planeZX plane HOR.VER.HOR.VER. MAX0.6-6.5MAX1.5-1.7 AVE-4.1-11.6AVE-4.1-4.4 -30 -25 -20 -15 -10 -5 0 0 90 180 270 horizontal vertical -30 -25 -20 -15 -10 -5 0 0 90 180 270 horizontal vertical TDSK 0703-SE_BT/WLAN_6Location May 08, 200 8 Murata Proprietary, Murata Confidential - 13 - Condition3 : L3 Layout / Original Antenna 2x9.8xt3.8mm(L turn) / PWB 37x80mm YZ planeZX plane HOR.VE…

Text truncated - open the document above for the full version.

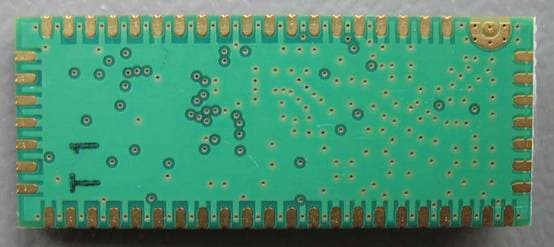

WT41-A External Photos

WT41-N External Photos

Bluegiga Technologies Sinikalliontie 5A, P.O. Box 120 02630 Espoo FINLAND Tel +358 9 435 5060 | Fax +358 9 435 50660 Co ID 0934238-1, VAT registered, domicile: Espoo www.bluegiga.com | [email protected] FCC ID Label for WT41 FCC ID: QOQWT41 IC: 5123A-BGTWT41

WT41-A Internal Photos

WT41-N Internal Photos

MPE Calculation OET Bulletin No. 65, Supplement C 01-01 47 CFR §§1.1307 and 2.1091 2.1091 Radio frequency radiation exposure evaluation: mobile devices. A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. In this context, the term ‘‘fixed location’’ means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 centimetre separation requirement. Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Maximum peak output power at the antenna terminal: 13.8 dBm Maximum peak output power at the antenna terminal: 24 mW Antenna gain (typical): 2.3 dBi Maximum antenna gain: 1.7 numeric Prediction distance: 20 cm Prediction frequency: 2402 MHz 2 4R PG S π = Result Prediction Frequency (MHz) Maximum allowable antenna gain: (dBi) Power density (S) at prediction frequency: (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: (mW/cm 2 ) Result 2480 2.3 0.008 1 Pass

Total number of pages : 171 TRaC Wireless Test Report : 9F2925WUS2 Applicant : Bluegiga Apparatus : WT41 Bluetooth Module Specification(s) : CFR47 Part 15.247 July 2008 FCCID : QOQWT41 IC ID : 5123A-BGTWT41 Purpose of Test :Certification Authorised by : : Radio Product Manager Issue Date :11 th March 2011 Authorised Copy Number : PDF Radio Test Report: 9F2925WUS2 Contents Section 1:Introduction 3 1.1General 3 1.2Tests Requested By 4 1.3Manufacturer 4 1.4Apparatus Assessed 4 1.5Test Result Summary 5 1.6Notes Relating To The Assessment 6 1.7Deviations from Test Standards 6 Section 2:Measurement Uncertainty 7 2.1Application of Measurement Uncertainty 7 2.2Measurement Uncertainty Values 8 Section 3:Modifications 9 3.1Modifications Performed During Assessment 9 Appendix A: Formal Emission Test Results 10 A1Transmitter Peak Output Power 11 A2RF Antenna Conducted Spurious Emissions 12 A3Radiated Electric Field Emissions within the Restricted Bands of 15.205 14 A420 dB Bandwidth 29 A5Carrier Frequency Separation 30 A6Hopping frequencies 31 A7Channel Occupancy 32 A8Antenna Gain 33 A9Unintentional Radiated Electric Field Emissions - 15.109 34 A10Power Line Conducted Emissions 36 Appendix B: Supporting Graphical Data 41 Appendix C: Additional Test and Sample Details 138 Appendix D: Additional Information 145 Appendix E: Calculation of the duty cycle correction factor 161 Appendix F: Photographs and Figures 162 2 Radio Test Report: 9F2925WUS2 Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Telecoms & Radio [ X ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Telecoms & Radio [ ] Moss View Nipe Lane Up Holland West Lancashire, WN8 9PY United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: Geoff Cruickshank Report author: Geoff Cruickshank This report must not be reproduced except in full without prior written permission from TRaC Telecoms & Radio. 3 Radio Test Report: 9F2925WUS2 1.2 Tests Requested By This testing in this report was requested by : Bluegiga Sinikalliontie 5A Espoo FIN-02630 Finland 1.3 Manufacturer as above 1.4 Apparatus Assessed The following apparatus was assessed between WT41 Bluetooth Module The above equipment was a FHSS transmitter operating in the 2400 MHz to 2483.5 MHz band and is a Bluetooth module, designed for use internal to a laptop and used to enable Bluetooth wireless communication within personal computers and laptops. This report covers 2 variants, the WT41-N which was tested with an external Pulse W1010 antenna and the WT41-A tested with a Murata ANGC12G44SAA145 PCB Chip antenna. Data sheets of these antennas are reproduced in Appendix D of this report. 4 Radio Test Report: 9F2925WUS2 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Regulation Measurement standard Result Radiated spurious emissions (Restricted bands) Title 47 of the CFR: Part 15 Subpart (c) 15.247 ANSI C63.10 PASS Conducted spurious emissions (Non-restricted bands) Title 47 of the CFR: Part 15 Subpart (c) 15.247 ANSI C63.10 PASS AC Power conducted emissions Title 47 of the CFR: Part 15 Subpart (c) 15.207 ANSI C63.10 PASS 20dB Bandwidth and Channel Spacing Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1)(i) ANSI C63.10 PASS Conducted Carrier Power Title 47 of the CFR : Part 15 Subpart (c) 15.247(b)(2) ANSI C63.10 PASS Hopping Frequencies Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1) ANSI C63.10 PASS Channel Occupancy Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1)(i) ANSI C63.10 PASS Unintentional Radiated Spurious Emissions Title 47 of the CFR: Part 15 Subpart (b) 15.109 ANSI C63.10 PASS Abbreviations used in the above table: Mod : Modification CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions 5 Radio Test Report: 9F2925WUS2 1.6Notes Relating To The Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methods and susceptibility criteria defined in this report. All testing with the exception of testing at the Open Area Test Site was performed under the following environmental conditions: Temperature : 17 to 23 C Humidity : 45 to 75 % Barometric Pressure : 86 to 106 kPa All dates used in this report are in the format dd/mm/yy. This assessment has been performed in accordance with the requirements of ISO/IEC 17025. 1.7 Deviations from Test Standards There were no deviations from the standards tested…

Text truncated - open the document above for the full version.

Radio Test Report: 9F2925WUS2 Appendix C: Additional Test and Sample Details This appendix contains details of: 1. The samples submitted for testing. 2. Details of EUT operating mode(s) 3. Details of EUT configuration(s) (see below). 4. EUT arrangement (see below). Throughout testing, the following numbering system is used to identify the sample and it's modification state: Sample No: Sxx Mod w where: xx = sample number eg. S01 w = modification number eg. Mod 2 The following terminology is used throughout the test report: Support Equipment (SE) is any additional equipment required to exercise the EUT in the applicable operating mode. Where relevant SE is divided into two categories: SE in test environment: The SE is positioned in the test environment and is not isolated from the EUT (e.g. on the table top during REFE testing). SE isolated from the EUT: The SE is isolated via filtering from the EUT. (e.g. equipment placed externally to the ALSR during REFE testing). EUT configuration refers to the internal set-up of the EUT. It may include for example: Positioning of cards in a chassis. Setting of any internal switches. Circuit board jumper settings. Alternative internal power supplies. Where no change in EUT configuration is possible, the configuration is described as “single possible configuration”. EUT arrangement refers to the termination of EUT ports / connection of support equipment, and where relevant, the relative positioning of samples (EUT and SE) in the test environment. For further details of the test procedures and general test set ups used during testing please refer to the related document "EMC Test Methods - An Overview", which can be supplied by TRaC Telecoms & Radio upon request. 138 Radio Test Report: 9F2925WUS2 C1) Test samples The following samples of the apparatus were submitted by the client for testing : Sample No. Description Identification S18 WT41-A (Conducted Sample) None S20 WT41-A with PCB antenna Murata ANGC12G44SAA145 S/N: 101206 S21 WT41-N antenna with external Pulse W1010 S/N: 101202 See Appendix D for antenna data sheets The following samples of apparatus were supplied by TRaC Telecoms & Radio as support or drive equipment (auxiliary equipment): Identification Description RFG464 dc Power Supply REF829 N4010A Wireless connectivity Test Set 139 Radio Test Report: 9F2925WUS2 C2) EUT Operating Mode During Testing. During testing, the EUT was exercised as described in the following tables : Test Description of Operating Mode All Transmitter tests detailed in this report EUT active transmitting, operating at 1Mbps, 2Mbps and 3Mbps data rates and on highest middle and lowest operating frequencies at each data rate. Test Description of Operating Mode: Receiver conducted and radiated spurious emissions EUT active but non-transmitting. 140 Radio Test Report: 9F2925WUS2 C3) EUT Configuration Information. The EUT was submitted for testing in one single possible configuration. 141 Radio Test Report: 9F2925WUS2 C4) List of EUT Ports The tables below describe the termination of EUT ports: Sample : S18 Tests : Conducted Port Description of Cable Attached Cable length Equipment Connected Antenna None N/A REF909 dc Power Port 2 core unscreened 2m REF053 Sample : S20 Tests : Radiated Emissions Port Description of Cable Attached Cable length Equipment Connected dc Power Port 2 core unscreened 2m RFG464 Sample : S21 Tests : Radiated Emissions Port Description of Cable Attached Cable length Equipment Connected Antenna None N/A dc Power Port 2 core unscreened 2m RFG464 * Only connected during setup. 142 Radio Test Report: 9F2925WUS2 C5 Details of Equipment Used For Radiated Measurements: For Radiated TX and Standby/RX spurious emissions 30MHz to 1GHz RFG No Type Description Manufacturer Date Calibrated. REF886 Lab 16 Large Anechoic Chamber TRaC 10/06/10 095 96002 Bicon Antena (30-200MHz) Eaton 12/05/10 191 3146 Log Periodic Antenna (200-1000MHz) EMCO 12/05/10 673 310 Pre-Amp (9kHz-1GHz) Sonoma 14/09/10 REF847 ESU Spectrum Analyser R&S 14/06/10 454 HF RF coaxial cable Teledyne Reynolds 04/05/10 REF881 HF RF coaxial cable Teledyne Reynolds 10/06/10 REF882 HF RF coaxial cable Teledyne Reynolds 10/06/10 REF884 HF RF coaxial cable Teledyne Reynolds 10/06/10 464 6220B dc Power Supply HP N/A REF883 HF RF coaxial cable 10/06/10 REF829 N4010A Wireless connectivity Test Set Agilent 02/03/11 Radiated TX and Standby/RX spurious emissions 1GHz to 12.75GHz RFG No Type Description Manufacturer Date Calibrated REF886 Lab 16 Large Anechoic Chamber TRaC 10/06/10 REF880 HL050 Log Perodic Antenna (1-26.5GHz) R&S 14/05/10 307 HP8449B Microwave Pre-Amp (1-26.5GHz) HP 01/03/10 REF847 ESU Spectrum Analyser R&S 14/06/10 454 HF RF coaxial cable Teledyne Reynolds 04/05/10 REF881 HF RF coaxial cable Teledyne Reynolds 10/06/10 REF882 HF RF coaxial cable Teledyne Reynolds 10/06/10 REF884 HF RF coaxial cable Teledyne Reynolds 10/06/10 464 6220B dc Power Supply HP N/A REF883 HF RF coaxial cable 10/06/10 REF829 N4010A Wireless connectivity Test Set Agilent 02/03/11 For Conducted Measurements RFG No Type Description Manufacturer Date Calibrated REF909 FSU Spectrum Analyser R&S 14/06/10 REF053 6634A dc Power Supply HP Cal before Use REF887 34405A DMM Agilent 25/08/10 143 Radio Test Report: 9F2925WUS2 For Power Line Conducted Measurements RFG No Type Description Manufacturer Date Calibrated 404 E4407B Spectrum Analyser Agilent 10/05/10 125 ESHS10 Test receiver R&S 23/11/10 232 ESH2-Z5 LISN R&S 22/05/10 674 0357.8810.54 Pulse Limiter R&S 08/07/11 296 BNC Cable TRaC 17/09/10 298 BNC Cable TRaC 17/09/10 144 Radio Test Report: 9F2925WUS2 Appendix D: Additional Information Data Sheet for Pulse W1010 antenna (WT41-N) 145 Radio Test Report: 9F2925WUS2 146 Radio Test Report: 9F2925WUS2 Data Sheet for Murata ANGC12G44SAA145 antenna (WT41-A) 147 Radio Test Report: 9F2925WUS2 148 Radio Test Report: 9F2925WUS2 149 Radio Test Report: 9F2925WUS2 150 Radio Test Report: 9F2925WUS2 151 Radio Test Report: 9F2925WUS2 152 Radio Tes…

Text truncated - open the document above for the full version.
