WT41-E DATA SHEET Friday, 09 September 2011 Version 1.1 Bluegiga Technologies Oy Copyright © 2000-2011 Bluegiga Technologies All rights reserved. Bluegiga Technologies assumes no responsibility for any errors which may appear in this manual. Furthermore, Bluegiga Technologies reserves the right to alter the hardware, software, and/or specifications detailed here at any time without notice and does not make any commitment to update the information contained here. Bluegiga’s products are not authorized for use as critical components in life support devices or systems. The WRAP is a registered trademark of Bluegiga Technologies The Bluetooth trademark is owned by the Bluetooth SIG Inc., USA and is licensed to Bluegiga Technologies. All other trademarks listed herein are owned by their respective owners. Bluegiga Technologies Oy VERSION HISTORY Version Comment 1.1 Power vs supply voltage figure added 1.0 Release Bluegiga Technologies Oy TABLE OF CONTENTS WT41-E ................................................................................................................................................................ 1 Data Sheet ........................................................................................................................................................... 1 1 Ordering Information..................................................................................................................................... 7 2 Pinout and Terminal Description .................................................................................................................. 8 3 Electrical Characteristics ............................................................................................................................ 11 3.1 Absolute Maximum Ratings ................................................................................................................ 11 3.2 Recommended Operating Conditions ................................................................................................. 11 3.3 PIO Current Sink and Source Capability ............................................................................................. 11 3.4 Transmitter Performance For BDR ..................................................................................................... 12 3.5 Radiated Spurious Emissions ............................................................................................................. 13 3.6 Receiver Performance ........................................................................................................................ 14 3.7 Current Consumption .......................................................................................................................... 14 3.8 Antenna Specification ......................................................................................................................... 15 4 Layout Guidelines ....................................................................................................................................... 18 5 UART Interface ........................................................................................................................................... 19 5.1 UART Bypass ...................................................................................................................................... 21 5.2 UART Configuration While Reset is Active ......................................................................................... 21 5.3 UART Bypass Mode ............................................................................................................................ 21 6 USB Interface ............................................................................................................................................. 22 6.1 USB Data Connections ....................................................................................................................... 22 6.2 USB Pull-Up resistor ........................................................................................................................... 22 6.3 USB Power Supply .............................................................................................................................. 22 6.4 Self-Powered Mode ............................................................................................................................. 22 6.5 Bus-Powered Mode ............................................................................................................................. 23 6.6 USB Suspend Current ......................................................................................................................... 24 6.7 USB Detach and Wake-Up Signaling ................................................................................................. 24 6.8 USB Driver .......................................................................................................................................... 25 6.9 USB v2.0 Compliance and Compatibility ............................................................................................ 25 7 Serial Peripheral Interface (SPI) ................................................................................................................. 26 8 PCM Codec Interface ................................................................................................................................. 27 8.1 PCM Interface Master/Slave ............................................................................................................... 27 8.2 Long Frame Sync ................................................................................................................................ 28 8.3 Short Frame Sync ............................................................................................................................... 28 8.4 Multi-slot Operation .................................…

Text truncated - open the document above for the full version.

Bluegiga Technologies Sinikalliontie 5A, P.O. Box 120 02630 Espoo FINLAND Tel +358 9 435 5060 | Fax +358 9 435 50660 Co ID 0934238-1, VAT registered, domicile: Espoo www.bluegiga.com | [email protected] MODULAR APPROVAL REQUEST 2.9.2011 RE: FCC Modular Approval FCC ID: QOQWT41E Dear Application Examiner Bluegiga Technologies Oy / Bluetooth module, FCC ID: QOQWT41, would like to have your authorization as a modular approval. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. The modular transmitter must have its own RF shielding. The module has its own RF shielding The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation. The module has buffered data inputs integrated to Blucore4 chip The modular transmitter must have its own power supply regulation. The module has its own power supply regulation integrated to the Bluecore4 chip The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved The module has a unique RF coupler for an external antenna. Bluegiga Technologies Sinikalliontie 5A, P.O. Box 120 02630 Espoo FINLAND Tel +358 9 435 5060 | Fax +358 9 435 50660 Co ID 0934238-1, VAT registered, domicile: Espoo www.bluegiga.com | [email protected] with the module, either at the time of initial authorization or through a Class II permissive change. The “professional installation” provision of Section 15.203 may not be applied to modules. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the ransmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). The module was tested in a stand alone configuration using a test kit. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not Please see exhibition label sample for the FCC ID of this module. And also in the Bluegiga Technologies Sinikalliontie 5A, P.O. Box 120 02630 Espoo FINLAND Tel +358 9 435 5060 | Fax +358 9 435 50660 Co ID 0934238-1, VAT registered, domicile: Espoo www.bluegiga.com | [email protected] visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. exhibition User manual, there are instructions to give to the OEM on how to label the end product. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, The module is compliant with all applicable FCC rules. Detailed instructions for remaining compliance are given in the User Manual (datasheet).

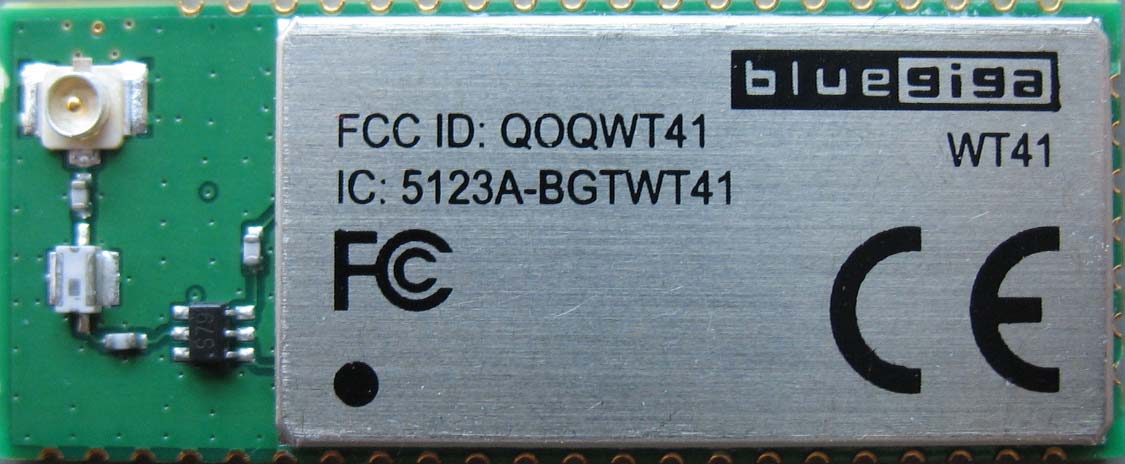

Bluegiga Technologies Sinikalliontie 5A, P.O. Box 120 02630 Espoo FINLAND Tel +358 9 435 5060 | Fax +358 9 435 50660 Co ID 0934238-1, VAT registered, domicile: Espoo www.bluegiga.com | [email protected] WT41-A TOP VIEW WT41-E BOTTOM VIEW

Bluegiga Technologies Sinikalliontie 5A, P.O. Box 120 02630 Espoo FINLAND Tel +358 9 435 5060 | Fax +358 9 435 50660 Co ID 0934238-1, VAT registered, domicile: Espoo www.bluegiga.com | [email protected] FCC ID Label for WT41-E BLED112 Model:WT41‐E IC: 5123A‐BGTWT41E FCC ID: QOQWT41E

Bluegiga Technologies Sinikalliontie 5A, P.O. Box 120 02630 Espoo FINLAND Tel +358 9 435 5060 | Fax +358 9 435 50660 Co ID 0934238-1, VAT registered, domicile: Espoo www.bluegiga.com | [email protected] WT41-A TOP VIEW WT41-E BOTTOM VIEW Bluegiga Technologies Sinikalliontie 5A, P.O. Box 120 02630 Espoo FINLAND Tel +358 9 435 5060 | Fax +358 9 435 50660 Co ID 0934238-1, VAT registered, domicile: Espoo www.bluegiga.com | [email protected] WT41-E INTERNAL VIEW

1 (1) SGS Fimko Ltd Särkiniementie 3, PO Box 30 FI-00211 Helsinki, Finland t. +358 9 696 361 f. +358 9 692 5474 www.fi.sgs.com Business ID 0978538-5 Member of the SGS Group (SGS SA) RF EXPOSURE ANALYSIS Product FCC ID IC number Bluetooth module QOQWT41E 5123A-BGTWT41E WT41-E is a class 1 Bluetooth module containing all the necessary elements from Bluetooth® radio to antenna and a fully implemented protocol stack. Therefore WT41 provides an ideal solution for developers who want to integrate Bluetooth technology into their design. Module can be operated with batteries or DC power supply. Analysis for FCC The equipment transmits in the 2 402 – 2 480 MHz frequency range and therefore the applicable threshold is calculated as stated in FCC document KDB 447498 by using the formula f 60 (where f is a highest frequency in used) mW19.24 48.2 60 = Output power considerations: Max. E.I.R.P value: 18.08 dBm = 64.3 mW (Value is taken from the test report number: 264152-11. Value contains conducted output power and antenna gain.) RF exposure evaluation: 22 4 ... 4R PRIE R GP S  =  = E.I.R.P (dB) E.I.P.R (mW) Evaluation distance (cm) S – power density (mW/cm 2 ) 18.0864.3200.021 Analysis for IC According to standard RSS-102, RF exposure analysis is required for devices operating at or above 1.5 GHz if the maximum E.I.R.P. of the device is 5.0 W or more. Therefore RF exposure analysis is not required for this device. Result: Equipment complies with the FCC and IC limits for maximum permissible exposure

Reference number: 264152-11 Page 2 of 141 Table of Contents PRODUCT DESCRIPTION 3 Equipment Under Test (EUT) 3 Description of the EUT 3 Ratings and declarations 3 P ower Supply 3 Mechanical Size of the EUT 4 Peripherals 4 Samples 4 GENERAL REMARKS 5 Disclaimer 5 SUMMARY OF TESTING 6 EUT Test Conditions During Testing 6 TEST RESULTS 7 Maximum Peak Conducted Output Power 7 Transmitter Radiated Emissions 30 – 1000 MHz 17 Transmitter Radiated Emissions 1 000 – 26 500 MHz 27 Transmitter Band Edge Measurement and Conducted Spurious Emissions 61 20 dB Bandwidth of the Hopping Channel 104 Hopping Channel Carrier Frequencies Separation 114 Number of Hopping Channels 118 Average Time of Occupancy of Hopping Frequency 124 99% Occupied Bandwidth 127 Receiver Radiated Emissions 30 – 26 500 MHz 137 Conducted emissions 140 LIST OF TEST EQUIPMENTS 141 Reference number: 264152-11 Page 3 of 141 Product Description PRODUCT DESCRIPTION Equipment Under Test (EUT) Bluetooth module Model: WT41-E Type: - Serial no: - HW version: - SW version: - FCC ID number: QOQWT41-E Industry Canada number: 5123A-BGTWT41E Description of the EUT WT41-E is a class 1 Bluetooth module containing all the necessary elements from Bluetooth® radio to antenna and a fully implemented protocol stack. Therefore WT41 provides an ideal solution for developers who want to integrate Bluetooth technology into their design. Module can be operated with batteries or DC power supply. Classification of the device Fixed device Mobile Device (Human body distance > 20cm) Portable Device (Human body distance < 20cm) Modifications Incorporated in the EUT No modifications were applied to the EUT during testing Ratings and declarations Operating Frequency Range (OFR): 2402 – 2480 MHz Channels: 79 Channel separation: 1 MHz Channel bandwidth (20dB): 1.391 MHz Conducted power: 15.94 dBm (64.39mW) Transmission technique: FHSS Modulation: GFSK, G/4 DQPSK, 8DPSK Antenna connector type U.FL Antenna gain: 2.14 dBi Power Supply Battery or DC operated Operating voltage range 2,0 – 3,6 VDC Normal input voltage: 3.0 V Tested by using external power supply and 3.0 VDC voltage level Reference number: 264152-11 Page 4 of 141 Product Description Mechanical Size of the EUT Height: 5.65 mm Width: 14.0 mm Depth: 35.3 mm Peripherals Peripheral DC power supply Thandar TS3021S. Samples All tests were performed to one sample. No modifications were done during the tests. Reference number: 264152-11 Page 5 of 141 General remarks GENERAL REMARKS Disclaimer This test report is issued under SGS Fimko general terms of delivery (available on request and accessible at www.fi.sgs.com ). Attention is drawn to the limitations of liability, indemnification and jurisdictional issues defined therein. Unless otherwise stated: (a) the results shown in this document refer only to the sample(s) tested and (b) such sample(s) are retained for three months. This document cannot be reproduced except in full, without prior approval of SGS Fimko. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law Reference number: 264152-11 Page 6 of 141 Summary of Testing SUMMARY OF TESTING Test SpecificationDescription of TestResult 15.247(a)(1) / RSS-210 A8.1 Hopping Channel Carrier Frequency Separation PASS §15.247(a)(1)(iii) / RSS-210 A8.1 Number of Hopping Frequencies PASS §15.247(a)(1)(iii) / RSS-210 A8.1 Average Time of Occupancy of Hopping Frequency PASS §15.247(b)(1) / RSS-210 A8.4 Maximum Peak Conducted Output Power PASS §15.247(a)(1) / RSS-210 A8.1 20 dB Bandwidth PASS RSS-GEN 4.6.1 99% Occupied Bandwidth PASS §15.247(d) / / RSS-210 A8.5 100 kHz Bandwidth of Frequency Band Edges and Conducted Spurious Emissions PASS §15.209(a) §15.247(d) / RSS-210 A8.5 Radiated Emissions Within The Restricted Bands PASS §15.109 RSS-GEN 7.2.3.2 Unintentional Radiated Emissions PASS §15.207 RSS-GEN 7.2.2 Conducted emissions PASS EUT Test Conditions During Testing The EUT was in continuous transmit mode during all the tests. The hopping was stopped and the EUT was configured into the wanted channel. Normal modulation and duty cycle was applied in all the tests. Following channels were used during the tests when the hopping was stopped: Channel LOW (CH 1) = 2402 MHz Channel MID (CH 40) = 2441 MHz Channel HIGH (CH 79) = 2480 MHz Test Facility Testing Location / address: FCC registration number: 90598 SGS Fimko Ltd Särkiniementie 3 FI-00210, HELSINKI FINLAND Testing Location / address: FCC registration number: 178986 Industry Canada registration number: 8708A-2 SGS Fimko Ltd Karakaarenkuja 4 FI-02610, ESPOO FINLAND Reference number: 264152-11 Page 7 of 141 Conducted Output Power Test TEST RESULTS Maximum Peak Conducted Output Power Standard: ANSI C63.10 (2009) Tested by: JJM Date: 24.5.2011 Humidity: 37 % Temperature: 21 °C Measurement uncertainty ±2,87dB Level of confidence 95 % (k = 2) FCC Rule: 15.247(b) (1) For frequency hopping systems operating in the 2400-2483.5 MHz, employing at least 75 channels limit is 1.0 Watt. Maximum Conducted Output Power is defined as the total transmit power delivered to all antennas and antenna elements averaged across all symbols in the signalling alphabet when the transmitter is operating at its maximum power control level. Power must be summed across all antennas and antenna elements. The average must not include any time intervals during which the transmitter is off or is transmitting at a reduced power level. If multiple modes of operation are possible (e.g., alternative modulation methods), the maximum conducted output power is the highest total transmit power occurring in any mode. Results: 1 Mbps ChannelConducted Power [dBm] Limit [dBm]Margin [dBm]Result Low 15.34 30 14.66 PASS Mid 15.64 30 14.36 PASS High 15.94 30 14.06 PASS 2 Mbps ChannelConducted Power [dBm] Limit [dBm]Margin [dBm]Result Low 14.19 30 15.81 PASS Mid 14.17 30 15.83 PASS High 13.72 30 16.28 PASS 3…

Text truncated - open the document above for the full version.

1 (3) 2.9.2011 Test setup photographs. Bluetooth module WT41-E Bluegiga Technologies Oy Radiated emissions test setup. 2 (3) 2.9.2011 Radiated emissions test setup. 3 (3) 2.9.2011 Conducted emission test setup.
