QQ6-CR201Model: CR2 - Handheld Barcode Reader

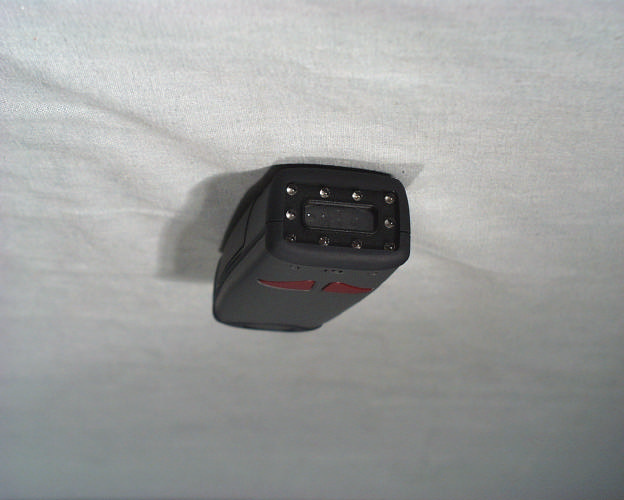

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7847 FCC ID: QQ6-CR201 Page 57 of 64 Front View of the CR2 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7847 FCC ID: QQ6-CR201 Page 58 of 64 Back View of the CR2

ESN #: 00100029 Model #: CR201 FCC ID: QQ6 - CR201 Manufactured in Thailand

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7847 FCC ID: QQ6-CR201 Page 59 of 64 Top view of main board with RF board attached COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7847 FCC ID: QQ6-CR201 Page 60 of 64 Top view of main board COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7847 FCC ID: QQ6-CR201 Page 61 of 64 Bottom view of main board COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7847 FCC ID: QQ6-CR201 Page 62 of 64 Side A of the CR2 RF PCB with shield COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7847 FCC ID: QQ6-CR201 Page 63 of 64 Side A of the CR2 RF PCB with shield removed COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7847 FCC ID: QQ6-CR201 Page 64 of 64 Side B of the CR2 RF PCB

TEST REPORT FROM: COMMUNICATION CERTIFICATION LABORATORY 1940 W. Alexander Street Salt Lake City, Utah 84119-2039 Type of Report: Certification TEST OF: CR2 FCC ID: QQ6-CR201 To FCC PART 15.247, Subpart C Test Report Serial No: 73-7847 Applicant: Code Corporation 11814 S Election Rd Suite 200 Draper, UT 84020 Date of Test: February 6, 2003 Issue Date: March 6, 2003 Equipment Receipt Date: February 6, 2003 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7847 FCC ID: QQ6-CR201 Page 1 of 65 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to determine compliance of the device described below with the requirements of FCC PART 15.247, Subpart C. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Code Corporation - Manufacturer: Code Corporation - Brand Name: Code Reader 2 - Model Number: CR2 - FCC ID: QQ6-CR201 On this 6 th day of March 2003, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. COMMUNICATION CERTIFICATION LABORATORY Tested by: Jeffrey L. Draney EMC Technician COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7847 FCC ID: QQ6-CR201 Page 2 of 65 TABLE OF CONTENTS PAGE SECTION 1. CLIENT INFORMATION AND MANUFACTURER:............3 SECTION 2. EQUIPMENT UNDER TEST (EUT)......................4 SECTION 3. TEST SPECIFICATION, METHODS & PROCEDURES........7 SECTION 4. OPERATION OF EUT DURING TESTING................13 SECTION 5. SUMMARY OF TEST RESULTS:.......................14 SECTION 6. MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS:...............................................15 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT..............48 APPENDIX 2 Photographs.....................................56 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7847 FCC ID: QQ6-CR201 Page 3 of 65 SECTION 1. CLIENT INFORMATION AND MANUFACTURER: 1.1 Applicant: Company Name: Code Corporation 11814 S Election Rd Suite 200 Draper, UT 84020 Contact Name: Kevin Marriott Title: Design Engineer 1.2 Manufacturer: Company Name: Stars Microelectronics Co. Ltd 586 Moo 2 Bang-Pa In District EPZ Ayutthaya 13160 Thailand COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7847 FCC ID: QQ6-CR201 Page 4 of 65 SECTION 2. EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Trade Name: Code Corporation Model Name or Number: CR2 Serial Number: N/A Options Fitted: None 2.2 Description of EUT: The CR2 is a handheld barcode reader. The barcode information is transmitted to the host computer through a USB, RS-232 serial, or a Bluetooth radio. The CR2 is powered from a rechargeable battery or through the computers USB port or serial cable (with external power adapter). This report covers the transmitter only. The receiver and class B computer peripheral are covered under a separate declaration of conformity report. 2.3 Modification Incorporated/Special Accessories on EUT: There were no modifications or special accessories required to comply with the specification. 2.4 EUT and Support Equipment: The FCC ID numbers for all the EUT and support equipment used during the test (including inserted cards) are listed below: Brand Name Model Number FCC ID Number Description Name of Interface Ports / Interface Cables BN: Code Reader 2 MN: CR2 (1) QQ6-CR201 Barcode Reader See Section 2.4. BN: IBM MN: 2640 SN: 78-BDH00 DoC Laptop Computer Parallel/Printer Com1/CR2 (2) USB/CR2 (2) COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7847 FCC ID: QQ6-CR201 Page 5 of 65 Note: (1) EUT. (2) Interface port connected to EUT (See Section 2.5) The support equipment listed above was not modified in order to achieve compliance with this standard. 2.5 Interface Ports on EUT: Name of Ports No. of Ports Fitted to EUT. Cable Descriptions/Length USB 1 Connected directly to the radio board for control of the transmitter. Antenna 1 N/A COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7847 FCC ID: QQ6-CR201 Page 6 of 65 2.6 List of Channels: Channel Number Channel Frequency (MHz) Channel Number Channel Frequency (MHz) 1 2402.0 41 2442.0 2 2403.0 42 2443.0 3 2404.0 43 2444.0 4 2405.0 44 2445.0 5 2406.0 45 2446.0 6 2407.0 46 2447.0 7 2408.0 47 2448.0 8 2409.0 48 2449.0 9 2410.0 49 2450.0 10 2411.0 50 2451.0 11 2412.0 51 2452.0 12 2413.0 52 2453.0 13 2414.0 53 2454.0 14 2415.0 54 2455.0 15 2416.0 55 2456.0 16 2417.0 56 2457.0 17 2418.0 57 2458.0 18 2419.0 58 2459.0 19 2420.0 59 2460.0 20 2421.0 60 2461.0 21 2422.0 61 2462.0 22 2423.0 62 2463.0 23 2424.0 63 2464.0 24 2425.0 64 2465.0 25 2426.0 65 2466.0 26 2427.0 66 2467.0 27 2428.0 67 2468.0 28 2429.0 68 2469.0 29 2430.0 69 2470.0 30 2431.0 70 2471.0 31 2432.0 71 2472.0 32 2433.0 72 2473.0 33 2434.0 73 2474.0 34 2435.0 74 2475.0 35 2436.0 75 2476.0 36 2437.0 76 2477.0 37 2438.0 77 2478.0 38 2439.0 78 2479.0 39 2440.0 79 2480.0 40 2441.0 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7847 FCC ID: QQ6-CR201 Page 7 of 65 SECTION 3. TEST SPECIFICATION, METHODS & PROCEDURES 3.1 Test Specification: Title: FCC PART 15.247, Subpart C (47 CFR 15). Limits and methods of measurement of radio interference characteristics of radio frequency devices. Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. Purpose of Test: The tests were performed to demonstrate Initial compliance. 3.2 Methods & Procedures: 3.2.1 § 15.247 (a) Operation under the provisions of this Section is limited to frequency hopping and digitally modulated intentional radiators that comply with the following provisions: (1) Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. The system shall hop to channel frequencies…

Text truncated - open the document above for the full version.

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7847 FCC ID: QQ6-CR201 Page 55 of 64 APPENDIX 2 Photographs Front View of Radiated Test Setup COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7847 FCC ID: QQ6-CR201 Page 56 of 64 Back View Of Radiated Test Setup
