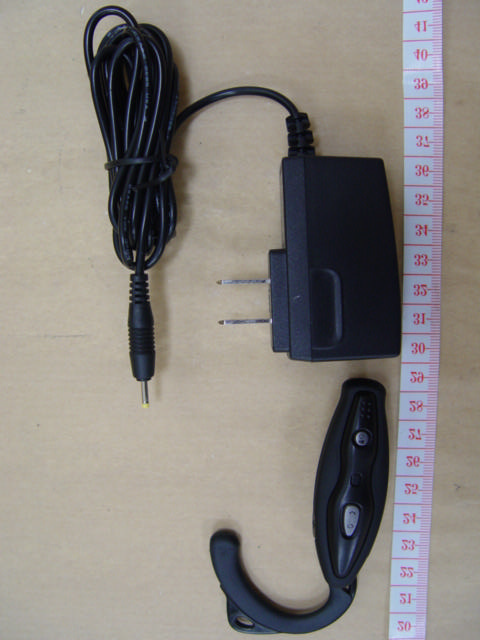

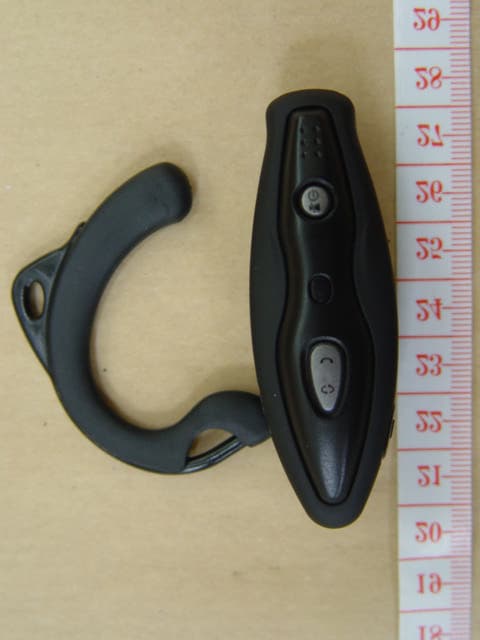

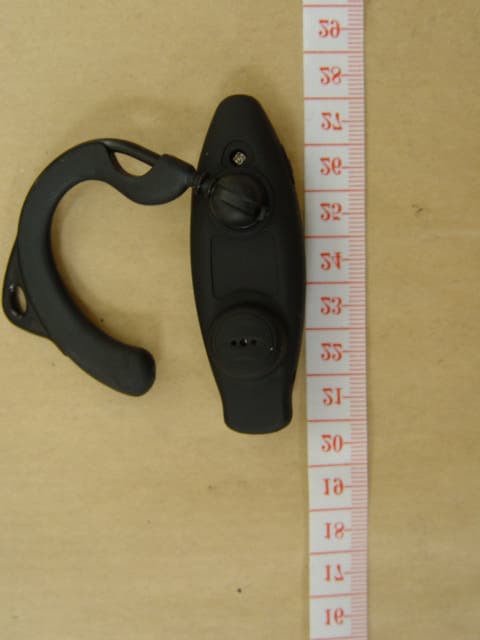

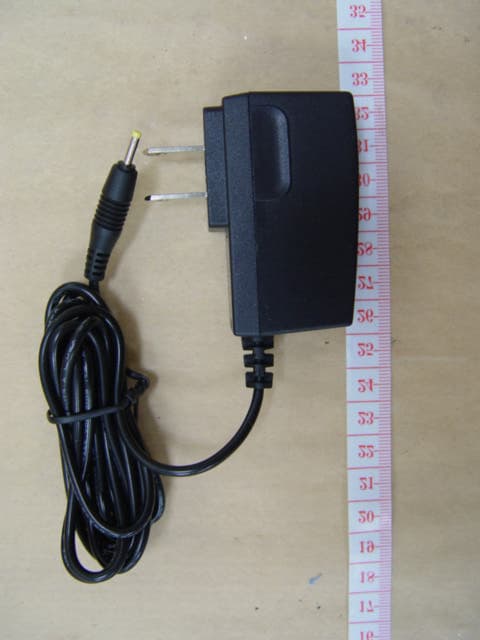

QQGBA2011JBluetooth Headset

Bluetooth Headset Connecting to your life BA-2011-J User Manual Bluetooth Headset The Bluetooth Bluet name and the Bluetooth Bluet trademarks are owned by Bluetooth Bluet SIG, Inc., Printed in Taiwan Table of Contents 1. Introduction .................................................................................. Product Features .................................................................... System Requirements ............................................................ Package Contents .................................................................. Specifications .......................................................................... Supported Profiles .................................................................. 2. Getting to Know your Hands-Free Headset ................................. 3. Before you Begin ......................................................................... 4. Pairing to a Bluetooth Technology-Enabled Phone ..................... 5. Using your Headset ..................................................................... 6. Information ................................................................................... Introduction Congratulations and thank you for purchasing the Bluetooth Headset. The Headset features the breakthrough Bluetooth wireless technology that lets you createefficient communications with your Bluetooth technology-enableddevice. Please review this manual carefully to ensure you get themost from your product. Product Features The Bluetooth Headset is compliant with Bluetooth standard version 1.1 and provides: Support for the Headset and Hands-Free Profiles: Compatibility with Bluetooth technology-enabled devices Built-in security: up to 128-bit encryption and authentication 1 3 2 Introduction System Requirements Compatible with all Bluetooth v1.1, including, but not limited to: Sony Ericsson T610, T616, T618, T68i, P800 Nokia 3650, 3600, 6310, 6310i, 8910, 8910i, 6600, N-Gage. Philips FisioR 820, 825 Ericsson T39m, T68m Package Contents Bluetooth Headset 5V DC, 300mA Power Supply User Manual Specifications Model: BA-2011-J Bluetooth Compliance: Version 1.1 Operating Frequency: 2.4 to 2.4835GHz Spread Spectrum: FHSS (Frequency Hopping Spread Spectrum) Modulation: GFSK (Gussian Frequency Shift Keying) RF Output: 0 dBm, Class 2 Sensitivity: < 0.1% BER at -81 dBm Frequency Stability: +/- 10PPM Operation Range: 10m (33 ft.)* Design: Left and right ear Battery: Rechargeable lithium polymer Battery Supported Profiles Supported Profiles The services supported by your Headset are defined as "Profiles". Available Profiles include: Hands-Free Headset 4 Specifications Antenna: Integrated, 0 +/- adbi LED Indicator: Power/Pairing Charger: 5.0V DC, 300mA Typical Power Consumption: TX: 150mA, Rx 80mA Dimensions: 64mm (L) x 24mm (W) x 21mm (H) Weight: 21 grams * 10m range is dependent upon environment, number of users, and other wireless devices within immediateproximity.Specifications are subject to change without notice. 5 1 1 2 2 3 5 6 8 11 22 25 89 1011 1213 67 Getting to Know your Hands-Free Headset LED Window Talk / End Power On-Off Volume up Volume down Pairing Ear Hook DC Plug Mute Status Indicators Status Indicators LED: 5 quick blue flashes 5 quick red flashes Continues blue/red flashing Flashes blue once every 3 seconds 3 quick blue flashes every 3 seconds Status: Headset is being turned on Headset is being turned off Headset is in pairing mode Headset is paired but not active Headset paired and active Before you Begin Warning: The Bluetooth Hands-Free Headset and charger have magnets in them that allow them to dock with each other. Keep magnets at least two feet away from computer hard drives, and other magnetic storage media, monitors, televisions, VCRs, videotapes, cameras, camera film, and credit cards, as the magnets may corrupt or destroy stored data. Before you Begin Charge your Headset Your Bluetooth Headset is equipped with a rechargeable lithium polymer battery and must be charged prior to use. 1. Plug one end of the power adapter into the Headset and the other end into an available electrical outlet. 2. The charging indicator on the charger will illuminate red. 3. Charge the Headset until the red charger indicator light goes out (approximately two hours). Note: The red indicator light will be on while the Headset is charging and will turn off when charging is complete. Before you Begin Adjust the Earpiece The earpiece was designed to comfortably fit around the left or right ear. Pairing to a Bluetooth Technology-Enabled Phone For specific instructions to pair your phone, find your model on the following pages or refer to your mobile telephone user guide. Note: For security purposes, the Headset will remain in pairing mode for 60 seconds. If the paring process is not completed within 60 seconds, repeat the entire pairing procedure. Pairing to a Bluetooth Technology-Enabled Phone Pairing Process for Nokia 6310 and 6310i 1. Ensure that your Headset is turned off. 2. Press and hold down the Power button. After approximately eight seconds, the blue light will flash five times, indicating the Headset is powered on. DO NOT RELEASE THE BUTTON until you see an alternating blue and red light. This indicates the Headset is in pairing mode. 3. Select "Menu" and then go to "Bluetooth". 4. Make sure your Bluetooth capability is turned ON. 5. Scroll down to "Search for Audio Accessories". 6. Your phone will find the Headset and list it under "Found Devices". Pairing to a Bluetooth Technology-Enabled Phone 7. Select " Headset" to initiate the pairing. 8. Enter the passkey or pin "0000" (four zeros). You should see the LED lights switch from flashing blue/red to flashing blue every three seconds. Your Headset is now ready to use. Switching 1415 1617 1819 2021 Pairing to a Bluetooth Technology-Enabled Phone Pairing Process for Nokia 3650 and N-Gage 1. Ensure that your Headset is turned off. 2. Press and hold down the talk button. Afte…
