J-3 International Holding Co.,LTD Electronic Division 1 Bluetooth Headset User Guide Operation: Turning on the headset Switch on the headset by pressing “Function key” max. 3 seconds and a beep tone with LED flashing indicates the headset is on. Putting HS in Pairing Mode Press and hold the “Function key” for 6 seconds, blinking of red and green LEDs alternately indicates the headset is in Pairing Mode. The default Passkey required for pairing is 0000. If the headset is not successfully paired within the Pairing Timeout (120 seconds) period, it shuts off automatically. Your headset needs to pair with Bluetooth Phone before you use, please refer to your phone manual for user instruction. Answer incoming calls Volume Adjust Charging Status LED MIC Function key Status LED J-3 International Holding Co.,LTD Electronic Division 2 Pressing the “Function key” to answer the call when there is an incoming call present. The green LED will continue to flash fast while the call is in session. Transferring calls Calls can be transferred from phone to the headset OR from the headset to phone. Note: It varies from phone to phone; please refer to your mobile phone user’s manual. Disconnecting calls While a call is in session on the headset, press the “Function key” to disconnect the call. After the call is disconnected, the green LED will flash normally. Putting HS in Standby Mode The headset can be put into Standby Mode in different ways: z Turning on the headset but not going into Pairing Mode z After successfully pairing the headset z Disconnecting from a call Note: The headset can receive incoming calls in Standby Mode. Locally changing the volume on HS Press the Right button upward to increase the listening volume on the headset. Press the Left button downward to decrease the listening volume on the headset. Remotely changing the volume on HS The headset listening volume can be remotely changed by the blue tooth mobile phone. Please refer to you blue tooth mobile phone manual for volume adjusting. Low-battery indication The headset LED will flash red instead of green and a short beep every 30 seconds when the battery is low. Battery recharging Allow approximately 1 hours to fully recharge an empty battery. Li-ion Charger LED indicators: Green: ready for charging/battery is full. Red: charging in progress Turning off the headset Switch off the power by pressing the “Function key” max. 3 seconds, a beep tone and LED off indicate the headset is off. J-3 International Holding Co.,LTD Electronic Division 3 FCC Safety Statements The device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. The radiated output power is far below the FCC radio frequency exposure limits. Nevertheless, this device should be used in such a manner that the potential for human contact during normal operation is minimized. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on , the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The user should not modify or change this equipment without written approval from the manufacture. Modification could void the FCC authorization to use this equipment. Battery Information 1. For the first time use, plug the adaptor plug into the headset’s power jack and charge it at least 4 hours until the charging LED turns off. 2. Only qualified service centers are authorized to remove or replace the battery. 3. The battery can only be charged in a temperature range of –10 ~ 45 . 4. Use the headset in room temperature for maximal battery capacity. 5. Leaving the headset in an environment above 45 for a long period of time may damage the battery. Although it is not harmful to human, it reduces the life span of the battery. This device complies with part 15 of the FCC Rules. Operation is subject to the following two J-3 International Holding Co.,LTD Electronic Division 4 conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.

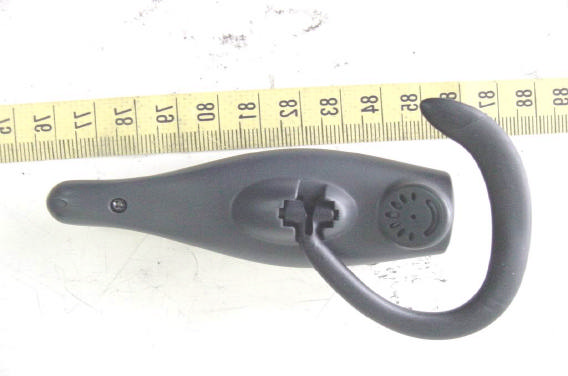

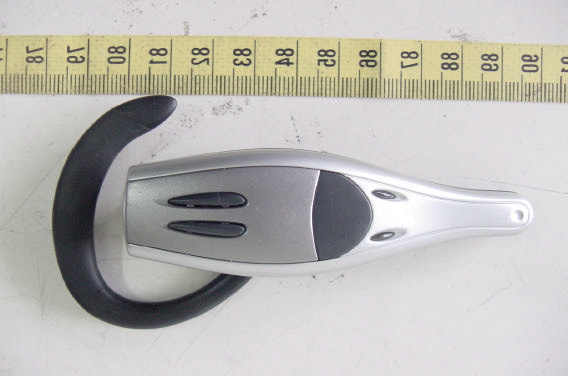

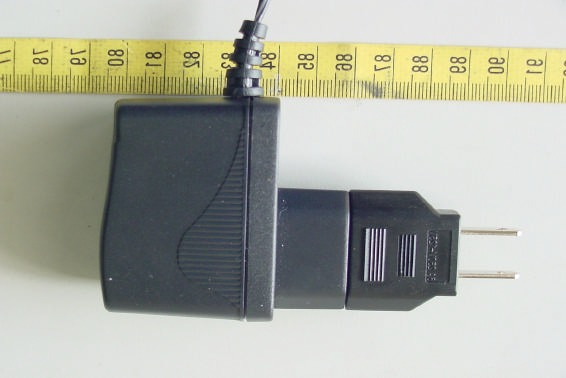

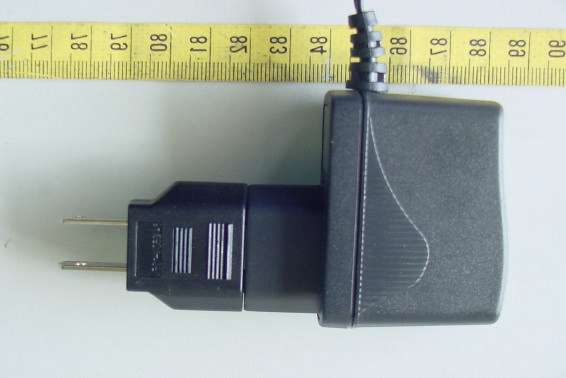

FCC ID. : QQGBT001002 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Top View of EUT Side View of EUT FCC ID. : QQGBT001002 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Side View of EUT Side View of EUT FCC ID. : QQGBT001002 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Bottom View of EUT FCC ID. : QQGBT001002 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Side View of Adaptor Side View of Adaptor FCC ID. : QQGBT001002 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Top View of Adaptor

910805 1 Model: BTH-02-C2 FCC ID. : QQGBT 001002 This statement will be placed in User’s Manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.

FCC ID. : QQGBT001002 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Internal View of EUT FCC ID. : QQGBT001002 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB FCC ID. : QQGBT001002 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Intrernal View of Adaptor FCC ID. : QQGBT001002 Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Component View of Adaptror’s PCB Solder View of Adaptor’s PCB

Rev. No 2.1 FCC Part 15 EMI TEST REPORT of E.U.T. Bluetooth Headset Model BTH-02-C2 FCC ID. QQGBT001002 for APPLICANT J-Three International Holding Co., Ltd. ADDRESS No. 23-7, Dungshyh 12 Lirn, Dungshyh Lii, Pingchien City, Taoyuan Hsien (324), Taiwan R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail:[email protected] Report Number : ET92R-10-028 ETC Report No. : ET92R-10-028 FCC ID. : QQGBT001002 Rev. No 2.1 TEST REPORT CERTIFICATION Applicant : J-Three International Holding Co., Ltd. No. 23-7, Dungshyh 12 Lirn, Dungshyh Lii,Pingchien City, Taoyuan Hsien (324), Taiwan R.O.C. Manufacturer : J-Three International Holding Co., Ltd. No. 23-7, Dungshyh 12 Lirn, Dungshyh Lii,Pingchien City, Taoyuan Hsien (324), Taiwan R.O.C. Description of EUT : a) Type of EUT : Bluetooth Headset b) Trade Name : J-Three International Holding Co., Ltd. c) Model No. : BTH-02-C2 d) Power Supply : 3.6Vdc Battery Regulation Applied : FCC Rules and Regulations Part 15 Subpart B & C (2002) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relates only to the item tested. 2. The testing report shall not breproduced expect in full, without the written approval of ETC. Issued Date : Mar. 03, 2004 Test Engineer : ( Tien Lu Liao ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET92R-10-028 FCC ID. : QQGBT001002 Rev. No 2.1 Table of Contents Page 1 GENERAL INFORMATION........................................................................................................1 1.1 Product Description........................................................................................................................1 1.2 Characteristics of Device.................................................................................................................1 1.3 Test Methodology...........................................................................................................................1 1.4 Test Facility....................................................................................................................................1 2 PROVISIONS APPLICABLE........................................................................................................2 2.1 Definition........................................................................................................................................2 2.2 Requirement for Compliance...........................................................................................................3 2.3 Restricted Bands of Operation.........................................................................................................5 2.5 User Information.............................................................................................................................6 3. SYSTEM TEST CONFIGURATION............................................................................................7 3.1 Justification.....................................................................................................................................7 3.2 Devices for Tested System..............................................................................................................7 4 RADIATED EMISSION MEASUREMENT...............................................................................8 4.1 Applicable Standard........................................................................................................................8 4.2 Measurement Procedure.................................................................................................................8 4.3 Measuring Instrument....................................................................................................................10 4.4 Radiated Emission Data.................................................................................................................11 4.4.1 Fundatmental and Harmonics...................................................................................................11 4.4.2 Radiated Emissions in Restricted Bands....................................................................................14 4.4.3 Other Emissions......................................................................................................................15 4.5 Field Strength Calculation..............................................................................................................16 4.6 Photos of Radiation Measuring Setup............................................................................................17 5 CONDUCTED EMISSION MEASUREMENT.........................................................................18 5.1 Standard Applicable......................................................................................................................18 5.2 Measurement Procedure...............................................................................................................18 5.3 Conducted Emission Data.............................................................................................................19 5.4 Result Data Calculation.................................................................................................................19 5.5 Conducted Measurement Equipment.............................................................................................20 5.6 Photos of Conduction Measuring Setup.........................................................................................21 6 ANTENNA REQUIREMENT.....................…

Text truncated - open the document above for the full version.

ETC Report No. : ET92R-10-028 Sheet 24 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1 Appendix 6 : Plotted Data for Output Peak Power ETC Report No. : ET92R-10-028 Sheet 25 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1 ETC Report No. : ET92R-10-028 Sheet 26 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1 ETC Report No. : ET92R-10-028 Sheet 27 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1 ETC Report No. : ET92R-10-028 Sheet 28 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1 Appendix 7 : Plotted Data for 100 kHz Bandwidth from Band Edge ETC Report No. : ET92R-10-028 Sheet 29 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1 ETC Report No. : ET92R-10-028 Sheet 30 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1 ETC Report No. : ET92R-10-028 Sheet 31 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1 Appendix 8 : Plotted Data for Out-of-Band Conducted Emission ETC Report No. : ET92R-10-028 Sheet 32 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1 ETC Report No. : ET92R-10-028 Sheet 33 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1 ETC Report No. : ET92R-10-028 Sheet 34 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1 ETC Report No. : ET92R-10-028 Sheet 35 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1 ETC Report No. : ET92R-10-028 Sheet 36 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1 ETC Report No. : ET92R-10-028 Sheet 37 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1 ETC Report No. : ET92R-10-028 Sheet 38 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1 Appendix 9 : Plotted Data for Peak Power Spectral Density ETC Report No. : ET92R-10-028 Sheet 39 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1 ETC Report No. : ET92R-10-028 Sheet 40 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1 ETC Report No. : ET92R-10-028 Sheet 41 of 41 Sheets FCC ID. : QQGBT001002 Rev. No 2.1

FCC ID. : QQGBT001002 Rev. No 2.1 Photos of Radiation Measuring Setup FCC ID. : QQGBT001002 Rev. No 2.1 Photos of Conduction Measuring Setup
