QUICK START GUIDE FOR THE TRANZEO WIRELESS TR-6000 SERIES REVISION 2.0a J ANUARY 2ND, 2006 This document is intended for Public Distribution 19473 Fraser Way Pitt Meadows, B.C. Canada V3Y 2V4 Phone (604) 460-6002 Fax (604) 460-6005 2 www.tranzeo.com 1/10/2006 QUICK STA RT GUIDE – TR-6000 SERIES FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a Residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communication. Operation of this equipment in residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his or her own expense. The user should not modify or change this equipment without written approval from Tranzeo Wireless. Modification could void authority to use this equipment. For the safety reasons, people should not work in a situation which RF Exposure limits be exceeded. To prevent the situation happening, people who work with the antenna should be aware of the following rules 1. Install the antenna in a location where a distance of 40 cm from the antenna may be maintained. 2. While installing the antenna, do not turn on power to the unit. 3. Do not connect the antenna while the device is in operation. 4. The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Safety Notices Safety Precautions: YOU MUST READ AND UNDERSTAND THE FOLLOWING SAFETY INSTRUCTIONS BEFORE INSTALLING THE DEVICE: • This antenna’s grounding system must be installed according to Article 810-15, 810-20, 810-21 of the National Electric Code, ANSI/NFPA No. 70-1993. If you have any questions or doubts about your antenna grounding system, contact a local licensed electrician. • Never attach the Grounding Wire while the device is powered. • If the ground is to be attached to an existing electrical circuit, turn off the circuit before attaching the wire. • Use the Tranzeo POE only with approved Tranzeo models. • Never install Radio Equipment, surge suppressors, or lightning protection during a storm. A BRIEF WORD ON LIGHTNING PROTECTION The key to a Lightning Protection is providing a harmless route for lightning to reach ground. The system should not be designed to attract lightning, nor can it repel lightning. National, State and local codes are designed to protect life, limb and property, and must always be obeyed. When in doubt, consult local and national electrical codes or contact an electrician or professional trained in the design of grounding systems. This document is intended for Public Distribution 19473 Fraser Way Pitt Meadows, B.C. Canada V3Y 2V4 Phone (604) 460-6002 Fax (604) 460-6005 3 www.tranzeo.com 1/10/2006 QUICK STA RT GUIDE – TR-6000 SERIES Introduction This next-generation wireless LAN device – the TRANZEO TR-6000 series, brings Ethernet-like performance to the wireless realm. Fully compliant with the IEEE802.11a standard, the TRANZEO TR-6000 series also provides powerful features such as the Internet-based configuration utility as well as WEP and WPA security. Maximize network efficiency while minimizing your network investment and maintenance costs. TR-AP Quick Start Guide Hardware Installation Product Kit Before installation, make sure that you have the following items: • The TR-6000 series x 1 • DC Power Adapter x 1 • Power over Ethernet Adapter x 1 • Ethernet Boot x 1 • Mounting Bracket x 1 • Kept Nuts (With Washer Attached) x 8 • U-Bolt w/ 2 Nuts x 1 • RJ-45 Patch Cable x 1 • Ethernet Boot Gasket x 1 • Ethernet Cable Lock x 1 If any of the above items is not included or damaged, please contact your local dealer for support. In this Manual, the symbol Y will be used to indicate changes that were introduced in Version 2.0. This document is intended for Public Distribution 19473 Fraser Way Pitt Meadows, B.C. Canada V3Y 2V4 Phone (604) 460-6002 Fax (604) 460-6005 4 www.tranzeo.com 1/10/2006 QUICK STA RT GUIDE – TR-6000 SERIES Mechanical Description LED panel of the Wireless LAN Smart Access Point The following table provides an overview of each LED activity: LED Definition Activity Description In AP mode the signal lights indicate the following: Power Supply ONLY use the power adapter supplied with the TR-6000 series. Otherwise, the product may be damaged. Label Color Indicators POWER Red On: Powered On Off: No Power LAN Green On: Ethernet Link Flashing : Ethernet Traffic Off: No Ethernet Link Radio Amber On: Radio Link Flashing Radio Activity Off: No Radio Link Signal Red/Amber/Green In CPE mode, light up in sequence to indicate signal strength Color Indicators Red On: WEP/128 Enabled Flashing: WEP/64 Enabled Off: WEP Off Amber On: WPA/AES Enabled Flashing : WPA/TKIP Enabled Off: WPA Off Amber ON: 5.8 Operation Off: 5.3 Operation Green On: ACL Enabled Off: ACL Off Green On: WDS Enabled Off: WDS Off This document is intended for Public Distribution 19473 Fraser Way Pitt Meadows, B.C. Canada V3Y 2V4 Phone (604) 460-6002 Fax (604) 460-6005 5 www.tranzeo.com 1/10/2006 QUICK STA RT GUIDE – TR-6000 SERIES Hardware Installation Take the following steps to set up your TR-6000 series. Site Selection: Before installation, determine the TR-6000 series unit’s location. Proper placement of the unit is critical to ensure optimum radio range and performance. You should perform a Site Survey to determine the optimal location. Ensure the CPE is within line-of-sight of the Access Point. Obstructions may impede performance of the unit. Tools Required to Install • One 3/8 wrench • One 3/4 wrench • One RJ-45 crimper • A suitable length of Cat 5 cable to bring the signal from the unit to the Power over Eth…

Text truncated - open the document above for the full version.

19473 Fraser Way, Pitt Meadows, B.C. V3Y 2V4 T: 604.460.6002 F: 604-460.6005 Toll Free: 1-866-872-6936 Website: www.tranzeo.com 6 January 2006 Federal Communications Commission 445 12th Street SW Washington, DC 20554 Re: Request for Confidentiality FCC ID: QRF-24DTS-CM9 In accordance with FCC Rules part 0.459, we hereby request confidential treatment for the above referenced Certification application. The items to be held in confidence are: Confidential - IP3K_SCH_OCT_8_ 2004.pdf Schematics for the IP3K Carrier Board Confidential - CM9 block diagram.pdf Block Diagram for the CM-9 radio Confidential - CM9 sch.pdf Schematic for the CM-9 radio Confidential – TR-6000-CM9 - Internal Photographs.pdf Interior photos of the unit. The application contains technical information that which Tranzeo Wireless Technologies Inc. deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Since the product is sealed using a one time sealant and contains no user serviceable parts, the Interior Photos are only of use to the applicant’s competitors. Thank you for your attention in this matter

19473 Fraser Way, Pitt Meadows, B.C. V3Y 2V4 T: 604.460.6002 F: 604-460.6005 Toll Free: 1-866-872-6936 Website: www.tranzeo.com 6 January 2006 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Re: Marketing and Professional Installation Required FCC ID: QRF-24DTS-CM9 Marketing: The intended use is generally for industrial/commercial use and will not be sold to the general public. It will also not be sold through retail establishments or through mail order. It will be sold to OEM customers, qualified dealers and directly to commercial customers. Professional Installation: Since the equipment is used in the above reference FCC ID has standard RF connectors, the system must be professionally installed. The installer shall be responsible for ensuring that the proper antenna is employed so that the limits specified in Part 15.247 (b) are not exceeded. It is intended for industry/commercial use.

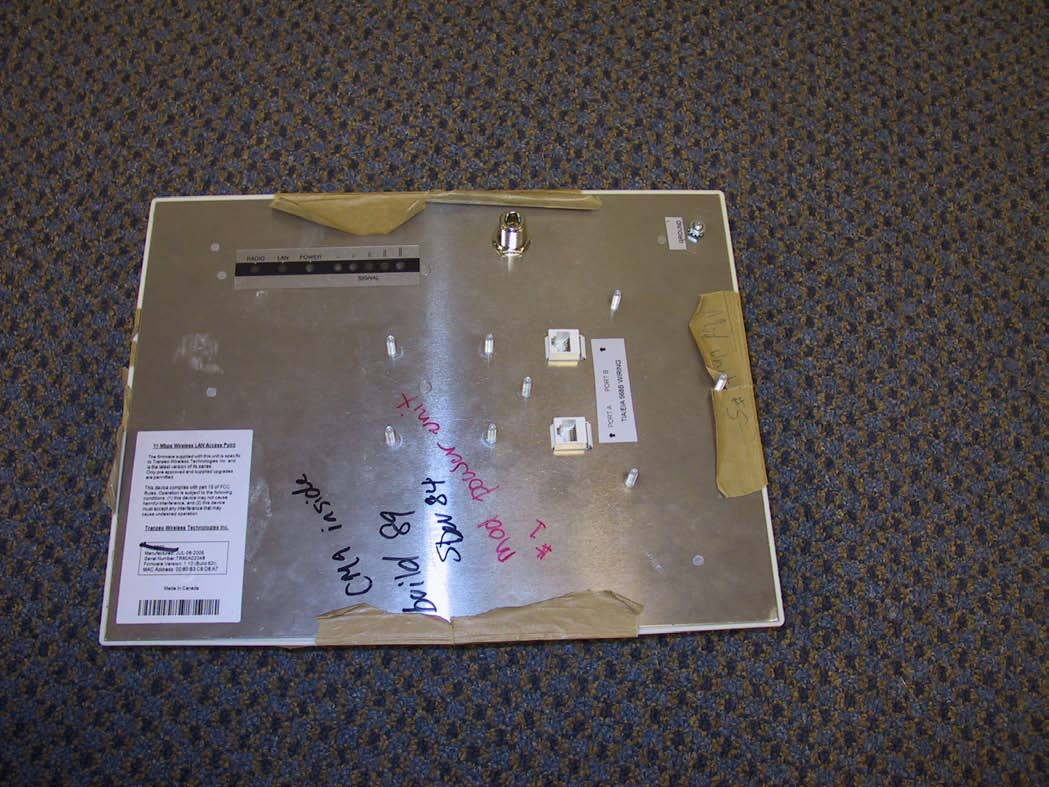

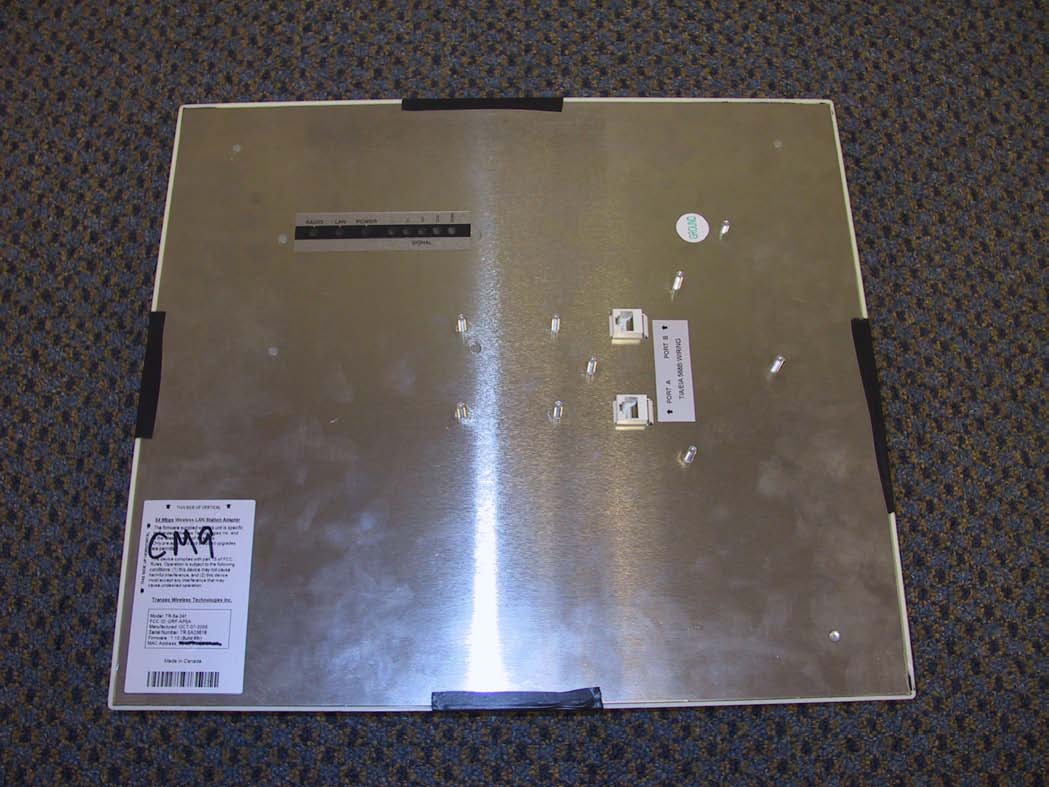

EMC LABS INC Tranzeo EMC Labs Inc. 19473 Fraser Way Pitt Meadows, B.C. V3Y 2V4 TR-6000 2.4 GHz Wireless Network Adapter External Photographs 9 November 2005 Report Number: TRL091105.1 Bruce Balston, EMC Lab Manager Andrew Marles, Technical Writer Report Number: TRL091105.1 Emissions Compliance Test Tranzeo EMC Labs Inc. Page 2 of 5 Appendix B B.1 External Photos Figure 1 – External, front of unit – 19 dBi Report Number: TRL091105.1 Emissions Compliance Test Tranzeo EMC Labs Inc. Page 3 of 5 Appendix B External front of unit, 15 dBi and N Connector Report Number: TRL091105.1 Emissions Compliance Test Tranzeo EMC Labs Inc. Page 4 of 5 Appendix B 19 dBi reverse Report Number: TRL091105.1 Emissions Compliance Test Tranzeo EMC Labs Inc. Page 5 of 5 Appendix B N-Connector reverse

EMC LABS INC Tranzeo EMC Labs Inc. 19473 Fraser Way Pitt Meadows, B.C. V3Y 2V4 TR-6000 2.4 GHz Wireless Network Adapter Label Location 7 November 2005 Report Number: TRL071105.1 Bruce Balston, EMC Lab Manager Andrew Marles, Technical Writer Report Number: TRL071105.1 Emissions Compliance Test Tranzeo EMC Labs Inc. Page 2 of 2 Appendix C C.1 FCC Label location Figure 1 – External back panel, FCC Label location..

Tranzeo Wireless Technologies, Inc. 20155 Stewart Crescent Maple Ridge, BC Canada V2X 0T6 Ph: +1-604-460-6002 www.tranzeo.com 54 Mbps Wireless LAN Station Adapter The firmware supplied with the TR-6019 is specific to Tranzeo Wireless Technologies Inc. and is the latest version. Only pre-approved and supplied upgrades are permitted. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. TR-6019 FCC ID: QRF-24DTS-CM9 IC: 5181A-TR6019 Manufactured: Nov 24/2004 Serial #:TR-6019-00001 F/W Version: 6.3 MAC Address: 00:60:B3:16:D9:DA

EMC LABS INC Tranzeo EMC Labs Inc. 19473 Fraser Way Pitt Meadows, B.C. V3Y 2V4 TR-6000 2.4 GHz Wireless Network Adapter EMC Test Report Operational Description 7 November 2005 Report Number: TRL071105.1 Bruce Balston, EMC Lab Manager Andrew Marles, Technical Writer Report Number: TRL071105.1 Emissions Compliance Test Tranzeo EMC Labs Inc. Page 2 of 2 Appendix E E.1 Operational Description The TR-6000 series is a wireless network bridge designed specifically for outdoor applications. The device provides a bridge between IEEE802.3 wired Ethernet LANs and IEEE802.11a compliant wireless networks. It uses an external antenna coupled with a 802.11a transceiver to connect to remote wireless clients. The transceiver is connected to N-female and operates in the frequency band 2400-2483.5 MHz. The device transmits digital network data. The unit is mounted externally in fixed point-to-point installations. It is mounted on the exterior of a building or, typically for broadband internet access. The type of RF modulation is DSSS. The device can transmit data at a bit rate of 11 Mbps or a real- world data rate of approximately 4 Mbps. 64/128 bit Wired Equivalent Protection (WEP) algorithm is used for secure communications. The device’s standard compliance ensures that it can communicate with any 802.11b network. The firmware used with the device prevents the use of channels outside the 2400-2483.5 MHz band. The TR-6000 series product (including the TR-6015 and TR-6019 and TR-6000-N) is used exclusively in a professionally installed, fixed point-to-point environment.

19473 Fraser Way, Pitt Meadows, B.C. V3Y 2V4 T: 604.460.6002 F: 604-460.6005 Toll Free: 1-866-872-6936 Website: www.tranzeo.com 6 January 2006 Federal Communications Commission 445 12th Street SW Washington, DC 20554 Re: Tune up Procedure FCC ID: QRF-49PSS-CM9 This device is sealed in a one-time use manner and there are no user accessible parts inside the product. No tune up procedure is provided with this submission since none is required. Thank you for your attention in this matter Sincerely, Andrew Marles EMC Coordinator Tranzeo Wireless Technologies Inc.

EMC LABS INC Tranzeo EMC Labs Inc. 19473 Fraser Way Pitt Meadows, B.C. V3Y 2V4 TR-6000 2.4 GHz Wireless Network Adapter EMC Test Report 7 November 2005 Report Number: TRL071105.1 Bruce Balston, EMC Lab Manager Andrew Marles, Technical Writer Report Number: TRL071105.1 Emissions Compliance Test Tranzeo EMC Labs Inc. Page 2 of 2 Appendix E MFE Evaluation FCC 1.1310 states the criteria listed in the table below shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. Further information on evaluating compliance with these limits can be found in the FCC's OST/OET Bulletin Number 65, ``Evaluating Compliance with FCC-Specified Guidelines for Human Exposure to Radiofrequency Radiation.'' Frequency Range (MHZ) Electric Field Strength (V/m) Magnetic Field Strength (A/M) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 9.1 Fries Formula Fries transmission formula: Pd = (P out *G)/(4*
*r 2 ) Where Pd = power density in mW/cm 2 P out = output power to antenna in mW. G = gain of antenna in the direction of interest relative to an isotropic radiator. R = the distance between the observation point and the center of the radiator in cm. Pd is the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna we can calculate the distance r where the MPE limit is reached. 9.2 EUT Operating Condition The maximum antenna gain is 24 dBi as stated by the manufacturer. 9.3 RF exposure evaluation distance calculation EUT with 24 dBi antenna Chan Freq (MHz) Output Power to Antenna (dBm) Antenna Gain (dBi) r (cm) 1 2412 22.94 24 62 6 2437 22.40 24 62 11 2462 22.94 24 62 As shown above, the minimum distance where the MPE limit is reached is 62 cm for the EUT.
