QRF-GNADX2NT4WIRELESS MESH ROUTER

Document No. TR0153 Rev E2 EnRoute50x/51x User’s Guide Rev. E1 Communicate Without Boundaries Tranzeo Wireless Technologies Inc. 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 www.tranzeo.com technical support email: [email protected] EnRoute50x/51x User’s Guide TR0153 Rev. E1 2 Tranzeo, the Tranzeo logo and EnRoute500 are trademarks of Tranzeo Wireless Technologies Inc.. All rights reserved. All other company, brand, and product names are referenced for identification purposes only and may be trademarks that are the properties of their respective owners. Copyright © 2007, Tranzeo Wireless Technologies Inc.. EnRoute50x/51x User’s Guide TR0153 Rev. E1 3 FCC Notice to Users and Operators This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. • This device must be installed so that there is a minimum of 172.9 cm between the antenna and any person. Any changes or modification to said product not expressly approved by Tranzeo Wireless Technologies Inc. could void the user's authority to operate this device. The Tranzeo EnRoute500 Mesh Router must be installed by a trained professional, value added reseller, or systems integrator who is familiar with RF cell planning issues and the regulatory limits defined by the FCC for RF exposure, specifically those limits outlined in sections 1.1307. EnRoute50x/51x User’s Guide TR0153 Rev. E1 4 Table of Contents 1 Working with the EnRoute500...........................................................................9 1.1 EnRoute500 Variants ............................................................................................9 1.2 EnRoute500 Capabilities.....................................................................................10 1.3 Network Topology ...............................................................................................10 1.4 Network Terminology ..........................................................................................11 1.5 EnRoute500 Interfaces........................................................................................12 1.5.1 Ethernet and PoE............................................................................................... 13 1.5.2 Antennas ............................................................................................................ 14 1.6 Deployment Considerations ................................................................................14 1.6.1 Mesh Channel Selection .................................................................................... 14 1.6.2 AP Channel Selection ........................................................................................ 15 2 Connecting to the EnRoute500 ....................................................................... 16 2.1 Network Interfaces ..............................................................................................16 2.2 Connecting to an Unconfigured EnRoute500 ......................................................17 2.3 Default Login and Password ...............................................................................18 2.4 Resetting the ‘admin’ Password ..........................................................................18 3 Using the Web Interface .................................................................................. 19 3.1 Accessing the Web Interface...............................................................................19 3.2 Navigating the Web Interface ..............................................................................21 3.3 Setting Parameters .............................................................................................21 3.4 Help Information..................................................................................................22 3.5 Rebooting............................................................................................................22 4 Using the Command Line Interface ................................................................ 24 4.1 Accessing the CLI ...............................................................................................24 4.2 User Account.......................................................................................................24 4.3 CLI Interfaces......................................................................................................25 4.4 CLI Features ...............................................................................................…

Text truncated - open the document above for the full version.

19473 Fraser Way, Pitt Meadows, B.C. V3Y 2V4 T: 604.460.6002 F: 604-460.6005 Toll Free: 1-866-872-6936 Website: www.tranzeo.com April 27, 2011 Federal Communications Commission 445 12th Street SW Washington, DC 20554 Re: Request for Confidentiality FCC ID: QRF-GNADX2NT4 In accordance with FCC Rules part 0.459, we hereby request confidential treatment for the above referenced certification application. The items to be held in confidence are: Confidential - Schematics “Taihushu E3_001 (2005.0).pdf” Confidential - Parts List “05-050091-00 Taihushu ER series MFG BOM.xls” Confidential –Internal Photographs “QRF-GNADX2NT4_Int photos.pdf” Confidential –Block Diagram “CM11 Block Diagram.pdf” Confidential –Block Diagram “C_ZCOM AG-623C_Block Diagram.pdf” The application contains technical information that Tranzeo Wireless Technologies Inc. deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Since the product is sealed using a one time sealant and contains no user serviceable parts, the Interior Photos are only of use to the applicant’s competitors. Internal photos of a consumer device should be held confidential. If the sealant material is removed, it will destroy the product. Thank you for your attention in this matter. 19473 Fraser Way, Pitt Meadows, B.C. V3Y 2V4 T: 604.460.6002 F: 604-460.6005 Toll Free: 1-866-872-6936 Website: www.tranzeo.com July 8, 2009 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Re: Marketing and Professional Installation Required FCC ID: QRF-GNADX2NT4 Marketing: The intended use is generally for industrial/commercial use and will not be sold to the general public. It will also not be sold through retail establishments or through mail order. It will be sold to OEM customers, qualified dealers and directly to commercial customers. Professional Installation: Since the equipment is used in the above reference FCC ID has standard RF connectors, the system must be professionally installed. The installer shall be responsible for ensuring that the proper antenna is employed so that the limits specified in Part 15.247 (b) are not exceeded. It is intended for industry/commercial use.

July 8 th , 2009 To: Timco Engineering Inc. Reference: Authorization letter This letter authorizes Mr. Bud Patterson to sign an application form 731 to Timco Engineering Inc. in respect of all information details mentioned in this form to present confidential data on products manufactured by Tranzeo Wireless Technologies Inc.

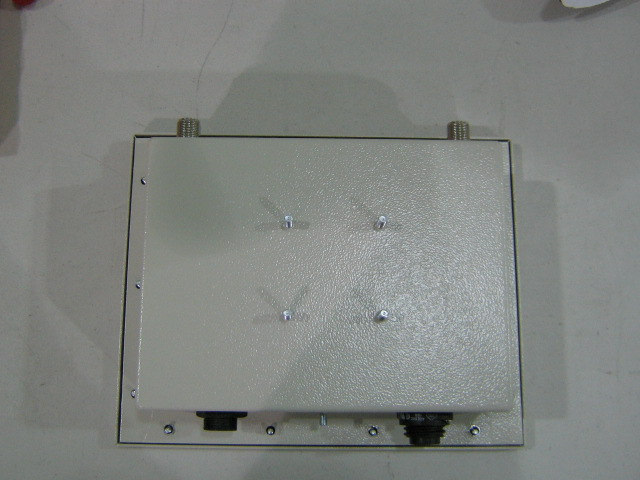

EMC LABS INC External Photos FCCID: QRF-GNADX2NT4 Wireless Mesh Router Tranzeo Wireless Technologies Inc. Date: July 8, 2009 Report No.: 070709.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Andrew Marles EMC Manager Andrei Moldavanov EMC Engineer Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 3 A.1 External Photos

Work Instruction Sheet Tranzeo Wireless Technologies Inc. 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Document Name: EN505 Product Labels Document No. TR QC-7.7.2008 Note: This instruction sheet, that is dated 7/ 27/2009, supersedes all other versions. Version (Date) 7/27/2009. ECR; QRF-GNADX2NT4 Label Sample Page 1 of 1

EMC LABS INC Label Location FCCID: QRF-GNADX2NT4 Wireless Mesh Router Tranzeo Wireless Technologies Inc. Date: July 27, 2007 Report No.: 070709.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Andrew Marles EMC Manager Andrei Moldavanov EMC Engineer Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 3 A.1 Label Location Photo

EMC LABS INC Operational Description FCCID: QRF-GNADX2NT4 Wireless Mesh Router Tranzeo Wireless Technologies Inc. Date: July 8, 2009 Report No.: 070709.1 Lab: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Andrew Marles EMC Manager Andrei Moldavanov EMC Engineer Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 2 Operational Description The device is a wireless mesh router designed specifically for wireless mesh networks. The device has two radios, an 802.11a/b/g mesh backhaul radio and an access point radio for 802.11a/b/g client devices. It uses two external antennas, one for each radio. The transceivers operate in the frequency bands 2400-2483.5 and 5725-5850 MHz. The device transmits digital network data. The unit is mounted in a fixed point-to-point installations. The device can be used to create either a stand alone or an internet extension network. The type of RF modulation is DSSS and OFDM. Both DSSS and OFDM are used at 2.4 GHz while at 5.8 GHz only the OFDM is used. The device can transmit data at a bit rate of 11 Mbps in DSSS mode and 54 Mbps in OFDM mode or a real-world data rate of approximately 6.3 and 28.7 Mbps respectively. The device’s standard compliance ensures that it can communicate with any 802.11a/b/g network. An access point radio for secure communications uses WEP/WPA/WPA2 (PSK w/TKIP, EAP-TLS, EAP-PEAP TLS, EAP-PEAP MSChap/v2, EAP- TTLS) algorithms, whereas a mesh radio uses AES128 encryption and MAC address filtering. The firmware used with the device prevents the use of channels outside the specified frequency bands. The product is used exclusively in a professionally installed, fixed point-to-point environment.

EMC LABS INC RF Exposure Evaluation FCCID: QRF-GNADX2NT4 Wireless Mesh Router Tranzeo Wireless Technologies Inc. Date: July 8, 2009 Report No.: 070709.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Andrew Marles EMC Manager Andrei Moldavanov EMC Engineer Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 2 RF Exposure Evaluation FCC 1.1310 states the criteria listed in the table below shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Section 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Section 2.1093 of this chapter. Further information on evaluating compliance with these limits can be found in the FCC's OST/OET Bulletin Number 65, “Evaluating Compliance with FCC-Specified Guidelines for Human Exposure to Radiofrequency Radiation”. Frequency Range (MHZ) Electric Field Strength (V/m) Magnetic Field Strength (A/M) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 EUT Operating Condition The maximum antenna gain is 12 dBi at 2.4 GHz and 32 dBi at 5.8 GHz. RF exposure evaluation distance calculation 2.4GHz radio with 12 dBi antenna Freq (MHz) Output Power to Antenna (dBm) Antenna Gain (dBi) r (cm) 2412 17.92 12 8.8 2437 21.45 12 13.3 2462 17.74 12 8.6 5.8 GHz radio with 32 dBi antenna Freq (MHz) Output Power to Antenna (dBm) Antenna Gain (dBi) r (cm) 5745 22.00 32 141.2 5785 21.53 32 144.8 5825 21.61 32 135.2 As shown above, the minimum distance where the MPE limit is reached is 144.8 cm for the EUT.

EMC LABS INC EMC Test Report FCCID: QRF-GNADX2NT4 Wireless Mesh Router Tranzeo Wireless Technologies Inc. Testing body: Tranzeo EMC Labs Inc. 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Client: Tranzeo Wireless Technologies Inc. 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 EMC Report: QRF-GNADX2NT4 Tranzeo EMC Labs Page 2 of 34 The test results indicated in this report refer exclusively to the equipment under test specified below. It is not permitted to transfer the results to other systems or configurations. Order number: 81 Type of test: Testing of electromagnetic disturbances characteristics Date the EUT was received: June 14 th , 2009 Date of test: June 15 th , 2009 to July 6 th , 2009 Report No.: 072809.1 Pitt Meadows, 7 July, 2009 EMC Manager: Andrew Marles EMC Engineer: Andrei Moldavanov EMC Report: QRF-GNADX2NT4 Tranzeo EMC Labs Page 3 of 34 Revision History EMC Report: QRF-GNADX2NT4 Tranzeo EMC Labs Page 4 of 34 Table of Contents 1.0 GENERAL INFORMATION............................................................................................................ 6 1.1 EUT Description......................................................................................................................... 6 1.2 Operational Description ............................................................................................................. 7 1.3 EUT Testing Configuration ......................................................................................................... 7 1.4 EUT Antennas ............................................................................................................................ 8 1.5 EUT Modifications ..................................................................................................................... 8 1.6 Test Facilities ............................................................................................................................. 8 1.7 Test Equipment ........................................................................................................................... 9 1.8 Test System Details ..................................................................................................................... 9 1.9 Test Results ................................................................................................................................ 9 2.0 CONDUCTED EMISSIONS ............................................................................................................10 2.1 Test Standard ............................................................................................................................10 2.2 Test Limits.................................................................................................................................10 2.3 Test Setup ..................................................................................................................................10 2.3.1 Test Setup Block Diagram..........................................................................................................10 2.4 Test Results ...............................................................................................................................11 2.4.1 Test Data Peak Detector ............................................................................................................11 2.4.2 Test Data Average Detector .......................................................................................................12 3.0 PEAK POWER OUTPUT ................................................................................................................13 3.1 Test Standard ............................................................................................................................13 3.2 Test Limits.................................................................................................................................14 3.3 Test Setup ..................................................................................................................................14 3.3.1 Test Setup Block Diagram..........................................................................................................14 3.4 Test Results ...............................................................................................................................14 3.4.1 2.4 GHz frequency band.............................................................................................................14 3.4.2 5.8 GHz frequency band.............................................................................................................14 4.0 RADIATED EMISSIONS, GENERAL REQUIREMENTS............................................................15 4.1 Test Standard ............................................................................................................................15 4.2 Test Limits.................................................................................................................................16 4.3 Test Setup ..................................................................................................................................16 4.3.1 Test Setup Block Diagram..........................................................................................................16 4.4 Test Results ...............................................................................................................................17 5.0 HARMONIC AND SPURIOUS EMISSIONS..................................................................................18 5.1 Test Standard ............................................................................................................................18 5.2 Test Limits.................................................................................................................................18 5.3 Test Setup – Spurious Emissions ...........................................…

Text truncated - open the document above for the full version.

EMC LABS INC Test Setup Photos FCCID: QRF-GNADX2NT4 Wireless Mesh Router Tranzeo Wireless Technologies Inc. Date: July 8, 2009 Report No.: 070709.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Andrew Marles EMC Manager Andrei Moldavanov EMC Engineer Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 3 Test Setup Photos Radiated emissions setup Supplemental Exhibit Tranzeo EMC Labs Inc. Page 3 of 3 Conducted emissions setup
