QRF-NYYON23WIRELESS NETWORKING DEVICE

Tranzeo Wireless Technologies, Inc

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Oct 02, 2006
Application Purpose: Original Equipment
Date of Application: Oct 02, 2006
Equipment Note: WIRELESS NETWORKING DEVICE
Frequency Range: 5745.00000000 - 5825.00000000
Company: Tranzeo Wireless Technologies, Inc
Country: Canada

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Revision: 1.0 Firm ware: 2.10 Date: 7/06/06 iiiiii This document is i ntended for Public Distributio n 19473 Fraser Way, Pitt Meadows, B .C. Canada V3Y 2V4 ii Document Revisions: Version 1.0 June 9, 2006 Tranzeo Wireless Technologies Inc. 19473 Fraser Way P itt Meadows, BC Canada V3Y 2V4 Toll Free Number: 1.866.872.6936 T echnical Support : 1.888.460.6366 General Inquiries: info@t ranzeo.com Local Number: 1.604.460.6002 Sales: sales@t ranzeo.com Fax Number: 1.604.460.6005 T echnical Support : support @t ranzeo.com iiiiiiiii This document is i ntended for Public Distributio n 19473 Fraser Way, Pitt Meadows, B .C. Canada V3Y 2V4 Safety Information iii TR-Multi Series Tranzeo Wireless Technologies This device has been t est ed and found t o comply wit h the limit s for a Class B digit al device pursuant to P art 15 of t he FCC rules. T hese limit s are designed to provide reasonable prot ect ion against harmful int erference when the device is operat ed in a resident ial environment. This device generat es, uses, and can radiat e radio frequency energy. If not inst alled and used in accordance wit h t he user guide, may cause harmful int erference t o radio communicat ion. In case of harmful interference, t he users will be required t o correct the interference at t heir own expense. The users should not modify or change t his device without writt en approval from T ranzeo Wireless. Modificat ion could void aut hority t o use the device. For safety reasons, people should not work in a sit uat ion where RF exposure limit s could be exceeded. T o prevent t his sit uat ion, t he users should consider the following rules: ∑ Install t he ant enna so that t here is a minimum of 81 cm of dist ance bet ween t he ant enna and people. ∑ Do not t urn on power to the device while inst alling t he ant enna. ∑ Do not connect t he antenna while t he device is in operat ion. ∑ Do not collocat e or operat e the ant enna used wit h the device in conjunct ion wit h any other ant enna or t ransmitt er. ∑ Use this product only wit h the following T ranzeo ant ennas of t he same or lower gain: ∑ In order to ensure compliance wit h local regulat ions, the inst aller MUST ent er t he gain of t he ant enna at the t ime of inst allat ion. See Chapt er 3, Wi reless Settings, for det ails. ∑ To reduce pot ent ial radio int erference to other users, the ant enna type and it s gain should be so chosen t hat t he equivalent isot ropically radiat ed power (EIRP) is not more t han that required for successful communicat ion. FCC and IC Compliance Safety Information T R-VA24-16 16 dBi Vagi antenna T R-GD-24-24 24 dBi Grid antenna T R-OD-24-12 12 dBi Vertical Omni T R-ODH24-13 13 dBi Horizontal Omi T R-24H-90-17 17 dBi Sector antenna T R-5.8-32DB-ANT 32 dBi Dish Antenna T R-GD58-26 26 dBi Grid antenna T R-HT Q-5.8-12 12 dBi Vertical Omni T R-58V-60-17 17 dBi Vertical Sector T R-58H-90-16 16 dBi Horizontal Sector iviviv This document is i ntended for Public Distributio n 19473 Fraser Way, Pitt Meadows, B .C. Canada V3Y 2V4 Safety Information iv TR-Multi Series Tranzeo Wireless Technologies You must read and understand t he following safety instruct ions before inst alling the device: ∑ This ant enna’s grounding syst em must be inst alled according to Art icles 810-15, 810-20, 810-21 of the Nat ional Elect ric Code, ANSI/NFP A No. 70-1993. If you have any quest ions or doubt s about your ant enna’s grounding syst em, cont act a local licensed electrician. ∑ Never attach the grounding wire while t he device is powered. ∑ If t he ground is t o be att ached t o an exist ing elect rical circuit , t urn off the circuit before att aching t he wire. ∑ Use the Tranzeo Power over Ethernet (P OE) adapt er only wit h approved T ranzeo models. ! Safety Instructions Light ning Protection The key to lightning prot ect ion is to provide a harmless route for lightning t o reach ground. The syst em should not be designed t o att ract lightning, nor can it repel lightning. Nat ional, st at e and local codes are designed to protect life, limb, and propert y, and must always be obeyed. When in doubt, consult local and nat ional elect rical codes or cont act an electrician or professional trained in t he design of grounding syst ems. The product requires professional inst allat ion. P rofessional inst allers ensure t hat the equipment is inst alled following local regulat ions and safety codes. Professional Installation Required vvv This document is i ntended for Public Distributio n 19473 Fraser Way, Pitt Meadows, B .C. Canada V3Y 2V4 Table of Contents v TR-Multi Series Tranzeo Wireless Technologies Chapter 1: Overview ................................................................. 1-1 Introduction....................................................................................................... 1-1 Product Kit........................................................................................................ 1-1 Product Description .......................................................................................... 1-2 LED Panel Indicators................................................................................... 1-2 Chapter 2: Hardware Installation ................................................ 2-1 Getting Ready ................................................................................................... 2-1 Tools Required............................................................................................. 2-1 Site Selection ............................................................................................... 2-1 Orientation of the Radio .............................................................................. 2-1 Power Supp ly............................................................................................... 2-1 Installing the Ethernet Cable ............................................................................ 2-2 M ounting the Radio …

Text truncated - open the document above for the full version.

Cover Letter(s)

19473 Fraser Way, Pitt Meadows, B.C. V3Y 2V4 T: 604.460.6002 F: 604-460.6005 Toll Free: 1-866-872-6936 Website: www.tranzeo.com 6 January 2006 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Re: Marketing and Professional Installation Required FCC ID: NYYON23 Marketing: The intended use is generally for industrial/commercial use and will not be sold to the general public. It will also not be sold through retail establishments or through mail order. It will be sold to OEM customers, qualified dealers and directly to commercial customers. Professional Installation: Since the equipment is used in the above reference FCC ID has standard RF connectors, the system must be professionally installed. The installer shall be responsible for ensuring that the proper antenna is employed so that the limits specified in Part 15.247 (b) are not exceeded. It is intended for industry/commercial use.

Cover Letter(s)

19473 Fraser Way, Pitt Meadows, B.C. V3Y 2V4 T: 604.460.6002 F: 604-460.6005 Toll Free: 1-866-872-6936 Website: www.tranzeo.com 18 September 2006 Federal Communications Commission 445 12th Street SW Washington, DC 20554 Re: Request for Confidentiality FCC ID: QRF-NYYON23 In accordance with FCC Rules part 0.459, we hereby request confidential treatment for the above referenced Certification application. The items to be held in confidence are: Confidential - Schematics “C_ZCOM AG-623C_Circuit Diagram_060831t.pdf” Confidential - Block Diagrams “C_ZCOM AG-623C_Block Diagram_060831.pdf” Confidential - Parts List “C_ZCOM AG-623C_Parts List_060831.pdf” Confidential –Internal Photographs.pdf “QRF-NYYON23 int photos _Confidential_.pdf” The application contains technical information that which Tranzeo Wireless Technologies Inc. deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Since the product is sealed using a one time sealant and contains no user serviceable parts, the Interior Photos are only of use to the applicant’s competitors. Thank you for your attention in this matter

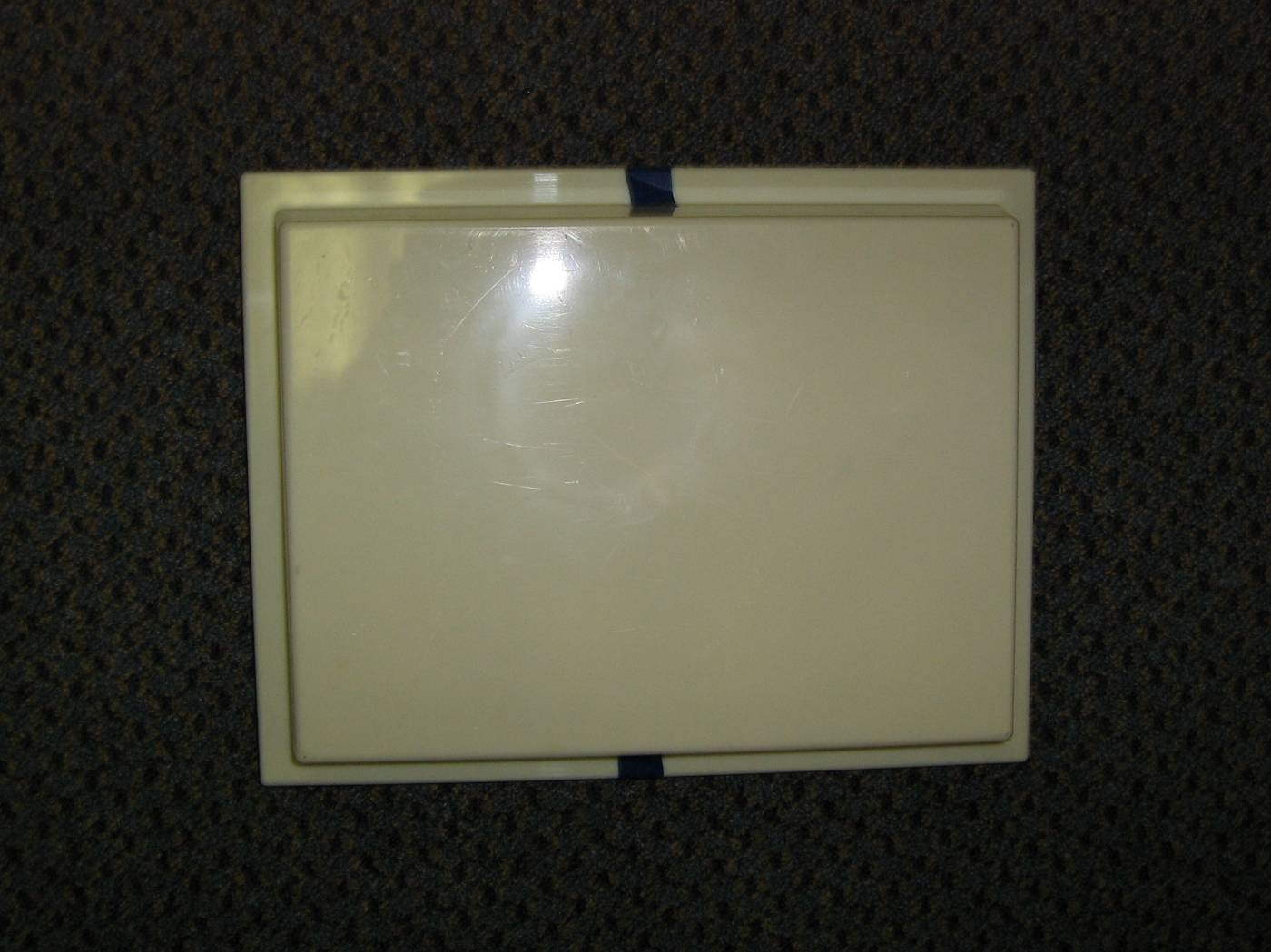

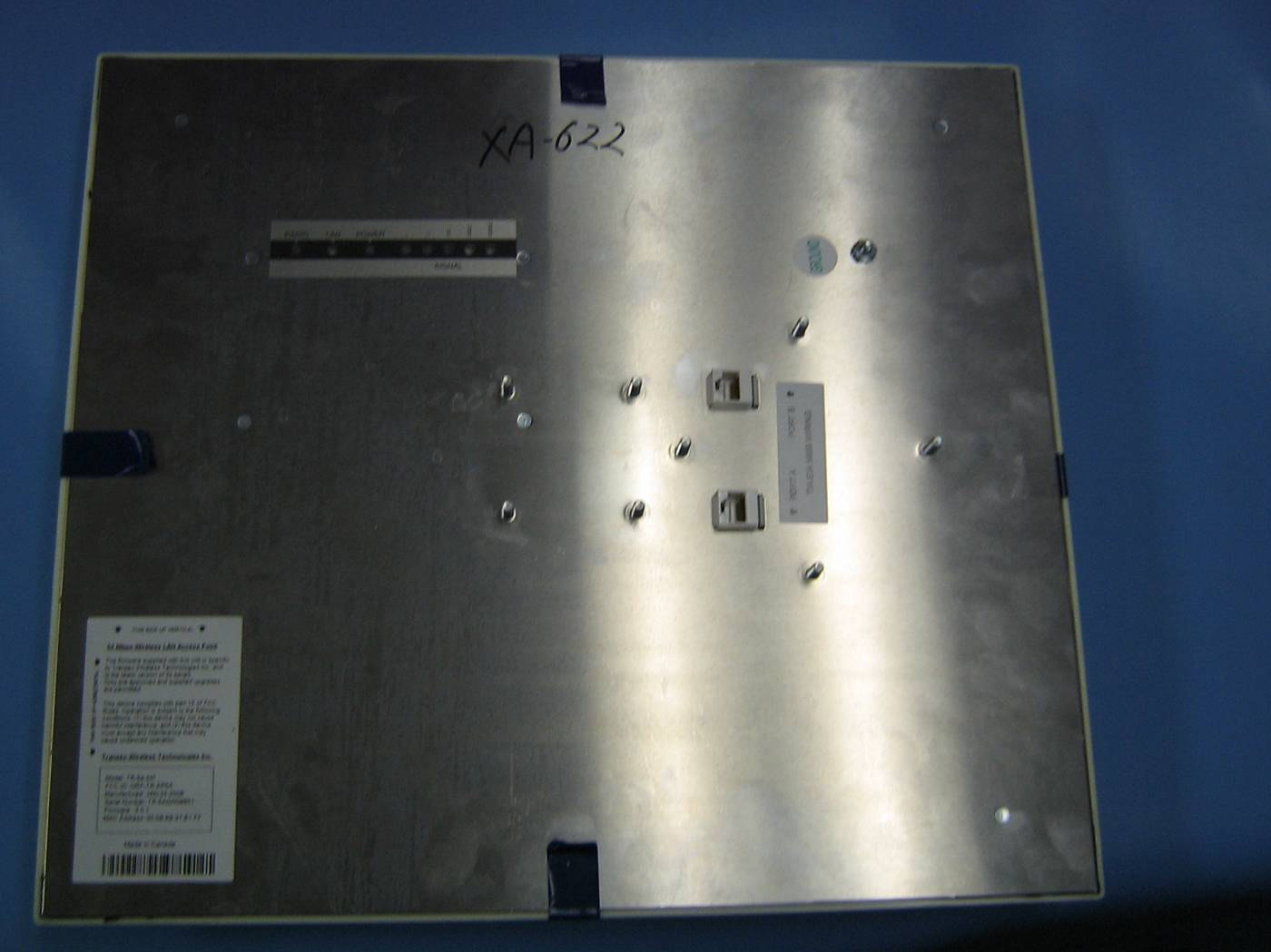

External Photos

ID Label/Location Info

Tranzeo Wireless Technologies, Inc. 19473 Fraser Way Pitt Meadows, B.C. Canada V3Y 2V4 Ph: +1-604-460-6002 www.tranzeo.com 11 Mbps Wireless LAN Station Adapter The firmware supplied with this device is specific to Tranzeo Wireless Technologies Inc. and is the latest version. Only pre-approved and supplied upgrades are permitted. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. TR-900-Nf FCC ID: QRF-NYYON23 IC: 5181A-NYYON23 Manufactured: 28 May 2006 Serial #:TR-900PN-00001 F/W Version: 2.10 MAC Address: 00:60:B3:16:D9:DA

Operational Description

EMC LABS INC Wireless Network Adapter Tranzeo Wireless Technologies Inc. Lab: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Bruce Balston EMC Engineer Andrew Marles EMC Coordinator Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 2 A.1 Operational Description The device is a wireless network bridge designed specifically for outdoor applications. The device provides a bridge between IEEE802.3 wired Ethernet LANs and IEEE802.11a/b compliant wireless networks. It uses an external antenna coupled with a 802.11a/b transceiver to connect to remote wireless clients. The transceiver operates in the frequency bands 2400-2483.5; 5725-5850 MHz. The device transmits digital network data. The unit is mounted externally in fixed point-to-point installations. It is mounted on the exterior of a building or typically for broadband internet access. The type of RF modulation is DSSS and OFDM. DSSS is used at 2.4 GHz and OFDM is used at 5.8 GHz. The device can transmit data at a bit rate of 11/54 Mbps or a real-world data rate of approximately 4/27 Mbps. A 128 bits Wired Equivalent Protection (WEP) algorithm is used for secure communications. The device’s standard compliance ensures that it can communicate with any 802.11a/b network. The firmware used with the device prevents the use of channels outside the specified frequency bands. The product is used exclusively in a professionally installed, fixed point-to-point environment.

RF Exposure Info

EMC LABS INC Wireless Network Adapter Tranzeo Wireless Technologies Inc. Date: April 20, 2006 Report No.: 200406.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Bruce Balston EMC Engineer Andrew Marles EMC Coordinator Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 2 RF Exposure Evaluation FCC 1.1310 states the criteria listed in the table below shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Section 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Section 2.1093 of this chapter. Further information on evaluating compliance with these limits can be found in the FCC's OST/OET Bulletin Number 65, “Evaluating Compliance with FCC-Specified Guidelines for Human Exposure to Radiofrequency Radiation”. Frequency Range (MHZ) Electric Field Strength (V/m) Magnetic Field Strength (A/M) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 EUT Operating Condition The maximum antenna gain is 24 dBi at 2.4 GHz and 32 dBi at 5.8 Ghz. RF exposure evaluation distance calculation EUT with 14 dBi antenna Freq (MHz) Output Power to Antenna (dBm) Antenna Gain (dBi) r (cm) 2412 13.95 24 22.4 2437 22.6 24 60.3 2462 13.82 24 22.4 5745 16.85 32 78 5785 16.81 32 77 5825 17.14 32 81 As shown above, the minimum distance where the MPE limit is reached is 81 cm for the EUT.

Test Report

EMC LABS INC 2.4 and 5.8 GHz Wireless Network Adapter Tranzeo Wireless Technologies Inc. Date: 24 Aug, 2006 Report No.: 240806.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Bruce Balston EMC Engineer Andrew Marles EMC Coordinator EMC Report: TR-900 Revision History Tranzeo EMC Labs Page 2 of 59 Revision History EMC Report: QRF-NYYON23 Table of Contents Tranzeo EMC Labs Page 3 of 59 Table of Contents 1.0 GENERAL INFORMATION ................................................................................................................. 5 1.1 EUT Description............................................................................................................................... 5 1.2 Operational Description ................................................................................................................... 6 1.3 EUT Testing Configuration .............................................................................................................. 7 1.4 EUT Antennas................................................................................................................................... 8 1.5 EUT Modifications ........................................................................................................................... 8 1.6 Test Facilities ................................................................................................................................... 8 1.7 Test Equipment ................................................................................................................................. 9 1.8 Test System Details ........................................................................................................................... 9 1.9 Test Results ....................................................................................................................................... 9 2.0 CONDUCTED EMISSIONS ................................................................................................................. 10 2.1 Test Standard.................................................................................................................................. 10 2.2 Test Limits ...................................................................................................................................... 10 2.3 Test Setup........................................................................................................................................ 10 2.3.1 Test Setup Block Diagram .............................................................................................................. 10 2.4 Test Results ..................................................................................................................................... 11 2.4.1 Test Data ........................................................................................................................................ 11 3.0 PEAK POWER OUTPUT ..................................................................................................................... 16 3.1 Test Standard.................................................................................................................................. 16 3.2 Test Limits ...................................................................................................................................... 16 3.3 Test Setup........................................................................................................................................ 17 3.3.1 Test Setup Block Diagram .............................................................................................................. 17 3.4 Test Results ..................................................................................................................................... 17 4.0 RADIATED EMISSIONS, GENERAL REQUIREMENTS .............................................................. 18 4.1 Test Standard.................................................................................................................................. 18 4.2 Test Limits ...................................................................................................................................... 19 4.3 Test Setup........................................................................................................................................ 19 4.3.1 Test Setup Block Diagram .............................................................................................................. 20 4.4 Test Results ..................................................................................................................................... 21 4.4.1 Integrated 19 dBi 2.4 Ghz Antenna ................................................................................................ 21 4.4.2 Integrated 24 dBi 5.8 Ghz Antenna ................................................................................................ 23 4.4.3 Dual Band 2.4 and 5.8 Ghz Antenna .............................................................................................. 25 4.4.4 External 26 dBi 5.8 Ghz Grid antenna (worst case configuration) ................................................ 27 5.0 HARMONIC AND SPURIOUS EMISSIONS ..................................................................................... 30 5.1 Test Standard.................................................................................................................................. 30 5.2 Test Limits ...................................................................................................................................... 30 5.3 Test Setup – Spurious Emissions .................................................................................................... 30 5.3.1 Test Setup Block Di…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Michael Rex(R&D Manager)

[email protected]604-460-6002Fax: 604-460-6005

Test Firm

Tranzeo EMC Labs Inc.Andrei Moldavanov

[email protected]604-460-6002Fax: 604-460-6005

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	5.75 GHz - 5.83 GHz	52.00 mW

Confidentiality

Long Term

Grant Notes

Power listed is conducted. Professional installation is required. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 81 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance.
