Document No. TR0149 Rev C5 EnRoute500 User’s Guide Rev. C5 Next Generation Mesh Networks, Today™ Tranzeo Confidential Tranzeo Wireless Technologies Inc. 19473 Fraser Way, Pitt Meadows, BC, Canada, V3Y 2V4 www.tranzeo.com technical support email: [email protected] EnRoute500 User’s Guide TR0149 Rev. C5 2 Tranzeo, the Tranzeo logo and EnRoute500 are trademarks of Tranzeo Wireless Technologies Inc. All rights reserved. All other company, brand, and product names are referenced for identification purposes only and may be trademarks that are the properties of their respective owners. Copyright © 2007, Tranzeo Wireless Technologies Inc. EnRoute500 User’s Guide TR0149 Rev. C5 3 FCC Notice to Users and Operators This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Any changes or modification to said product not expressly approved by Tranzeo Wireless Technologies Inc. could void the user's authority to operate this device. The Tranzeo EnRoute500 Mesh Router must be installed by a trained professional, value added reseller, or systems integrator who is familiar with RF cell planning issues and the regulatory limits defined by the FCC for RF exposure, specifically those limits outlined in sections 1.1307. EnRoute500 User’s Guide TR0149 Rev. C5 4 Table of Contents 1 Working with the EnRoute500...........................................................................8 1.1 EnRoute500 Capabilities.......................................................................................8 1.2 Network Topology .................................................................................................9 1.3 Network Terminology ..........................................................................................10 1.4 EnRoute500 Interfaces .......................................................................................10 1.5 Deployment Considerations ................................................................................12 1.5.1 Mesh channel selection...................................................................................... 13 1.5.2 AP channel selection.......................................................................................... 13 2 Using the Command Line Interface ................................................................ 14 2.1 Accessing the CLI ...............................................................................................14 2.2 User Accounts.....................................................................................................15 2.3 CLI Interfaces......................................................................................................16 2.4 CLI Features .......................................................................................................16 2.4.1 Control of the Cursor .......................................................................................... 16 2.4.2 Cancel a Command ........................................................................................... 16 2.4.3 Searching the Command History ....................................................................... 17 2.4.4 Executing a Previous Command ........................................................................ 17 2.5 CLI Commands ...................................................................................................17 2.5.1 ‘?’ command....................................................................................................... 17 2.5.2 ‘whoami’ command ............................................................................................ 17 2.5.3 ‘help’ command .................................................................................................. 18 2.5.4 ‘show’ command ................................................................................................ 18 2.5.5 ‘use’ command ................................................................................................... 19 2.5.6 ‘set’ command .................................................................................................... 20 2.5.7 ‘get’ command.................................................................................................... 21 2.5.8 ‘list’ command .................................................................................................... 22 2.5.9 ‘ping’ command .................................................................................................. 22 2.5.10 ‘ifconfig’ command ............................................................................................. 23 2.5.11 ‘route’ command...............................................................................................…

Text truncated - open the document above for the full version.

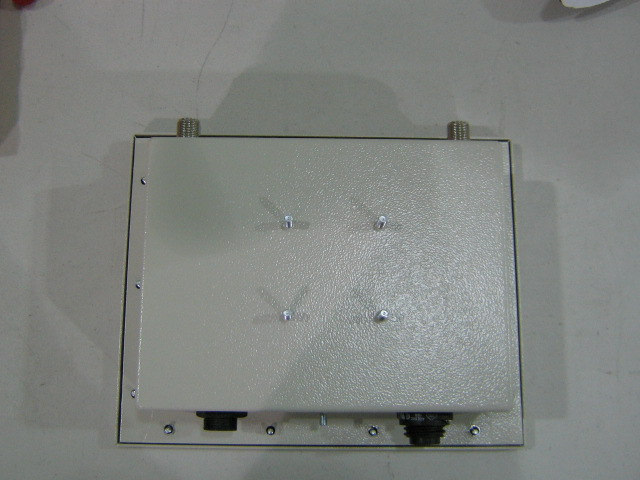

EMC LABS INC External Photos External PhotosExternal Photos External Photos FCCID: FCCID: FCCID: FCCID: QRF QRFQRF QRF- -- -RAEKT2KN2 RAEKT2KN2RAEKT2KN2 RAEKT2KN2 Wireless Mesh Router Tranzeo Wireless Technologies Inc. Date: March 21, 2007 Report No.: 210307.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Cam Finnigan EMC Engineer Sam Zahed EMC Coordinator Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 3 A.1 External Photos Supplemental Exhibit Tranzeo EMC Labs Inc. Page 3 of 3

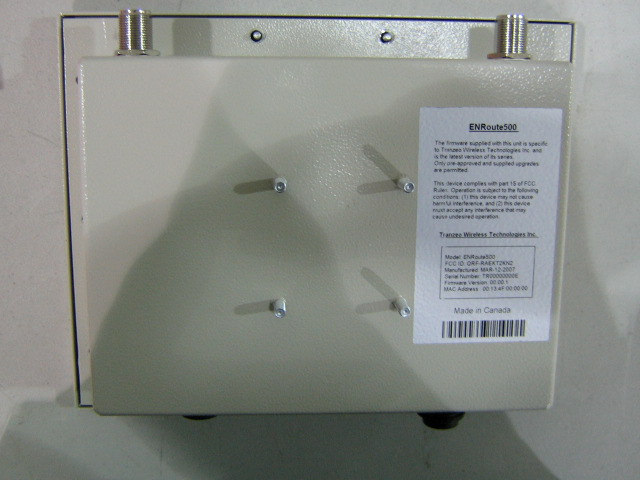

EMC LABS INC Label Location Label LocationLabel Location Label Location FCCID: FCCID: FCCID: FCCID: QRF QRFQRF QRF- -- -RAEKT2KN2 RAEKT2KN2RAEKT2KN2 RAEKT2KN2 Wireless Mesh Router Tranzeo Wireless Technologies Inc. Date: March 21, 2007 Report No.: 210307.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Cam Finnigan EMC Engineer Sam Zahed EMC Coordinator Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 2 A.1 Label Location Photo

EMC LABS INC Operational Description Operational DescriptionOperational Description Operational Description FCCID: FCCID: FCCID: FCCID: QRF QRFQRF QRF- -- -RAEKT2KN2 RAEKT2KN2RAEKT2KN2 RAEKT2KN2 Wireless Mesh Router Tranzeo Wireless Technologies Inc. Date: March 21, 2007 Report No.: 210307.1 Lab: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Cam Finnigan EMC Engineer Sam Zahed EMC Coordinator Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 2 A.1 Operational Description The device is a wireless mesh router designed specifically for wireless mesh networks. The device has two radios, an 802.11a mesh backhaul radio and an access point radio for 802.11b/g client devices. It uses two external antennas, one for each radio. The transceivers operate in the frequency bands 2400-2483.5 and 5725-5850 MHz. The device transmits digital network data. The unit is mounted in fixed point-to-multi point installations. The device can be used to create either a stand alone or an internet extension network. The type of RF modulation is DSSS and OFDM. Both DSSS and OFDM are used at 2.4 GHz while at 5.8 GHz only OFDM is used. The device can transmit data at a bit rate of 11 Mbps in DSSS mode and 54 Mbps in OFDM mode or a real-world data rate of approximately 4 and 27 Mbps respectively. A 128 bits Wired Equivalent Protection (WEP) algorithm is used for secure communications. The device’s standard compliance ensures that it can communicate with any 802.11a/b/g network. The firmware used with the device prevents the use of channels outside the specified frequency bands. The product is used exclusively in a professionally installed, fixed point-to-point environment.

EMC LABS INC RF Exposure Evaluation RF Exposure EvaluationRF Exposure Evaluation RF Exposure Evaluation FCCID: FCCID: FCCID: FCCID: QRF QRFQRF QRF- -- -RAEKT2KN2 RAEKT2KN2RAEKT2KN2 RAEKT2KN2 Wireless Mesh Router Tranzeo Wireless Technologies Inc. Date: March 21, 2007 Report No.: 210307.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Cam Finnigan EMC Engineer Sam Zahed EMC Coordinator Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 2 RF Exposure Evaluation FCC 1.1310 states the criteria listed in the table below shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Section 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Section 2.1093 of this chapter. Further information on evaluating compliance with these limits can be found in the FCC's OST/OET Bulletin Number 65, “Evaluating Compliance with FCC-Specified Guidelines for Human Exposure to Radiofrequency Radiation”. Frequency Range (MHZ) Electric Field Strength (V/m) Magnetic Field Strength (A/M) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 EUT Operating Condition The maximum antenna gain is 7.5 dBi at 2.4 GHz and 10.5 dBi at 5.8 GHz. RF exposure evaluation distance calculation 2.4GHz radio with 7.5 dBi antenna Freq (MHz) Output Power to Antenna (dBm) Antenna Gain (dBi) r (cm) 2412 19.9 7.5 6.6 2437 25.2 7.5 12.2 2462 19.6 7.5 6.4 5.8GHz radio with 10.5 dBi antenna Freq (MHz) Output Power to Antenna (dBm) Antenna Gain (dBi) r (cm) 5745 22.94 10.5 13.2 5785 22.68 10.5 12.9 5825 21.78 10.5 11.6 As shown above, the minimum distance where the MPE limit is reached is 13.2 cm for the EUT.

EMC LABS INC EMC EMC EMC EMC Test Test Test Test Report ReportReport Report FCCID: FCCID: FCCID: FCCID: QRF QRFQRF QRF- -- -RAEKT2KN2 RAEKT2KN2RAEKT2KN2 RAEKT2KN2 Wireless Mesh Router Tranzeo Wireless Technologies Inc. Date: 21 March, 2007 Report No.: 210307.2 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Cam Finnigan EMC Engineer Sam Zahed EMC Coordinator EMC Report: QRF-RAEKT2KN2 Revision History Tranzeo EMC Labs Page 2 of 37 Revision History 1. A graph was added on page 24 to explain the peak to average correction factor. EMC Report: QRF-RAEKT2KN2 Table of Contents Tranzeo EMC Labs Page 3 of 37 Table of Contents 1.0 GENERAL INFORMATION ................................................................................................................. 5 1.1 EUT Description............................................................................................................................... 5 1.2 Operational Description ................................................................................................................... 6 1.3 EUT Testing Configuration .............................................................................................................. 6 1.4 EUT Antennas................................................................................................................................... 7 1.5 EUT Modifications ........................................................................................................................... 7 1.6 Test Facilities ................................................................................................................................... 7 1.7 Test Equipment ................................................................................................................................. 7 1.8 Test System Details ........................................................................................................................... 8 1.9 Test Results ....................................................................................................................................... 8 2.0 CONDUCTED EMISSIONS ................................................................................................................... 9 2.1 Test Standard.................................................................................................................................... 9 2.2 Test Limits ........................................................................................................................................ 9 2.3 Test Setup.......................................................................................................................................... 9 2.3.1 Test Setup Block Diagram ................................................................................................................ 9 2.4 Test Results ..................................................................................................................................... 10 2.4.1 Test Data Peak Detector................................................................................................................. 10 2.4.2 Test Data Average Detector ........................................................................................................... 11 3.0 PEAK POWER OUTPUT ..................................................................................................................... 12 3.1 Test Standard.................................................................................................................................. 12 3.2 Test Limits ...................................................................................................................................... 12 3.3 Test Setup........................................................................................................................................ 13 3.3.1 Test Setup Block Diagram .............................................................................................................. 13 3.4 Test Results ..................................................................................................................................... 13 3.4.1 2.4 GHz frequency band ................................................................................................................. 13 3.4.2 5.8 GHz frequency band ................................................................................................................. 13 4.0 RADIATED EMISSIONS, GENERAL REQUIREMENTS ..............................................................14 4.1 Test Standard.................................................................................................................................. 14 4.2 Test Limits ...................................................................................................................................... 15 4.3 Test Setup........................................................................................................................................ 15 4.3.1 Test Setup Block Diagram .............................................................................................................. 15 4.4 Test Results ..................................................................................................................................... 16 5.0 HARMONIC AND SPURIOUS EMISSIONS ..................................................................................... 17 5.1 Test Standard.................................................................................................................................. 17 5.2 Test Limits ...................................................................................................................................... 17 5.3 Test Setup – Spurious Emissions .................................................................................................... 17 5.3.1 Test Setup Block Diagram – Conducted Measurements…
