     Introduction This next-generation wireless LAN device – the TRANZEO TR-6000, brings Ethernet-like performance to the wireless realm. Fully compliant with the IEEE802.11b standard, the TRANZEO TR-6000 also provides powerful features such as the Internet-based configuration utility as well as WEP and WPA security. Maximize network efficiency while minimizing your network investment and maintenance costs.   "
# 1 #+ Hardware Installation Product Kit Before installation, make sure that you have the following items: ∑ The TR-6000 x 1 ∑ DC Power Adapter x 1 ∑ Power over Ethernet Adapter x 1 ∑ Ethernet Boot x 1 ∑ Mounting Bracket x 1 ∑ Ket Nuts (With Washer Attached) x 8 ∑ U-Bolt w/ 2 Nuts x 1 ∑ RJ-45 Patch Cable x 1 ∑ Ethernet Boot Gasket x 1 ∑ Ethernet Cable Lock x 2 ∑ Optional: Ethernet Boot Tightening Bracket x 1 If any of the above items is not included or damaged, please contact your local dealer for support. 20155 Stewart Crescent, Maple Ridge, B.C. Canada V2X 0T6 Phone (604) 460-6002 Fax (604) 460-6005 www.tranzeo.com Page 4 of 24 3/10/2005

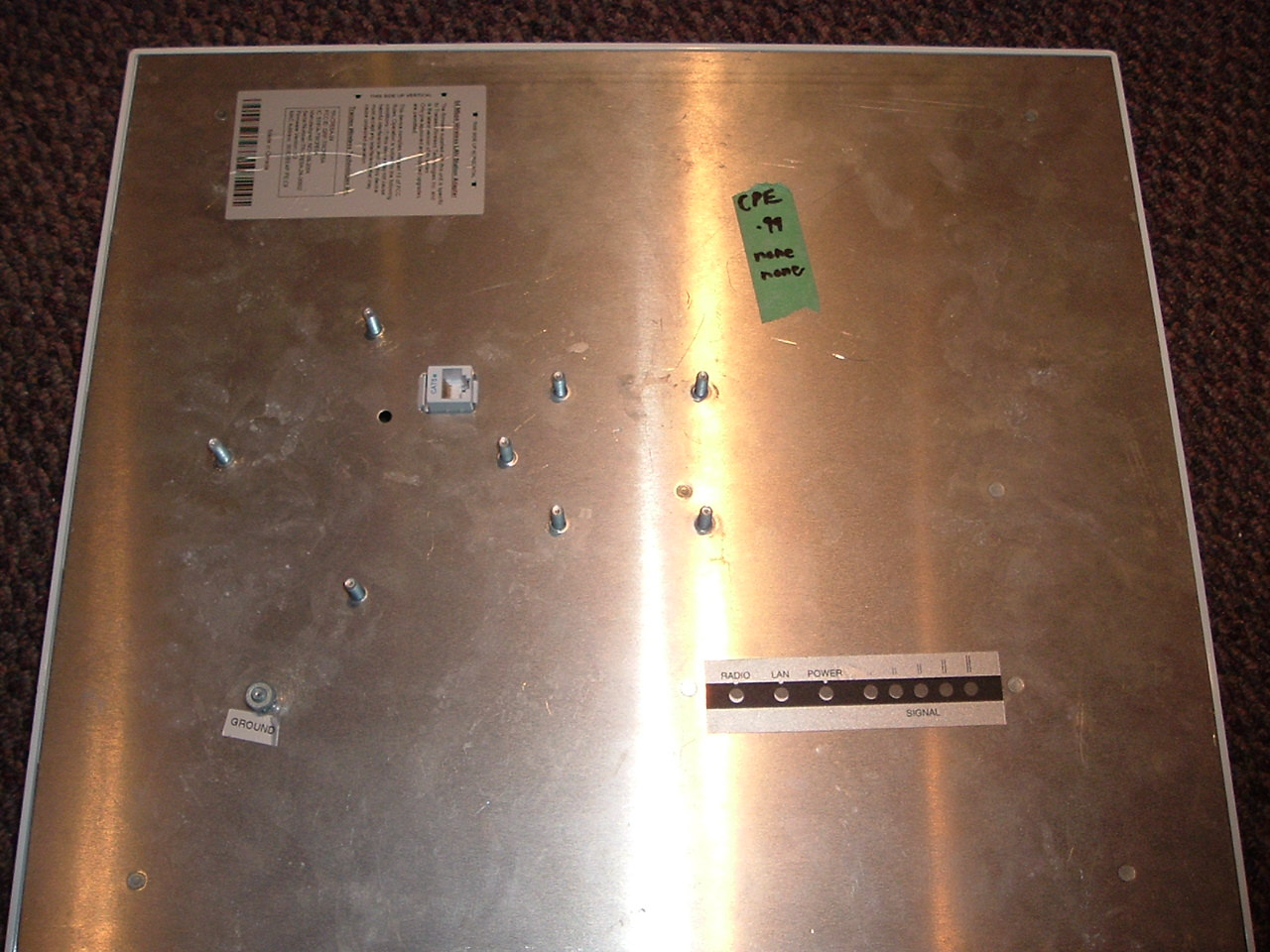

     Mechanical Description LED panel of the Wireless LAN Smart Access Point: The following table provides an overview of each LED activity: LED Definition Activity Description Label Color Indicators POWER Red On: Powered On Off: No Power LAN Green* On: Ethernet Link Flashing : Ethernet Traffic Off: No Ethernet Link Radio Amber On: Radio Link Flashing Radio Activity Off: No Radio Link Signal Red/Amber/Green In CPE mode, light up in sequence to indicate signal strength In AP mode the signal lights indicate the following: Color Indicators Red On: WEP/128 Enabled Flashing: WEP/64 Enabled Off: WEP Off Amber* On: WPA/AES Enabled Flashing : WPA/TKIP Enabled Off: WPA Off Amber Flashing: 2.4 GHz operation Green On: ACL Enabled Off: ACL Off Green On: WDS Enabled Off: WDS Off Power Supply ONLY use the power adapter supplied with the TR-6000. Otherwise, the product may be damaged. 20155 Stewart Crescent, Maple Ridge, B.C. Canada V2X 0T6 Phone (604) 460-6002 Fax (604) 460-6005 www.tranzeo.com Page 5 of 24 3/10/2005
     Hardware Installation Take the following steps to set up your TR-6000. Site Selection: Before installation, determine the TR-6000 unit’s location. Proper placement of the unit is critical to ensure optimum radio range and performance. You should perform a Site Survey to determine the optimal location. Ensure the CPE is within line-of-sight of the Access Point. Obstructions may impede performance of the unit. Tools Required to Install ∑ One 3/8 wrench ∑ One 3/4 wrench ∑ One RJ-45 Crimper ∑ A suitable length of Cat 5 Cable to bring the signal from the unit to the Power over Ethernet Adaptor ∑ 2 RJ-45 Jacks Before installing, you must determine if the unit will be in the horizontal or vertical orientation. The TR-6000 model…

Text truncated - open the document above for the full version.

20155 Stewart Crescent, Maple Ridge, B.C. Canada V2X 0T6 Phone (604) 460-6002 Fax (604) 460-6005 www.tranzeo.com Page 13 of 24 3/10/2005
     Administrative Settings Image File Name Enter the location of the Bios update file then press ‘Upgrade Software” Factory Defaults Restore Returns all settings to factory defaults. Device Name The network name of the device. User Name The access user name. Password/Confirm Password Enter the password for accessing the device Ext. Info Enabled Enable extended information. 20155 Stewart Crescent, Maple Ridge, B.C. Canada V2X 0T6 Phone (604) 460-6002 Fax (604) 460-6005 www.tranzeo.com Page 14 of 24 3/10/2005
     WDS Enabled Select this box to enable WDS AP MAC Address 1-6 Enter the MAC addresses of the other APs 20155 Stewart Crescent, Maple Ridge, B.C. Canada V2X 0T6 Phone (604) 460-6002 Fax (604) 460-6005 www.tranzeo.com Page 15 of 24 3/10/2005
     Security Basic Enabled Turn On WEP Authentication Turn on Shared Key Authentication Key Length Level of Encryption. NOTE: 64 bit is called 40 bit on some systems Default Key Choose the default WEP key Activate Keys Enter your WEP keys. NOTE: Keys must be entered in HEX only. 20155 Stewart Crescent, Maple Ridge, B.C. Canada V2X 0T6 Phone (604) 460-6002 Fax (604) 460-6005 www.tranzeo.com Page 16 of 24 3/10/2005
     Security Advanced Enabled Turn On WPA Cipher Type Level of Encryption. TKIP or AES PSK Enter your password Update Interval Enter the update interval Enabled Turn on 802.1x RADIUS Server Authentication RADIUS Server IP Address Enter the server IP Timeout (min) Enter the timeout period 20155 Stewart Crescent, Maple Ridge, B.C. Canada V2X 0T6 Phone (604) 460-6002 Fax (604) 460-6005 www.tranzeo.com Page 17 of 24 3/10/2005
     RADIUS Server Shared Secret Enter the name of the server Server Port Enter the port of the server 20155 Stewart Crescent, Maple Ridge, B.C. Canada V2X 0T6 Phone (604) 460-6002 Fax (604) 460-6005 www.tranzeo.com Page 18 of 24 3/10/2005
     Access Control Enable Access Control Select this box to enable access control. Associated Wireless Devices Click any devices to disassociate them Wireless Devices Available Click any wireless device that should be associated with the AP Associate With This Station Manualy Enter the MAC address of a client and then click “add” to associate with it. 20155 Stewart Crescent, Maple Ridge, B.C. Canada V2X 0T6 Phone (604) 460-6002 Fax (604) 460-6005 www.tranzeo.com Page 19 of 24 3/10/2005
     Stations List This page displays a list of the stations associated with the AP and their connection statistics. 20155 Stewart Crescent, Maple Ridge, B.C. Canada V2X 0T6 Phone (604) 460-6002 Fax (604) 460-6005 www.tranzeo.com Page 20 of 24 3/10/2005
     Network Configuration This page allows you to control the network configuration of the device. Enable the Router option to change the IP configuration for the LAN. You can also choose Static or DHCP IP configuration for both the device and any associated IP clients. 20155 Stewart Crescent, Maple Ridge, B.C. Canada V2X 0T6 Phone (604) 460-6002 Fax (604) 460-6005 www.tranzeo.com Page 21 of 24 3/10/2005
     ""  2 $( ) ' 3 ' What is a proper Ground? This antenna must be grounded to a proper Earth Ground. According to the The National Electrical Code Sections 810-15s and 810-21, the grounding conductor shall be connected to the NEAREST accessible locations of the following: a) The building / structure grounding electrode b) The grounded interior metal water piping system c) the power service accessible means external to enclosure d) the metallic power service raceway e) the service equipment enclosure f) The grounding electrode conductor The important thing is to connect to ground at the nearest point. Why is coiling the LMR or CAT5 bad? The myth is that lighting follows the path of least resistance. It actually follows the path of least impedance. Coiling cables creates an air-wound transformer, which lowers the impedance. This means you are in fact making your radios a more appealing target for surges. What standard does Tranzeo Wireless equipment meet? This radio exceeds International Standard IEC 61000-4-5 when properly grounded. For a copy of the full testing report, see Report Number TRL090904 - Tranzeo Surge Protection board located on the Tranzeo website. Is lightning damaged covered by the Warranty? No. Lightning is not covered by the warranty. If you follow the instructions, you chances of lightning damage are greatly reduced, but nothing can protect a radio from a direct lightning strike. 20155 Stewart Crescent, Maple Ridge, B.C. Canada V2X 0T6 Phone (604) 460-6002 Fax (604) 460-6005 www.tranzeo.com Page 22 of 24 3/10/2005
     Where to Ground the device This radio must be grounded at the Pole AND at the POE. This is because the radio is between the Exterior Antenna and the POE ground. See the examples below Ungrounded Radio ` Grounded Radio Antenna POE Radio Ground An ungrounded radio causes the surge to pass through the radio. In this case the radio most likely will be damaged. POE Antenna Radio Ground An grounded radio causes the surge to pass directly to ground, bypassing the radio. 20155 Stewart Crescent, Maple Ridge, B.C. Canada V2X 0T6 Phone (604) 460-6002 Fax (604) 460-6005 www.tranzeo.com Page 23 of 24 3/10/2005
     Ungrounded POE Grounded POE Cat 5 Cable Mounting Pole Mounting Pole POE In this case, the surge will be picked up by the Cat 5 cable, and since the POE is not grounded, the route for the surge is through the radio to the antenna, and out through the building. POE In this case, the surge will be picked up by the Cat 5 cable, and since the POE is grounded, the route for the surge is through the POE to ground. Ground Cat 5 Cable 2…

Text truncated - open the document above for the full version.
