20155 Stewart Crescent, Maple Ridge, B.C. Canada V2X 0T6 Phone (604) 460-6002 Fax (604) 460-6005 www.tranzeo.com Revision 11/30/2004 Build 22 Page 3 of 3



,  !- !&
,  !- !& Introduction This next-generation wireless LAN device – the TRANZEO TR-AP-5a, brings Ethernet-like performance to the wireless realm. Fully compliant with the IEEE802.11a standard, the TRANZEO TR-AP-5a also provides powerful features such as the Internet-based configuration utility, and WEP and WPA security. Maximize network efficiency while minimizing your network investment and maintenance costs.
,  !- !& Hardware Installation Product Kit Before installation, make sure that you have the following items: The TR AP-5a x 1 DC Power Adapter x 1 Power over Ethernet Adapter x 1 Ethernet Boot x 1 Mounting Bracket x 1 Ket Nuts (With Washer Attached) x 8 U-Bolt w/ 2 Nuts x 1 RJ-45 Patch Cable x 1 Spare Ethernet Boot Gasket x 1 Optional: Ethernet Boot Tightening Bracket x 1 If any of the above items is not included or damaged, please contact your local dealer for support. Mechanical Description LED panel of the Wireless LAN Smart Access Point: The following table provides an overview of each LED activity: LED Definition Activity Description Label Color Indicators POWER RED On: Powered On Off: No Power LAN Amber/Green* On: Ethernet Link Flashing : Ethernet Traffic Off: No Ethernet Link Radio Amber On: Radio Link Flashing Radio Activity Off: No Radio Link *Only one of the two colors will be shown. Actual color will vary between units. 20155 Stewart Crescent, Maple Ridge, B.C. Canada V2X 0T6 Phone (604) 460-6002 Fax (604) 460-6005 www.tranzeo.com Revision 11/30/2004 Build 22 Page 4 of 4


  Power Supply: ONLY use the power adapter supplied with the TR- AP-5a. Otherwise, the product may be damaged. 20155 Stewart Crescent, Maple Ridge, B.C. Canada V2X 0T6 Phone (604) 460-6002 Fax (604) 460-6005 www.tranzeo.com Revision 11/30/2004 Build 22 Page 5 of 5


  2-4 Hardware Installations Take the following steps to set up your TR-AP-5a. Site Selection: Before installation, determine the TR-AP-5a Units location. Proper placement of the unit is critical to ensure optimum radio range and performance. You should perform a Site Survey to choose a proper placement for your unit. Place your unit within the line of sight of the Access Point. Obstructions may impede performance of the unit. Tools Required to Install ∑ One 3/8 wrench ∑ One 3/4 wrench ∑ One RJ-45 Crimper ∑ A suitable length of Cat 5 Cable to bring the signal from the unit to the Power over Ethernet Adaptor ∑ 2 RJ-45 Jacks Before installing, you must determine if you will be installing the unit in a horizontal or vertical orientation. The TR-AP-5a model can be mounted in either orientation. The Ethernet boot should always be placed so that the cable runs toward the ground for maximum environmental protection…

Text truncated - open the document above for the full version.

20155 Stewart Cres, Maple Ridge, BC, Canada V2X 0T6 T: 604.460.6002 F: 604-460.6005 Toll Free: 1-866-872-6936 Website: www.tranzeo.com Tuesday, November 30, 2004 Federal Communications Commission 445 12th Street SW Washington, DC 20554 Re: Request for Confidentiality FCC ID: QRF-TR-AP5A-N In accordance with FCC Rules part 0.459, we hereby request confidential treatment for the above referenced Certification application. The items to be held in confidence are: Confidential - IP3K_SCH_OCT_8_ 2004.pdf Schematics for the IP3K Carrier Board Confidential - C_ZCOM AG-621_Block Diagram_030729_CONFIDENTIAL.pdf Block Diagram for the AG-621 radio Confidential – TR-AP5A-N FCC Appendix A int photos (Confidential).PDF Interior photos of the TR-CPE5a The application contains technical information that which Tranzeo Wireless Technologies Inc. deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Since the product is sealed using a one time sealant and contains no user serviceable parts, the Interior Photos are only of use to the applicant’s competitors. Thank you for your attention in this matter

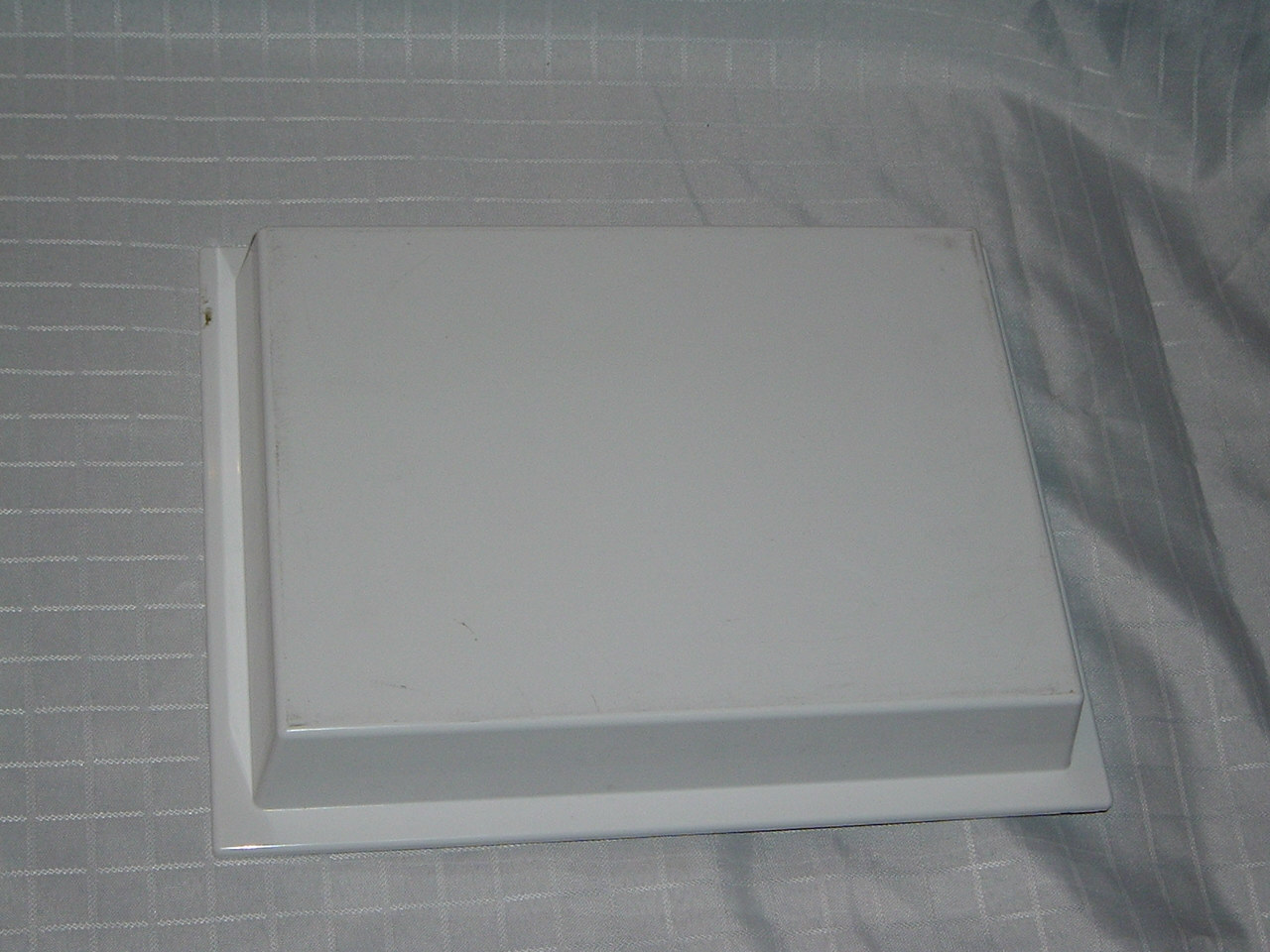

EMC LABS INC Tranzeo EMC Labs Inc. #2 - 11720 Stewart Crescent Maple Ridge, BC Canada V2X 9E7 TR-AP5A-N Test Report Appendix B – External Photos 14 January 2005 Report Number: TRL140105.1 Bruce Balston, EMC Lab Manager Andrew Marles, Technical Writer Report Number: TRL140105.1 Emissions Compliance Test Tranzeo EMC Labs Inc. Page 2 of 2 Appendix B B.1 External Photos Figure 1 – External, sealed front cover of unit Figure 2 – External, Back panel of unit.

EMC LABS INC Tranzeo EMC Labs Inc. #2 - 11720 Stewart Crescent Maple Ridge, BC Canada V2X 9E7 TR-AP5A-N Test Report Appendix C – Label Location 14 January 2005 Report Number: TRL140105.1 Bruce Balston, EMC Lab Manager Andrew Marles, Technical Writer Report Number: TRL140105.1 Emissions Compliance Test Tranzeo EMC Labs Inc. Page 2 of 2 Appendix C C.1 FCC Label location Figure 1 – External back panel, FCC Label location..

Tranzeo Wireless Technologies, Inc. 20155 Stewart Crescent Maple Ridge, BC Canada V2X 0T6 Ph: +1-604-460-6002 www.tranzeo.com 54 Mbps Wireless LAN Station Adaptor The firmware supplied with the TR-AP5A-N is specific to Tranzeo Wireless Technologies Inc. and is the latest version. Only pre-approved and supplied upgrades are permitted. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. TR-AP5A-N FCC ID: QRF-AP5A-N Industry Canada: 5181A-AP5A-N Manufactured: Nov 24/2004 Serial #:TR-CPE5A-24-00001 F/W Version: 6.3 MAC Address: 00:60:B3:16:D9:DA

EMC LABS INC Tranzeo EMC Labs Inc. #2 - 11720 Stewart Crescent Maple Ridge, BC Canada V2X 9E7 TR-AP5A-N Test Report Appendix E – Operational Description 14 January 2005 Report Number: TRL140105.1 Bruce Balston, EMC Lab Manager Andrew Marles, Technical Writer Report Number: TRL140105.1 Emissions Compliance Test Tranzeo EMC Labs Inc. Page 2 of 2 Appendix E E.1 Operational Description The TR-AP5A-N is a wireless network bridge designed specifically for outdoor applications. The device provides a bridge between IEEE802.3 wired Ethernet LANs and IEEE802.11a compliant wireless networks. It uses an external antenna coupled with a 802.11a transceiver to connect to remote wireless clients. The transceiver is connected to N-female and operates in the frequency band 5250-5350 and 5725-5850 MHz. The device transmits digital network data. The unit is mounted externally in fixed point-to-point installations. It is mounted on the exterior of a building or, typically for broadband internet access. The type of RF modulation is OFDM. The device can transmit data at a bit rate of 54 Mbps or a real- world data rate of approximately 27 Mbps. 64/128 bit Wired Equivalent Protection (WEP) algorithm is used for secure communications. The device’s standard compliance ensures that it can communicate with any 802.11a network. The firmware used with the device prevents the use of channels outside the 5.250-5.350 and 5725-5850 MHz bands. It also limits the output power of the device, based on the antenna gain, to maintain compliance with the 15.407 EIRP limits when using the 5.250-5.350 MHz band. In line with the IEEE 802.11a standard an OFDM physical layer (PHY) splits an information signal across 52 separate subcarriers to provide transmission of data at a rate of 6, 9, 12, 18, 24, 36, 48, or 54 Mbps. Four of the subcarriers are pilot subcarriers that the system uses as a reference to disregard frequency or phase shifts of the signal during transmission. A high speed Fast Fourier Transform (FFT)/Inverse Fast Fourier Transform (IFFT), combined with BPSK, QPSK, 16QAM and 64QAM modulation of the individual subcarriers, provides the data rates of 6, 9, 12, 18, 24, 36, 48 and 54Mbps, with rate compatible punctured convolutional coding with a coding rate of 1/2, 2/3, and 3/4. In the 802.11a standard, a pseudo binary sequence is sent through the pilot subchannels to prevent the generation of spectral lines. In 802.11a, the remaining 48 subcarriers provide separate wireless pathways for sending the information in a parallel fashion. The resulting subcarrier frequency spacing is 0.3125 MHz (for a 20 MHz with 64 possible subcarrier frequency slots). The OFDM PHY layer consists of two protocol functions: first a PHY convergence function, which adapts the capabilities of the Physical Medium Dependent (PMD) system to the PHY service. This function is supported by the Physical Layer Convergence Procedure (PLCP), which defines a method of mapping the IEEE 802.11 PHY Sublayer Service Data Units (PSDU) into a framing format suitable for sending and receiving user data and management information between two or more stations using the associated PMD system. Second a PMD system whose function defines the characteristics and method of transmitting and receiving data through a wireless medium between two or more stations, each using the OFDM system. The TR-AP5A-N product is used exclusively in a professionally installed, fixed point-to-point environment.
