QRF-TR900Wireless Networking Device


  Revision: 1.0 Firmware: 2.0.18 Date: 16/08/06

     iiiiii This document is intended for Public Distribution 19473 Fraser Way, Pitt Meadows, B.C. Canada V3Y 2V4 ii Document Revisions: Version 1.0 August 16, 2006 Tranzeo Wireless Technologies Inc. 19473 Fraser Way Pitt Meadows, BC Canada V3Y 2V4 Toll Free Number: 1.866.872.6936 Technical Support: 1.888.460.6366 General Inquiries: [email protected] Local Number: 1.604.460.6002 Sales: [email protected] Fax Number: 1.604.460.6005 Technical Support: [email protected] iiiiiiiii This document is intended for Public Distribution 19473 Fraser Way, Pitt Meadows, B.C. Canada V3Y 2V4 Safety Information iii TR-900 Series Tranzeo Wireless Technologies This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the device is operated in a residential environment. This device generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the user guide, may cause harmful interference to radio communication. In case of harmful interference, the users will be required to correct the interference at their own expense. The users should not modify or change this device without written approval from Tranzeo Wireless. Modification will void warranty and authority to use the device. For safety reasons, people should not work in a situation where RF exposure limits could be exceeded. To prevent this situation, the users should consider the following rules: ∑ Install the antenna so that there is a minimum of 23 cm (9.06 in) of distance between the antenna and people. ∑ Do not turn on power to the device while installing the antenna. ∑ Do not connect the antenna while the device is in operation. ∑ Do not collocate or operate the antenna used with the device in conjunction with any other antenna or transmitter. ∑ Use this product only with the following Tranzeo antennas of the same or lower gain: 12 dBi Omni – TR-OD900-12 14 dBi Sector – TR-900V-90-14 ∑ In order to ensure compliance with local regulations, the installer MUST enter the antenna gain at the time of installation. See Chapter 3: Wireless Settings, for details. FCC Compliance Safety Information iviviv This document is intended for Public Distribution 19473 Fraser Way, Pitt Meadows, B.C. Canada V3Y 2V4 Safety Information iv TR-900 Series Tranzeo Wireless Technologies You must read and understand the following safety instructions before installing the device: ∑ This antenna’s grounding system must be installed according to Articles 810-15, 810-20, 810-21 of the National Electric Code, ANSI/NFPA No. 70-1993. If you have any questions or doubts about your antenna’s grounding system, contact a local licensed electrician. ∑ Never attach the grounding wire while the device is powered. ∑ If the ground is to be attached to an existing electrical circuit, turn off the circuit before attaching the wire. ∑ Use the Tranzeo Power over Ethernet (POE) adapter only with approved Tranzeo models. ∑ Never install radio equipment, surge suppressors or lightning protection during a storm. ! Safety Instructions Lightning Protection The key to lightning protection is to provide a harmless route for lightning to reach ground. The system should not be designed to attract lightning, nor can it repel lightning. National, state and local codes are designed to protect life, limb, and property, and must always be obeyed. When in doubt, consult local and national electrical codes or contact an electrician or professional trained in the design of grounding systems. The product requires professional installation. Professional installers ensure that the equipment is installed following local regulations and safety codes. Professional Installation Required vvv This document is intended for Public Distribution 19473 Fraser Way, Pitt Meadows, B.C. Canada V3Y 2V4 Table of Contents v TR-900 Series Tranzeo Wireless Technologies Chapter 1: Overview ........................................................................ 1-1 Introduction ......................................................................................................1-1 Product Kit........................................................................................................1-1 Product Description ..........................................................................................1-1 LED Panel Indicators...................................................................................1-2 Chapter 2: Hardware Installation ...................................................... 2-1 Getting Ready ...................................................................................................2-1 Tools Required.............................................................................................2-1 Site Selection ...............................................................................................2-1 Polarity.........................................................................................................2-2 Power Supply...............................................................................................2-2 Installing the Ethernet Cable ............................................................................2-3 Mounting the Radio ..........................................................................................2-5 Grounding the Antenna ....................................................................................2-5 Connecting the Radio .......................................................................................2-6 Best Practices....................................................................................................2-7 Chapter 3: Configuration................................................................... 3-1 Connecting to the Radio ...............…

Text truncated - open the document above for the full version.

19473 Fraser Way, Pitt Meadows, B.C. V3Y 2V4 T: 604.460.6002 F: 604-460.6005 Toll Free: 1-866-872-6936 Website: www.tranzeo.com 1 June 2006 Federal Communications Commission 445 12th Street SW Washington, DC 20554 Re: Request for Confidentiality FCC ID: QRF-TR900 In accordance with FCC Rules part 0.459, we hereby request confidential treatment for the above referenced Certification application. The items to be held in confidence are: Confidential - PCB Layout Schematics for the Radio Card Confidential - Circuit and Block Diagrams Circuit Description and Block Diagram Confidential - Parts List BOM for the device Confidential –Internal Photographs.pdf Interior photos of the unit. The application contains technical information that which Tranzeo Wireless Technologies Inc. deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Since the product is sealed using a one time sealant and contains no user serviceable parts, the Interior Photos are only of use to the applicant’s competitors. Thank you for your attention in this matter

19473 Fraser Way, Pitt Meadows, B.C. V3Y 2V4 T: 604.460.6002 F: 604-460.6005 Toll Free: 1-866-872-6936 Website: www.tranzeo.com 6 January 2006 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Re: Marketing and Professional Installation Required FCC ID: QRF-TR900 Marketing: The intended use is generally for industrial/commercial use and will not be sold to the general public. It will also not be sold through retail establishments or through mail order. It will be sold to OEM customers, qualified dealers and directly to commercial customers. Professional Installation: Since the equipment is used in the above reference FCC ID has standard RF connectors, the system must be professionally installed. The installer shall be responsible for ensuring that the proper antenna is employed so that the limits specified in Part 15.247 (b) are not exceeded. It is intended for industry/commercial use.

EMC LABS INC

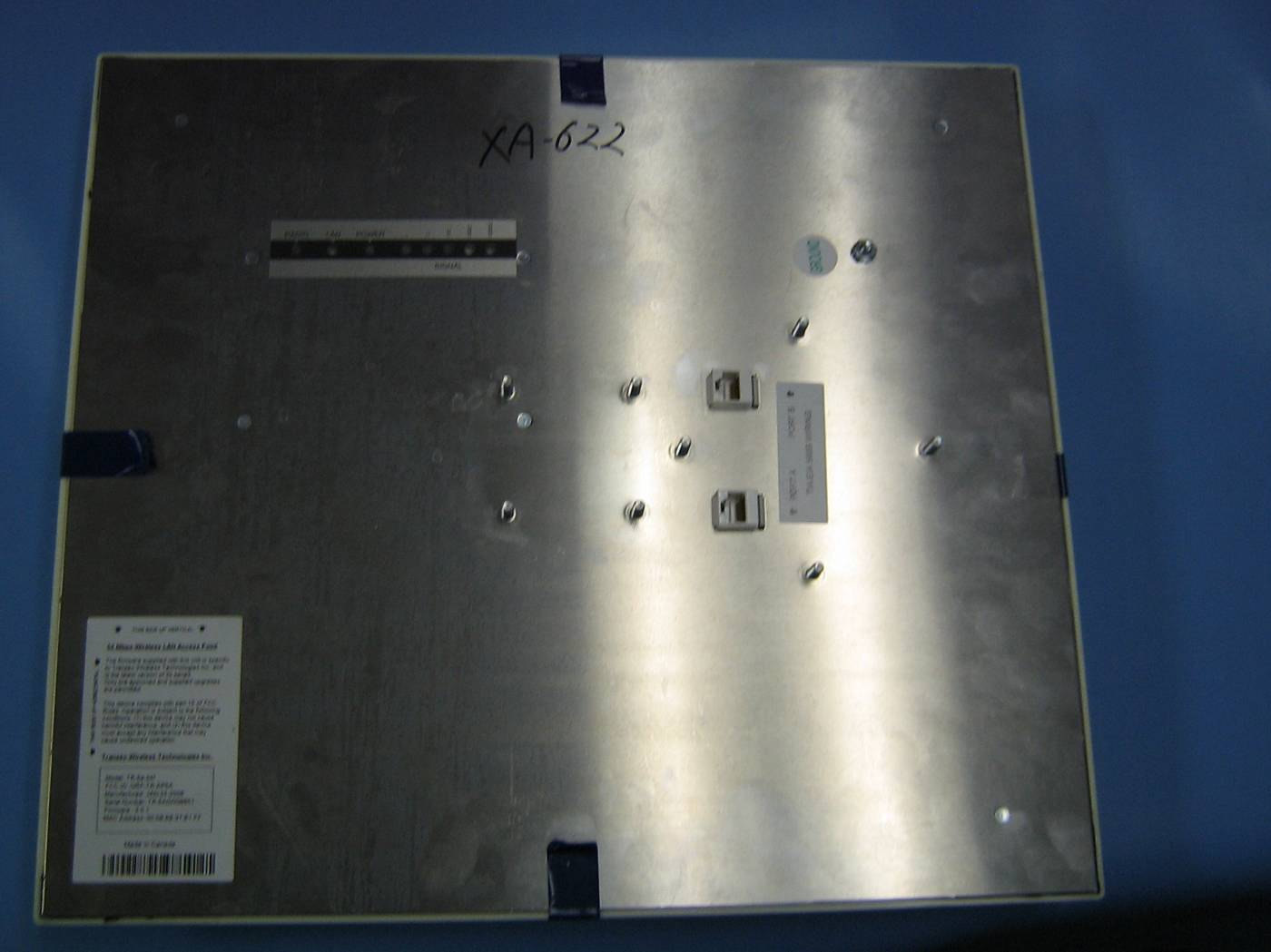

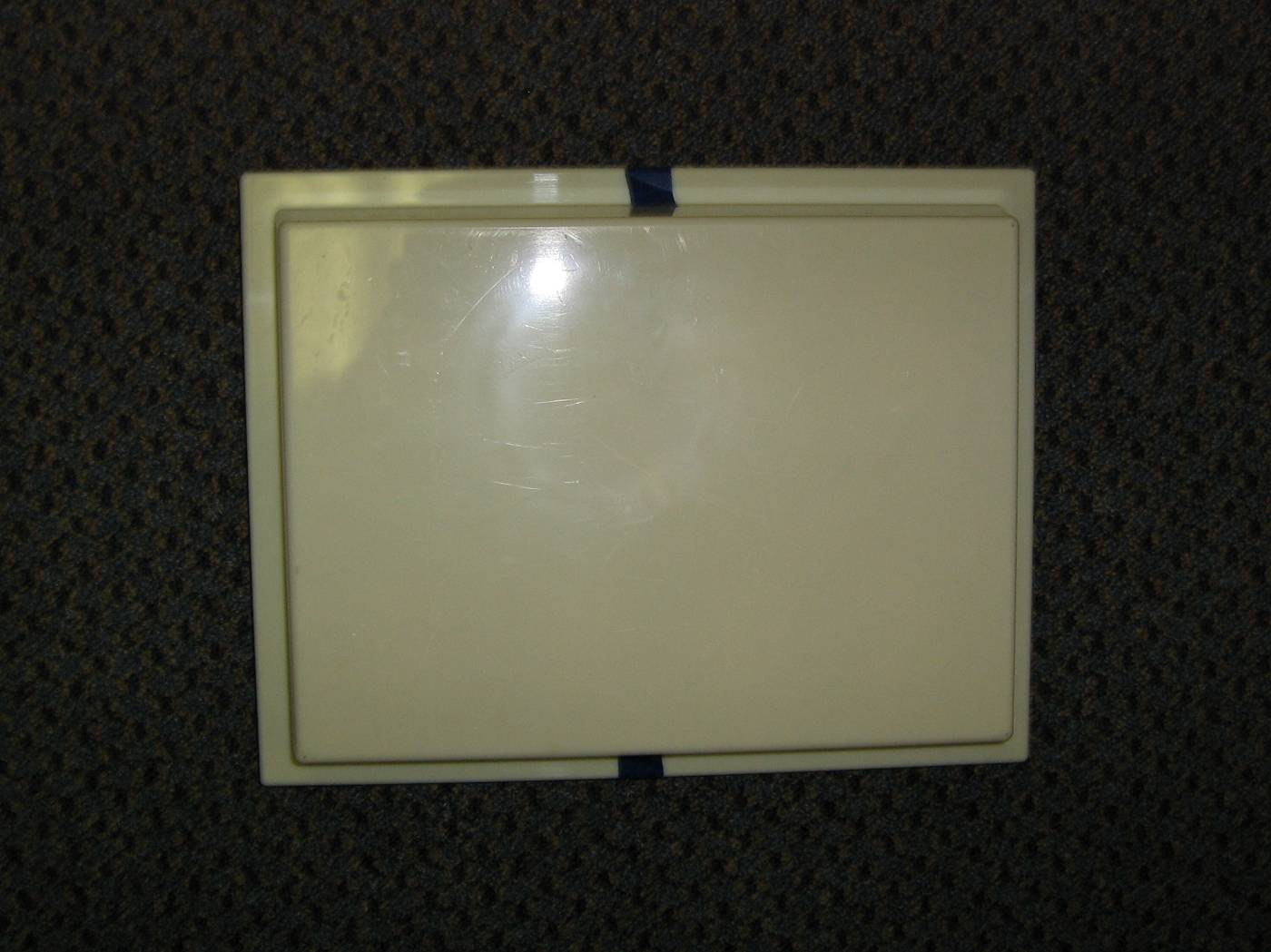

             Wireless Network Adapter Tranzeo Wireless Technologies Inc. Date: April 20, 2006 Report No.: 200406.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Bruce Balston EMC Engineer Andrew Marles EMC Coordinator Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 5 A.1 External Photos Supplemental Exhibit Tranzeo EMC Labs Inc. Page 3 of 5 Supplemental Exhibit Tranzeo EMC Labs Inc. Page 4 of 5 Supplemental Exhibit Tranzeo EMC Labs Inc. Page 5 of 5

Tranzeo Wireless Technologies, Inc. 19473 Fraser Way Pitt Meadows, B.C. Canada V3Y 2V4 Ph: +1-604-460-6002 www.tranzeo.com 11 Mbps Wireless LAN Station Adapter The firmware supplied with this TR-5plus is specific to Tranzeo Wireless Technologies Inc. and is the latest version. Only pre-approved and supplied upgrades are permitted. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. TR-900-Nf FCC ID: QRF-TR900 IC: 5181A-TR900 Manufactured: 28 May 2006 Serial #:TR-900PN-00001 F/W Version: 2.10 MAC Address: 00:60:B3:16:D9:DA

EMC LABS INC







                  Wireless Network Adapter Tranzeo Wireless Technologies Inc. Date: April 20, 2006 Report No.: 200406.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Bruce Balston EMC Engineer Andrew Marles EMC Coordinator Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 2 A.1 Label Location Photo

EMC LABS INC







                 Wireless Network Adapter Tranzeo Wireless Technologies Inc. Date: April 20, 2006 Report No.: 200406.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Bruce Balston EMC Engineer Andrew Marles EMC Coordinator Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 2 RF Exposure Evaluation FCC 1.1310 states the criteria listed in the table below shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Section 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Section 2.1093 of this chapter. Further information on evaluating compliance with these limits can be found in the FCC's OST/OET Bulletin Number 65, “Evaluating Compliance with FCC-Specified Guidelines for Human Exposure to Radiofrequency Radiation”. Frequency Range (MHZ) Electric Field Strength (V/m) Magnetic Field Strength (A/M) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 EUT Operating Condition The maximum antenna gain is 14 dBi as stated by the manufacturer. In this configuration the EUT’s power is limited in firmware to 22 dBm to ensure compliance with the 36 dBm EIRP limit. RF exposure evaluation distance calculation EUT with 14 dBi antenna Freq (MHz) Output Power to Antenna (dBm) Antenna Gain (dBi) r (cm) 908 20.70 14 20 918 21.76 14 22 923 21.92 14 23 As shown above, the minimum distance where the MPE limit is reached is 23 cm for the EUT.

EMC LABS INC



                      2.4 GHz Wireless Network Adapter Tranzeo Wireless Technologies Inc. Date: July 28, 2006 Report No.: 280706.2 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Bruce Balston EMC Engineer Andrew Marles EMC Coordinator EMC Report: TR-900 Revision History Tranzeo EMC Labs Page 2 of 48 Revision History Section 2.0 – Revised with additional data as per TCB request. Section 5.4.2 – Revised with additional data as per TCB request. Section 9.0 – Revised per TCB request. EMC Report: TR-900 Table of Contents Tranzeo EMC Labs Page 3 of 48 Table of Contents 1.0 GENERAL INFORMATION ................................................................................................................. 5 1.1 EUT Description............................................................................................................................... 5 1.2 Operational Description ................................................................................................................... 6 1.3 EUT Testing Configuration .............................................................................................................. 6 1.4 EUT Antennas................................................................................................................................... 7 1.5 EUT Modifications ........................................................................................................................... 7 1.6 Test Facilities ................................................................................................................................... 7 1.7 Test Equipment ................................................................................................................................. 7 1.8 Test System Details ........................................................................................................................... 8 1.9 Test Results ....................................................................................................................................... 8 2.0 CONDUCTED EMISSIONS ................................................................................................................... 9 2.1 Test Standard.................................................................................................................................... 9 2.2 Test Limits ........................................................................................................................................ 9 2.3 Test Setup.......................................................................................................................................... 9 2.3.1 Test Setup Block Diagram ................................................................................................................ 9 2.4 Test Results ..................................................................................................................................... 10 2.4.1 Test Data ........................................................................................................................................ 10 3.0 PEAK POWER OUTPUT ..................................................................................................................... 16 3.1 Test Standard.................................................................................................................................. 16 3.2 Test Limits ...................................................................................................................................... 16 3.3 Test Setup........................................................................................................................................ 17 3.3.1 Test Setup Block Diagram .............................................................................................................. 17 3.4 Test Results ..................................................................................................................................... 17 4.0 RADIATED EMISSIONS, GENERAL REQUIREMENTS .............................................................. 19 4.1 Test Standard.................................................................................................................................. 19 4.2 Test Limits ...................................................................................................................................... 20 4.3 Test Setup........................................................................................................................................ 20 4.3.1 Test Setup Block Diagram .............................................................................................................. 20 4.4 Test Results ..................................................................................................................................... 21 5.0 HARMONIC AND SPURIOUS EMISSIONS ..................................................................................... 22 5.1 Test Standard.................................................................................................................................. 22 5.2 Test Limits ...................................................................................................................................... 22 5.3 Test Setup – Spurious Emissions .................................................................................................... 22 5.3.1 Test Setup Block Diagram – Conducted Measurements (Harmonics)............................................ 23 5.3.2 Test Setup Block Diagram – Radiated Measurements (Spurious) .................................................. 23 5.4 Test Results ..................................................................................................................................... 24 5.4.1 Test Results 15.247–Harmonics -20 dBc ..................…

Text truncated - open the document above for the full version.

EMC LABS INC







       Wireless Network Adapter Tranzeo Wireless Technologies Inc. Date: April 20, 2006 Report No.: 200406.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Bruce Balston EMC Engineer Andrew Marles EMC Coordinator Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 5 A.1 Test Setup Photos Supplemental Exhibit Tranzeo EMC Labs Inc. Page 3 of 5 Supplemental Exhibit Tranzeo EMC Labs Inc. Page 4 of 5 Radiated Emissions Test Setup. Supplemental Exhibit Tranzeo EMC Labs Inc. Page 5 of 5 Conducted Emissions Setup
