QRF-ZREPKN6WIRELESS NETWORKING

TRANZEO TR-FDD Revision: 1.2 Firmware: 3.0.4 Date: 08/09/06 Tranzeo TR-FDD Series User Guide Covers the following models: TR-FDD-24 TR-FDD-N Document Revisions: Version 1.0 November 22, 2006 iiiiii Tranzeo Wireless Technologies Inc. 19473 Fraser Way Pitt Meadows, BC Canada V3Y 2V4 Toll Free Number: 1.866.872.6936 Technical Support: 1.888.460.6366 General Inquiries: [email protected] Local Number: 1.604.460.6002 Sales: [email protected] Fax Number: 1.604.460.6005 Technical Support: [email protected] iiiiiiiii This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the device is operated in a residential environment. This device generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the user guide, may cause harmful interference to radio communication. In case of harmful interference, the users will be required to correct the interference at their own expense. The users should not modify or change this device without written approval from Tranzeo Wireless. Modification will void warranty and authority to use the device. For safety reasons, people should not work in a situation where RF exposure limits could be exceeded. To prevent this situation, the users should consider the following rules: • Install the antenna so that there is a minimum of 100 cm (39.37 in) of distance between the antenna and people. • Do not turn on power to the device while installing the antenna. • Do not connect the antenna while the device is in operation. • Do not collocate or operate the antenna used with the device in conjunction with any other antenna or transmitter. • Use this product only with antennas of the same or lower gain as the following Tranzeo Antennas: TR-GD58-26 – 5.8 GHz 26 dBi Grid antenna TR-5.8-32db-ant—5.8 GHz 32 dBi Dish Antenna • In order to ensure compliance with local regulations, the installer MUST enter the antenna gain at the time of installation. See Chapter 3: Wireless Settings, for details. FCC Compliance Safety Information Operation of this device is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Industry Canada Compliance iviviv You must read and understand the following safety instructions before installing the device: • This antenna’s grounding system must be installed according to Articles 810-15, 810-20, 810-21 of the National Electric Code, ANSI/NFPA No. 70-1993. If you have any questions or doubts about your antenna’s grounding system, contact a local licensed electrician. • Never attach the grounding wire while the device is powered. • If the ground is to be attached to an existing electrical circuit, turn off the circuit before attaching the wire. • Use the Tranzeo Power over Ethernet (POE) adapter only with approved Tranzeo models. • Never install radio equipment, surge suppressors or lightning protection during a storm. ! Safety Instructions Lightning Protection The key to lightning protection is to provide a harmless route for lightning to reach ground. The system should not be designed to attract lightning, nor can it repel lightning. National, state and local codes are designed to protect life, limb, and property, and must always be obeyed. When in doubt, consult local and national electrical codes or contact an electrician or professional trained in the design of grounding systems. The product requires professional installation. Professional installers ensure that the equipment is installed following local regulations and safety codes. Professional Installation Required vvv Chapter 1: Overview ........................................................................ 1-1 Introduction ...................................................................................................... 1-1 Product Kit ....................................................................................................... 1-1 Product Description .......................................................................................... 1-1 LED Panel Indicators................................................................................... 1-2 Chapter 2: Hardware Installation...................................................... 2-1 Getting Ready ................................................................................................... 2-1 Tools Required............................................................................................. 2-1 Site Selection ............................................................................................... 2-1 Polarity......................................................................................................... 2-2 Power Supply............................................................................................... 2-2 Installing the Ethernet Cable ............................................................................ 2-3 Mounting the Radio .......................................................................................... 2-5 Grounding the Antenna .................................................................................... 2-5 Connecting the Radio ....................................................................................... 2-6 Best Practices ................................................................................................... 2-7 Chapter 3: Configuration................................................................... 3-1 Connecting to the Radio ................................................................................... 3-1 Changing the IP Address - Windows XP .................................................... 3-1 Changing the IP Address Using the Tranzeo Locator ...................…

Text truncated - open the document above for the full version.

19473 Fraser Way, Pitt Meadows, B.C. V3Y 2V4 T: 604.460.6002 F: 604-460.6005 Toll Free: 1-866-872-6936 Website: www.tranzeo.com 16 November, 2006 Federal Communications Commission 445 12th Street SW Washington, DC 20554 Re: Request for Confidentiality FCC ID: QRF- ZREPKN6 In accordance with FCC Rules part 0.459, we hereby request confidential treatment for the above referenced Certification application. The items to be held in confidence are: Confidential - Schematics “C_XA-622Hv1.0_circuit diagram.pdf” Confidential - Block Diagrams “C_XA-622H block diagram.pdf” Confidential - Parts List “XA-622H BOM1.xls” Confidential –Internal Photographs.pdf “QRF-ZREPKN6 int photos (Confidential).doc” The application contains technical information that Tranzeo Wireless Technologies Inc. deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Since the product is sealed using a one time sealant and contains no user serviceable parts, the Interior Photos are only of use to the applicant’s competitors. Thank you for your attention in this matter.

19473 Fraser Way, Pitt Meadows, B.C. V3Y 2V4 T: 604.460.6002 F: 604-460.6005 Toll Free: 1-866-872-6936 Website: www.tranzeo.com 16 November, 2006 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Re: Marketing and Professional Installation Required FCC ID: QRF-ZREPKN6 Marketing: The intended use is generally for industrial/commercial use and will not be sold to the general public. It will also not be sold through retail establishments or through mail order. It will be sold to OEM customers, qualified dealers and directly to commercial customers. Professional Installation: Since the equipment is used in the above reference FCC ID has standard RF connectors, the system must be professionally installed. The installer shall be responsible for ensuring that the proper antenna is employed so that the limits specified in Part 15.247 (b) are not exceeded. It is intended for industry/commercial use.

EMC LABS INC

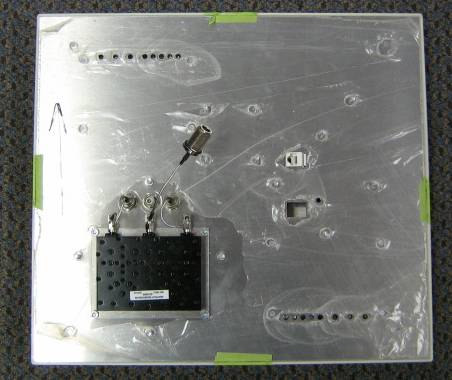

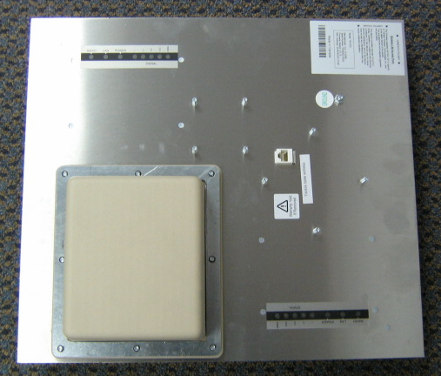

             Wireless Network Adapter Tranzeo Wireless Technologies Inc. Date: November 15, 2006 Report No.: 151106.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Cam Finnigan Senior Engineer Andrew Marles EMC Coordinator Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 3 A.1 External Photos Supplemental Exhibit Tranzeo EMC Labs Inc. Page 3 of 3 The N connector used for external antennas

EMC LABS INC







                  Wireless Network Adapter Tranzeo Wireless Technologies Inc. Date: November 15, 2006 Report No.: 151106.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Cam Finnigan Senior Engineer Andrew Marles EMC Coordinator Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 2 A.1 Label Location Photo

Tranzeo Wireless Technologies, Inc. 19473 Fraser Way Pitt Meadows, B.C. Canada V3Y 2V4 Ph: +1-604-460-6002 www.tranzeo.com 11 Mbps Wireless LAN Station Adapter The firmware supplied with this device is specific to Tranzeo Wireless Technologies Inc. and is the latest version. Only pre-approved and supplied upgrades are permitted. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. TR-900-Nf FCC ID: QRF-ZREPKN6 IC: 5181A-ZREPKN6 Manufactured: 28 May 2006 Serial #:TR-FDDPN-00001 F/W Version: 3.10 MAC Address: 00:60:B3:16:D9:DA

EMC LABS INC



                Wireless Network Adapter Tranzeo Wireless Technologies Inc. Lab: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Cam Finnigan Senior Engineer Andrew Marles EMC Coordinator Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 2 A.1 Operational Description The device is a wireless network bridge designed specifically for outdoor applications. The device provides a bridge between IEEE802.3 wired Ethernet LANs and wireless networks. It uses either an internal or an external antenna coupled with a transceiver to connect to remote wireless clients. The transceiver operates in the frequency band 5725-5850 MHz. The device transmits digital network data. The unit is mounted externally in fixed point-to-point installations. It is mounted on the exterior of a building typically for broadband internet access. The type of RF modulation is OFDM which is used at 5.8 GHz. The device can transmit data at a bit rate of 54 Mbps or a real-world data rate of approximately 27 Mbps. A 128 bits Wired Equivalent Protection (WEP) algorithm is used for secure communications. The firmware used with the device prevents the use of channels outside the specified frequency bands. The product is used exclusively in a professionally installed, fixed point-to-point environment.

EMC LABS INC







                 Wireless Network Adapter Tranzeo Wireless Technologies Inc. Date: November 15, 2006 Report No.:151106.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Cam Finnigan Senior Engineer Andrew Marles EMC Coordinator Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 3 RF Exposure Evaluation FCC 1.1310 states the criteria listed in the table below shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Section 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Section 2.1093 of this chapter. Further information on evaluating compliance with these limits can be found in the FCC's OST/OET Bulletin Number 65, “Evaluating Compliance with FCC-Specified Guidelines for Human Exposure to Radiofrequency Radiation”. Frequency Range (MHZ) Electric Field Strength (V/m) Magnetic Field Strength (A/M) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 EUT Operating Condition The maximum antenna gain is 32 dBi at 5.8 Ghz. RF exposure evaluation distance calculation EUT with 32 dBi antenna Freq (MHz) Output Power to Antenna (dBm) Antenna Gain (dBi) r (cm) 5785 21.39 32 131.8 As shown above, the minimum distance where the MPE limit is reached is 131.8 cm from the EUT.

EMC LABS INC







   5.8 GHz Wireless Network Adapter Tranzeo Wireless Technologies Inc. Date: 15 November, 2006 Report No.: 151106.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Cam Finnigan Senior Engineer Andrew Marles EMC Coordinator EMC Report: TR-FDD-24 Revision History Tranzeo EMC Labs Page 2 of 33 Revision History EMC Report: QRF-ZREPKN6 Table of Contents Tranzeo EMC Labs Page 3 of 33 Table of Contents 1.0 GENERAL INFORMATION ................................................................................................................. 5 1.1 EUT Description............................................................................................................................... 5 1.2 Operational Description ................................................................................................................... 6 1.3 EUT Testing Configuration .............................................................................................................. 6 1.4 EUT Antennas................................................................................................................................... 7 1.5 EUT Modifications ........................................................................................................................... 7 1.6 Test Facilities ................................................................................................................................... 7 1.7 Test Equipment ................................................................................................................................. 7 1.8 Test System Details ........................................................................................................................... 8 1.9 Test Results ....................................................................................................................................... 8 2.0 CONDUCTED EMISSIONS ................................................................................................................... 9 2.1 Test Standard.................................................................................................................................... 9 2.2 Test Limits ........................................................................................................................................ 9 2.3 Test Setup.......................................................................................................................................... 9 2.3.1 Test Setup Block Diagram ................................................................................................................ 9 2.4 Test Results ..................................................................................................................................... 10 2.4.1 Test Data ........................................................................................................................................ 10 3.0 PEAK POWER OUTPUT ..................................................................................................................... 13 3.1 Test Standard.................................................................................................................................. 13 3.2 Test Limits ...................................................................................................................................... 13 3.3 Test Setup........................................................................................................................................ 14 3.3.1 Test Setup Block Diagram .............................................................................................................. 14 3.4 Test Results ..................................................................................................................................... 14 4.0 RADIATED EMISSIONS, GENERAL REQUIREMENTS .............................................................. 15 4.1 Test Standard.................................................................................................................................. 15 4.2 Test Limits ...................................................................................................................................... 16 4.3 Test Setup........................................................................................................................................ 16 4.3.1 Test Setup Block Diagram .............................................................................................................. 16 4.4 Test Results ..................................................................................................................................... 17 4.4.1 Integrated 24 dBi 5.8 Ghz Antenna ................................................................................................ 17 4.4.2 Dish Antenna .................................................................................................................................. 17 4.4.3 Grid Antenna .................................................................................................................................. 17 5.0 HARMONIC AND SPURIOUS EMISSIONS ..................................................................................... 18 5.1 Test Standard.................................................................................................................................. 18 5.2 Test Limits ...................................................................................................................................... 18 5.3 Test Setup – Spurious Emissions .................................................................................................... 18 5.3.1 Test Setup Block Diagram – Conducted Measurements (Harmonics)............................................ …

Text truncated - open the document above for the full version.

EMC LABS INC







       Wireless Network Adapter Tranzeo Wireless Technologies Inc. Date: November 15, 2006 Report No.: 151106.1 Labs: 19473 Fraser Way, Pitt Meadows, BC, Canada V3Y 2V4 Cam Finnigan Senior Engineer Andrew Marles EMC Coordinator Supplemental Exhibit Tranzeo EMC Labs Inc. Page 2 of 5 A.1 Test Setup Photos Grid Antenna Supplemental Exhibit Tranzeo EMC Labs Inc. Page 3 of 5 Dish Antenna Supplemental Exhibit Tranzeo EMC Labs Inc. Page 4 of 5 Integrated Antenna, Radiated Emissions Test Setup Supplemental Exhibit Tranzeo EMC Labs Inc. Page 5 of 5 Conducted Emissions Setup
