QRZGPL2013Electronic Ballast/Ceiling Lamp

GOLDENPOINT INT’T LIMITED ELECTRONIC BALLAST USER’S MANUAL  DO NOT USE OR INSTALL UNDER THE FOLLOWING CONDITIONS: 1) WITH LOW VOLTAGE DC SUCH AS EMERGENCY LIGHTING. 2) WITH DIMMING CIRCUIT FIXTURES. 3) WHERE WATER MAY CONDENSE ON THE BALLAST.  THIS BALLAST IS UNSUITABLE FOR APPLICATIONS WHERE IT IS SWITCHED ON AND OFF REPEATEDLY.  THIS BALLAST IS DESIGNED TO BE USED WITH A STABLE SOURCE OF MAINS VOLTAGE THAT FLUCTUATES FROM 110V TO 130V, 50 OR 60Hz.  THIS BALLAST IS SUITABLE FOR USE WITH PLC FLUORESCENT LAMPS.  THIS PRODUCT COMPLIES WITH PART 18 OF FCC RULES BUT MAY CAUSE INTERFERENCE TO RADIOS, TELEVISION, WIRELESS TELEPHONES, REMOTE CONTROLS AND SHOULD NOT BE INSTALLED WITH MARITIME SAFETY COMMUNICATION EQUIPMENT OR OTHER CRITICAL NAVIGATION OR COMMUNICATION EQUIPMENT OPERATING BETWEEN 0.45—30MHZ. IF INTERFERENCE OCCURS, MOVE PRODUCT AWAY FROM THE DEVICE OR PLUG EITHER INTO A DIFFERENT OUTLET, OR MOVE THE PRODUCT OUT OF THE SIGHT WITH THE REMOTE CONTROL RECEIVER. WIRING DIAGRAMS ALL BALLASTS MUST GROUNDED PLC LAMP BALLAST WHITE BLACK LINE GND BALLAST LAMP LAMP LINE BLACK WHITE GND

Block Diagram AC InputBallast DC-AC transform (50KHz)Control currentLoad output APFC

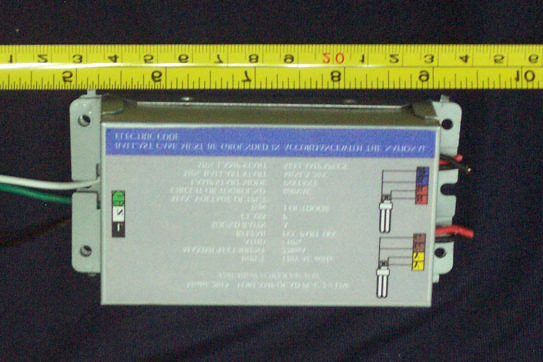

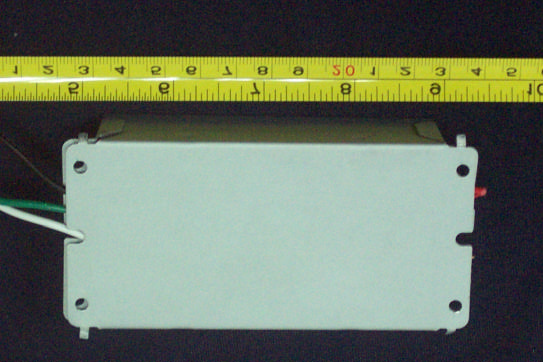

APPENDIX C – EUT EXTERNAL PHOTOGRAPHS EUT - Front View EUT – Back View Lamp - Front View Lamp - Back View

APPENDIX A - FCC PRODUCT LABELING AND WARNING STATEMENT Proposed FCC Label Format FCC ID: QRZGPL2013 Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT Proposed FCC Label Location FCC Warning Statement This device complies with Part 18 of FCC rules. Information on the following matters shall be provided to the user in the instruction manual or on the packaging if an instruction manual is not provided for any type of any ISM equipment: a. The interference potential of the device or system b. Maintenance of the system c. Simple measures that can be taken by the user to correct interference. EUT: Rear View

APPENDIX C – EUT INTERNAL PHOTOGRAPHS EUT – Component View EUT – Circuit View

PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com 1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:5-Dec-2002 Sheet of File:D:\Jing y t\Be-2013w.DDBDrawn By: C 1 6 4 7 0 0 p F / 1 k V R 2 0 6 8 K / 0 . 2 5 W D 1 4 F R 1 0 7 D 1 3 F R 1 0 7 C 1 4 1 0 0 0 P F / 1 K V D 1 0 F R 1 0 7 D 9 F R 1 0 7 L1 5mH Z2 7.5V/0.5W R19 10k/0.25W R 1 8 4 . 7 K / 0 . 2 5 W N3 C9013 R 1 7 1 2 0 k / 0 . 2 5 W S1 MCR100-6 R 1 6 6 8 K / 0 . 2 5 W E 2 2 2 u F / 2 5 V D12 IN4148 D11 IN4148 R15 56k/0.25W R14 56k/0.25w L3 L2 D 8 I N 4 1 4 8 D 5 I N 4 1 4 8 R 4 4 7 / 1 W C13 10nF/100V F1 2A/250V D 1 I N 4 0 0 7 D 2 I N 4 0 0 7 D 3 I N 4 0 0 7 D 4 I N 4 0 0 7 C 2 4 7 0 0 P F / 1 K V R 2 1 M / 0 . 2 5 W R 3 1 0 K / 0 . 2 5 W T1 R 6 4 7 k / 0 . 2 5 w C 5 1 0 3 / 5 0 V C 6 1 u F / 5 0 V R7 24/0.25w M1 IRF830 R 8 0 . 6 8 / 1 W D6 FR107 R 9 1 M / 0 . 2 5 w R 1 0 1 0 K / 0 . 2 5 W E 1 2 2 u F / 3 0 0 V R 1 1 6 8 0 K / 0 . 2 5 W C 7 2 2 n F / 1 0 0 V DB3 D 7 I N 4 0 0 7 I1 I2 R12 33/0.25w R13 33/0.25w C 8 1 0 0 n F / 4 0 0 V C 9 1 0 0 n F / 4 0 0 V R 5 2 0 0 K / 1 W C 4 2 2 U F / 2 5 V Z 1 1 5 V / 0 . 5 W C 3 1 0 n F / 5 0 V I3 C10 1500PF/1KV C11 1500PF/1KV C 1 1 0 0 n / 4 0 0 V N 1 1 3 0 0 5 N 2 1 3 0 0 5 C12 10nF/50v C15 4700pF/3KV BE-2013W L 6 5 6 1 125 8 3 6 4 7 A C 1 2 0 V PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

Note: The test report is specially limited to the use of the above client company and the product model. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government FCC ID PER PART 18 MEASUREMENT AND TEST REPORT FOR GOLDPOINT INT’T LIMITED FLAT/RM, 11/F, RITZ PLAZA, 122 AUSTIN RD, TSIMSHATSUI, KL, HONG KONG FCC ID: QRZGPL2013 November 26, 2002 This Report Concerns: Original Report Equipment Type: ELECTRONIC BALLAST Test Engineer:Davil Wang Report Number:RSZ02111501 Test Date:November 15, 2002 Reviewed By:Hans Mellberg – Engineering Manager Prepared By:Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732-9164 GOLDPOINT INT’T LIMITED FCC ID: QRZGPL2013 Report # RSZ02111501Rpt Page 2 of 10 FCC Part 18 Report TABLE OF CONTENTS 1 - GENERAL INFORMATION.................................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).........................................................................................3 1.2 OBJECTIVE................................................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S)......................................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................................3 1.5 TEST FACILITY.........................................................................................................................................................................3 1.6 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................................4 1.7 EQUIPMENT UNDER TEST (EUT) GENERAL DESCRIPTION................................................................................................4 2 - SYSTEM TEST CONFIGURATION..................................................................................................................................5 2.1 JUSTIFICATION.........................................................................................................................................................................5 2.2 EUT EXERCISE PROGRAM......................................................................................................................................................5 2.3 SCHEMATICS/BLOCK DIAGRAM............................................................................................................................................5 2.4 EQUIPMENT MODIFICATIONS.................................................................................................................................................5 2.5 CONFIGURATION OF TEST SYSTEM.......................................................................................................................................6 2.6 TEST SETUP BLOCK DIAGRAM..............................................................................................................................................6 3 - CONDUCTED EMISSIONS TEST DATA........................................................................................................................7 3.1 MEASUREMENT UNCERTAINTY.............................................................................................................................................7 3.2 EUT SETUP...............................................................................................................................................................................7 3.3 EMI RECEIVER SETUP............................................................................................................................................................7 3.4 TEST PROCEDURE....................................................................................................................................................................8 3.5 SUMMARY OF TEST RESULTS.................................................................................................................................................8 3.6 CONDUCTED EMISSIONS TEST DATA....................................................................................................................................8 GOLDPOINT INT’T LIMITED FCC ID: QRZGPL2013 Report # RSZ02111501Rpt Page 3 of 10 FCC Part 18 Report 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The GOLDPOINT INT’T LIMITED, Model: BE-2013W or the "EUT" as referred to in this report is an ELECTRONIC BALLAST. Note: The test data collected are from a representative production sample provided by the manufacturer. 1.2 Objective This Following test report is prepared on behalf of GOLDPOINT INT’T LIMITED in accordance with Part 2, Subpart J, and Part 18, Subparts A and B of the Federal Communication Commissions rules. The objective of the manufacturer is to demonstrate compliance with FCC Part 18 limit requirements for Industrial, Scientific, and Medical Equipment. 1.3 Related Submittal(s)/Grant(s) No Related Submittals. 1.4 Test Methodology All measurements contained in this report were conducted in accordance with MP-5, FCC Methods of Measurements of Radio Noise Emissions from Industrial, Scientific, and Medical Equipment. All radiated and conducted emission measurements were performed at Bay Area Compliance Laboratory Corp. (BACL). The radiated testing was performed at an antenna-to-EUT distance of 3 Meters. 1.5 Test Facility The Open Area Test site use…

Text truncated - open the document above for the full version.

APPENDIX B - TEST SETUP PHOTOGRAPHS Conducted Emission Photograph
