QS3-BTTA01Bluetooth 2.1ch Audio System for iPod

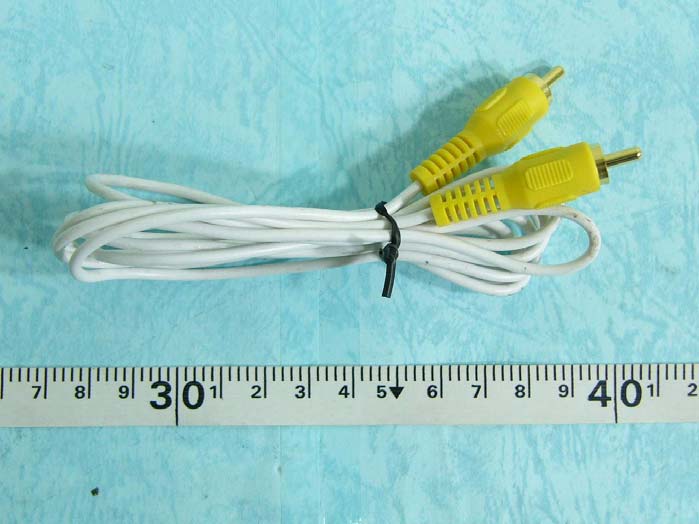

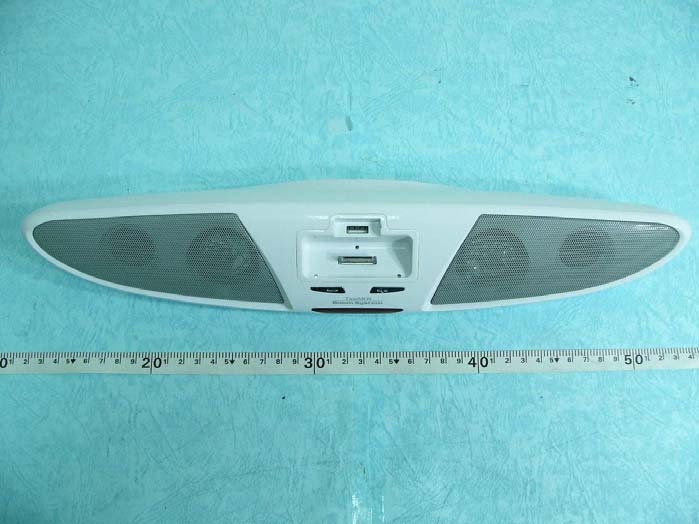

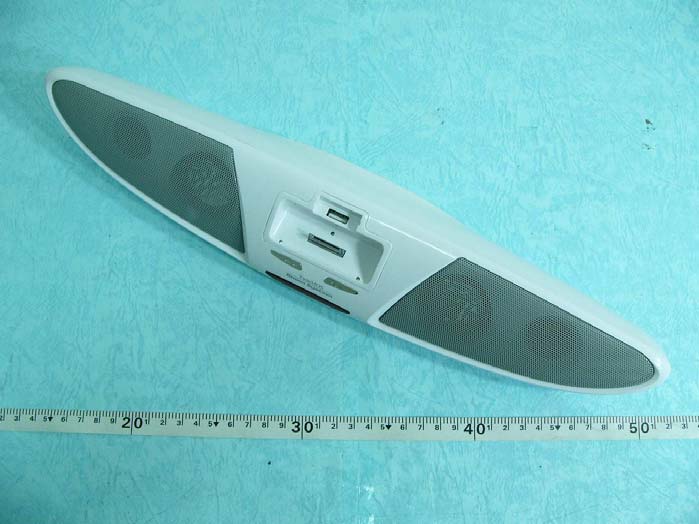

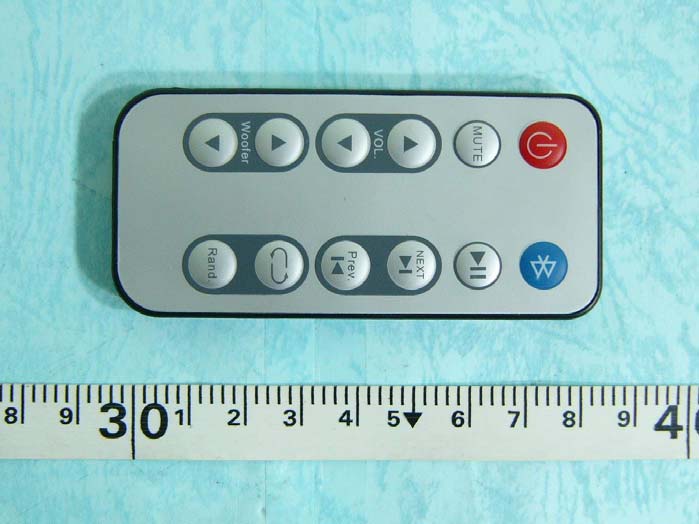

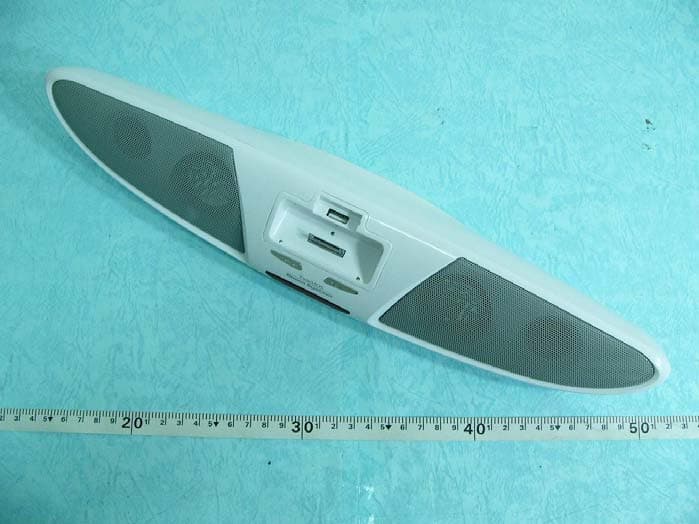

All specification and information are subject to change without further notice. iPod® is a trademark of Apple Computer, Inc. TwinMOS Technologies Inc. BooM2 Bluetooth 2.1ch Audio System for iPod ® User’s Manual Table of Contents 1. Getting Started 1 2. Device Elements 2 3. System Installation 4 4. Pairing and linking Bluetooth 5 5. System Specification 6 1 Getting started • Package includes 1. BooM System x 1 2. BooM Box x 1 3. IR Remote Control x 1 4. Bluetooth Audio Transmitter x 1 5. AC Adapter 100V ~ 240V, 50~60Hz x 1 6. 3.5 mm audio extension cable x 1 7. RCA video extension cable x 1 8. AC Adapter 100V ~ 240V, 50~60Hz x 1 9. Power cable x 1 10. Europe plug adapter x 1 11. User’s Manual x 1 12. Warranty Card x 1 All specification and information are subject to change without further notice. iPod® is a trademark of Apple Computer, Inc. VER 1.0 Page 1 2 Device Elements 2.1 BooM System (BTTA01) 2.2 BooM Box (IPTA02) Top view Front viewSide view Speaker RCA cable Bluetooth button Volume up Volume down iPod ® socket Shuffle socket Video out Power jack (DC 12V) BooM Box Line-in jack Power button BT LED All specification and information are subject to change without further notice. iPod® is a trademark of Apple Computer, Inc. VER 1.0 Page 2 2.3 Remote Control 2.4 Bluetooth Audio Transmitter (BTT001) Play /Pause Next Track Backward Repeat Random On/Off Mute VOL UP VOL Down Woofer VOL UP Woofer VOL Down Bluetooth Top view Front view Side view Pairing button LED1(blue) LED2(orange) & LED3(green) Power on/off switch Battery charging All specification and information are subject to change without further notice. iPod® is a trademark of Apple Computer, Inc. VER 1.0 Page 3 3 System Installation Unpack the BooM2 system and check if the package contains all the devices and accessories. Plug the RCA cable of BooM Box into the “BooM Box” jack on the back of BooM System. (White RCA plug to white RCA jack.) Connect the power adaptor to the “Power jack” of BooM System Push the power button to turn on BooM System. Insert your iPod ® s into the corresponding socket. Do not plug iPod® Shuffle and other iPod ® devices at the same time. Use IR remote control to operate iPod® and BooM System*. Press Bluetooth ( ) button is to activate the Bluetooth function in BooM System. Touch the buttons ”+” (Volume up) or ”-“ (Volume down) to adjust volume. Push both buttons at the same time to mute the BooM System. Press button is to activate the Bluetooth function of BooM System. Connect the video cable (yellow RCA cable) to a TV Video-in to view photo or video on TV.(for iPod ® Photo and Video series only, can’t apply to iPod® Naro.) You can also connect a MP3 player to the BooM System Via a audio extension cable. Be aware that other music player may perform unstable audio power output to this speaker system. Please use only ordinary mp3 players. Notice: ) If a 3.5mm audio cable is plugged, the iPod ® interface will be disabled and no sound is output to BooM. ) Remote control features apply to most models of iPod ® except Shuffle. ) Hitting by abnormal electric shock from external power source, the sound of BooM will be diminished or mute. Please restart the BooM System upon such situation. All specification and information are subject to change without further notice. iPod® is a trademark of Apple Computer, Inc. VER 1.0 Page 4 4 Pairing and Linking Bluetooth 4.1 Setup Bluetooth link between transmitter and BooM2 4.1.1 Power on BTT001 and activate BTTA01 Bluetooth function via remote control or press button on BooM System. 4.1.2 The LED1 of transmitter and BT LED of BooM System will blink at low frequency. (1 Hz.) 4.1.3 For the 1 st time usage, keep pressing the pairing button of BTT001 and wait the LED1 of BTT001 to blink at medium frequency.(2 Hz.) Both devices enter the pairing state and will start to setup link automatically. 4.1.4 After the link is established, the LED1 of BTT001 and BT LED of BooM2 start to blink at full speed. (4Hz.) 4.1.5 Plug BTT001 into the earphone jack of a MP3 player and enjoy the music from the BTTA01. Notice : ) Bluetooth pairing is required only for the first time operation of both devices. After successful pairing, both devices will recognize and link each other automatically next time. 4.2 Setup Bluetooth link between BooM2 and A2DP-enabled Computers (PC, Notebook, PDA, or Mobile phone) 4.2.1 Activate the Bluetooth application program/function of your computers. 4.2.2 Search for BT device “TwinMOS Speaker”. 4.2.3 Click link icon of the Bluetooth application program to pair the BTTA01.(BooM2 System) 4.2.4 If pairing code is required, please enter “0000”. 4.2.5 The link will be set and the LED1 of BTTA01 will start to blink at full speed.(4Hz.) 4.2.6 Go to the device manager of the OS and redirect the speaker device to the Bluetooth speaker device. (For different Bluetooth application program, the device name will be different.) 4.2.7 Now, the sound of computer is aired to BooM System via Bluetooth connection. Notice: ) Regarding the operation of the Bluetooth application program in your computer, please consult your computer manual. ) Your computer, notebook, PDA and Mobile Phone must be Bluetooth 1.2 compliant and A2DP-enabled (Advanced Audio Distribution Profile) to transfer stereo audio stream to BooM System. All specification and information are subject to change without further notice. iPod® is a trademark of Apple Computer, Inc. VER 1.0 Page 5 5 Specifications 5.1 BTTA01+IPTA02, BooM2 BT 2.1ch Audio System Configuration BTTA01(BooM System)+IPTA01(BooM Box) Model Voltage input 100V~240V,0.8A,50~60Hz Speaker output BooM System – 8 watts per Channel BooM Box – 25 watts Frequency Response 50Hz – 20KHz @ -3dB THD% 0.1% Signal to Noise Ratio >80dB Size BooM System – 402 x80 x 57 mm BooM Box – 229 mm(diameter),232mm(high) Weight BooM System – 650g BooM Box – 2kg Docking iPod ® G3/G4/G5,iPod ® mini//nano/ *shuffle Bluetooth Receiver Build-in RF BT V1.2, Class II, 2.4GHz Max. RF distance …
