QS6-GWD900TWireless Microphone ( Handset )

Taiwan Gomet Technology GWD900 Weather Resistance Wireless Microphone System Owner’s Manual Taiwan Gomet Technology Co., Ltd. No.8-1, Lane 212, Sec. 1, Chung-Shan N. Rd. Tamsui, Taipei Taiwan Tel: 886-2-2621-8029 Fax:886-2-2623-7605 [email protected] GWD 900 Series Wireless Microphone Owner’s Manual 2 General Specification Modulation Mode: Bi-Directional DSS (Digital Spread Spectrum) Frequency: 904 MHz~ 926MHz Handset RF Power Output:17dBm (Peak). Base Station RF Power Output:15dBm (Peak). Operating Range: 1000 ft. Battery: 3.6V Rechargeable Li-Ion battery (Handset) 12Vdc from Car (Base Station) Air Time: 12 ~ 14 hours of continuous operation Standby Time: 12 ~ 15 days Microphone: Internal microphone without lavaliere Channels: 20 Channels with Automatic Synchronization This GWD900T is protected against water splashes and dust. GWD900R, the base station will transmit a signal to turns ON and shut OFF the GWD900T handset Microphone when record ing is activated or deactivated through the camcorder GWD900T handset is also able to tr igger camcorder by GWD900R base station to activate digital video recording. Any GWD900T handset will work with any system that is equipped with GWD900R base station - Automatic Synchronization Build-in Programmable Function Button, Panic Button & Mute Button LCD indicators are used for status on mute, ON/OFF, signal, battery and panic functions. GWD900T/R will automatically det ect radio frequency noises, channel conflicts and cross talks with as many as 20 vehicles in close proximity, and perform auto switch to ensure cl ear communication and recording. GWD 900 Series Wireless Microphone Owner’s Manual 3 Hardware Overview GWD900T GWD900R Handset Base Station GWDCHG01 Charger AC Wall Charger Cable & DC In-Car Charger Cable GWD 900 Series Wireless Microphone Owner’s Manual 4 4 5 3 2 1 System Overview Base Station - GWD900R GWD 900 Series Wireless Microphone Owner’s Manual 5 System Overview Base Station - GWD900R Receiver’s Register Contact The register contact is us ed to synchronize the frequency of the receiver and the wireless microphone. Green LED ( M icrophone) Green LED OFF for Standby Mode Green LED ON for Recording Mode Green LED OFF for Function ON (Mute ON) under Recording Mode Red LED ( P anis) Red LED OFF for Panic Mode OFF Red LED ON for Panic Mode ON Yellow LED ( S ignal level) Yellow LED OFF for Strong Signal Yellow LED ON for Signal is Marginal or Weak Red LED ( B attery) Red LED OFF for Full Battery Red LED ON for Low Battery with 1 Minute 1 time Buzzer Warning Tone 1 2 3 4 5 GWD 900 Series Wireless Microphone Owner’s Manual 6 System Overview Base Station - GWD900R Antenna To prevent damage, antenna for the Base Station is package separately. Remove the antenna from the package and tighten the antenna to the Base Station. Do not try to lengthen, shorten, or temper with the antennas, which might result in damage of the audio system and may violate FCC regulation Power Connection The Base Station has no ON / OFF switch. The Transceievr will become energized in standby mode whenever the system is ON. Register Contact The register contact is used to synchronize the frequency of the Base Station and Handset. GWD 900 Series Wireless Microphone Owner’s Manual 7 System Overview Handset - GWD900T LED Indicators (Within the Button 1 &2) Green LED (Within Button 2) Green LED OFF for Standby Mode Green LED ON for Recording Mode Green LED Blinking for Low Battery (With every Minute Buzzer Warning Tone) Red LED (Within Button 1) Red LED OFF for Panic Mode OFF Red LED ON for Panic Mode ON Red LED Blinking for Mute (Function) (With every 4 Sec. Buzzer Warning Tone) Yellow LED (Within Button 2) Yellow LED OFF for Strong Signal Yellow LED ON for Signal is Marginal or Weak Button One: Audio ON (Press Button 1 once) This action will initiate the wireless microphone from standby mode to recording mode. To stop recording, press the stop button on the Coban VMDT monitor module. This is to prevent accidental shut off of the wireless microphone recording. Panic ON (Press and hold Button1 for 3 second) When Panic Button is held down for 3 seconds while the wireless microphone is on the standby or recording mode, the wireless microphone will automatically send a panic signal to 1 3 4 2 1 GWD 900 Series Wireless Microphone Owner’s Manual 8 System Overview Handset - GWD900T the Coban VMDT system; the signal will be relayed back to the Base Station for process. (This function is only available if the wireless communication is established) The Panic Mode may be deactivated by holding down the Panic button for another 3 seconds. Button Two: Programmable Button Mute ON (Press Button 2 once During Recording Mode) This action will mute the audio recording, however it will not stop the video recording. Press Button Two again to Un-Mute. Warning Features (Press Button 2 During Standby Mode) Warning cycle: Tone, Vibrate, Tone & Vibrate, and LED Only (Press one time) for Tone only (Press two times) for Vibration only (Press three times) for Tone & Vibration together (Press four times) for LED warning only (Press five times) repeat warning cycle again to Tone only Buzzer Produce Warning Tone Microphone Audio Input 243 GWD 900 Series Wireless Microphone Owner’s Manual 9 System Overview Handset - GWD900T Battery Selection and Installation The GWD900T is powered by a rechargeable lithium-ion cellular phone battery. It is lightweight and environmental friendly. The handset housing is designed to prevent incorrect installation of the battery. Do not force the battery in to the housing. Reversed batteries may cause damage to the wireless microphone. The battery compartment is located at the bottom of the wireless microphone. Slide off the battery cover and remove the silicon seal, at this point the battery is free to slide out. GWD 900 Series Wireless Microphone Owner’s Manual 10 System Overview Handset - GWD900T Antenna The GWD900T Handset includes a flexible antenna, which is package s…

Text truncated - open the document above for the full version.

Mic. Button 1 Button 2 Vibrator LED 1 LED 2 LED 3 Buzzer Hand set AFout Buzzer ON/OFF LED1 Ind 1 LED2 Ind 2 LED3 Ind 3 LED4 Ind 4 Base station RF SW Transceiver Baseband uP Shielding li-ion battery Charger RF SW Transceiver Baseband uP Shielding 3.6V Voltage Regulator

From: Vincent [[email protected]] Sent: Monday, March 17, 2003 6:13 PM To: ? ??; Mike Kuo Subject: RE: Taiwan Gomet Technology Co., Ltd., FCC ID:QS6GWD900T, AN03t2676 Hi Mike Q1: The correct ID number is "FCC ID:QS6-GWD900T". Q2: The Z axes radiated emission was performed and test data was inserted into the test report which was attached. Vincent -----Original Message----- From: Mike Kuo [mailto:[email protected]] Sent: Friday, March 14, 2003 5:49 AM To: '[email protected]' Subject: FW: Taiwan Gomet Technology Co., Ltd., FCC ID:QS6GWD900T, AN03t2676 -----Original Message----- From: Mike Kuo Sent: Thursday, March 13, 2003 1:45 PM To: Eva Kao (E-mail) Cc: '[email protected]' Subject: FW: Taiwan Gomet Technology Co., Ltd., FCC ID:QS6GWD900T, AN03t2676 -----Original Message----- From: CERTADM Sent: Thursday, March 13, 2003 1:44 PM To: '[email protected]' Subject: Taiwan Gomet Technology Co., Ltd., FCC ID:QS6GWD900T, AN03t2676 Notice_content ------------- Question #1: The FCC ID number entered in TCB application form does not agree with the number listed in the test report and FCC ID label format. Please confirm what is the correct FCC ID number shall be. Question #2: This is portable/Handheld transmitter, page 8 of test report indicates that this device has been investigated with two axes and only two axes data were included in the test report. Per ANSI C63.4 requirement, handheld device shall be investigated with three axes. Please explain. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

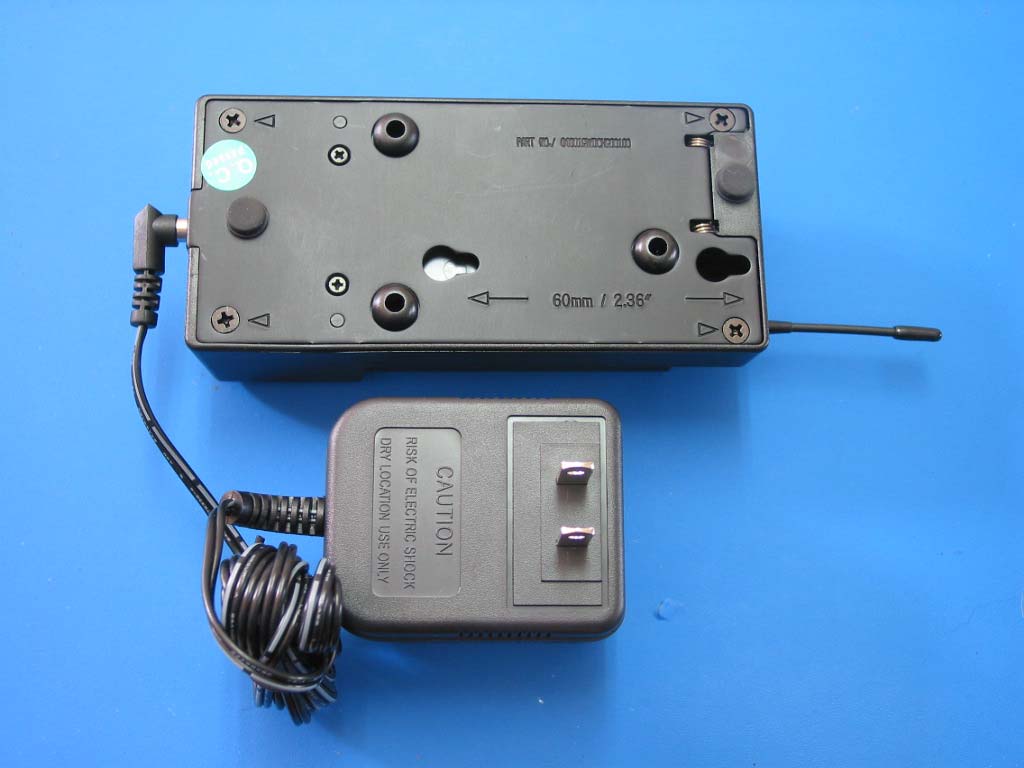

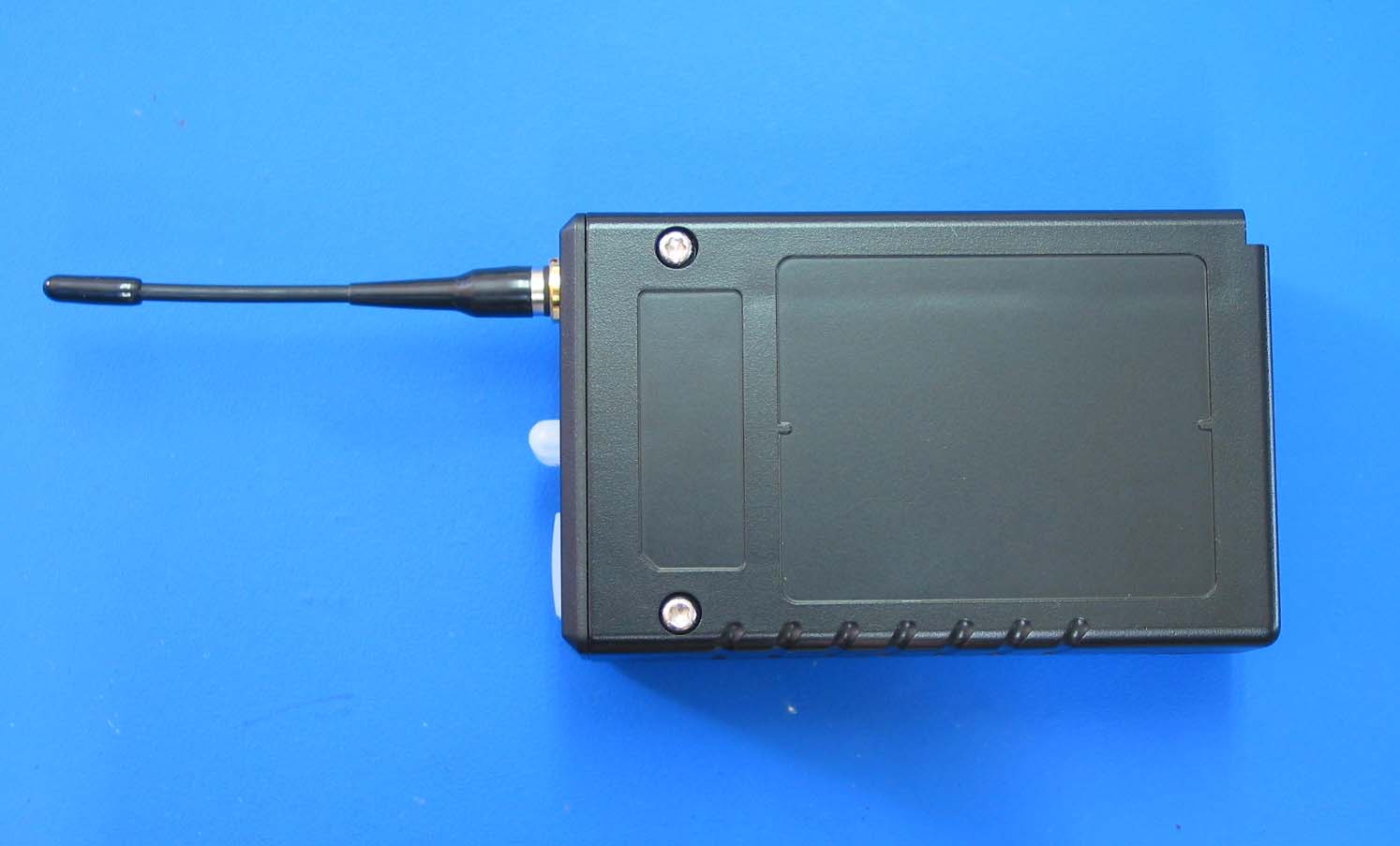

C&C Laboratory Co. Ltd. REPORT NO: 030025-RF-ID ID: QS6-GWD900T DATE: March 05, 2003 APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 030025-RF-ID ID: QS6-GWD900T DATE: March 05, 2003 All of EUT Front View of EUT C&C Laboratory Co. Ltd. REPORT NO: 030025-RF-ID ID: QS6-GWD900T DATE: March 05, 2003 Back View of EUT Bottom View of EUT C&C Laboratory Co. Ltd. REPORT NO: 030025-RF-ID ID: QS6-GWD900T DATE: March 05, 2003 Front View of Adaptor Back View of Adaptor

FCC ID LABEL FORMAT AND LOCATION Applicant: Taiwan Gomet Technology Co., Ltd. FCC ID: QS6-GWD900T FCC ID: QS6-GWD900T This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

C&C Laboratory Co. Ltd. REPORT NO: 030025-RF-ID ID: QS6-GWD900T DATE: March 05, 2003 APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 030025-RF-ID ID: QS6-GWD900T DATE: March 05, 2003 Internal of EUT-1 Internal of EUT-2 C&C Laboratory Co. Ltd. REPORT NO: 030025-RF-ID ID: QS6-GWD900T DATE: March 05, 2003 Internal of EUT-3 Internal of EUT-4 C&C Laboratory Co. Ltd. REPORT NO: 030025-RF-ID ID: QS6-GWD900T DATE: March 05, 2003 Internal of Module-F Internal of Module-B

OPERATIONAL DESCRIPTION TAIWAN GOMET TECHNOLOGY CO., LTD. FCC ID: QS6-GWD900T / QS6-GWD900R When policemen inquire into a suspecter that policemen must read miranda card in front of him. In this moment must record audio & video by a camcorder in the patrol car. The audio signal is transmitted by TX (Wireless microphone) of this device to RX (Receiver) installed in car, which is connected to the camcorder. When policemen turn on the Wireless Microphone will automatically turns ON the Camcorder and the wireless Microphone is also able to trigger by the Receiver when the camcorder is recording. Therefore, both of the video and audio sound can be recorded in the camcorder.
