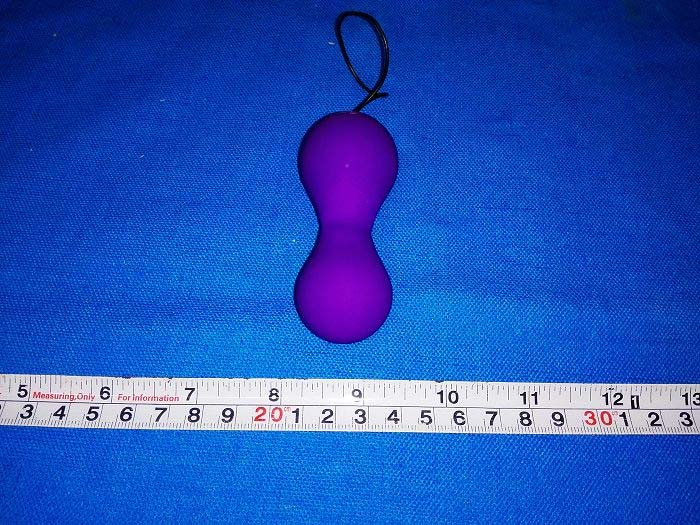

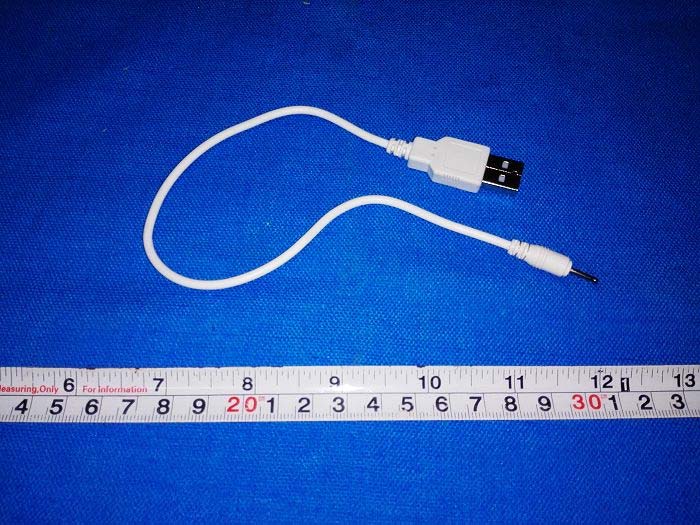

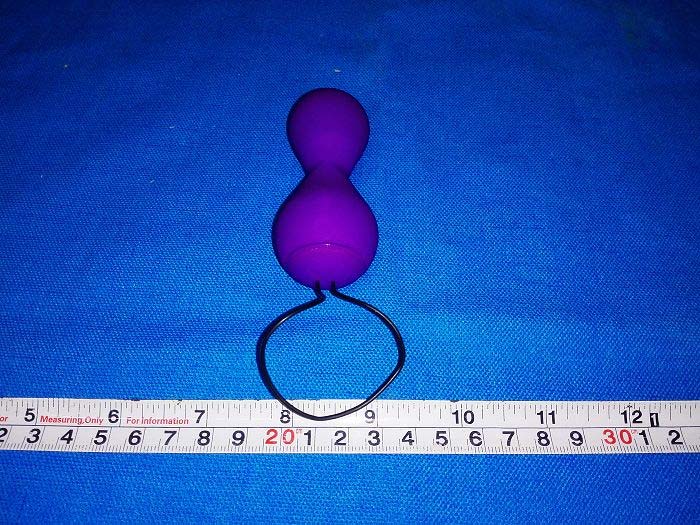

Photo 1 Photo 2 Photo 3 Photo 4

VTrump Tech (shanghai) Co.,Ltd FCC ID: QSESMV02 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label Location

RF Exposure Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. The Section 4.3.1 and Appendix A of KDB447498 D01 V05 was used as the guidance. Calculation Result (Worse Case was recorded): GFSK Modulation was the worse case [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] =1.035/5 * 1.56= 0.32, this value is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. The SAR measurement is not necessary.

Shenzhen United Testing Technology Co., Ltd. Report No.: UNI-1409095 Page 1 of 44 FCC TEST REPORT Prepared For : VTrump Tech (shanghai) Co.,Ltd Product Name: Magic Kegel / Juve Model : SMV02 / SMV02S Prepared By : Shenzhen United Testing Technology Co., Ltd. 4F, Block B Unit 2, Jianxing Building, Chaguang Industry Area, Nanshan District, Shenzhen, China Tel: 86-755-86180996 Fax: 86-755-86180156 Test Date: Sep 09, 2014 to September 24, 2014 Date of Report : September 24, 2014 Report No.: UNI-1409095 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen United Testing Technology Co., Ltd. This document may be altered or revised by Shenzhen United Testing Technology Co., Ltd. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample Shenzhen United Testing Technology Co., Ltd. Report No.: UNI-1409095 Page 2 of 44 TABLE OF CONTENTS 1.0 TEST CERTIFICATION............................................................................... 3 2.0 Test Equipment......................................................................................... 5 3.0 Technical Details........................................................................................ 6 4.0 Test Lab Details......................................................................................... 6 5.0 Power Line Conducted Emission Test............................................................ 7 5.1 Schematics of the Test................................................................................ 7 5.2 Test Method and Test Procedure................................................................... 7 5.3 Configuration of the EUT............................................................................ 7 5.4 EUT Operating Condition............................................................................ 8 5.5 Conducted Emission Limit........................................................................... 8 5.6 Test Result................................................................................................ 8 6.0 Radiated Emission test............................................................................... 11 6.1 Test Method and Test Procedure.................................................................. 11 6.2 Configuration of the EUT............................................................................ 11 6.3 EUT Operation Condition............................................................................ 11 6.4 Radiated Emission Limit.............................................................................. 12 7.0 6dB Bandwidth Measurement Bandwidth......................................................... 19 8.0 Maximum Peak Output Power....................................................................... 24 9.0 Power Spectral Density Measurement........................................................... 26 10.0 Out of Band Measurement........................................................................... 31 11.0 Antenna Requirement................................................................................. 34 12.0 FCC Label................................................................................................ 35 13.0 Photo of Test Setup and EUT View................................................................ 36 Shenzhen United Testing Technology Co., Ltd. Report No.: UNI-1409095 Page 3 of 44 1 TEST CERTIFICATION Product: Magic Kegel / Juve Model: SMV02 / SMV02S Applicant: VTrump Tech (shanghai) Co.,Ltd Room 707, 1888 Yishan Road, Shanghai, China Factory: VTrump Tech (shanghai) Co.,Ltd Room 707, 1888 Yishan Road, Shanghai, China Trade Mark: Magic Motion Tested: September 09, 2014 to September 23, 2014 Test Voltage: DC3.7V Powered Li-Po Battery Operational Frequency Range: Bluetooth: 2402-2480MHz Modulation Type: Bluetooth LE: GFSK Number of Channel 40Channel for Bluetooth Bluetooth Version: 4.0 Antenna: Integral antenna with Gain 2.0 dBi FCC ID: QSESMV02 Applicable Standards: FCC Part 15.247 The test report was prepared by Shenzhen United Testing Technology Co., Ltd.and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Prepared by : Michael Su /Assistant Engineer Reviewer : Mike Yong/Supervisor Approved & Authorized Signer : Hoffer Lau/ Manager Shenzhen United Testing Technology Co., Ltd. Report No.: UNI-1409095 Page 4 of 44 2.0 Test Eqipment Item Test Equipment Manufacturer Model No. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) 1 3m Semi- Anechoic Chamber ZhongYu Electron 9.2(L)*6.2(W)* 6.4(H)June. 30 2014 June. 29 2015 2 Control Room ZhongYu Electron 6.2(L)*2.5(W)* 2.4(H)N/A N/A 3 EMI Test Receiver Rohde & Schwarz ESU26 Jul. 03 2014 Jul. 02 2015 4 BiConiLog Antenna SCHWARZBECK MESS-ELEKTRONIK VULB9163 Feb. 25 2014 Feb. 24 2015 5 Double -ridged waveguide horn SCHWARZBECK MESS-ELEKTRONIK 9120D-829 June 29 2014 June 28 2015 6 Horn Antenna ETS-LINDGREN 3160 June. 30 2014 June. 29 2015 7 EMI Test Software AUDIX E3 N/A N/A 8 Amplifier(100kHz-3GHz)HP 8347A Jul. 03 2014 Jul. 02 2015 9 Amplifier(2GHz-20GHz) HP 8349B Jul. 03 2014 Jul. 02 2015 10 Amplifier (18-26GHz) Rohde & Schwarz AFS33-18002 650-30-8P-44 June. 30 2014 June. 29 2015 11 Band filter Amindeon 82346 June. 30 2014 June. 29 2015 12 Constant temperature and humidity box Oregon Scientific BA-888 May 11 2014 May 10 2015 13 D.C. Power Supply Instek PS-3030 May 11 2014 May 10 2015 14 Universal radio communication tester Rohde & Schwarz CMU200 May 11 2014 May 10 2015 15 Splitter Agilent 11636B May 11 2014 May 10 2015 16 EMI Test Receiver Rohde & Schwarz ESCS30 Jul. 03 2014 Jul. 02 2015 17 LISN Schwarebeck NSLK 8126 Jul. 03 2014 Ju…
