QSHAIOKTBBluetooth Barcode Scanner

Data Capture for Workforce in Motion orKan ‘barcode’ terminal User Guide © BARACODA TM , 2012 XIRING – Ingenico Healthcare / eID – Baracoda orKan ‘barcode’ – User Guide v1.5 2/35 Revision History Changes to the original manual are listed below. Document Date Author Description 1.0 4 th Jan. 2012 AP/TF Initial 1.1 6 th Jan. 2012 TF VII.1 : GUI interface : LEDs table modified 1.2 11 th April.2012 TF minor modifications 1.3 23 rd April 2012 TF/AFR Add ‘XIRING – ingenico Healthcare/eID” 1.4 26 th April 2012 TF FCC id completed for FCC submission 1.5 22 nd May 2012 TF FCC paragraph modified following FCC request XIRING – Ingenico Healthcare / eID – Baracoda orKan ‘barcode’ – User Guide v1.5 3/35 I. Summary Revision History ................................................................................................................. 2 I. Summary ..................................................................................................................... 3 II. Introduction ................................................................................................................ 5 III. Product presentation .............................................................................................. 6 1) Front ....................................................................................................................... 6 2) Side ......................................................................................................................... 7 3) Top & Bottom ........................................................................................................ 7 4) Back ........................................................................................................................ 7 IV. Installing / replacing the protective boot ............................................................... 8 V. Installing / replacing the battery ............................................................................... 9 VI. How to recharge the orKan terminal ? ............................................................... 10 VII. Switching the terminal ON/OFF ......................................................................... 12 1) How to switch ON ? ............................................................................................ 12 2) How to switch OFF ? .......................................................................................... 13 VIII. GUI interface .................................................................................................... 14 1) LEDs ..................................................................................................................... 14 2) Display .................................................................................................................. 14 3) ‘Frozen display’ ................................................................................................... 16 IX. Connecting your orKan terminal ........................................................................ 17 1) Slave mode (default) ........................................................................................... 17 2) Master mode ....................................................................................................... 17 X. Configuring your orKan terminal ........................................................................... 18 1) Reset to default settings ...................................................................................... 18 2) Bluetooth Security Settings ................................................................................ 18 3) Barcode Symbology Settings .............................................................................. 19 4) Data format .......................................................................................................... 19 5) Beeps, Vibrator and LEDs ................................................................................. 20 6) Power Management ............................................................................................ 20 7) Low Battery ......................................................................................................... 21 XI. How to capture data ? .......................................................................................... 22 1) orKan positionning to read barcode ................................................................. 22 2) Different usage modes ......................................................................................... 23 XIRING – Ingenico Healthcare / eID – Baracoda orKan ‘barcode’ – User Guide v1.5 4/35 a. Real Time mode ................................................................................................ 23 b. Real Time mode – with No Data Loss option ................................................... 23 c. Batch mode ....................................................................................................... 23 3) Different Reading modes .................................................................................... 24 a. Trigger mode (default setting) .......................................................................... 24 b. Aiming mode mode ........................................................................................... 24 c. AutoScan mode ................................................................................................. 24 d. Manual AutoScan mode .................................................................................... 24 XII. orKan embedded application(s) ........................................................................... 25 1) Global structure .................................................................................................. 25 a. How to go into an application? ......................................................................... 25 b. How to quit a running application .............................................…

Text truncated - open the document above for the full version.

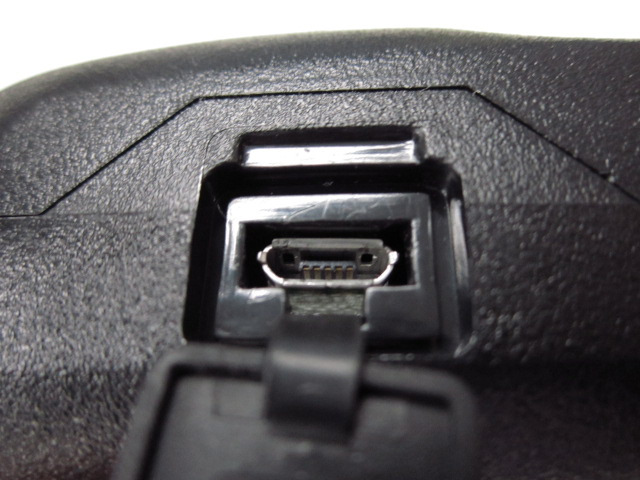

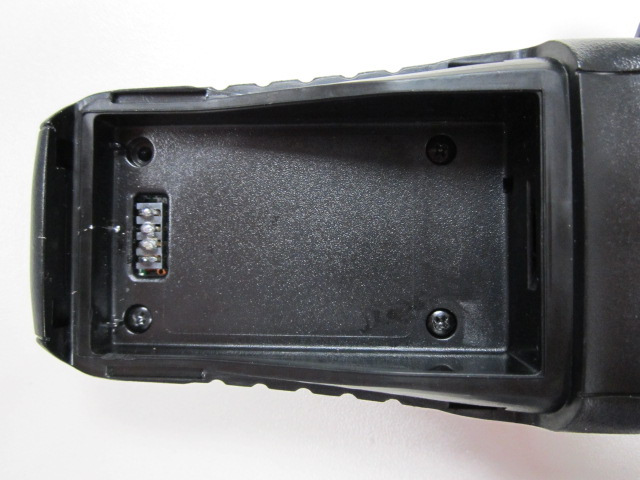

www.tuv.com Test Report No.: 14028971 001 Appendix 3 page 2 of 10 External View External View www.tuv.com Test Report No.: 14028971 001 Appendix 3 page 3 of 10 External View External View www.tuv.com Test Report No.: 14028971 001 Appendix 3 page 4 of 10 External View External View www.tuv.com Test Report No.: 14028971 001 Appendix 3 page 5 of 10 External View (BOK-L) External View (BOK-LA) www.tuv.com Test Report No.: 14028971 001 Appendix 3 page 6 of 10 External View (BOK-FE) External View www.tuv.com Test Report No.: 14028971 001 Appendix 3 page 7 of 10 External View Internal View

www.tuv.com Test Report No.: 14028971 001 Appendix 4 page 2 of 31 1.1 FCCID Label Artwork The yellow oval shows the location of the Rating Label

www.tuv.com Test Report No.: 14028971 001 Appendix 3 page 7 of 10 External View Internal View www.tuv.com Test Report No.: 14028971 001 Appendix 3 page 8 of 10 Internal View Internal View www.tuv.com Test Report No.: 14028971 001 Appendix 3 page 9 of 10 Internal View Internal View www.tuv.com Test Report No.: 14028971 001 Appendix 3 page 10 of 10 Internal View Internal View

www.tuv.com Test Report No.: 14028971 001 Date: 04.05.2012 page 2 of 16 Table of Content Page Cover Page .................................................................................1 Table of Content ..........................................................................2 Product information.......................................................................................................3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use ........................................................................................................... 4 Submitted documents................................................................................................................................. 4 Remark ......................................................................................................................................................... 4 Special accessories and auxiliary equipment .......................................................................................... 4 List of Test and Measurement Instruments.................................................................5 Results FCC Part 15 – Subpart C .................................................................................6 Subclause 15.203 – Antenna Information ....................................................................... Pass................. 6 Subclause 15.204 – Antenna Information ....................................................................... Pass................. 6 Subclause 15.207 – Disturbance Voltage on AC Mains................................................... N/A................. 6 Subclause 15.247 (a)(1) – Carrier Frequency Separation .............................................. Pass................. 6 Subclause 15.247 (a)(1)(iii) – Number of hopping channels ......................................... Pass................. 7 Subclause 15.247 (a)(1)(iii) – Time of Occupancy (Dwell Time) ................................... Pass................. 8 Subclause 15.247 (a) – 20 dB Bandwidth........................................................................ Pass................. 9 Subclause 15.247 (a) – Hopping Sequence .................................................................... Pass............... 10 Subclause 15.247 (a) – Equal Hopping Frequency Use................................................. Pass............... 11 Subclause 15.247 (a) – Receiver Input Bandwidth......................................................... Pass............... 12 Subclause 15.247 (a) – Receiver Hopping Capability ....................................................Pass............... 12 Subclause 15.247 (b)(1) – Peak Output Power ............................................................... Pass............... 12 Subclause 15.247 (d) – Band edge compliance of conducted emissions ................... Pass............... 13 Subclause 15.205 – Band edge compliance of radiated emissions ............................ Pass............... 13 Subclause 15.247 (d) – Spurious Conducted Emissions.............................................. Pass............... 14 Subclause 15.247 (c) – Spurious Radiated Emissions .................................................. Pass............... 15 Appendix 1 – Test protocols 25 pages Appendix 2 – Test setup 2 pages Appendix 3 – Photo documentation 10 pages Appendix 4 – Product documentation 31 pages www.tuv.com Test Report No.: 14028971 001 Date: 04.05.2012 page 3 of 16 Product information Manufacturers declarations Transceiver Operating frequency range 2402 - 2480 MHz Type of modulation GFSK; Pi/4 DQPSK; 8 DPSK Number of channels 79 Channel separation 1 MHz Type of antenna Chip Antenna Antenna gain (dBi) 2.0 Power level fix Type of equipment stand alone, plug-in radio device Connection to public utility power line No Nominal voltage V nor : 3.8V Independent Operation Modes Page scan Inquiry scan Connection state - ACL Link Connection state - RFCOMM Link www.tuv.com Test Report No.: 14028971 001 Date: 04.05.2012 page 4 of 16 Product function and intended use The test item is a Bluetooth Barcode Scanner based on the Bluetooth technology. Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4GHz. With the introduction of the enhanced data rate (EDR) feature, the data rates can be up to 3 Mb/s. An increase in the peak data rate beyond the basic rate of 1 Mb/s is achieved by modulating the RF carrier using phase shift keying (PSK) techniques, resulting in an increase of two to three times the number of bits per symbol. The 2 Mb/s EDR packets use a Pi/4-DQPSK modulation and the 3 Mb/s EDR packets use 8DPSK modulation. The USB connector is for charging only, no data exchange supported. Submitted documents Circuit Diagram Block Diagram Bill of material User Manual Remark Preliminary tests were performed in different data rate to find the worst radiated emission. The data rate shown in the table below is the worst-case rate with respect to the specific test item. Investigation has been done on all the possible configurations for searching the worst cases. Special accessories and auxiliary equipment Additional accessory used for testing The product has been tested together with the following additional accessory: - www.tuv.com Test Report No.: 14028971 001 Date: 04.05.2012 page 5 of 16 List of Test and Measurement Instruments Hong Kong Productivity Council (Registration number: 90656) Equipment used Manufacturer Model No. S/N Due Date Semi-anechoic Chamber Frankonia Nil Nil 25-May-12 Test Receiver R & S ESU40 100190 26-May-12 Bi-conical Antenna R & S HK116 100241 05-May-13 Log Periodic Antenna R & S HL223 841516/020 06-May-13 Coaxial cable 50ohm Rosenberger RTK081-05S- 05S-10m LA2-001- 10M / 001 15-Nov-1…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14028971 001 Appendix 1 page 1 of 25 Appendix 1 Test Results www.tuv.com Test Report No.: 14028971 001 Appendix 1 page 2 of 25 Carrier Frequency Separation A 2.441 GHz Ref 20 dBm 2.441 GHz Att 50 dB 2.441 GHz 300 kHz/ 2.441 GHz Center 2.441 GHz 2.441 GHz Span 3 MHz 2.441 GHz * 2.441 GHz RBW 100 kHz 2.441 GHzVBW 300 kHz 2.441 GHz SWT 2.5 ms 2.441 GHz MAXH 2.441 GHz 1 PK 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz 2.441 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.441 GHz 1 Marker 1 [T1 ] 3.69 dB m 2.441000000 GHz 2 Delta 2 [T1 ] 0.08 dB -1.002000000 MHz 3 Delta 3 [T1 ] -0.16 dB 1.014000000 MHz MARKER 1 2.441 GHz Date: 30.JAN.2012 09:19:30 www.tuv.com Test Report No.: 14028971 001 Appendix 1 page 3 of 25 Number of hopping channels A MAXH Att 60 dBRef 30 dBm 4.1 MHz/Start 2.4 GHzStop 2.441 GHz * RBW 1 MHz VBW 3 MHz SWT 2.5 ms 1 PK -70 -60 -50 -40 -30 -20 -10 0 10 20 30 Date: 30.JAN.2012 09:24:32 Ref 30 dBm 2.483 GHz Att 60 dB 2.483 GHz 1 PK 2.483 GHz MAXH 2.483 GHz A 2.483 GHz RBW 1 MHz 2.483 GHzVBW 3 MHz 2.483 GHz SWT 2.5 ms 2.483 GHz * 2.483 GHz Start 2.441 GHz 2.483 GHz Stop 2.483 GHz 2.483 GHz 4.2 MHz/ 2.483 GHz -70 -60 -50 -40 -30 -20 -10 0 10 20 30 2.483 GHz STOP FREQUENCY 2.483 GHz Date: 30.JAN.2012 09:26:03 www.tuv.com Test Report No.: 14028971 001 Appendix 1 page 4 of 25 Dwell Time Ref 30 dBm 31.6 s Att 60 dB 31.6 s CLRWR 31.6 s A 31.6 s RBW 1 MHz 31.6 sVBW 3 MHz 31.6 s Center 2.441 GHz 31.6 s 3.16 s/ 31.6 s SWT 31.6 s 31.6 s SGL 31.6 s 1 PK 31.6 s * 31.6 s -70 -60 -50 -40 -30 -20 -10 0 10 20 30 31.6 s SWEEP TIME 31.6 s Date: 30.JAN.2012 09:32:55 Ref 30 dBm -1.5 μs Att 60 dB -1.5 μs CLRWR -1.5 μs A -1.5 μs RBW 1 MHz -1.5 μsVBW 3 MHz-1.5 μs TRG -1.5 μs Center 2.441 GHz -1.5 μs 400 μs/ -1.5 μs SWT 4 ms -1.5 μs-1.5 μs-1.5 μs-1.5 μs-1.5 μs-1.5 μs-1.5 μs-1.5 μs-1.5 μs-1.5 μs * -1.5 μs 1 PK -1.5 μs -70 -60 -50 -40 -30 -20 -10 0 10 20 30 -1.5 μs 1 Marker 1 [T1 ] 13.54 dBm -1.500000 μs 2 Delta 2 [T1 ] 0.94 dB 2.904000 ms TRG 11 dBm MARKER 1 -1.5 μs Date: 30.JAN.2012 09:34:24 www.tuv.com Test Report No.: 14028971 001 Appendix 1 page 5 of 25 20dB Bandwidth Modulation: GFSK Tx frequency: 2402MHz Ref 30 dBm 2.401988 GHz Att 60 dB 2.401988 GHz A 2.401988 GHz Center 2.402 GHz 2.401988 GHz Span 3 MHz 2.401988 GHz 300 kHz/ 2.401988 GHz * 2.401988 GHz RBW 30 kHz 2.401988 GHzVBW 100 kHz 2.401988 GHz SWT 5 ms 2.401988 GHz 1 PK 2.401988 GHz MAXH 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz -70 -60 -50 -40 -30 -20 -10 0 10 20 30 2.401988 GHz 1 Marker 1 [T1 ] 15.09 dB m 2.401988000 GHz 2 Delta 2 [T1 ] -20.55 dB -462.000000000 kHz 3 Delta 3 [T1 ] -20.10 dB 492.000000000 kHz MARKER 1 2.401988 GHz Date: 30.JAN.2012 09:38:06 Modulation: GFSK Tx frequency: 2441MHz Ref 30 dBm 2.440988 GHz Att 60 dB 2.440988 GHz A 2.440988 GHz 1 PK 2.440988 GHz MAXH 2.440988 GHz Center 2.441 GHz 2.440988 GHz Span 3 MHz 2.440988 GHz 300 kHz/ 2.440988 GHz * 2.440988 GHz RBW 30 kHz 2.440988 GHzVBW 100 kHz 2.440988 GHz SWT 5 ms 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988 GHz -70 -60 -50 -40 -30 -20 -10 0 10 20 30 2.440988 GHz 1 Marker 1 [T1 ] 13.98 dBm 2.440988000 GHz 2 Delta 2 [T1 ] -20.55 dB -462.000000000 kHz 3 Delta 3 [T1 ] -20.53 dB 492.000000000 kHz MARKER 1 2.440988 GHz Date: 30.JAN.2012 09:40:12 www.tuv.com Test Report No.: 14028971 001 Appendix 1 page 6 of 25 Modulation: GFSK Tx frequency: 2480MHz Ref 30 dBm 2.479994 GHz Att 60 dB 2.479994 GHz A 2.479994 GHz 1 PK 2.479994 GHz MAXH 2.479994 GHz 2.479994 GHz 2.479994 GHz 2.479994 GHz 2.479994 GHz 2.479994 GHz 2.479994 GHz 2.479994 GHz 2.479994 GHz 2.479994 GHz Center 2.48 GHz 2.479994 GHz Span 3 MHz 2.479994 GHz 300 kHz/ 2.479994 GHz * 2.479994 GHz RBW 30 kHz 2.479994 GHzVBW 100 kHz 2.479994 GHz SWT 5 ms 2.479994 GHz -70 -60 -50 -40 -30 -20 -10 0 10 20 30 2.479994 GHz 1 Marker 1 [T1 ] 12.75 dB m 2.479994000 GHz 2 Delta 2 [T1 ] -19.76 dB -468.000000000 kHz 3 Delta 3 [T1 ] -20.59 dB 486.000000000 kHz MARKER 1 2.479994 GHz Date: 30.JAN.2012 09:41:37 Modulation: 8DPSK Tx frequency: 2402MHz Ref 30 dBm 2.401982 GHz Att 60 dB 2.401982 GHz A 2.401982 GHz 1 PK 2.401982 GHz MAXH 2.401982 GHz Center 2.402 GHz 2.401982 GHz Span 3 MHz 2.401982 GHz 300 kHz/ 2.401982 GHz * 2.401982 GHz RBW 30 kHz 2.401982 GHzVBW 100 kHz 2.401982 GHz SWT 5 ms 2.401982 GHz 2.401982 GHz 2.401982 GHz 2.401982 GHz 2.401982 GHz 2.401982 GHz 2.401982 GHz 2.401982 GHz 2.401982 GHz 2.401982 GHz -70 -60 -50 -40 -30 -20 -10 0 10 20 30 2.401982 GHz 1 Marker 1 [T1 ] 3.62 dBm 2.401982000 GHz 2 Delta 2 [T1 ] -20.09 dB -642.000000000 kHz 3 Delta 3 [T1 ] -20.05 dB 654.000000000 kHz MARKER 1 2.401982 GHz Date: 30.JAN.2012 09:46:50 www.tuv.com Test Report No.: 14028971 001 Appendix 1 page 7 of 25 Modulation: 8DPSK Tx frequency: 2441MHz Ref 30 dBm 2.44115 GHz Att 60 dB 2.44115 GHz A 2.44115 GHz 1 PK 2.44115 GHz MAXH 2.44115 GHz 2.44115 GHz 2.44115 GHz 2.44115 GHz 2.44115 GHz 2.44115 GHz 2.44115 GHz 2.44115 GHz 2.44115 GHz 2.44115 GHz Center 2.441 GHz 2.44115 GHz Span 3 MHz 2.44115 GHz 300 kHz/ 2.44115 GHz * 2.44115 GHz RBW 30 kHz 2.44115 GHzVBW 100 kHz 2.44115 GHz SWT 5 ms 2.44115 GHz -70 -60 -50 -40 -30 -20 -10 0 10 20 30 2.44115 GHz 1 Marker 1 [T1 ] 1.81 dB m 2.441150000 GHz 2 Delta 2 [T1 ] -20.87 dB -816.000000000 kHz 3 Delta 3 [T1 ] -20.19 dB 492.000000000 kHz MARKER 1 2.44115 GHz Date: 30.JAN.2012 09:45:40 Modulation: 8DPSK Tx frequency: 2480MHz Ref 30 dBm 2.480156 GHz Att 60 dB 2.480156 GHz A 2.480156 GHz Center 2.48 GHz 2.480156 GHz Span 3 MHz 2.480156 GHz 300 kHz/ 2.480156 GHz * 2.480156 GHz RBW 30 kHz 2.480156 GHzVBW 100 kHz 2.480156 GHz SWT 5 ms 2.480156 GHz 1 PK 2.480156 GHz MAXH 2.480156 GHz 2.480156 GHz 2.480156 GHz 2.480156 GHz 2.480156 GHz 2.480156 GHz 2.480156 GHz 2.480156 GHz 2.480156 GHz 2.480156 GHz -70 -60 -50 -40 -30 -20 -10 0 10 20 30 2.480156 GHz 1 Marker 1 [T1 ] …

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14028971 001 Appendix 2 page 2 of 2 Setup for Radiated Emission Setup for Radiated Emission
