QSS-AS450SA00Parking column using RFID

Manual and operational description Parking Column AS 450 PA00 Parking Column AS 450 PA00-E Parking Column AS 450 PA00-GC Parking Column AS 450 PE00 Parking Column AS 450 PE00-E Parking Column AS 450 PE00-GC Parking Column AS 450 SA00 BLL Parking Column AS 450 PA00-US Parking Column AS 450 PA00-E-US Parking Column AS 450 PA00-GC-US Parking Column AS 450 PE00-US Parking Column PE00-E-US Parking Column PE00-GC-US Parking Column SA00 BLL-US Parking Columns unlimited Manual and operational description Parking Columns unlimited Page 2 © SKIDATA AG, April 2004 SKIDATA AG Technical Documentation Untersbergstrasse 40 A-5083 Gartenau Telephone +43 6246 888-0, Telefax +43 6246 888-7 Internethttp://www.skidata.com [email protected] Copyright © 2004 by SKIDATA AG. All rights reserved. All information in the following document is protected by copyright law. No part of this document may be reproduced without the written consent of SKI- DATA AG. SKIDATA AG reserves the right to make any changes of specification and other information in this document without further notice. Please note During the compilation of this Technical Documentation, great care has been taken to ensure the accuracy of the information contained in it. However, despite our constant effort to ensure the highest degree of accuracy and comprehensiveness possible, the information provided cannot be guaranteed to be absolutely error-free. Trademarks This documentation may contain representations of registered product or service trademarks owned by SKIDATA AG or third parties, as well as references to proprietary know-how protected by copyright laws or other legal provisions. In any case the intel- lectual property rights remain exclusively with their respective owners. Declaration of Conformity The Parking Columns unlimited except the model versions where the name ends with the characters “-US” have been developed, designed and manufactured in accordance with the following EU directive: R&TTE (99/5/EC) 0408 Version April 2004 Parking Columns unlimited Manual and operational description © SKIDATA AG, April 2004 Page 3 Important : The FCC-specific notes apply only to the model ver- sion “AS 450 SA00 BLL-US” FCC 15.19: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause un- desired operation. FCC 15.21: IMPORTANT: Any changes to or modifications of the AS 450 SA00 BLL-US unless expressly approved by SKIDATA AG, may void the user's authority to operate this device. Note:The model versions - AS 450 PA00-US - AS 450 PA00-E-US - AS 450 PA00-GC-US - AS 450 PE00-US - AS 450 PA00-E-US - AS 450 PE00-GC-US contain the modular transmitter with the FCC-ID “QSS-MECH450”. Manual and operational description Parking Columns unlimited Page 4 © SKIDATA AG, April 2004 Parking Columns unlimited 1 Document Management – Version Table Tab. 1: Document Version Table for Installation & Maintenance Instructions SectionDocumentPagesVersionDate 1 Parking Columns unlimited 29 2.12004-04-24 Parking Column unlimited 1 1 Parking Column unlimited Version 2.1 29 pages Copyright 2004 by SKIDATA AG 1 Parking Column unlimited 1.1 Contents Page 2 © SKIDATA AG, Version 2.1 1.1 Contents 1.1Contents 2 1.2System APT 450 – Columns unlimited 3 1.2.1Versions of Parking Column Unlimited 3 1.2.1.1Parking column unlimited – “Standard” (AS 450 PA00, AS 450 PE00, AS 450 PA00-US, AS 450 PE00-US) 3 1.2.1.2Parking column unlimited – “Extended” (AS 450 PA00- E, AS 450 PE00-E, AS 450 PA00-US, AS 450 PE00- US) 4 1.2.1.3Parking column unlimited – “Graphic” (AS 450 PA00- GC, AS 450 PE00-GC, AS 450 PA00-GC-US, AS 450 PE00-GC-US) 5 1.2.1.4Parking column unlimited – “handsfree” (AS 450 SA00- BLL, AS 450 SA00 BLL-US) 6 1.2.2Installation of Parking column unlimited 7 1.2.2.1Warning 7 1.2.2.2Preparation for Installation 7 1.2.2.3Installation 7 1.2.2.4Installation on non-level surfaces (applies only in exceptional circumstances) 9 1.2.3Power supply 10 1.2.3.1Note 10 1.2.3.2Stripping connection wires 12 1.2.3.3Cross-sectional area of cable leads 13 1.2.3.4Power supply 13 1.2.3.5Connection terminals for control lead and intercom 15 1.2.3.6Loop Connections, Standard-Version, Graphics- Version, Handsfree-Version 18 1.2.3.7Loop connections, Extended-Version 19 1.2.3.8Earthing connection 20 1.2.3.9Changing the fuse 21 1.2.3.10Surge protection for external devices 21 1.2.4Weather protection 22 1.2.5MANUAL OPEN/CLOSE switch 23 1.2.6Installing devices in the front panel 24 1.2.7Opening the front panel 25 1.2.8Closing the Parking Column 25 1.2.9Installing and Deinstalling the Coding Unit (except Handsfree-Version and OEM- Version) 27 Parking Column unlimited 1 System APT 450 – Columns unlimited 1.2 © SKIDATA AG, Version 2.1 Page 3 1.2 System APT 450 – Columns unlimited 1.2.1 Versions of Parking Column Unlimited 1.2.1.1 Parking column unlimited – “Standard” (AS 450 PA00, AS 450 PE00, AS 450 PA00- US, AS 450 PE00-US) Fig. 1: Parking Column unlimited – “Standard” 1 Parking Column unlimited 1.2 System APT 450 – Columns unlimited Page 4 © SKIDATA AG, Version 2.1 1.2.1.2 Parking column unlimited – “Extended” (AS 450 PA00-E, AS 450 PE00-E, AS 450 PA00-US, AS 450 PE00-US) Fig. 2: Parking Column unlimited - ”Ex- tended” Parking Column unlimited 1 System APT 450 – Columns unlimited 1.2 © SKIDATA AG, Version 2.1 Page 5 1.2.1.3 Parking column unlimited – “Graphic” (AS 450 PA00-GC, AS 450 PE00-GC, AS 450 PA00-GC-US, AS 450 PE00-GC-US) Fig. 3: Parking Column unlimited - ”Graphic” 1 Parking Column unlimited 1.2 System APT 450 – Columns unlimited Page 6 © SKIDATA AG, Version 2.1 1.2.1.4 Parking column unlimited – “handsfree” (AS 450 SA00- BLL, AS 450 SA00 BLL-US) Fig. 4: Parking Column unlimited - ”handsfree” Parking Column unlimited 1 System APT 450 – Columns unlimited 1.2 © SKIDATA AG, Version 2.1 Page 7 1.2.2 Installation…

Text truncated - open the document above for the full version.

Fa. SKIDATA AG Untersbergstrasse 40 A-5183 Gartenau / Salzburg Austria, Europe Tel.: +43 6246 888-0 Fax: +43 6246 888-7 Gartenau, 2004-05-14 TÜV Österreich (TUEV Austria) Deutschstrasse 10 A-1230 Wien Austria, Europe Tel.: +43 1 61091-0 Request for CONFIDENTIALITY Pursuant to 47 CFR 0.457(d) of the FCC Rules, we have request for confidentiality of the following parts of our documentation regarding the Parking Column “AS 450 SA00 BLL-US” (FCC-ID: QSS-AS450SA00): • Schematic Diagrams: - sd437_1.pdf - sd582_4.pdf - sd589_5.pdf - sd591_3.pdf • Block Diagrams: - Block Diagram AS 450 SA00 BLL.pdf - Block Diagram sd589.pdf This information is owned by our company and put into public is prohibited. We further certify that the applicant nor any party to the application subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C Section 862. Christoph Sonderegger Standard Compliance Coordinator SKIDATA AG

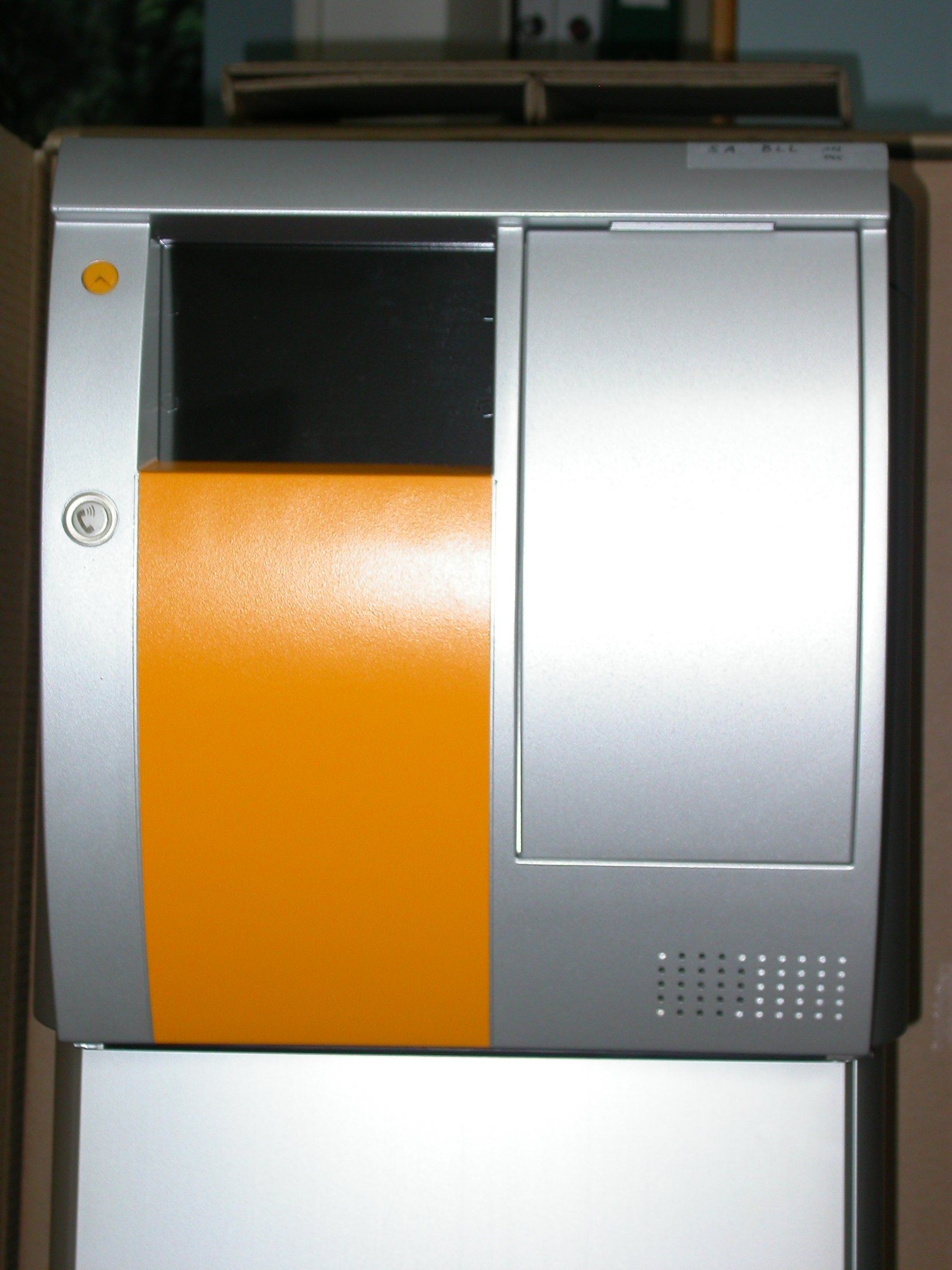

:-):-) :-):-) :-) SKIDATA AG • Untersbergstraße 40 • A-5083 Gartenau [t] +43 (0) 62 46/8 88-0 • [f] +43 (0) 62 46/8 88-7 • [e] [email protected] • [w] www.skidata.com Version 4.0 • 31.07.2003 • Copyright © 2003 by SKIDATA AG This documentation may contain representations of registered product or service trademarks owned by SKIDATA AG or third parties, as well as references to proprietary know-how protected by copyright laws or other legal provisions. In any case the intellectual property rights remain exclusively with their respective owners. This document is subject to change without notice. It cannot form part of a binding contract. Picture may vary from actual product Handsfree Parking Column unlimitedAPT 450 System DevicePage 1/2 Handsfree Parking Column unlimited can be used as an access control device at entrances with (roller- shutter) gates or at car park (section) entrance/exit gates. Privileged parkers (e.g., contract parkers) can be issued with a contactless keycard, which allows them to operate the gates. Features •Self-explanatory arrangement of control elements; unit is easy to service and maintain •125kHz/13MHz contactless transceiver module integrated in front panel allows for contactless processing of KeyCards •Automated verification of access authorisation •Gate control by way of Control Centre program (‘Manual OPEN’, ‘Keep Open’, ‘Keep Closed’) •Operating status indicator (beeper) •Can be used at entrance/exit points of car park sections (see Car Park Sections Fact Sheet) •SKIDATA™ intercom system •Quality assurance complies with ISO 9001 standard •Unit conforms to all applicable guidelines and regulations Standard Version •Floor-type cabinet, complete with pedestal, floor stand, column door incl. lock, top section base plate, front and rear panels •KeyDetector Duo and Interface PCB; integrated support for contactless access control technologies; built-in connector for vehicle detector unit; power supply •SKIDATA™ intercom system Accessories •Control unit (PLC) includes CPU, control input/output terminals, power supply unit and interface port for additional control applications •Crash guard •Twin induction loop detector, complete with connecting cable Technical Specifications (For KeyDetector Duo specifications please refer to Door/Shutter Opener Duo Fact Sheet.) Supply voltage......................... 230/115 VAC; 50/60 Hz (manually switchable) Dimensions in mm................... 396 x 451 x 1218 (w x d x h) Weight ......................................approx. 25 kg Power consumption ................. 400 W max. Interface ...................................RS 485 (2-wire), Arcnet protocol Operating temperature............. approx. – 30 to + 45 °C (ambient) Humidity ................................... up to 90 % (non-condensing) Safety class.............................. IP 33 Standards .................................CE label Cabinet colour.......................... Front: Melon yellow (RAL 1028); top: white aluminium (RAL 9006); rack stand: eloxed aluminium; pedestal: black Handsfree Parking Column unlimitedAPT 450 System DevicePage 2/2 Base plate Tube and Cable outlet
