QSS-EXLCD400Parking column using RFID

Manual and operational description Parking Column EN/EX EMPTY 400 Parking Column ENTRY LCD 400 Parking Column ENTRY GR MON 400 Parking Column EXIT LCD 400 Parking Column EXIT GR MON 400 Parking Column EN/EX EMPTY 400 - US Parking Column ENTRY LCD 400 - US Parking Column ENTRY GR MON 400 - US Parking Column EXIT LCD 400 - US Parking Column EXIT GR MON 400 - US Parking Columns System SPT 400 Manual and operational description Parking Columns System SPT 400 Page 2 © SKIDATA AG, February 2004 SKIDATA AG Technical Documentation Untersbergstrasse 40 A-5083 Gartenau Telephone +43 6246 888-0, Telefax +43 6246 888-7 Internethttp://www.skidata.com [email protected] Copyright © 2004 by SKIDATA AG. All rights reserved. All information in the following document is protected by copyright law. No part of this document may be reproduced without the written consent of SKI- DATA AG. SKIDATA AG reserves the right to make any changes of specification and other information in this document without further notice. Please note During the compilation of this Technical Documentation, great care has been taken to ensure the accuracy of the information contained in it. However, despite our constant effort to ensure the highest degree of accuracy and comprehensiveness possible, the information provided cannot be guaranteed to be absolutely error-free. Trademarks This documentation may contain representations of registered product or service trademarks owned by SKIDATA AG or third parties, as well as references to proprietary know-how protected by copyright laws or other legal provisions. In any case the intel- lectual property rights remain exclusively with their respective owners. Declaration of Conformity The Parking Columns of System SPT 400 except the model ver- sions where the name ends with the characters “-US” have been developed, designed and manufactured in accordance with the following EU directive: R&TTE (99/5/EC) 0408 Version February 2004 Parking Columns System SPT 400 Manual and operational description © SKIDATA AG, February 2004 Page 3 Important :The FCC-specific notes apply only to the model ver- sions where the name ends with the characters “-US”. FCC 15.19: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause un- desired operation. FCC 15.21: IMPORTANT: Any changes to or modifications of Parking Col- umns of System SPT 400 unless expressly approved by SKI- DATA AG, may void the user's authority to operate this device. Manual and operational description Parking Columns System SPT 400 Page 4 © SKIDATA AG, February 2004 Parking Columns System SPT 400 1 Document Management – Version Table Tab. 1: Document Version Table for Installation & Maintenance Instructions SectionDocumentPagesVersionDate 1 Parking Columns System SPT 400 251.02004-02-11 Parking Column 1 1 Parking Columns System SPT 400 Version 1.0 25 pages Copyright 2004 by SKIDATA AG 1 Parking Column 1.1 Contents Page 2 © SKIDATA AG, Version 1.0 1.1 Contents 1.1Contents 2 1.2Parking Column for System SPT 400 3 1.2.1Installation 4 1.2.2Power supply 7 1.2.3Stripping connection wires 9 1.2.4Cross-sectional area of cable leads 11 1.2.5Connection terminals for control lead and intercom 11 1.2.6Connection loop detector 13 1.2.7Connection SIO, Arcnet 14 1.2.8Changing the fuse 16 1.2.9Earthing connection 17 1.2.10Surge protection for external devices 18 1.2.11Weather protection 18 1.2.12MANUAL OPEN/CLOSE switch 20 1.2.13Installing devices in the front panel 21 1.2.14Opening the front panel 23 1.2.15Closing the Parking Column 25 Parking Column1 Parking Column for System SPT 400 1.2 © SKIDATA AG, Version 1.0 Page 3 1.2 Parking Column for System SPT 400 General Warning: PCBs are sensitive to electrostatic discharge and should be handled with great care to avoid damage to the circuitry. Avoid touching the boards unnecessarily. Before mounting the column, check the entire device for possible transport damage. Before accessing electronical or mechanical parts, the entire deviced must be disconnected from the mains. Fig. 1: Parking Columns for System SPT 400 1 Parking Column 1.2 Parking Column for System SPT 400 Page 4 © SKIDATA AG, Version 1.0 Ensure the following before proceeding with the installation: „The concrete foundation must be exactly horizontal. Installing the device on an uneven surface may cause the chassis to become warped or damaged. If levelling of the surface is not possible, the parking column must be level-adjusted, e.g. by using additional hexagon nuts (see Fig. Hexagon nuts as spacers); in that case the threaded rods must be allowed to protrude further. „The surface of the concrete foundation must be even and ex- actly horizontal „Cable protection tubes should be cut approx. 2 cm above the concrete surface 1.2.1 Installation „The threaded rods should protrude approx. 50 mm from the concrete surface „The fastening tension of the hexagon nuts must not exceed 20 Nm „Use washers with large outer diameter (∅ = 30 mm, as per UN 737 standard) „The parking column must be aligned exactly horizontally Parking Column1 Parking Column for System SPT 400 1.2 © SKIDATA AG, Version 1.0 Page 5 Fig. 2: Column installation 1 Parking Column 1.2 Parking Column for System SPT 400 Page 6 © SKIDATA AG, Version 1.0 Installation on non-level surfaces (applies only in exceptional cir- cumstances) All three No. 2 washers must be absolutely level (use a spirit level if necessary). Important: Avoid drilling dust from getting into the device during installa- tion, as electrostatically charged dust may cause damage to the electronic assemblies inside the column. Fig. 3: Hexagon nuts as spacers Parking Column1 Parking Column for System SPT 400 1.2 © SKIDATA AG, Version 1.0 Page 7 1.2.2 Power supply Two types of Parking Columns are available : 120 V und 230 V Im…

Text truncated - open the document above for the full version.

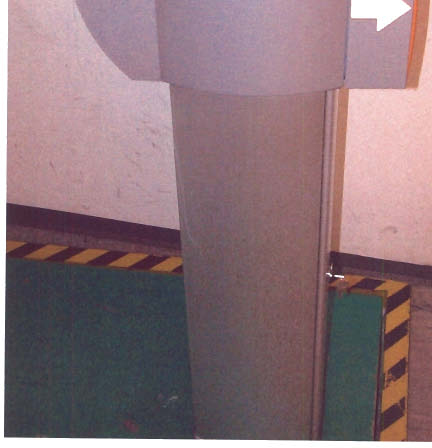

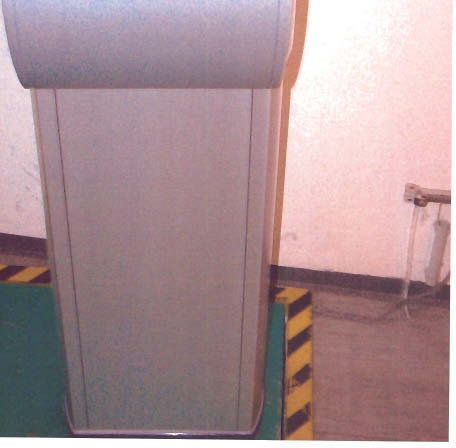

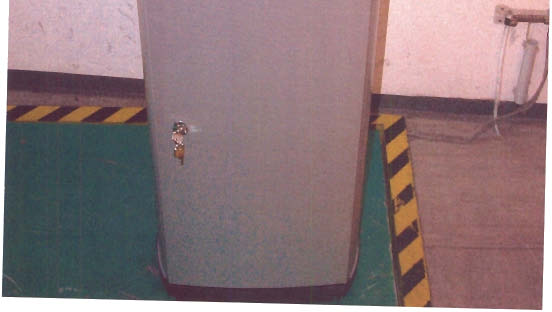

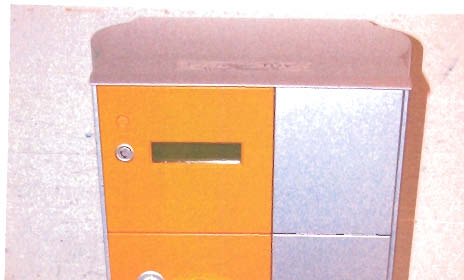

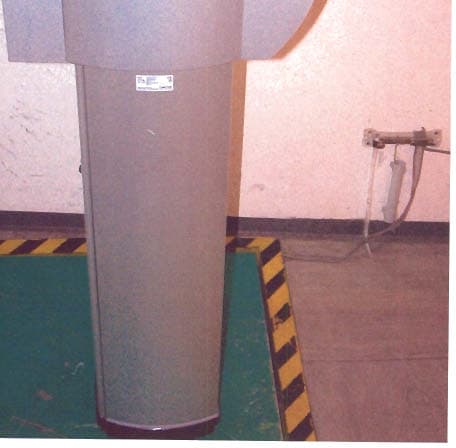

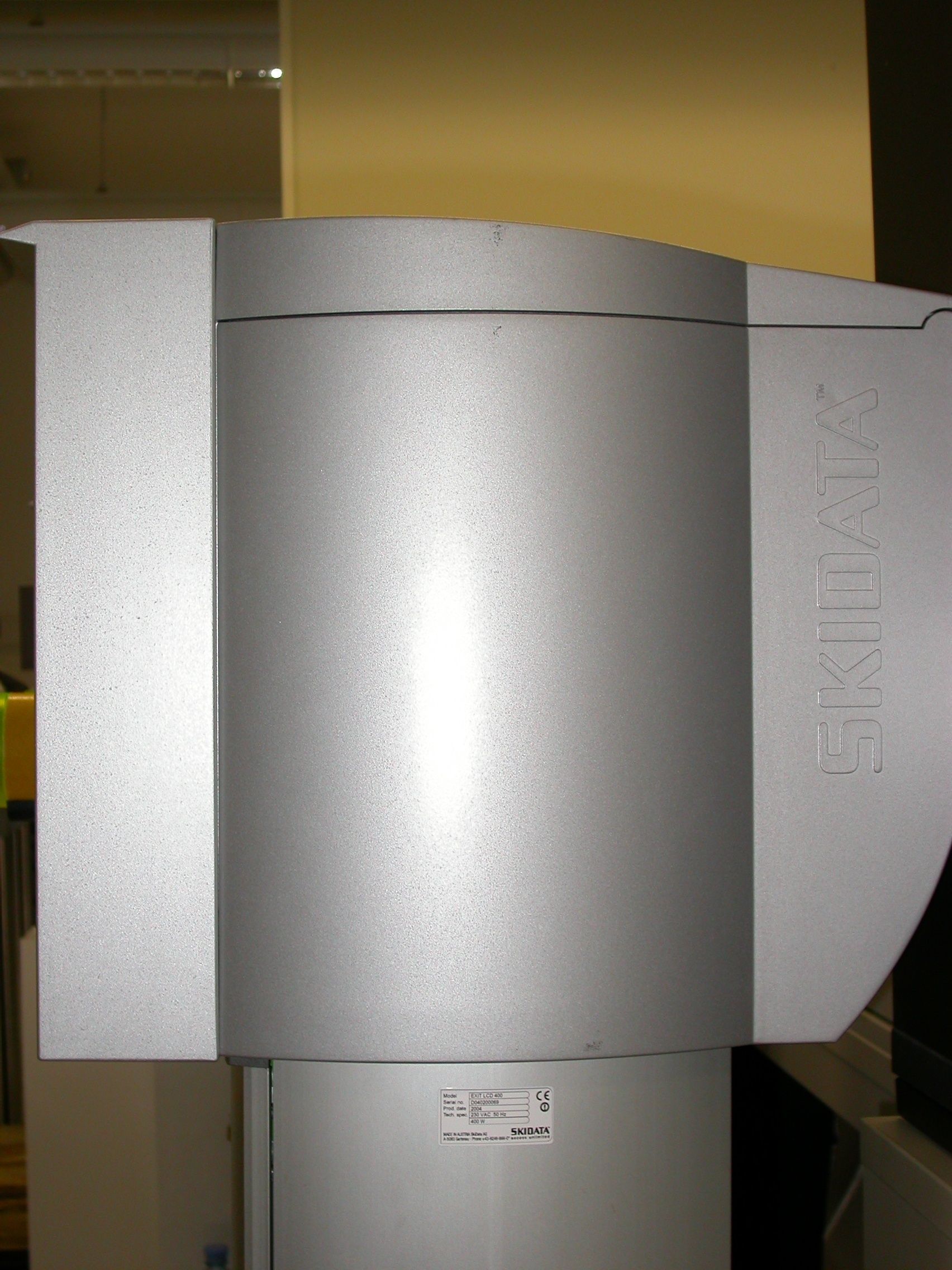

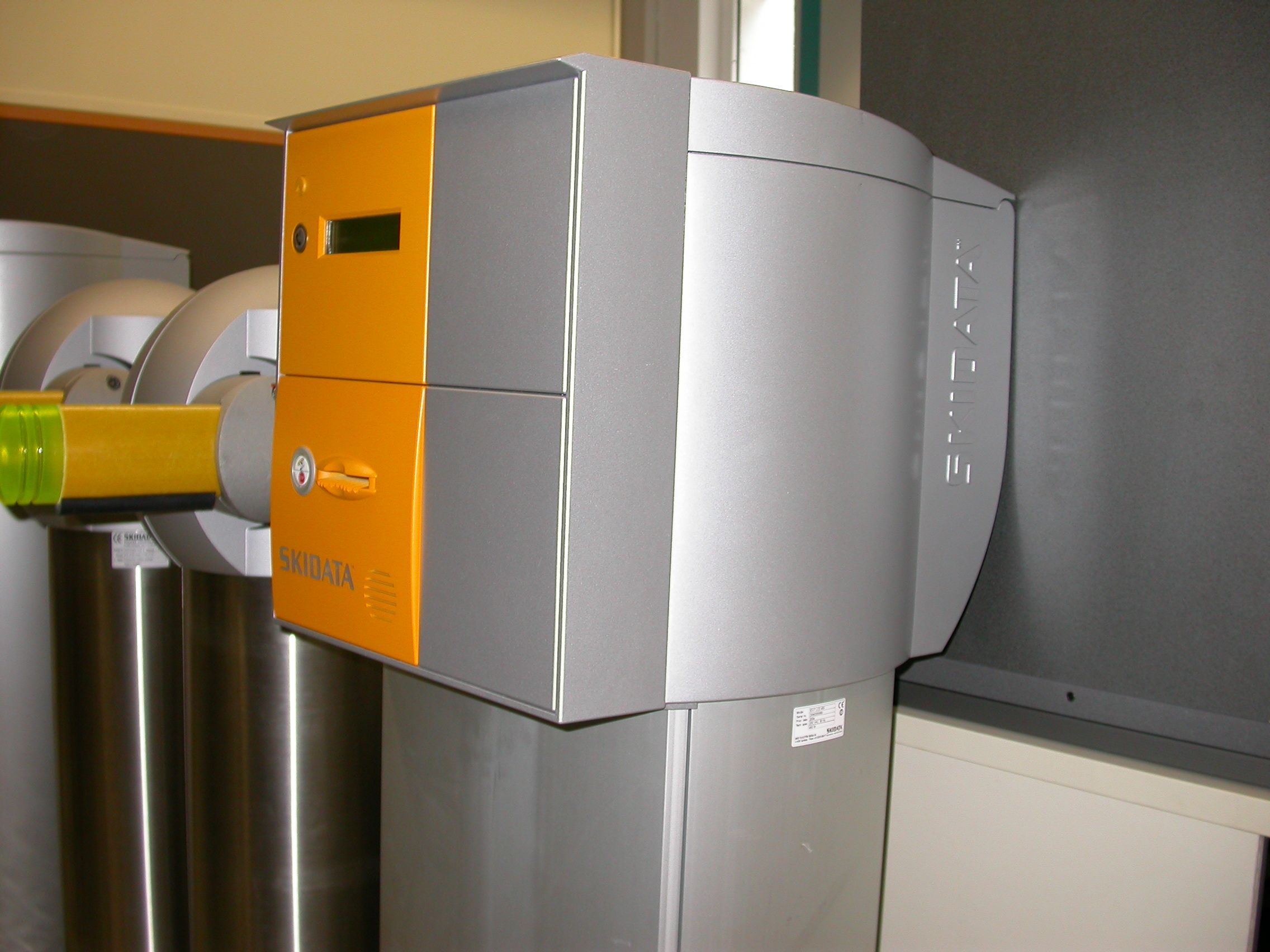

Coverletter: SKIDATA AG wants to get FCC-Certification for the following product: EXIT LCD 400-US. The unit will get the following FCC-ID: QSS-EXLCD400 List of documents: Exhibit Thema File Exhibit 01 Label and placement DSCN4280.jpg DSCN4281.jpg EXIT LCD 400_US.pdf Exhibit 02 Not needed -------------------- Exhibit 03 External Photos Extern_04-129.pdf * Exhibit 04 Block Diagrams Block Diagram EN EX LCD 400.pdf Block Diagram sd605.pdf * Exhibit 05 Schematic Diagrams SD528_3.PDF SD582_4.PDF SD591_3.PDF SD605_4.PDF SD611_1.PDF SD626_1.PDF SD627_1.PDF SD628_2.PDF Exhibit 06 Testreport 04-129.PDF Exhibit 07 Test Set-up Photos Setup_04-129.pdf Exhibit 08 User Manual Certifying-ParkingColumnSPT400-1-0-en1.pdf Exhibit 09 Internal Photos Intern_04-129.pdf Exhibit 10 Not needed -------------------- Exhibit 11 Not needed -------------------- Exhibit 12 Operational Description ParkingColumn-400-2-0-en-fact.pdf Exhibit 13 Cover letter Request for confidentiality This file Confidentiality_EXIT_LCD_400.pdf For the Exhibits marked with ‘*’ SKIDATA AG requested Confidentiality according to 47 CFR 0.457 and 0.459 of the FCC rules because these are sensitive parts owned by this company and include much of Know-How or sensitive data, it will not be provided to the public. The labelling on some photos is not the actual status. The correct labelling you can in Exhibit 1.

Fa. SKIDATA AG Untersbergstrasse 40 A-5183 Salzburg / Gartenau Austria, Europe Tel.: +43 6246 888-0 Fax: +43 6246 888-7 Gartenau, 2004-05-04 TÜV Österreich (TUEV Austria) Deutschstrasse 10 A-1230 Wien Austria, Europe Tel.: +43 1 61091-0 Request for CONFIDENTIALITY Pursuant to 47 CFR 0.457(d) of the FCC Rules, we have request for confidentiality of the following parts of our documentation regarding the Parking Column “EXIT LCD 400-US” (FCC-ID: QSS-EXLCD400): • Schematic Diagrams: - sd528_3.pdf - sd582_4.pdf - sd591_3.pdf - sd605_4.pdf - sd611_1.pdf - sd626_1.pdf - sd627_1.pdf - sd628_2.pdf • Block Diagrams: - Block Diagram EN EX LCD 400.pdf - Block Diagram sd605.pdf This information is owned by our company and put into public is prohibited. We further certify that the applicant nor any party to the application subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C Section 862. Christoph Sonderegger Standard Compliance Coordinator SKIDATA AG

:-):-) :-):-) :-) SKIDATA AG • Untersbergstraße 40 • A-5083 Gartenau [t] +43 (0) 62 46/8 88-0 • [f] +43 (0) 62 46/8 88-7 • [e] [email protected] • [w] www.skidata.com Version 2.0 • 31.07.2003 • Copyright © 2003 by SKIDATA AG This documentation may contain representations of registered product or service trademarks owned by SKIDATA AG or third parties, as well as references to proprietary know-how protected by copyright laws or other legal provisions. In any case the intellectual property rights remain exclusively with their respective owners. This document is subject to change without notice. It cannot form part of a binding contract. Picture may vary from actual product Parking ColumnSPT 400 System DevicePage 1/2 As the main controlling device at entrance and exit gates, the parking column can process barcode-based SKIDATA™ data carriers and contactless media in the form of KeyCards. All barcode tickets are processed through the same slot. The transceiver unit for contactless data transfer is integrated in the front panel of the column top. The column is prepared for the use of magnetic cards and smartcards, which are processed through a 2 nd slot. Design •Custom-configurable thanks to optional add-on components •Self-explanatory arrangement of control elements •Large illuminated ticket request button on entrance column terminal (button flashes when active) •Illuminated cancel/receipt request button on exit column terminal •Display for user guidance •Maintenance-friendly design; lockable swivel door; pull-out front panel; top cover (opens upwards); no tools required for replacing printer/scanner components •2 mounting bays for magnetic stripe card/ smartcard reader, key switch, PIN pad, camera, etc. Features •Ticket insert reader and scanner for processing barcode-based data carriers; integrated ticket or receipt printer; transport mechanism for withdrawing invalid and invalidated tickets; second barcode scanner module for reading barcode tickets in multiple positions •Production of short-term parking tickets, parking permit cards, and receipts by thermal direct printing •keymotion™ processing module for handling contactless 13 MHz/125 kHz KeyCards, integrated into front panel •Motorised/non-motorised magnetic stripe card reader for mag stripe cards •Motorised/non-motorised hybrid card reader for magnetic stripe cards and smartcards •Thermostat-regulated heating and ventilation •SKIDATA™ intercom system •Ticket supply container holds up to 9,000 tickets (continuous tape) •Ticket shortage detector; tray for retained, invalidated, blocked and defective tickets (max. capacity: 150 tickets at entrance column / 2,000 tickets at exit column) •Weather-resistant thanks to use of high-quality materials such as aluminium •Quality-assured in accordance with ISO 9001 Standard Version •2-line backlit LC display for up to 16 characters per line; switchable power supply; heater; •Ventilator; intercom system; interface board sd582; 13 MHz/125 kHz keymotion™ card media •Device can be configured for exclusive hands-free operation (including custom front design) Accessories •Barcode scanner; second barcode scanner; receipt printer; ticket transport unit •Motorised/non-motorised magnetic stripe card or hybrid card reader •Graphics-capable grey-scale display (backlit); 320 x 240 pixels; use of incoming light for illumination enhancement; lock (suitable for installation in locking system); crash guard •3 keys for customisable special functions (Confirm, Cancel, Receipt) Technical Specifications Data carriers..............................Thermal ticket TK400, KeyCard Processing capacity....................Entrance column: approx. 720 short-term parkers per hour Exit column: approx. 900 short-term parkers per hour Supply voltage............................230/115 VAC; 50/60 Hz (manually switchable) Cabinet dimensions (mm)............396 x 442 x 1218 (w x d x h) Weight.......................................approx. 25 kg Max. power consumption............400 W Interface.................................... RS 485 (2 wire), Arcnet Protocol Temperature range.....................Operation: - 30 to + 45 °C (ambient) Humidity.................................... up to 90 % (non-condensing) Protection class.......................... IP 33 Standards.................................. CE label Cabinet colour............................Front: Melon yellow (RAL 1028)/ White aluminium (RAL 9006); Top: White aluminium (RAL 9006); Rack stand: anodized aluminium; plinth (pedestal): black Parking ColumnSPT 400 System DevicePage 2/2 Cable outlet Base plate
