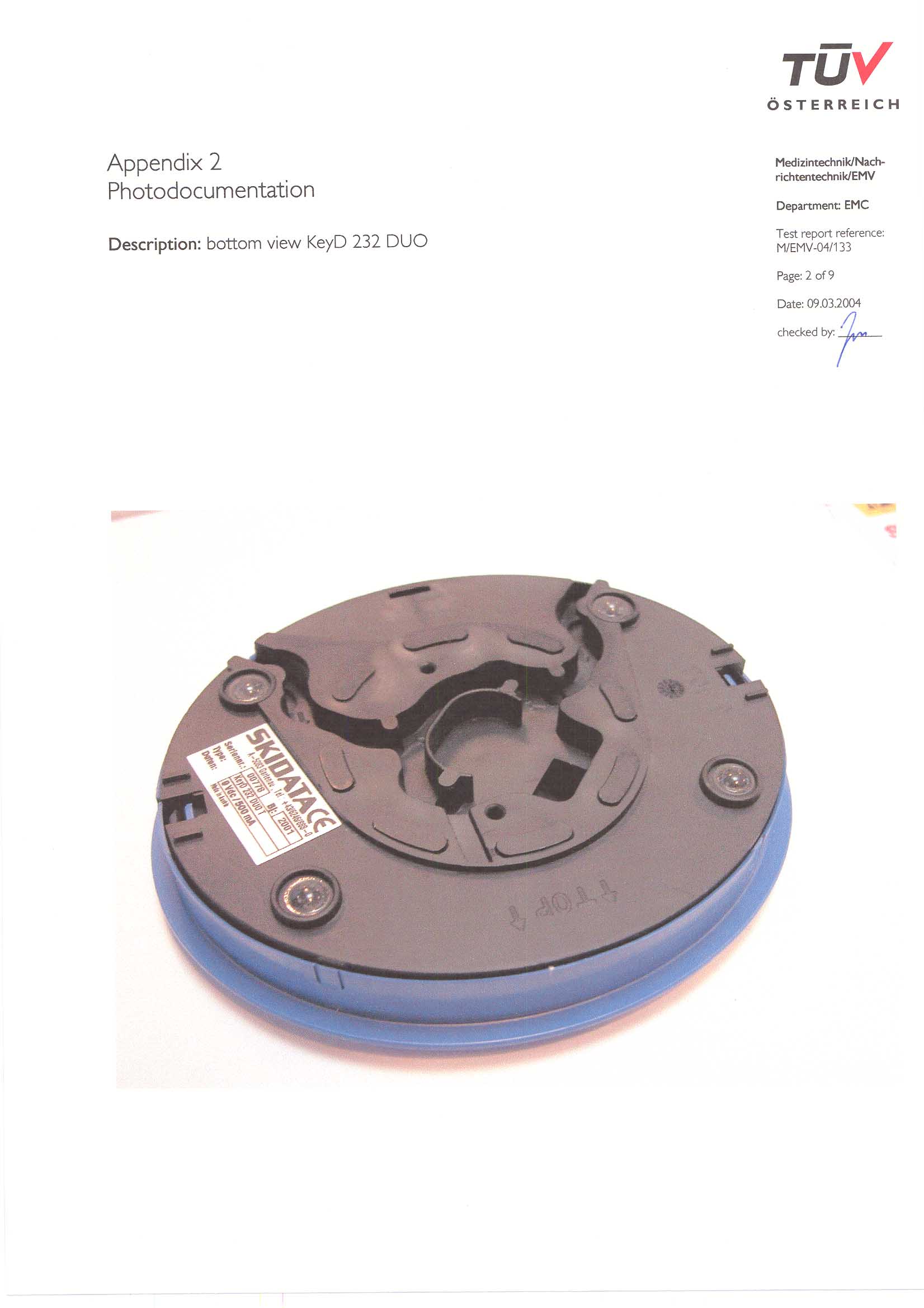

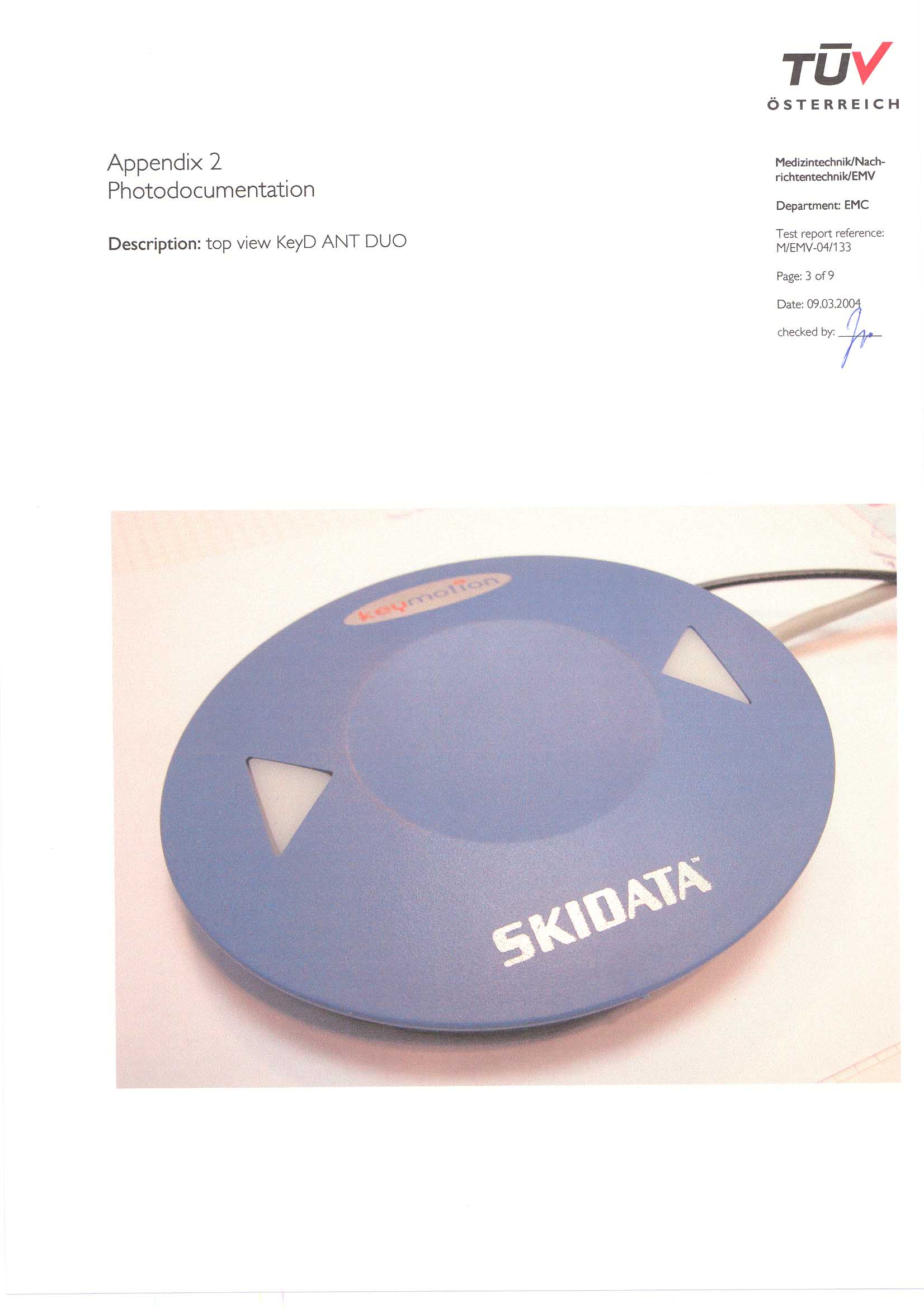

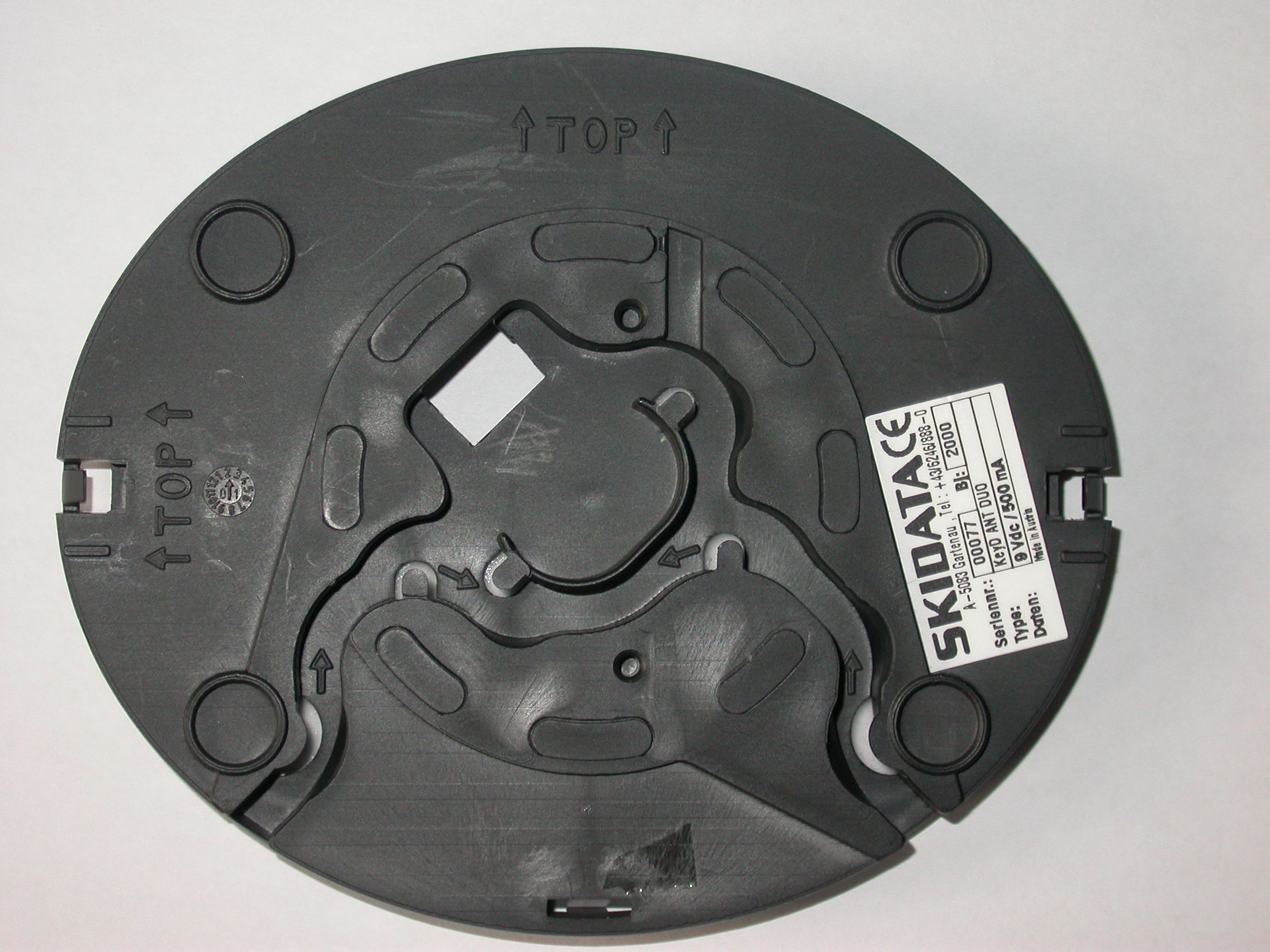

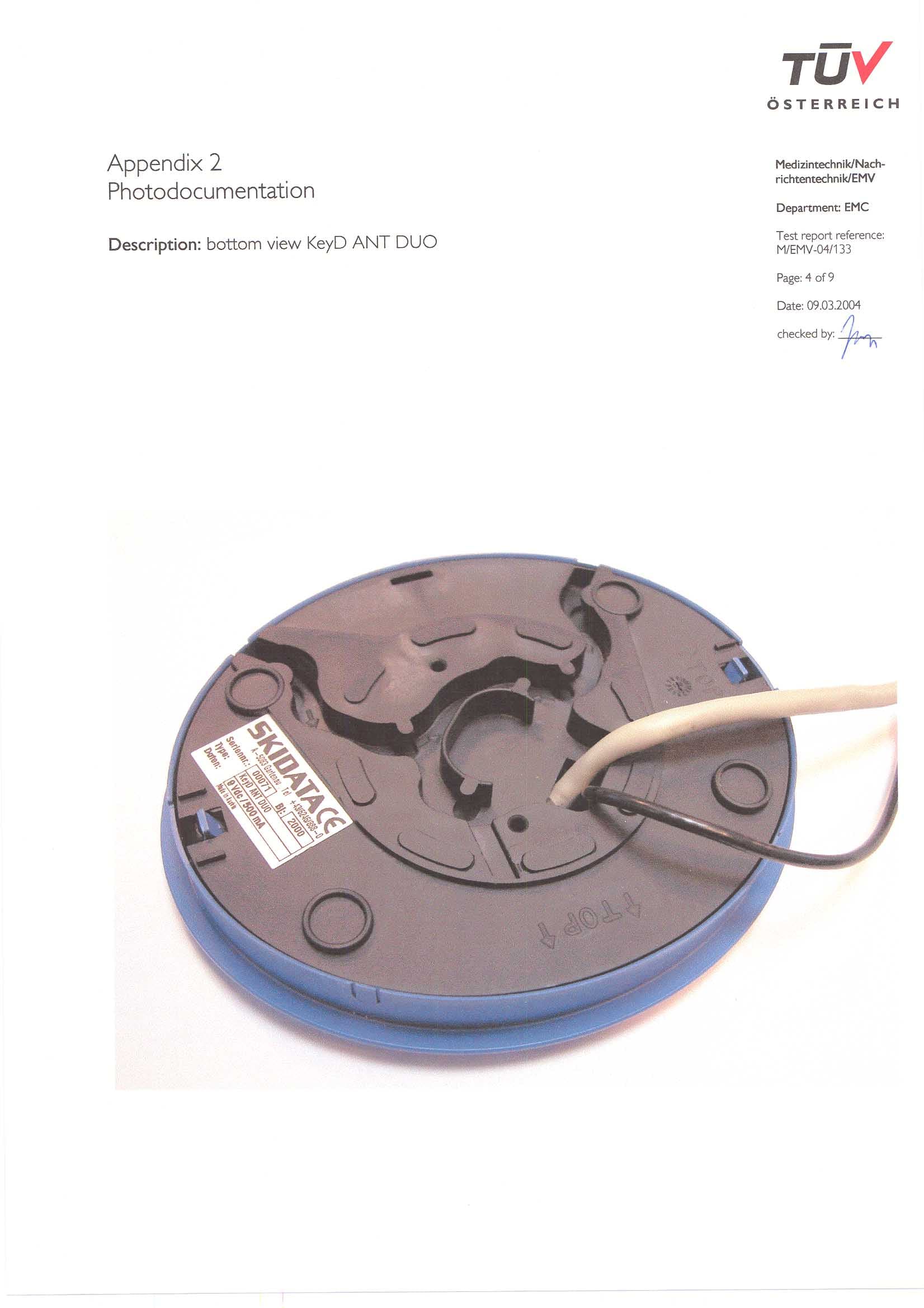

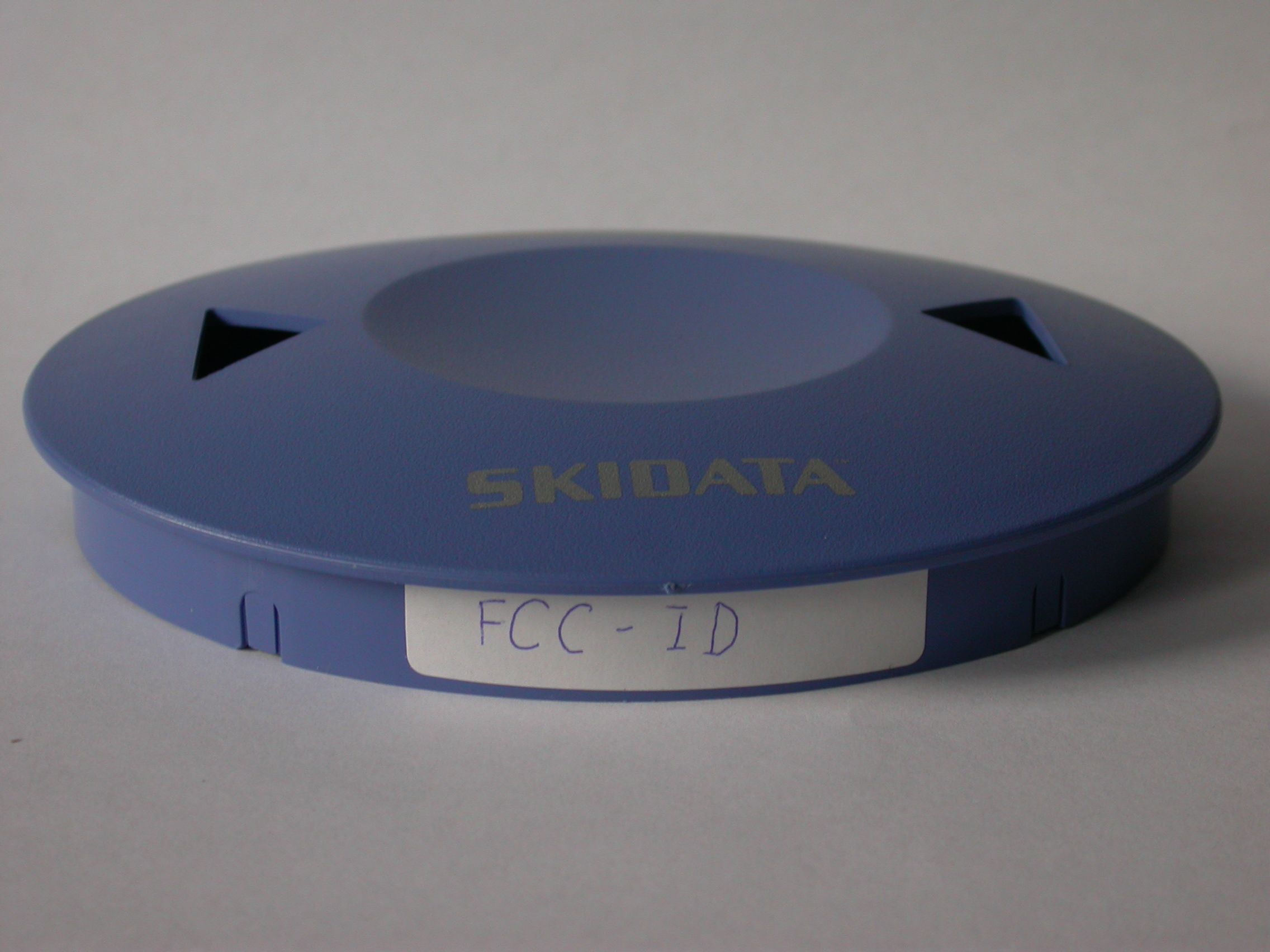

QSS-KEYDDUO232Transponder-card reader for access control

Manual and operational description Reading Device KeyD 232 DUO KeyD 485 DUO KeyD ANT DUO Manual and operational description KeyDetector DUO Page 2 © SKIDATA AG, February 2004 SKIDATA AG Technical Documentation Untersbergstrasse 40 A-5083 Gartenau Telephone +43 6246 888-0, Telefax +43 6246 888-7 Internet http://www.skidata.com e-mail [email protected] Copyright © 2004 by SKIDATA AG. All rights reserved. All information in the following document is protected by copyright law. No part of this document may be reproduced without the written consent of SKI- DATA AG. SKIDATA AG reserves the right to make any changes of specification and other information in this document without further notice. Please note During the compilation of this Technical Documentation, great care has been taken to ensure the accuracy of the information contained in it. However, despite our constant effort to ensure the highest degree of accuracy and comprehensiveness possible, the information provided cannot be guaranteed to be absolutely error-free. Trademarks This documentation may contain representations of registered product or service trademarks owned by SKIDATA AG or third parties, as well as references to proprietary know-how protected by copyright laws or other legal provisions. In any case the intel- lectual property rights remain exclusively with their respective owners. Declaration of Conformity The KeyDetector DUO has been developed, designed and manu- factured in accordance with the following EU directive: R&TTE (99/5/EC) 0408 Version February 2004 KeyDetector DUO Manual and operational description © SKIDATA AG, February 2004 Page 3 EU countries only: The length of the DC cable (cable between power adaptor and KeyDetector) must not exceed 3 m. FCC 15.19: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause un- desired operation. FCC 15.21: IMPORTANT: Any changes to or modifications of KeyDetector DUO unless expressly approved by SKIDATA AG, may void the user's authority to operate this device. FCC only: the DC cable or combined DC/interface cable must be fitted with a ferrite element of type “Würth 74271131” near the lo- cation where the cable connects to the KeyDetector (see image; the cable must be ‘looped’ twice through the ferrite element, as il- lustrated below). Ferrite element KeyDetector Manual and operational description KeyDetector DUO Page 4 © SKIDATA AG, February 2004 KeyDetector DUO 1 Document Management – Version Table Tab. 1: Document Version Table for Installation & Maintenance Instructions Section Document Pages Version Date 1 KeyDetector DUO 4 1.0 2004-02-02 1 Copyright by SKIDATA AG 2004 KeyDetector DUO KD DUO KeyDetector DUO is the standard interface module for SKIDATA’s keymotion technology. As such it constitutes a connecting link interfacing keycard and Swatch Access data carriers with higher systems and applications. „ Proximity 122 kHz and 13 MHz transmission technology. „ Reads keymotion Data Carriers; allows coding them using automatic memory management. „ Contains a security-IC for encrypting data for keymotion data carriers. „ Control and communication via serial inter- face RS232 (RS485 optional) with defined protocol. „ Signalling by red/green/orange LED and beeper. Mounting Information The data transmission between the KeyDetector and data carriers is sensitive against electrical and electro- magnetical fields. Those fields are produced by electrical devices of any kind such as monitors, TV- sets, ... Thus the KeyDetector must not be placed near electrical devices. Also metal surfaces placed near the KeyDetector have a strong impact on the data transmissions. For sure and reliable operation it is neccessary that there are no metal objects within 10 cm around the KeyDetector in any direction. If metal objects are placed between the KeyDetector and a data carrier data transmission will be impossible at all in most cases. Electrical Characteristics RS232-Versions RS485-Versions Supply Voltage (V in ) 7 V to 12 V 7 V to 12 V Supply Current (I in ) TAG write-mode max. 500 mA excl. external antenna Supply Current (I in ) Idle mode typ. 60 mA max. 100 mA (no LEDs switched on) Reading distance Typical Swatch Access 40 mm Swatch Beat 40 mm KeyCard 100 mm GemFree 80 mm Weights Weight KeyDetector in housing 150 g (excl. power supply and cable) module version 50 g Absolute Maximum Ratings RS232-Versions RS485-Versions Supply Voltage (V in ) +15.00 V +15.00 V Input Voltage (RxD) ±30.00 V Input Voltage (A,B) +5.00 V Input Voltage IO1 – IO3+32.00 V +32.00 V Output Current IO1/IO21.0 A Storage Temperature -30 °C to +70 °C Operating Temperature-20 °C to +60 °C 2 Copyright by SKIDATA AG 2004 Pin Description - Desktop Versions All desktop Versions have a cable with D-type subminiature connector with 9 pins; receptable (=female) housing. A plug-in power supply, connected to the cable, is also be included. Figure 1 - connector-receptable, front view 12345 6789 Pin # Signal Function 1 - not connected 2 RxD / A RS232: Receive Data RS485: Signal A 3 TxD / B RS232: Transmit Data RS485: Signal B 4 - not connected 5 GND Power Ground RS232: Signal Ground 6 - not connected 7 - not connected 8 - not connected 9 Vin Power Supply Voltage Figure 2 140 130 25 120 60 Mounting Plate (bottom view)Casing Installing KD DUO 1. Thread cable through bottom section and fasten 2. Screw bottom section to mounting socket NOTE: Ensure correct alignment of TOP marking 3. Screw top cover to bottom section All cables must be fed in vertically to prevent water from leaking in. Adjust cable feed as needed. Note that fixing screws are not included in delivery Figure 3 Cable hole Fixing screw Break-out for mountingSnap-in latch Figure 4 CoverPCB Bottom section Cable Concealed mounting socket Cable feed hole (desktop version) Copyr…
